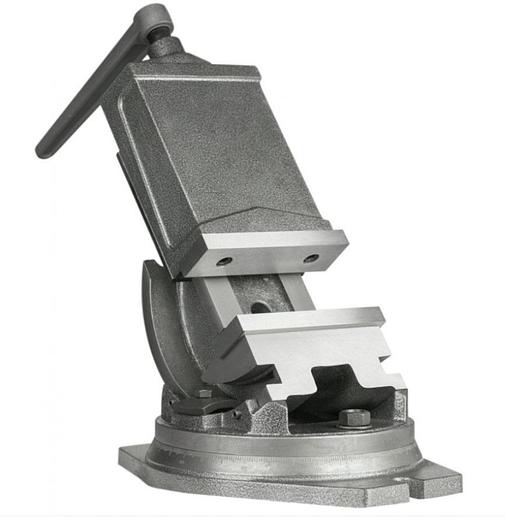

Cormak QHK100 x 80mm Tilting Machine Vice

Cormak QHK100 x 80mm Tilting Machine Vice

Vice Description

The vice is made of high quality cast iron. Thanks to the precise guiding, the rotary-vice machine vice is used in the precision mechanics industry. The rotating base allows you to change the angle in the horizontal plane by 360 degrees & in the vertical plane by 90 degrees. Jaw inserts made of hardened tool steel (55 + - 3HRC) and precision ground. • Vice made of high quality cast iron. • Rigid structure, high durability and reliable. • Angle of rotation around Y axis – 360 Deg, Z axis – 90 Deg. • Vice Applications: grinding, milling and drilling machines.

Cast iron rotary QHK machine vice, useful while working with grinding, milling, drilling and planing machines, etc.

Made of high-quality cast iron

Equipped with swivel base with 360 Deg pitch, 1 Deg gradation

Body, along with the moving jaw, is made of high-quality cast iron

Top side of the lead screw secured from dirt and chips

Possible disassembly of the swivel base

While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy parameters specified in the technical documentation Technical Specification Jaw Width : 100 mm Max Opening : 80 mm Jaw Height: 40 mm Base Width: 178 mm Height: 154 mm Length: 325 mm Clamping force: 2000 kg Weight: 18 kg

Vice Dimensions

S: 100mm

am: 80mm

h: 40mm

H: 154mm

A: 178mm

L: 325mm

D: 14mm
