€335 + VAT

Cormak QH200 x 160mm Machine Vice

10

Poland

orCall +353 838108745

Description

Cormak QH200 x 160mm Machine Vice


Vice Description

Swivel-base machine vice, recommended as basic equipment for milling, drilling and planing machines, etc. Lightweight design makes these very popular.

The machine vice is made of cast iron with smooth, hardened and ground jaw blocks. A swivel vice graduated 360 Deg.


Cast iron rotary QH machine vice, useful while working with grinding, milling, drilling and planing machines, etc.

Made of high-quality cast iron

Equipped with swivel base with 360o pitch, 1o gradation

Body, along with the moving jaw, is made of high-quality cast iron

Top side of the lead screw secured from dirt and chips

Possible disassembly of the swivel base

While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy

parameters specified in the technical documentation

Technical Specification Jaws Width: 200 mm Jaw Height: 63 mm Max Opening: 160 mm Swivel Base: 360°

Clamping Force: 3500kg Weight: 41 kg

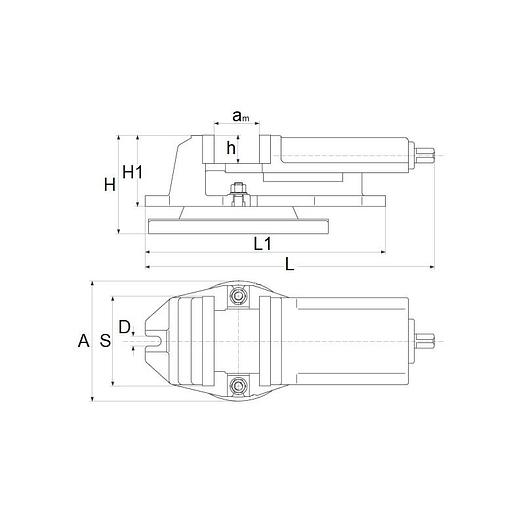

Vice Dimensions

S: 200mm

am: 160mm

h: 63mm

H1: 140mm

H: 178mm

A: 240mm

L: 480mm

L1: 445mm

D: 18mm

Specifications

ManufacturerCormak
ModelQH200 x 160mm Machine Vice
ConditionNew
Jaws width200 mm
Jaw height63 mm
Max opening160 mm
Swivel base360°
Clamping Force3500kg
Weight41 kg
