Cormak QH100mm x 80mm Machine Vice

Cormak QH100 x 80mm Machine Vice

Vice Description

The machine vice is made of cast iron with smooth, hardened and ground jaw blocks. A swivel vice graduated 360 Deg. Cast iron rotary QH machine vice, useful while working with grinding, milling, drilling and planing machines, etc.

Made of high-quality cast iron

Equipped with swivel base with 360o pitch, 1o gradation

Body, along with the moving jaw, is made of high-quality cast iron

Top side of the lead screw secured from dirt and chips

Possible disassembly of the swivel base

While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy parameters specified in the technical documentation

Technical Specification Jaws Width: 100 mm Jaw Height: 36 mm Max Opening: 80 mm Swivel Base: 360°

Clamping Force: 2000kg Weight: 9.5 kg

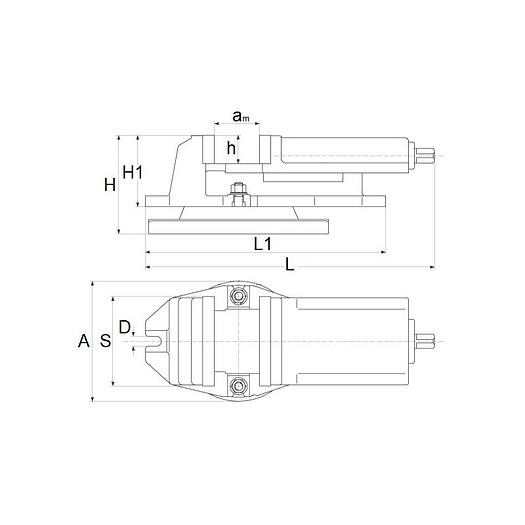

Vice Dimensions

S: 100mm

am: 80mm

h: 35mm

H1: 82mm

H: 107mm

A: 131mm

L: 265mm

L1: 243mm

D: 14mm
