Cormak PBB 1270 x 2.0mm
Description

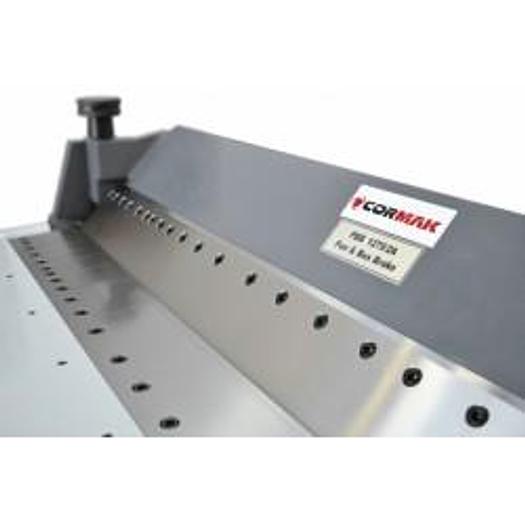

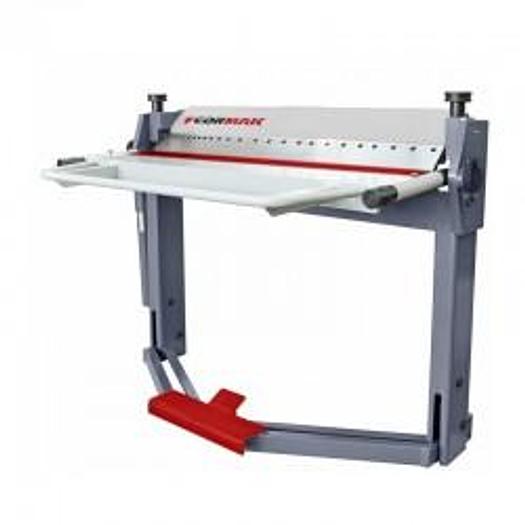

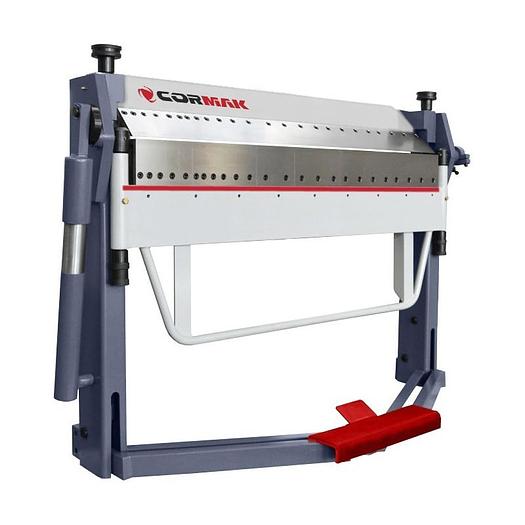

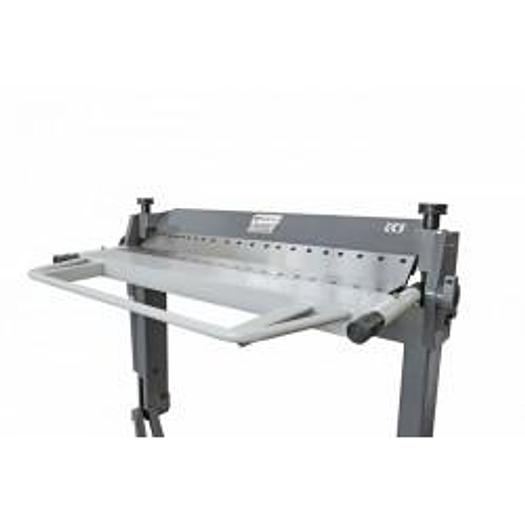

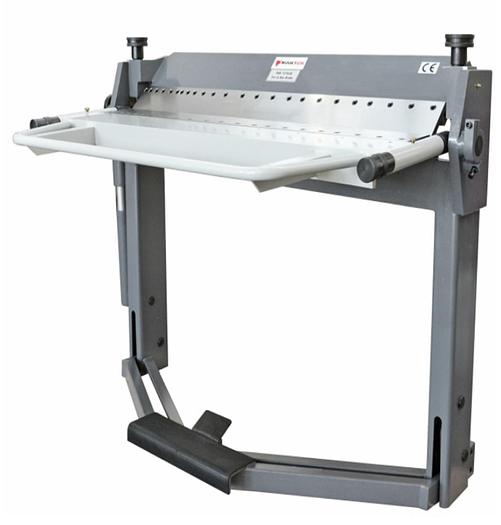

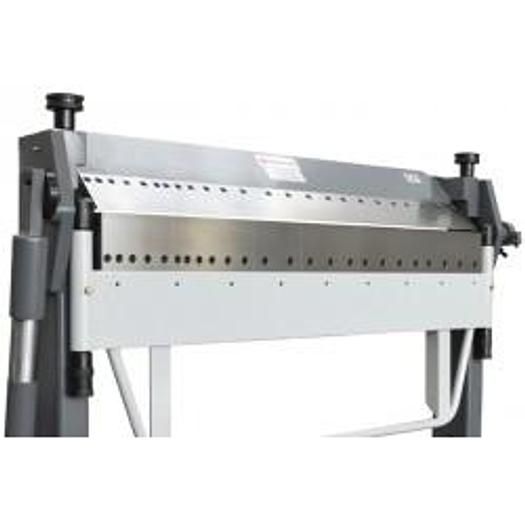

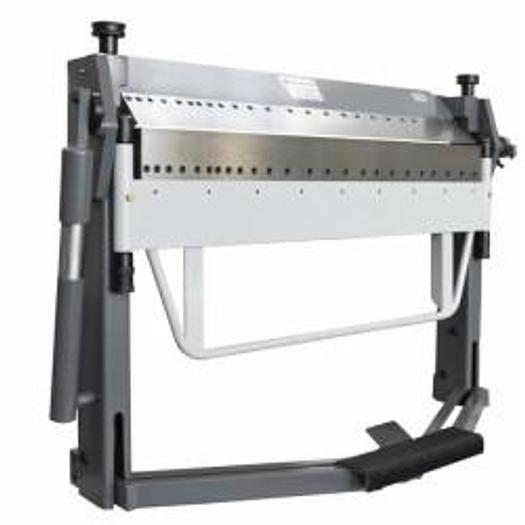

Cormak PBB 1270 Box & Pan Folder
Machine Description
The Cormak PBB 1270 Box & Pan Folder has exchangeable segments on the top as well as on the lower part. This gives an extremely wide application for bending large elements as well as for details. Segments are made of cast iron castings, pressure resistant, resistant to deformation and extremely high strength. The simple design ensures high operating comfort and a wide range of practical applications. The smallest segment possible to mount is 25 mm and the largest 270 mm with the possibility of changing the places allows you to bend any shape in the quality you want to get. The maximum sheet thickness of 2 mm and the possibility of adjusting the opening to 30 mm ensures practically no limitations for this model. Technical Details Working width: 1270 mm Maximum sheet thickness: 2.0mm Maximum opening height: 30 mm Angle of bend: 0 ° - 150 ° Segment Dimensions: 25,30,35,40,45,50,75,100,150,200,250,270mm Dimensions: 1710 mm x 750 mm x 1420 mm Weight: 422 kg
Specifications
| Manufacturer | Cormak |
| Model | PBB 1270 x 2.0mm |
| Condition | New |
| Maximum sheet thickness | 2.0mm |
| Working width | 1270 mm |
| Maximum opening height | 30 mm |
| Bending Angle | 0 ° to 150 ° |
| Segment Sizes | 25,30,35,40,45,50,75,100,150,200,250,270mm |
| Machine Dimensions (L x W x H) | 1710 mm x 750 mm x 1420 mm |
| Weight | 422 kg |
