€2,240 (EUR)
+ VAT

Cormak Z5028W Pedestal Drilling Machine

1

Poland

Description

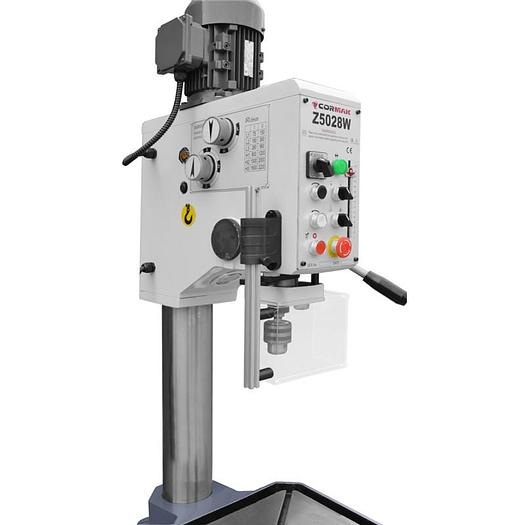

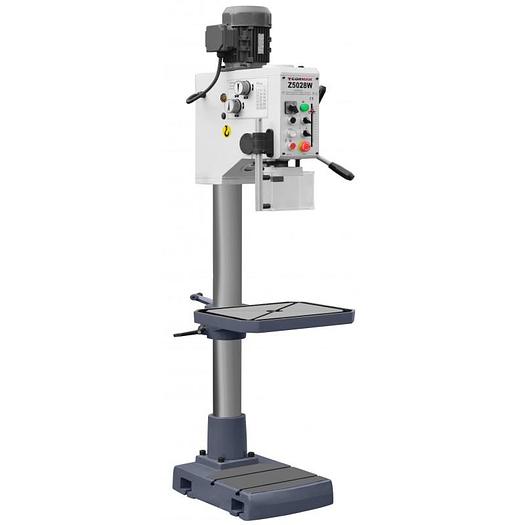

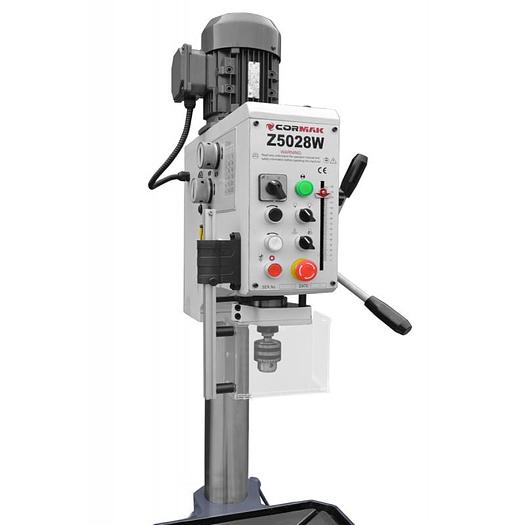

Cormak Z5028W Pedestal Drilling Machine


The industrial geared pillar drill Z5028W combines power and precision, making it suitable for a wide range of applications. Its robust construction ensures efficient, precise drilling. The drill features a large height-adjustable worktable, 12 spindle speed settings, clockwise and anticlockwise rotation, and an adjustable drilling depth stop with a scale. The drill is equipped with a built-in cooling system.


Manufacturer: Cormak

Model: Z5028W

Machine Type: Gear Driven Pedestal Drill with Coolant Equipment

Capacity: 32mm

Power: 3 Phase 400V


Machine Description

The CORMAK Z5028W pillar drill is a professional pillar drill for metal, designed for precise and demanding drilling and tapping operations in industrial environments. Its robust construction, wide speed range and integrated cooling system make it a reliable machine for workshop and manufacturing applications.


Machine Features

  • Tapping capability thanks to clockwise and anticlockwise rotation – ideal for precise internal thread cutting.
  • Built-in cooling system – effectively dissipates heat, extending tool life and improving machining quality.
  • 12 spindle speed settings – from 75 to 3,200rpm, enabling optimum adjustment of machining parameters to the material type and tool diameter.
  • Long spindle travel – 130mm – enables deeper holes to be machined without interrupting the operation.
  • Stable 97mm-diameter column – provides high structural rigidity and minimises vibration during drilling.

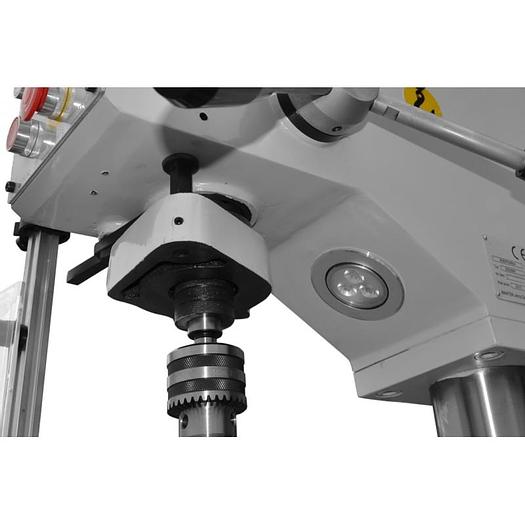

  • LED work area lighting – improves precision and operator comfort, even in poorly illuminated working environments.


Standard Equipment

  • Cooling system
  • Drilling depth indicator
  • LED work area lighting
  • Clockwise and anticlockwise rotation
  • Base with T-slots


Technical Details

Maximum Drilling Diameter: 32 mm

Spindle Taper: MT3

Spindle Quill Travel: 130 mm

Throat Depth: 250 mm

Distance from Spindle Face to Worktable: 125–825 mm

Distance from Spindle Face to Base: 1220 mm

Spindle Speed: 75–3200 rpm

Number of Gears: 12

Worktable Dimensions: 480×380 mm

Base Dimensions: 360×535 mm

T-slots Width: 14 mm

Motor Power: 1.1 kW

Weight: 230 kg


Construction and Technology

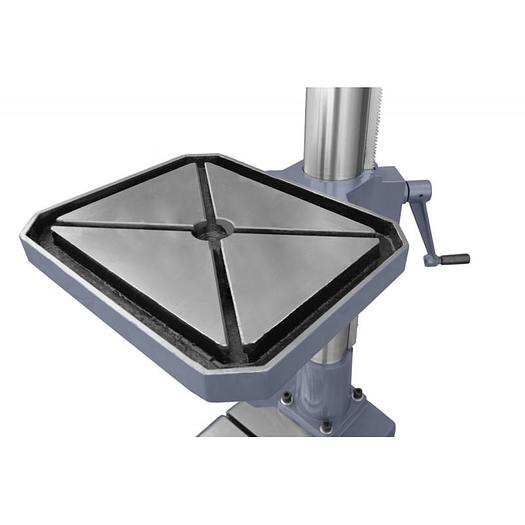

The CORMAK Z5028W pillar drill is built around a substantial column and cast-iron components, including the base, table and drill head. This construction ensures rigidity and resistance to dynamic loads. The worktable features 14mm-wide T-slots, enabling quick and secure mounting of vices and workholding fixtures. The spindle, equipped with an MK3 taper, is mounted on precision bearings, ensuring stable rotation and drilling accuracy.


Precision and Operating Performance

Thanks to the 12-speed gearbox, wide speed range and clearly readable drilling depth indicator, the operator has full control over machining parameters. The reversible rotation function enables safe tapping operations. The machine provides a generous working area, with a maximum distance of 1,220mm between the spindle nose and the base, allowing larger workpieces to be machined.


Applications

The CORMAK Z5028W pillar drill for metal is ideally suited for use in:

  • industrial and manufacturing facilities
  • metalworking and mechanical workshops
  • maintenance departments
  • technical schools and training centres
  • toolrooms and engineering service companies

Specifications

ManufacturerCormak
ModelZ5028W Pedestal Drilling Machine
ConditionNew
Stock Number969104
Machine TypeGear Driven Pedestal Drill
Capacity32mm
Power3 Phase 400V
Maximum Drilling Diameter32 mm
Spindle TaperMT3
Spindle Quill Travel130 mm
Throat Depth250 mm
Spindle Speed75–3200 rpm
Number of Gears12
Worktable Dimensions480×380 mm
Base Dimensions360×535 mm
Motor Power1.1 kW
Weight230 kg
