€2,173 + VAT

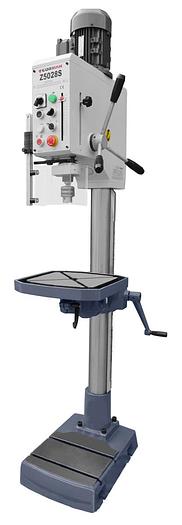

Cormak Z5028S Pedestal Drill - Capacity 28mm - 3 Phase

Ireland

orCall +353 838108745

Description

A very efficient pillar drill for optimal drilling results. The drill has a large work table, 12 spindle speed ranges, right / left rotation, adjustable depth stop with scale. MACHINE DESCRIPTION Work light Threading option Base with t-slots Adjustable setting of the table inclination and table height The possibility of tilting the table with an accuracy of 1 ° Turn right / left Drilling depth indicator TECHNICAL SPECIFICATIONS Max. Diameter of drilling: 28 mm Spindle taper: MT3 Spindle lever: 130 mm Distance from the spindle nose to the workplate: 125 - 825 mm Distance from the spindle to floor: 1220 mm Spindle speeds: 75 - 3200 rpm Number of gears: 12 Dimensions of work table: 380 x 380 mm Dimensions of base: 360 x 535 mm Width of T-grooves: 14 mm Motor power: 1.1 Kw Voltage: 400v Weight: 230 kg

Specifications

ManufacturerCormak
ModelZ5028S Pedestal Drill - Capacity 28mm - 3 Phase
ConditionNew
