€335 + VAT

Cormak AP-3 Manual Arbor Press - 3 Ton

Cork, Ireland

orCall +353 838108745

Description

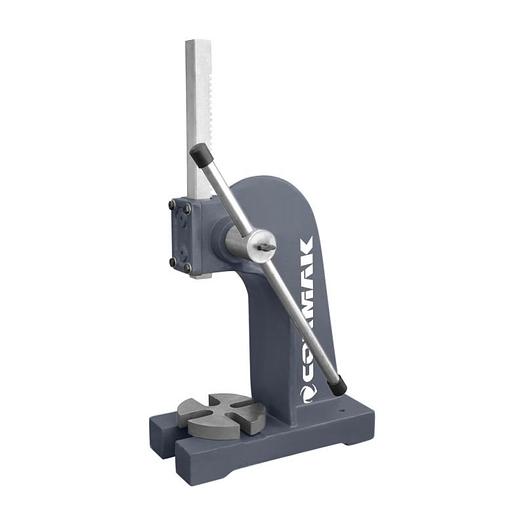

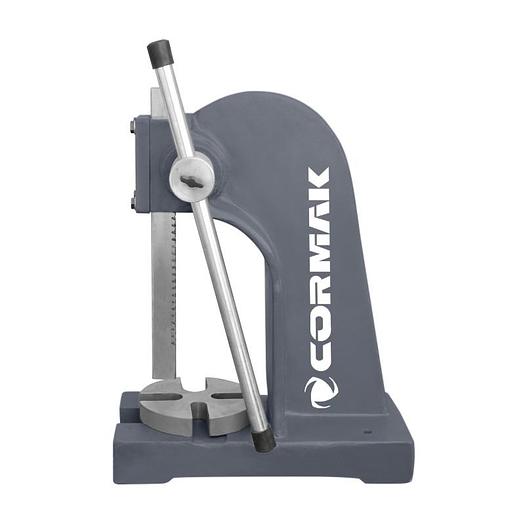

Cormak AP-3 Manual Arbor Press


A universal arbor press made of high quality iron casting. This series is an ideal solution for many applications in one trouble-free and cost effective machine. Easy in use for bushing, bending, straightening, reaming etc. • For bearings, sleeves and pins extrusion and assembly. • High quality iron casting. • Table set in four positions. • Can be used in every workshop

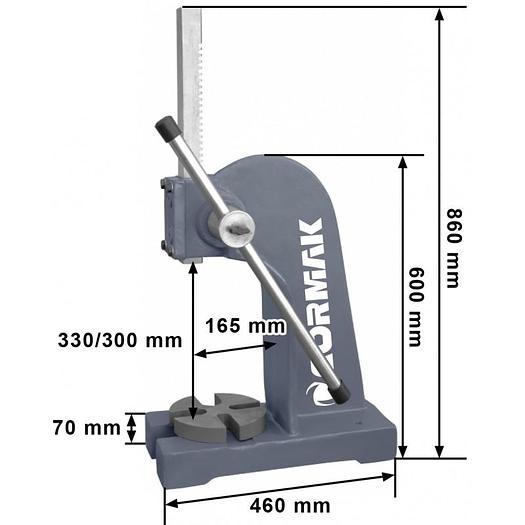

Technical Details

Pressing force: 3 Ton

Maximum workpiece height: 285 mm

Distance from piston axis to column surface: 165 mm

Table diameter: 163 mm

Arbor dimensions: 38×38 mm

Largest hole in the table: 44 mm

Height after arbor lowering: 615 mm

Base dimensions: 455×300 mm

Weight: 65 kg

Specifications

ManufacturerCormak
ModelAP-3 Manual Arbor Press - 3 Ton
ConditionNew
Pressing force3 Ton
Maximum workpiece height285 mm
Table diameter163 mm
Arbor dimensions38×38 mm
Height after arbor lowering615 mm
Base dimensions455×300 mm
Weight65 kg
