€310 + VAT

Cormak AP-2 Manual Arbor Press - 2 Ton

Cork, Ireland

orCall +353 838108745

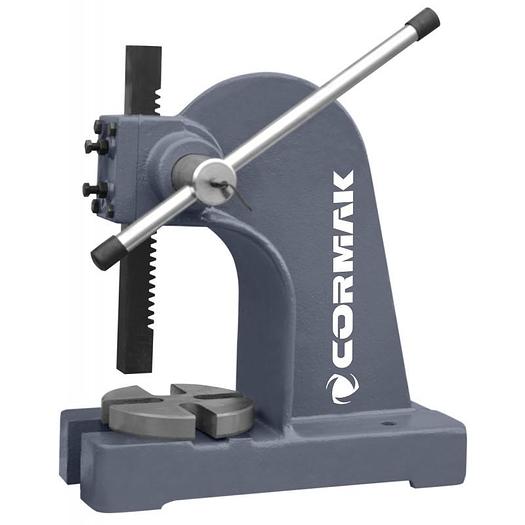

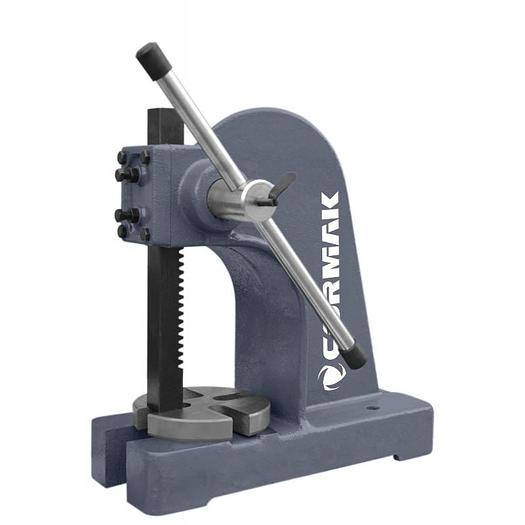

Cormak AP-2 Manual Arbor Press

A universal arbor press made of high quality iron casting. This series is an ideal solution for many applications in one trouble-free and cost effective machine. Easy in use for bushing, bending, straightening, reaming etc. • For bearings, sleeves and pins extrusion and assembly. • High quality iron casting. • Table set in four positions. • Can be used in every workshop Technical Details Pressing force: 2 Ton

Maximum workpiece height and diameter: 180×123 mm

Distance from piston axis to column surface: 61.5 mm

Table diameter: 161 mm

Arbor dimensions: 32×32 mm

Largest hole in the table: 40 mm

Height after arbor lowering: 445 mm

Base dimensions: 432×260 mm

Weight: 38 kg


ModelAP-2 Manual Arbor Press - 2 Ton
Pressing force2 Ton
Table diameter161 mm
Arbor dimensions32×32 mm
Height after arbor lowering445 mm
Base dimensions432×260 mm
Weight38 kg
