€99 + VAT

Cormak AP-1 Manual Arbor Press - 1 Ton

Ireland

orCall +353 838108745

Description

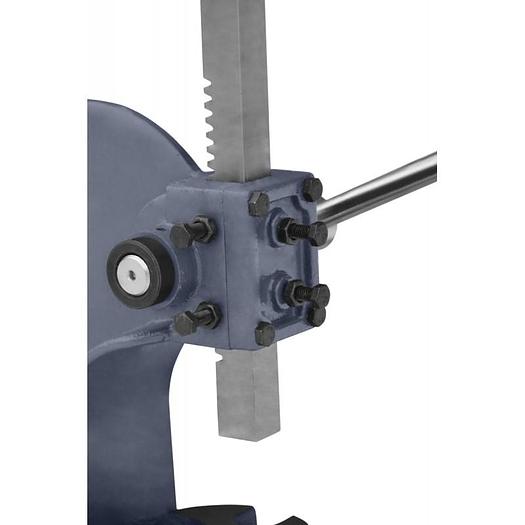

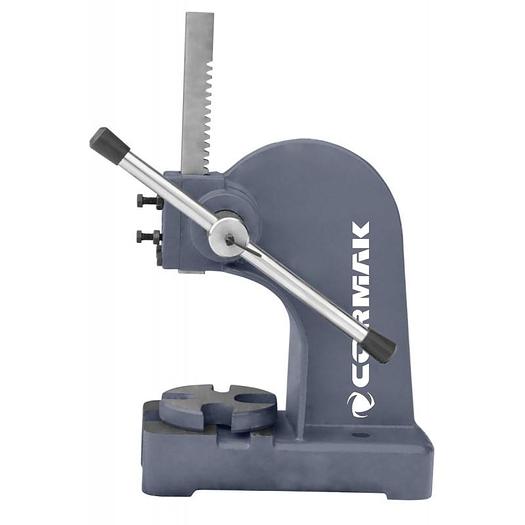

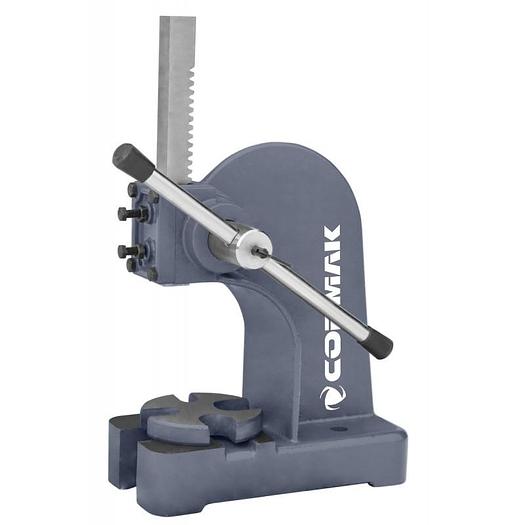

Cormak AP-1 Manual Arbor Press


A universal arbor press made of high quality iron casting. This series is an ideal solution for many applications in one trouble-free and cost effective machine. Easy in use for bushing, bending, straightening, reaming etc. • For bearings, sleeves and pins extrusion and assembly. • High quality iron casting. • Table set in four positions. • Can be used in every workshop Technical Details Pressing force: 1 Ton

Maximum workpiece height and diameter: 110×100 mm

Distance from piston axis to column surface: 50 mm

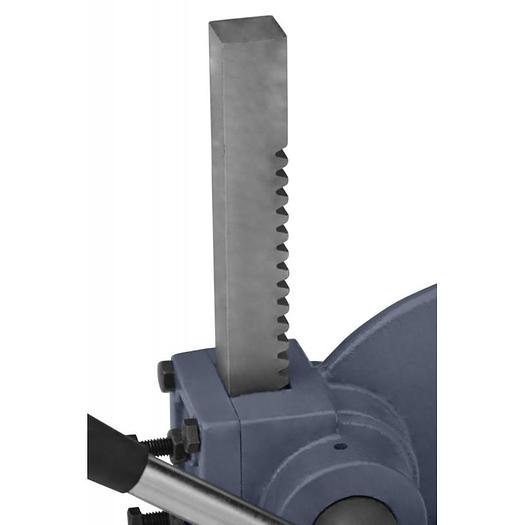

Arbor dimensions: 25×25 mm

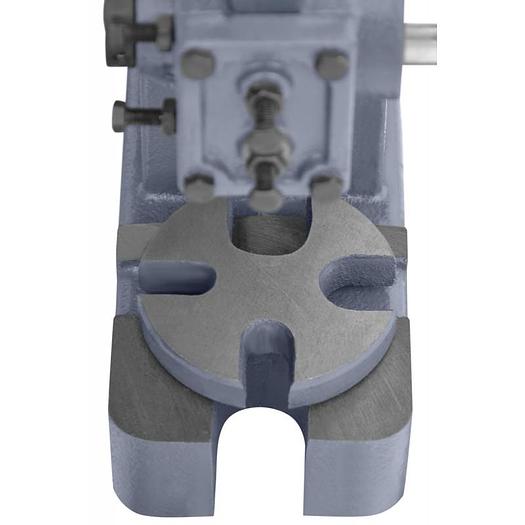

Table diameter: 113 mm

Largest hole in the table: 29 mm

Height after arbor lowering: 355 mm

Base dimensions: 268×190 mm

Weight: 15 kg

Specifications

ManufacturerCormak
ModelAP-1 Manual Arbor Press - 1 Ton
ConditionNew
Pressing force1 Ton
Arbor dimensions25×25 mm
Table diameter113 mm
Height after arbor lowering355 mm
Base dimensions268×190 mm
Weight15 kg
