2004 Bystronic PR 250 x 4100 CNC Pressbrake
Sold
Description

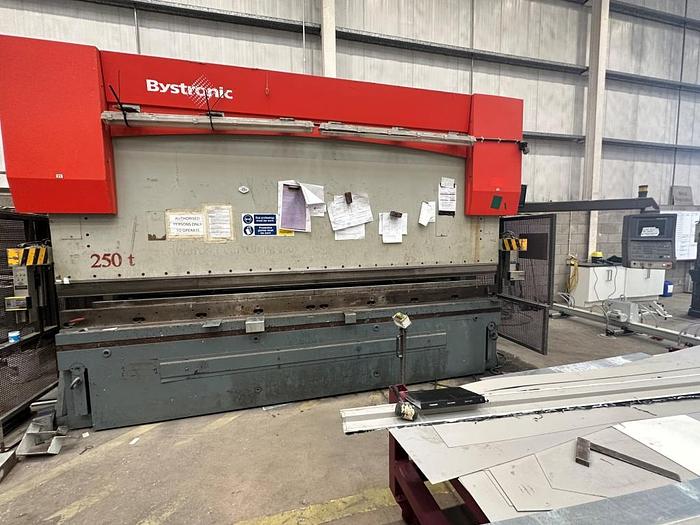

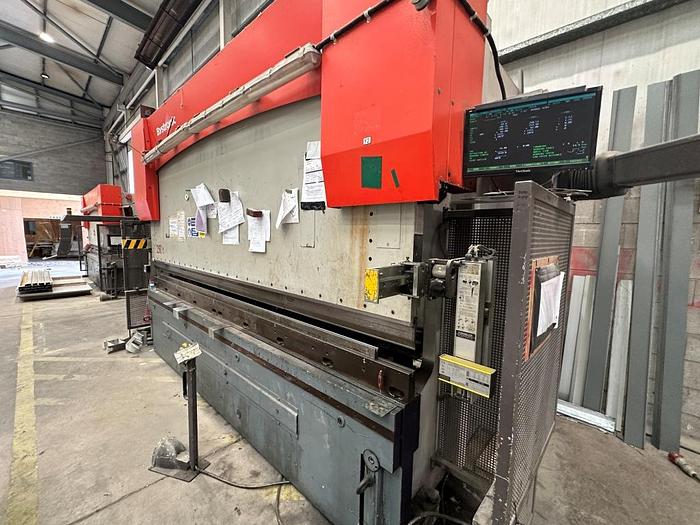

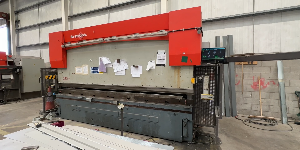

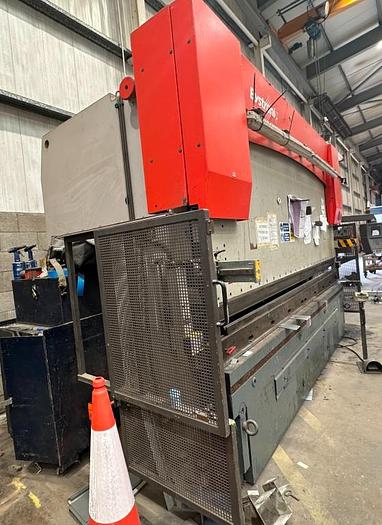

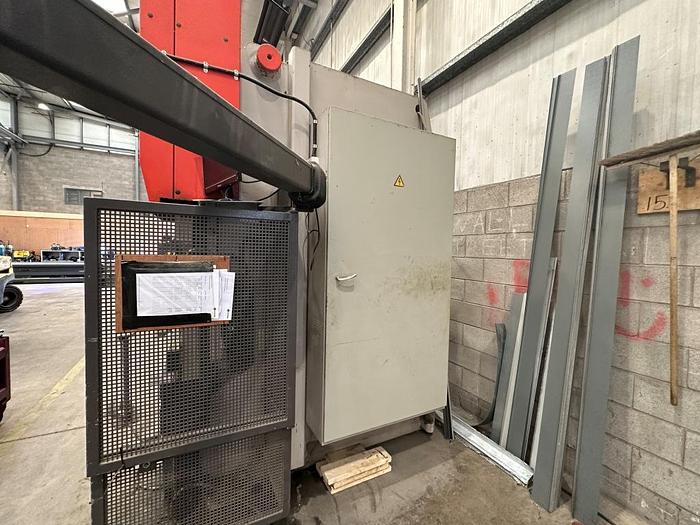

Bystronic PR 250 x 4100 CNC Pressbrake
Machine Type: CNC Pressbrake
Axes: 6

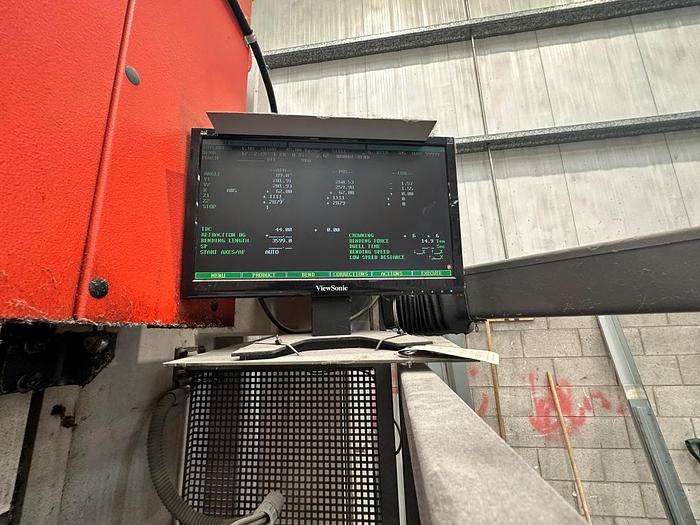

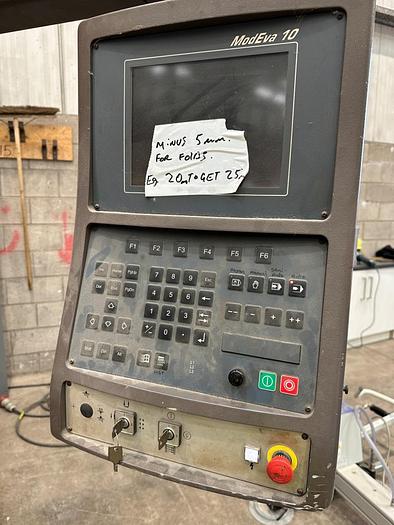

Control: Cybelec Modeva 10 (External Screen Used)
Year: 2004
Condition: Good.
Notes: No loading facilities on site
Includes
Full Set of Top & Bottom Tooling

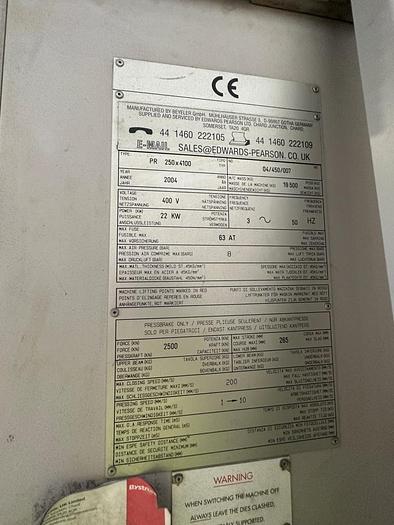

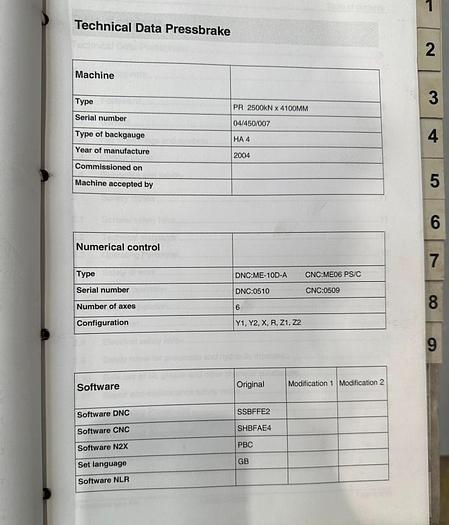

Technical Specification

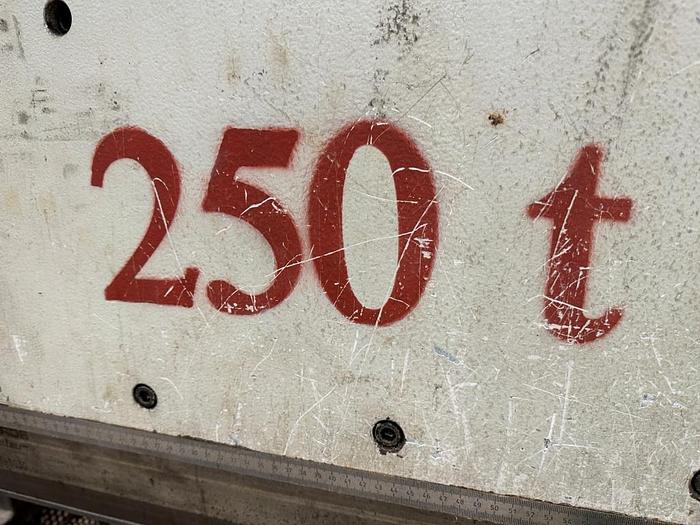

Max Tonnage: 250T
Overall Bending Length: 4100mm
Distance Between Side Frames: 3730mm
Number of Bending Axes: 2
Bending Axes: Y1 & Y2

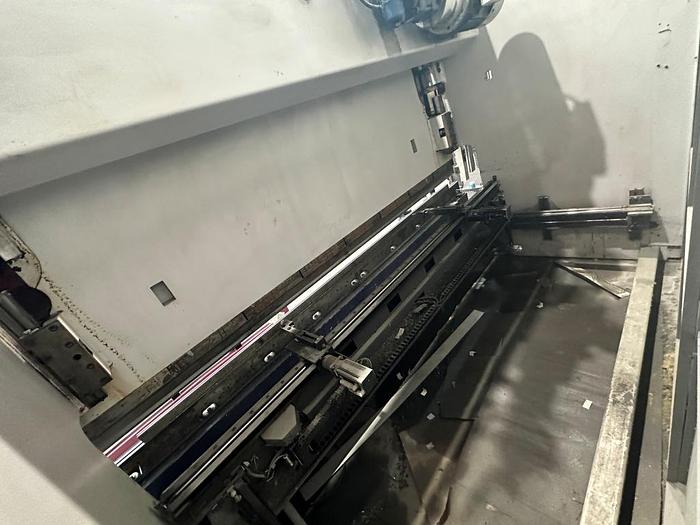

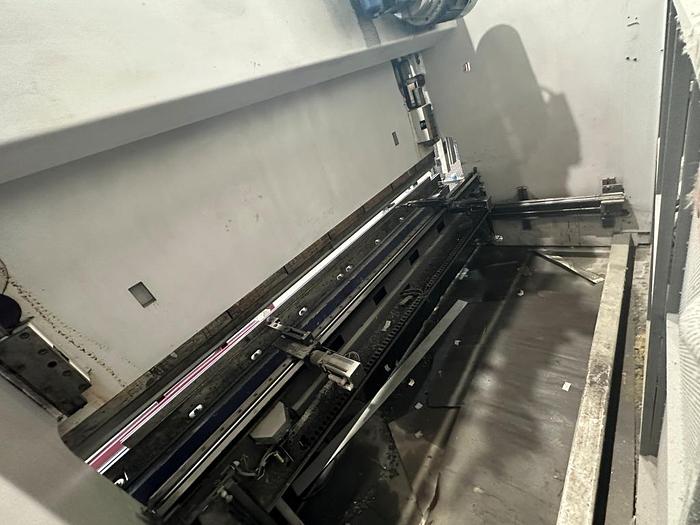

Back Gauge: 4 Axes
Back Gauge Axes: X, R, Z1 & Z2
Opening Height: 495mm
Closed Height: 280mm
Max Closing Speed: 200mm/sec
Bending Speed: 1-10mm/sec
Throat Depth: 400mm
Length of Stroke: 265mm
Main Motor Drive: 22kW
Machine Weight: 19500kg
Specifications
| Manufacturer | Bystronic |
| Model | PR 250 x 4100 CNC Pressbrake |
| Year | 2004 |
| Condition | Used |
| Machine Type | CNC Pressbrake |
| Axes | 6 |
| Year | 2004 |
| Condition | Good. |
| Max Tonnage | 250T |
| Overall Bending Length | 4100mm |
| Distance Between Side Frames | 3730mm |
| Number of Bending Axes | 2 |
| Bending Axes | Y1 & Y2 |
| Back Gauge | 4 Axes |
| Opening Height | 495mm |
| Closed Height | 280mm |
| Max Closing Speed | 200mm/sec |
| Bending Speed | 1-10mm/sec |
| Throat Depth | 400mm |
| Length of Stroke | 265mm |
| Main Motor Drive | 22kW |
| Machine Weight | 19500kg |
