Strands S25 Pedestal Drill
Sold
Description

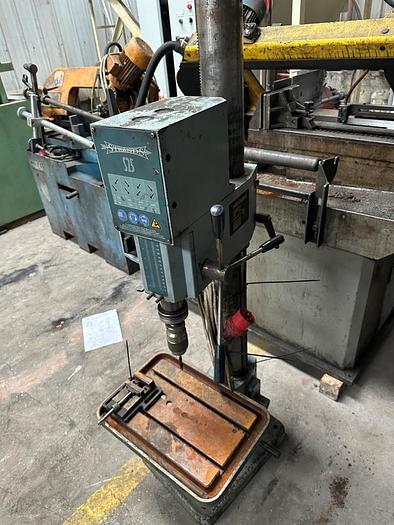

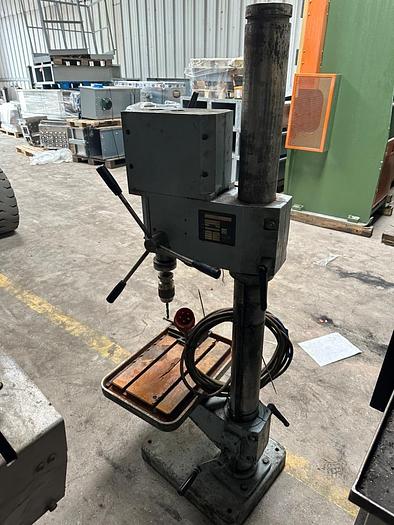

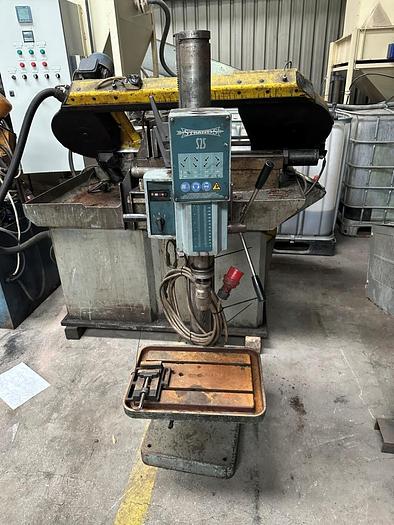

Strands S25 Gear Driven Pedestal Drill
Machine Type: Gear Head Pedestal Drill
Power: 3 Phase
Condition: Good
Includes
Drill Chuck

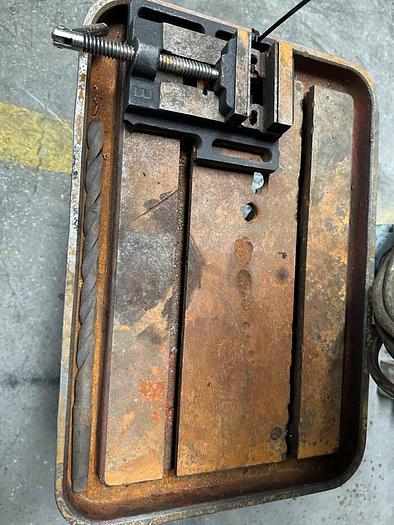

Drill Vice
Technical Specifications
Drilling capacity in steel: 25mm
Thread cutting capacity: M20
Spindle taper: MT 3

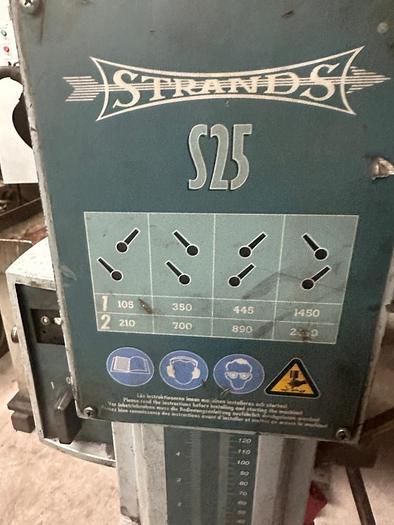

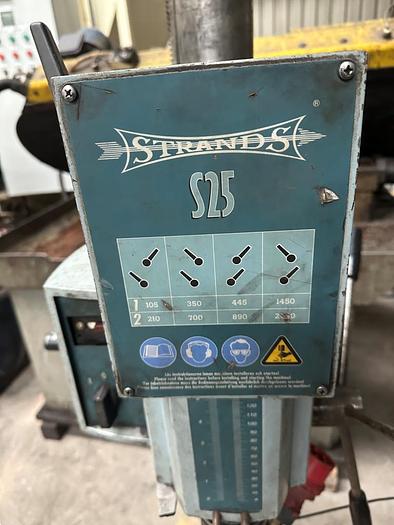

Speed range: 105 - 2900rpm
Speed steps: 8

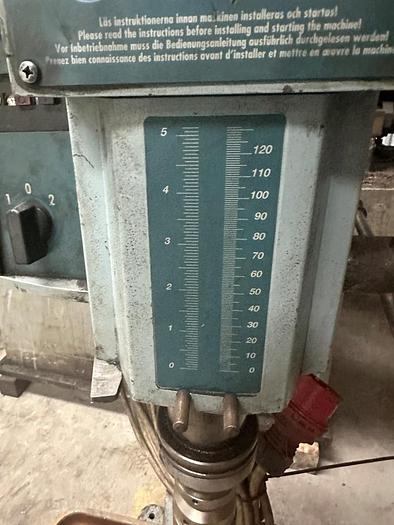

Quill stroke: 135mm
Column diameter: 100mm
Drilling table travel: 870mm
Spindle throat depth: 255mm
Drilling table rotatable: ± 360 °
Quill distance to base: 1198mm
Quill distance to table min./max.: 0-915mm
Drilling table surface: 500x350mm
Motor power: (2-stage) 650/900W
Power supply: 400V/3ph
Dimensions: 500 x 700 x 1710mm
Weight: 180kg
Specifications
| Manufacturer | Strands |
| Model | S25 Pedestal Drill |
| Condition | Used |
| Machine Type | Gear Head Pedestal Drill |
| Power | 3 Phase |
| Condition | Good |
| Drilling capacity in steel | 25mm |
| Thread cutting capacity | M20 |
| Spindle taper | MT 3 |
| Speed range | 105 - 2900rpm |
| Speed steps | 8 |
| Quill stroke | 135mm |
| Column diameter | 100mm |
| Drilling table travel | 870mm |
| Spindle throat depth | 255mm |
| Drilling table rotatable | ± 360 ° |
| Quill distance to base | 1198mm |
| Drilling table surface | 500x350mm |
| Motor power | (2-stage) 650/900W |
| Power supply | 400V/3ph |
| Weight | 180kg |
