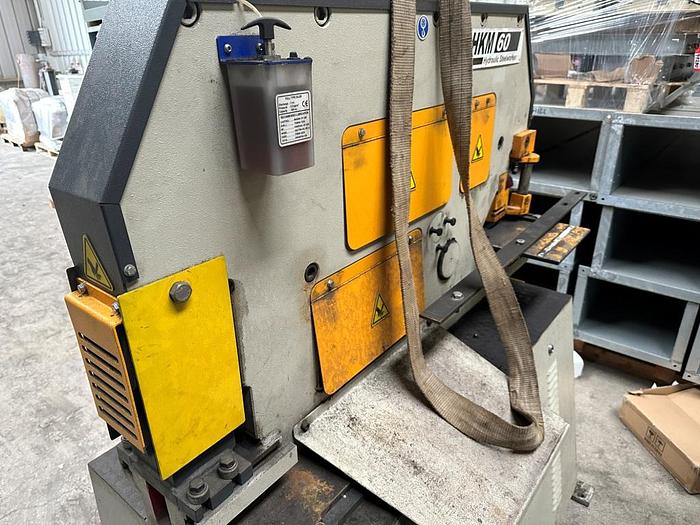

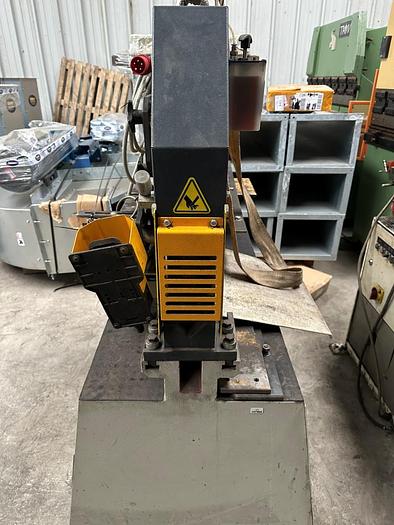

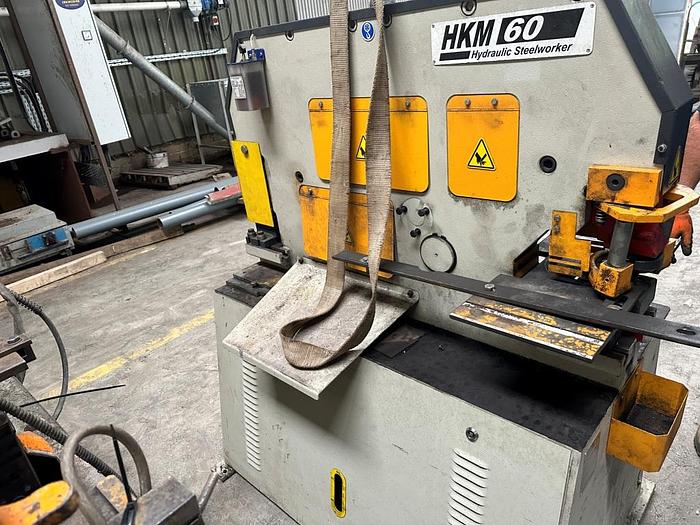

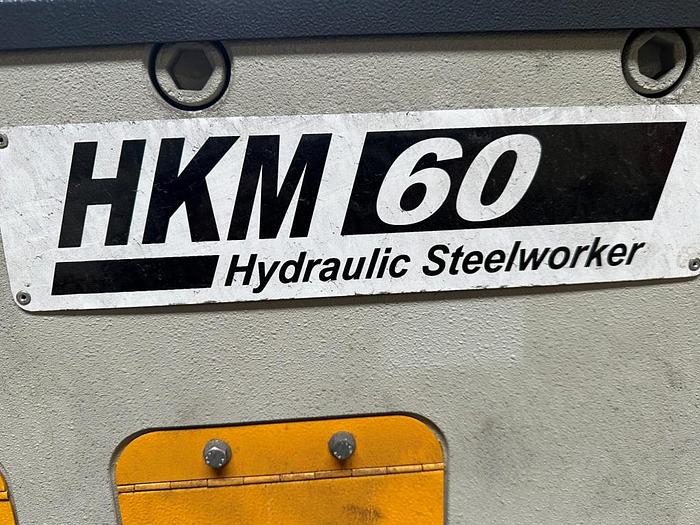

Sahinler HKM 60 Ironworker

Sahinler HKM 60 Ironworker

Machine Type: Ironworker/Metal Worker/Steel Worker

Electrical Connection: 3 Phase

Condition: Very Good

Includes

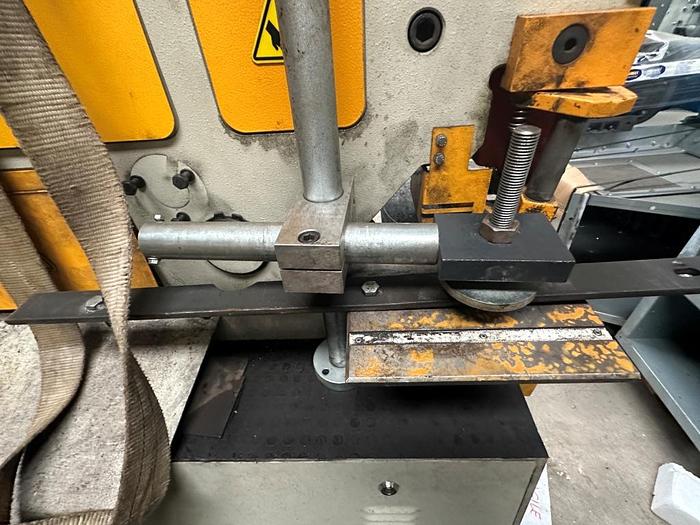

Length Stop

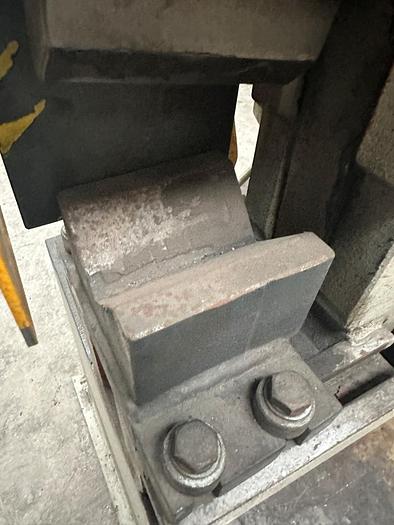

Bending Tool on Notching Station

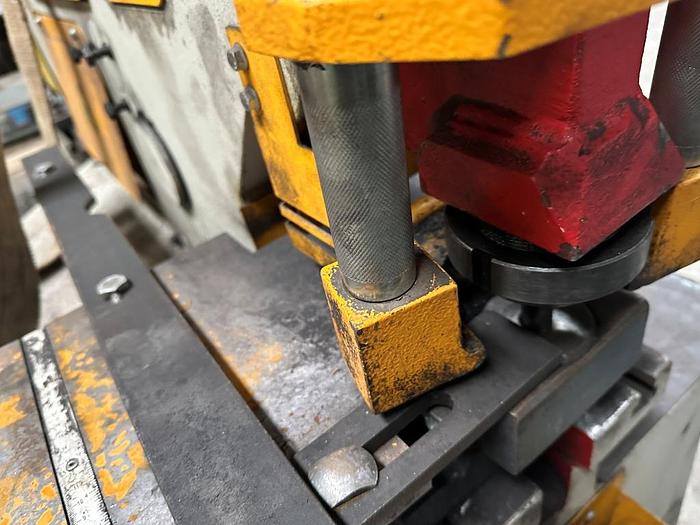

Selection of Punches and Dies

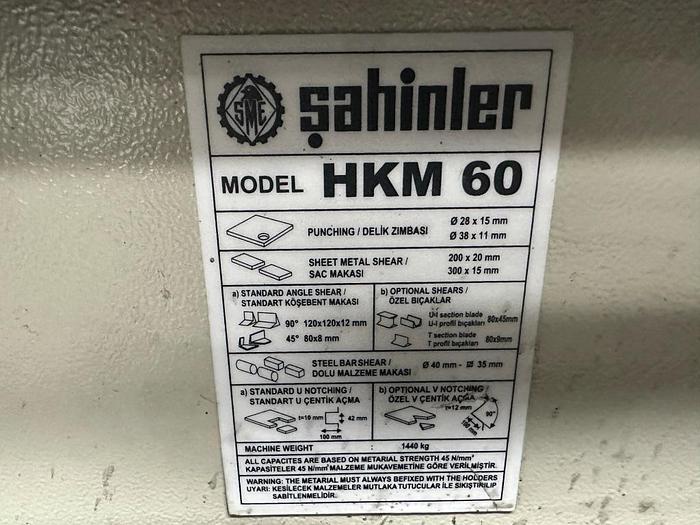

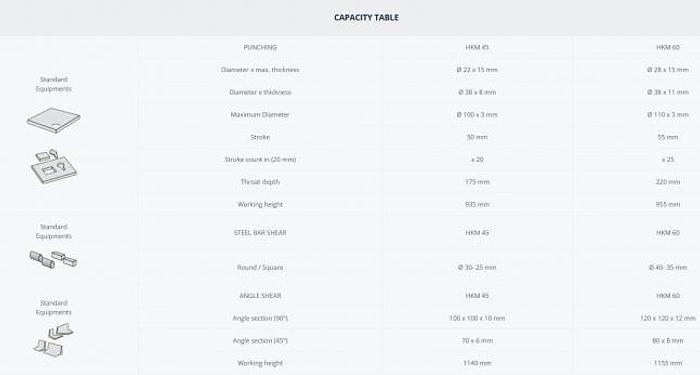

Technical Specification

Tonnage: 60T

Total Power: 4kW

Powered Via: Hydraulic

Throat Depth: 220mm

Punching Capacity (Thickness): 28mm Dia in 15mm Plate

Punching Capacity (Diameter): 38mm Dia in 11mm Plate

Maximum Diameter: 110mm in 3mm Plate

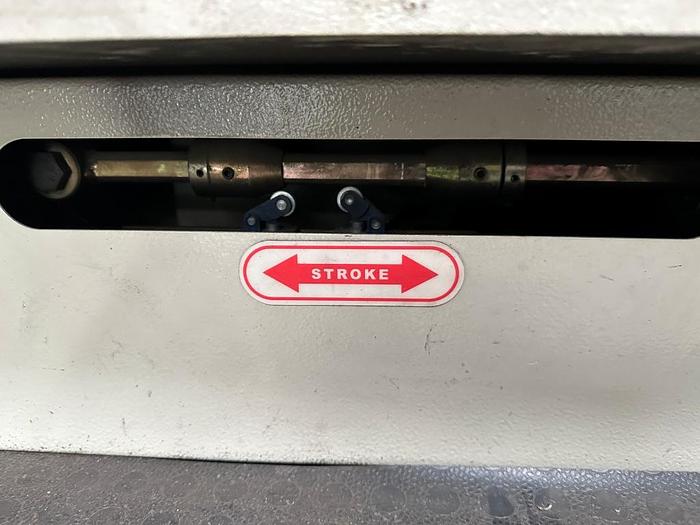

Punching Stroke: 55mm

Punch Working Height: 955mm

Capacity Round Bar Shear: 40mm

Capacity Square Bar Shear: 35mm

Capacity Angle Shear @ 90 Deg: 120 x 120 x 12mm

Capacity Angle Shear @ 45 Deg: 80 x 8mm

Shear Working Height: 1155mm

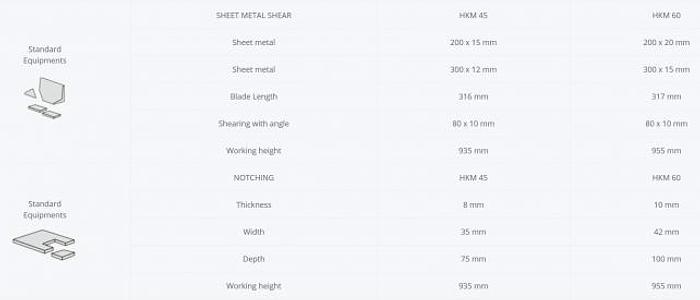

Capacity Flat Metal Shear (Thickness): 200 x 20mm

Capacity Flat Metal Shear (Length): 300 x 15mm

Shear Blade Length: 317mm

Flat Shear Working Height: 955mm
