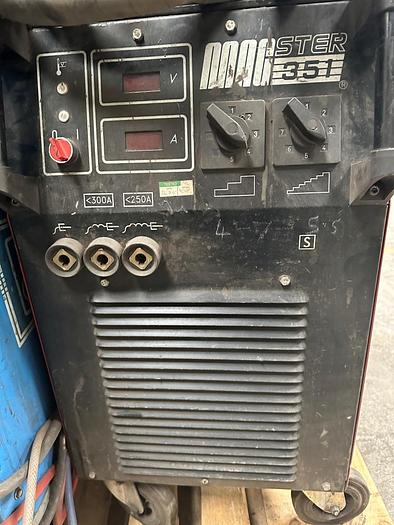

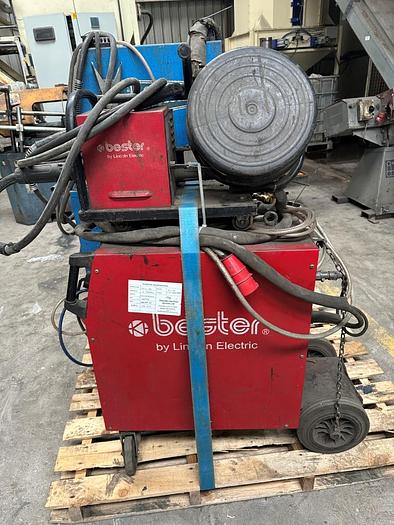

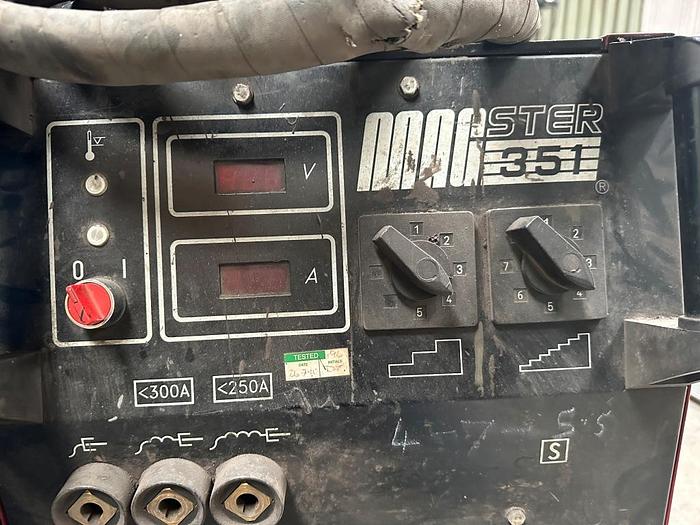

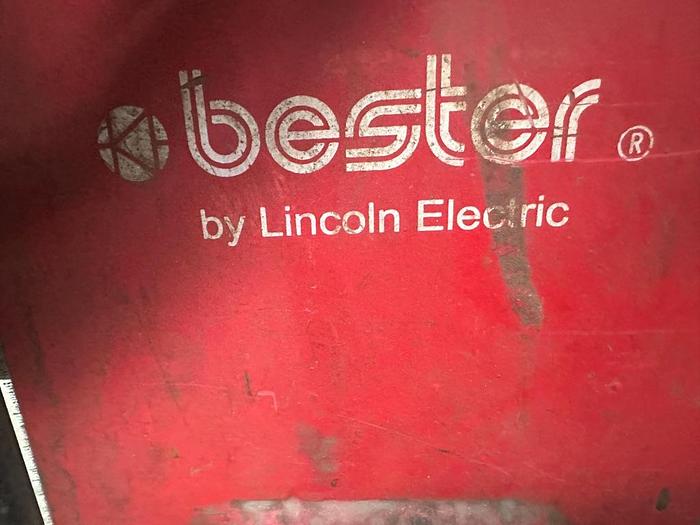

Lincoln Bester Magster 351 MIG Welder

Lincoln Bester Magster 351 MIG Welder

Machine Type: MIG Welder with PDE 41 Wire Feeder

Condition: Good

Includes

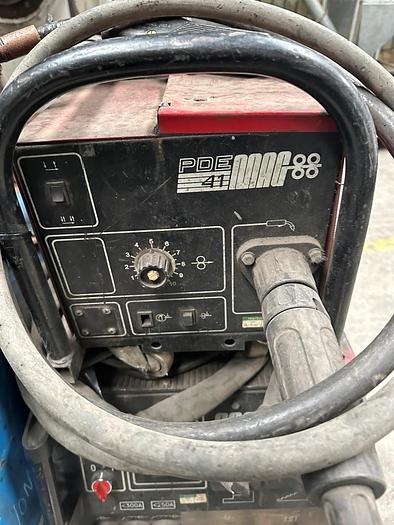

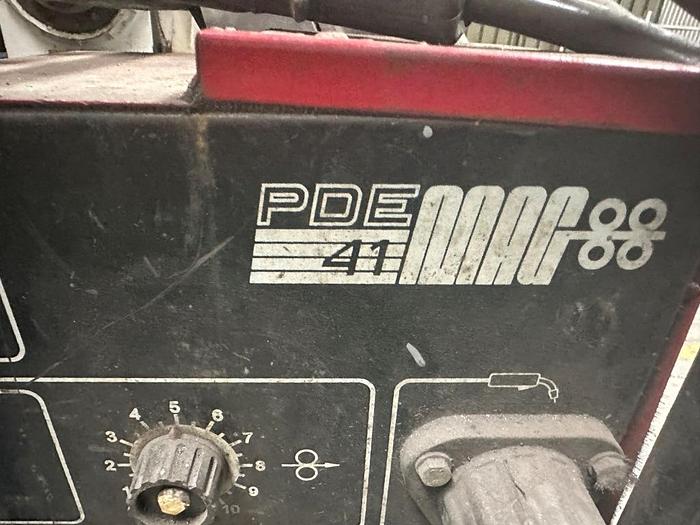

PDE 41 Wire Feeder

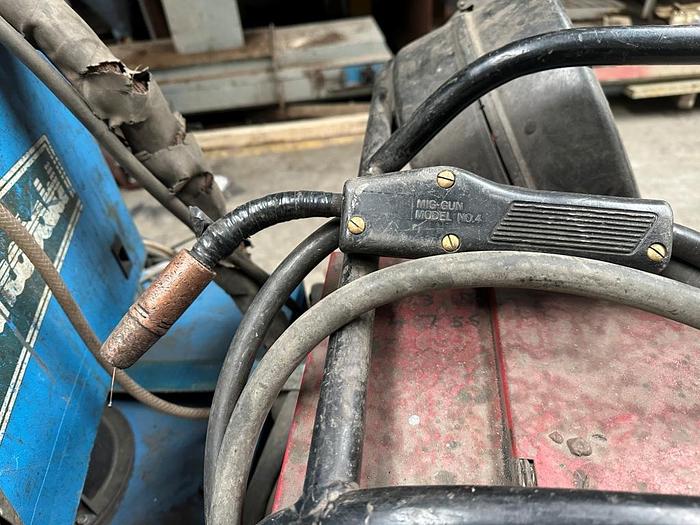

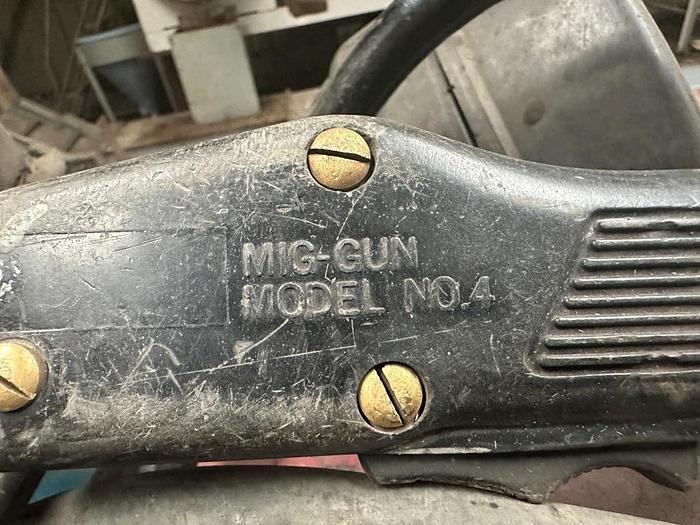

MIG-Gun Model No.4

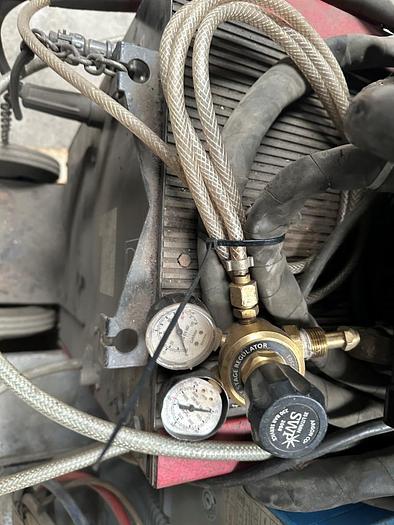

Gas Regulator

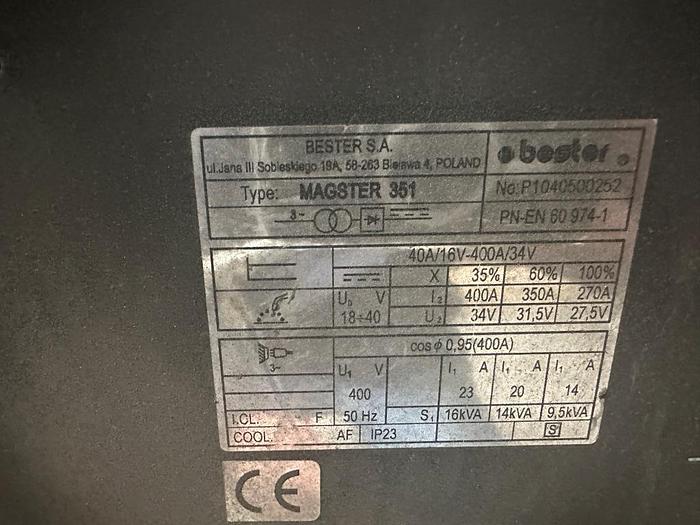

Technical Specification Magster 351 MIG Welder

Rated Supply Voltage: 400V, 3∼PE, 50Hz

Maximum Power Consumption in operation X35%: 16 KVA

Maximum Current Consumption in operation X35%: 23 A

Maximum current consumption in operation X60%20 A

Power factor cos ϕ at X60%: 0.95

Welding current - rated X35%: 400 A

Welding current - rated X60%: 350A

Welding current - at X100%: 270A

Open-circuit secondary voltage: 18-40 V

Number of degrees of welding voltage: 35

Welding current/voltage adjustment range min: 40 A/16 V

Welding current/voltage adjustment range max: 400A/34V

Housing protection class: IP 23

Weight without wire spool: 140 kg

Outline dimensions LxWxH: 445 x 950 x 920 mm

Technical Specification PDE 41 Wire Feeder

Wire feed speed adjustment range: 1 – 24 m/min

Electrode wire infeed speed range: 10 – 100 m/min

Burnback time of the electrode wire: 0.1 - 0.6 sec

Diameter of the electrode wire - steel: 0.8 - 1.6 mm

Diameter of the electrode wire- alloy: 0.8 - 1.6 mm

Diameter of the electrode wire- aluminum: 1.0 - 1.6 mm
