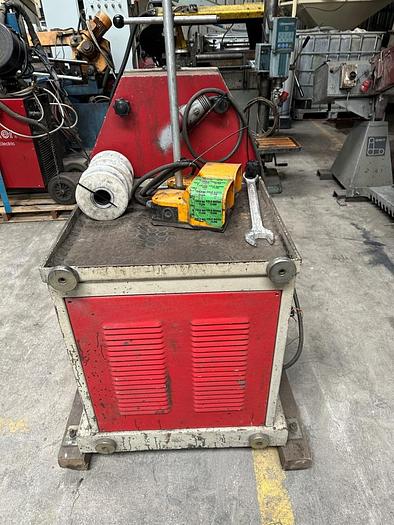

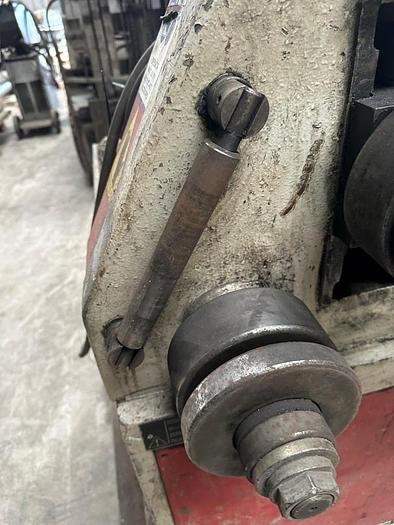

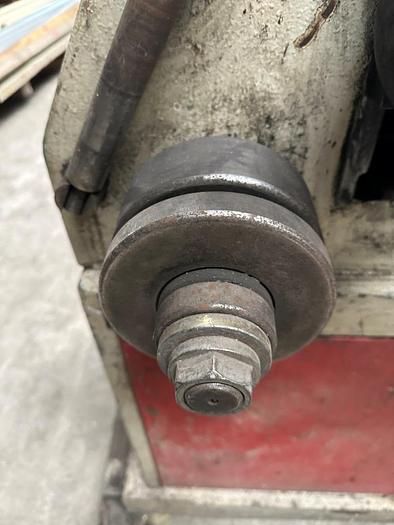

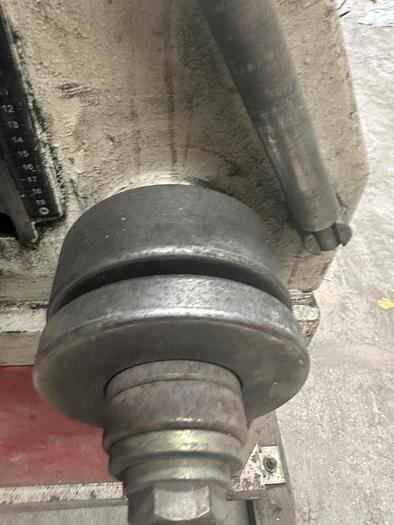

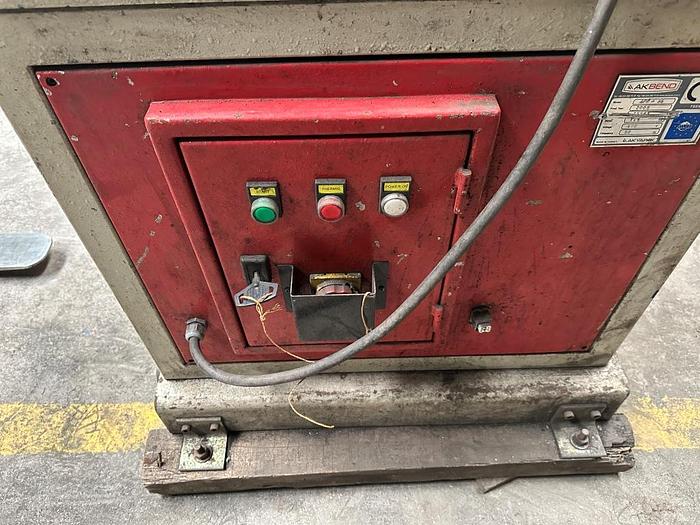

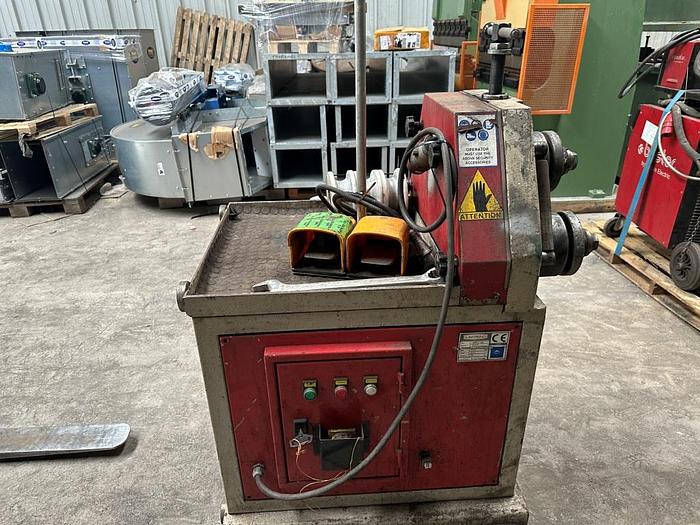

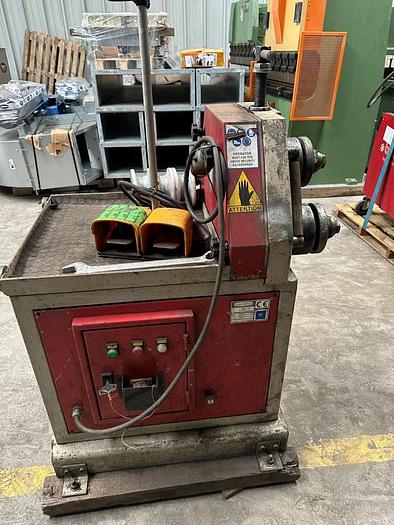

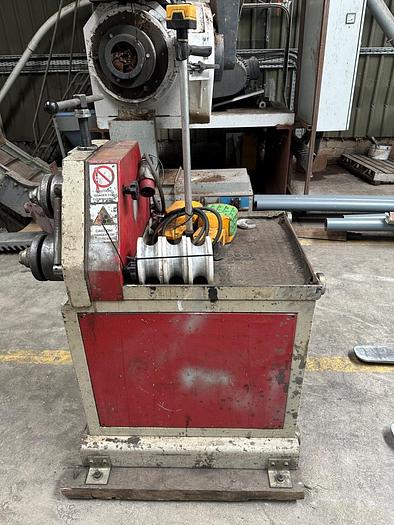

2006 Akyapak APK 35 Section Rolls

2006 Akyapak Akbend APK-35 Section Rolls

Machine Type: Section Rolls

Year: 2006

Condition: Very Good

Includes

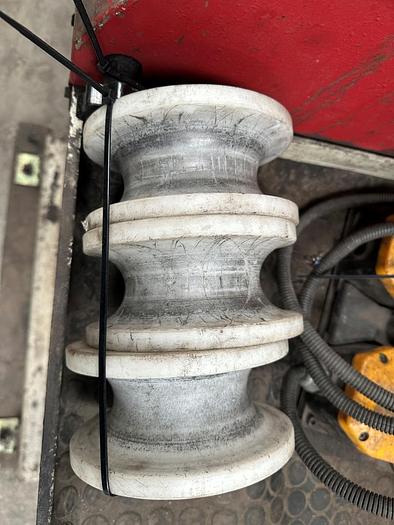

Set of Nylon Rollers for Round Tube

Description

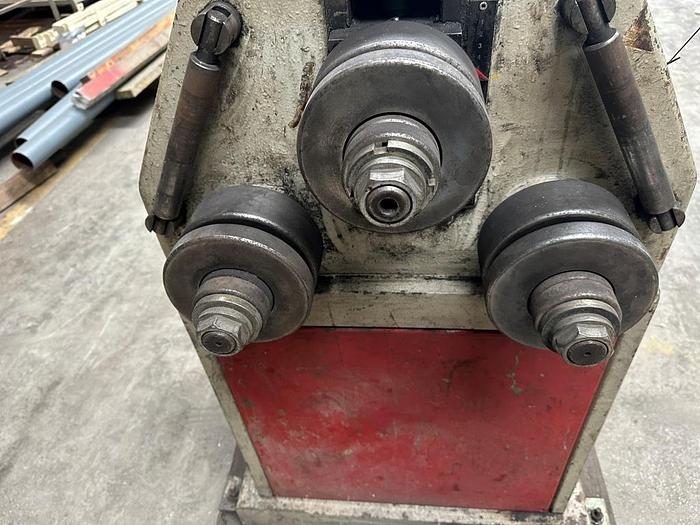

2 Powered Rolls

50mm Shaft Diameter

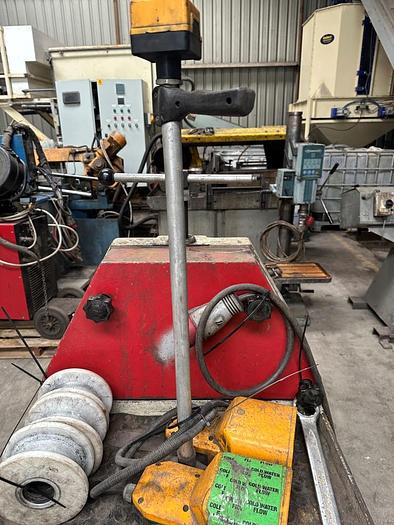

Double Foot Switch

Vertical and Horizontal Use

Technical Specification

Capacity (Flat): 120 x 15mm (d 750mm)

Capacity (Flat on Edge): 60 x 10mm (d 800mm)

Angle steel: 50 x 5mm (d 1200mm)

Round material: 35.0mm (d 800mm)

Max. tube diameter: 70 x 2mm (d 1200mm)

Square material: 50 x 40 x 3mm

Bending speed: 4.3 m/min

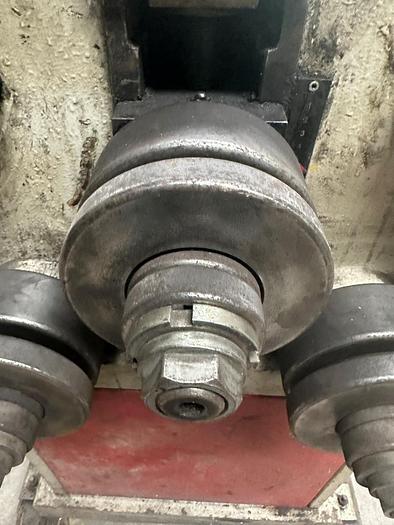

Roller Diameter Top: 155mm

Shaft Diameter: 50.0mm

Total power requirement: 1.5 kW

Dimensions LWH: 730 x 830 x 1500 mm

Weight: 320kg
