2008 AJAX AJSB 200-63 CNC Lathe
Sold
Description
AJAX AJSB 200-63 CNC Lathe
Machine Type: 2 Axis CNC Lathe
Year: 2008

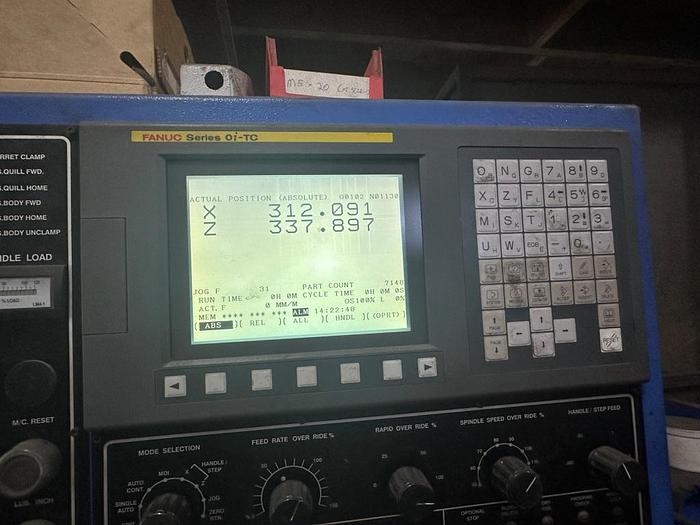

Control: Fanuc Series Oi-TC
Condition: Very Good. (Just dirty)
Includes
Tailstock
Selection of Tool Holders

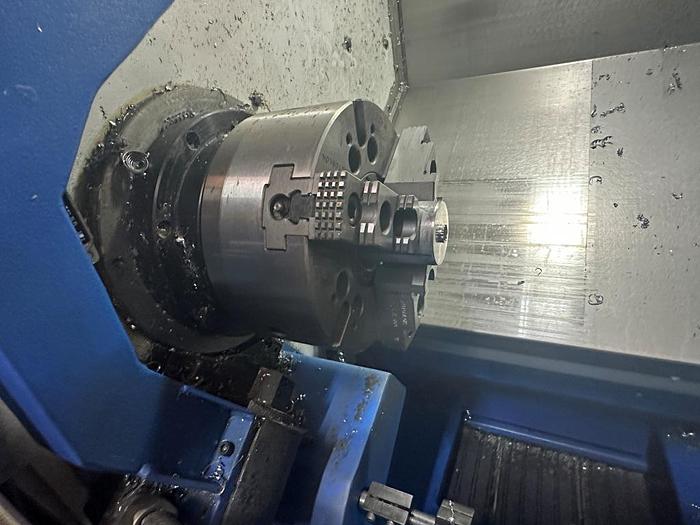

3 Jaw Hydraulic Chuck
Parts Catcher
Swarf Conveyor
Technical Specification
Max Turning Diameter: 350mm
Max Turning Length: 500mm
Chuck Size: 210mm
Distance Btw Centres: 525mm
Main Spindle Bore: 63mm
Bar Capacity: 51mm
Spindle Nose: A2-6
Speed Range: 50-5000rpm
Working Feeds: 0-10000mm/min
Rapid Feeds: 20,000rpm
Tailstock Diameter: 80mm
Tailstock Taper: 4MT
Turret Type: 12 Station Static Tool Turret
Max Diameter Boring Bar: 40mm
Max Tool Cross Section: 25 x 25mm
Main Motor: 11kW
Dimensions: 2450 x 1940 x 1740mm
Weight: 3600kg
Specifications
| Manufacturer | AJAX |
| Model | AJSB 200-63 CNC Lathe |
| Year | 2008 |
| Condition | Used |
| Machine Type | 2 Axis CNC Lathe |
| Year | 2008 |
| Control | Fanuc Series Oi-TC |
| Condition | Very Good. (Just dirty) |
| Max Turning Diameter | 350mm |
| Max Turning Length | 500mm |
| Chuck Size | 210mm |
| Distance Btw Centres | 525mm |
| Main Spindle Bore | 63mm |
| Bar Capacity | 51mm |
| Spindle Nose | A2-6 |
| Speed Range | 50-5000rpm |
| Working Feeds | 0-10000mm/min |
| Rapid Feeds | 20,000rpm |
| Tailstock Diameter | 80mm |
| Tailstock Taper | 4MT |
| Max Diameter Boring Bar | 40mm |
| Max Tool Cross Section | 25 x 25mm |
| Main Motor | 11kW |
| Weight | 3600kg |
