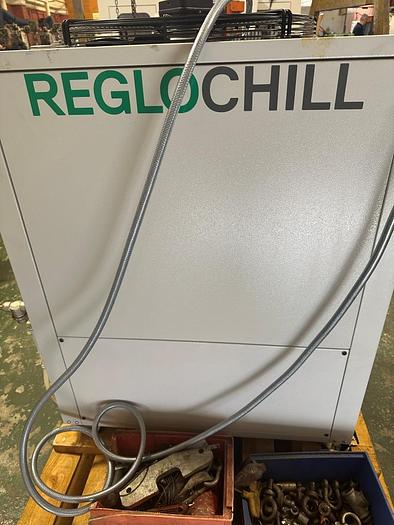

2018 Reglochill RC2E 20 Chiller Unit
Sold
Description
Reglochill RC2E Chiller Unit
Machine Type: Stand alone (atmospheric system) high efficiency chiller
Year: 2018
Condition: Excellent. Rarely Used.

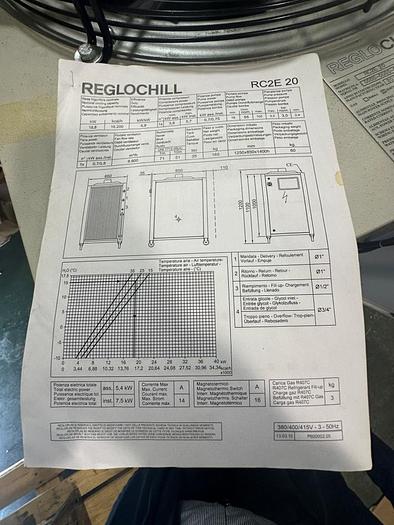

Technical Specification
Cooling Capacity: 18.8kW (16,200KCAL/H)
Efficiency(COP): 4.7
Compressors: 1
Nominal Compressor Power: 3.8kW
Pump Power: 0.7kW
Pump Nominal Flow: 55l/min@3.0Bar
Fans: 1
Fan Flow Rate: 6,600m3/hr
Noise Level: 51dB @ 10m

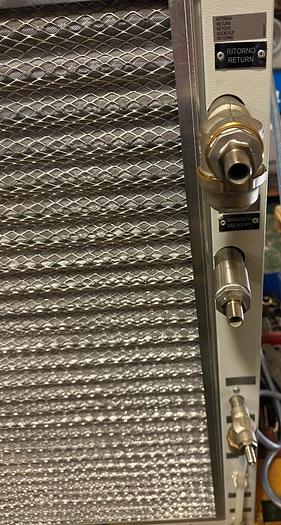

Delivery Connection: 1"
Return Connection: 1"

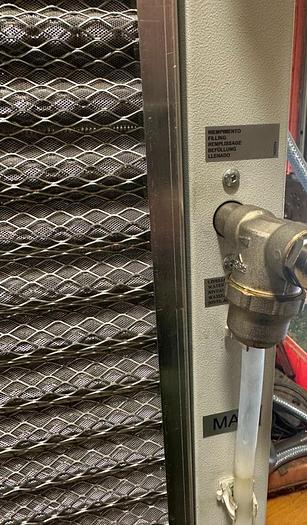

Filling Connection: 1/2"
Glycol Connection: 3/4"
Discharge Connection: 3/4"
Total Electrical Power(nominal): 5.5kW
Total Electrical Power(installed): 8.0kW
Power Supply: 400V/3ph/50Hz
Max Current: 12 Amps
Gas Type: R407C
Gas Quantity: 3kg
Capacity of Internal Tank: 35L
Dimensions: 850x650x1200mm
Weight: 165kg
Specifications

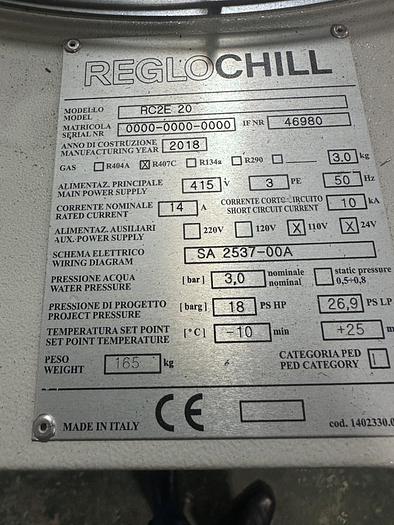

| Manufacturer | Reglochill |
| Model | RC2E 20 Chiller Unit |
| Year | 2018 |
| Condition | Used |
| Serial Number | 46980 |
| Year | 2018 |
| Condition | Excellent. Rarely Used. |
| Cooling Capacity | 18.8kW (16,200KCAL/H) |
| Efficiency(COP) | 4.7 |
| Compressors | 1 |
| Nominal Compressor Power | 3.8kW |
| Pump Power | 0.7kW |
| Pump Nominal Flow | 55l/min@3.0Bar |
| Fans | 1 |
| Fan Flow Rate | 6,600m3/hr |
| Noise Level | 51dB @ 10m |
| Delivery Connection | 1" |
| Return Connection | 1" |
| Filling Connection | 1/2" |
| Glycol Connection | 3/4" |
| Discharge Connection | 3/4" |
| Total Electrical Power(nominal) | 5.5kW |
| Total Electrical Power(installed) | 8.0kW |
| Power Supply | 400V/3ph/50Hz |
| Max Current | 12 Amps |
| Gas Type | R407C |
| Gas Quantity | 3kg |
| Capacity of Internal Tank | 35L |
| Dimensions | 850x650x1200mm |
| Weight | 165kg |
