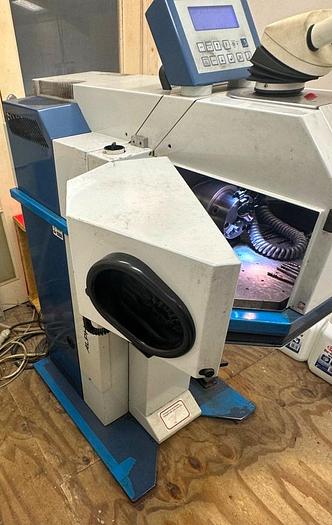

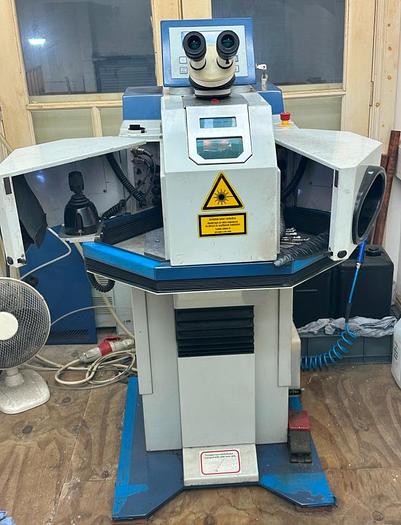

2010 Alpha Laser ALV 150 SM Laser Welder

Alpha Laser ALV 150SM Laser Welder

Machine Type: Laser Welder

Year: 2010

Condition: Very Good

Includes

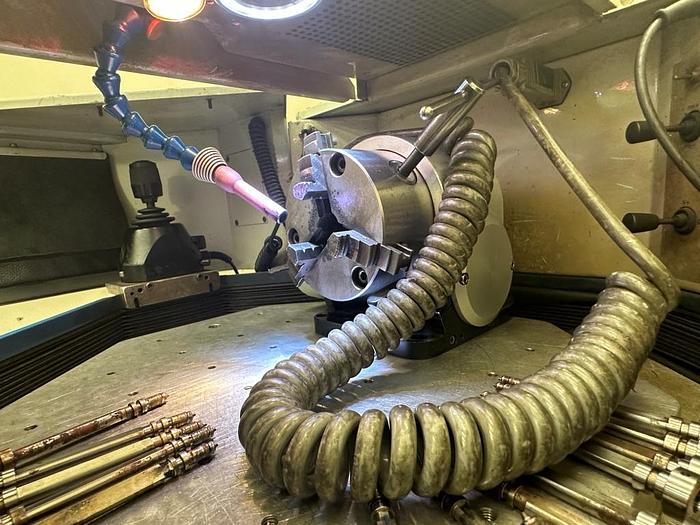

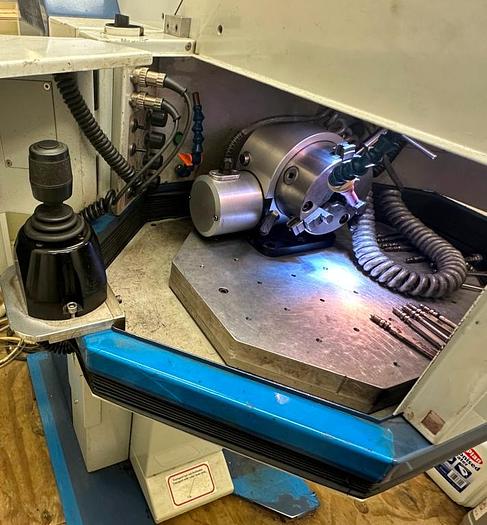

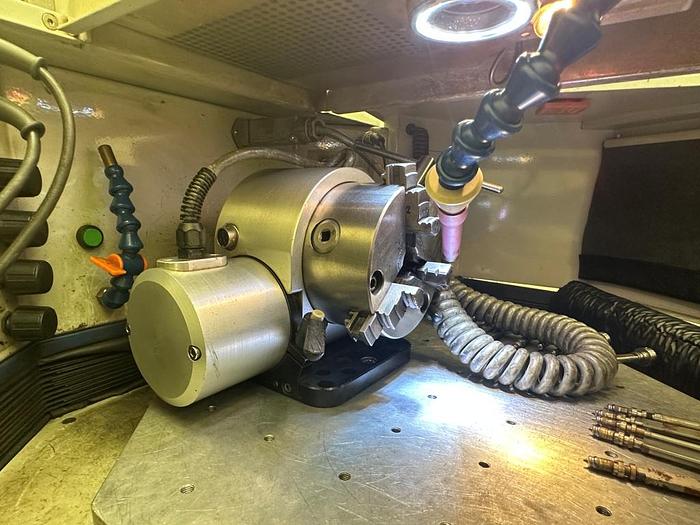

Rotary axis module with chuck

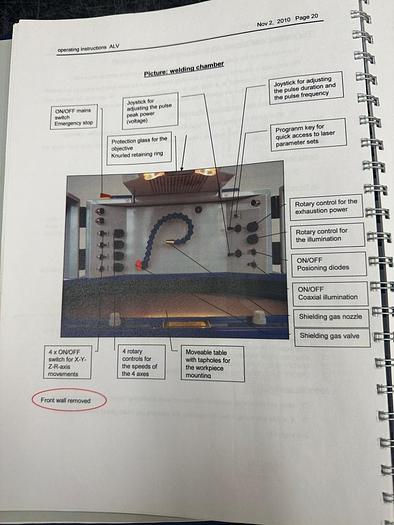

Manual

Technical Specification

Laser Type: ND-YAG

Laser Wavelength: 1064nm

Max Avg Power: 160W

Pulse Energy: 0.15 - 75Ws

Peak Pulse Power: 0.15 - 9.0kW

Pulse Duration: 0.5 - 20ms

Pulse Frequency: Single Pulse - 20Hz

Diameter of Focal Spot: 0.3 - 2.2mm

Focus Setting: Motorised

Cooling: Integrated Water-Air Heat Exchanger

Working Chamber Inside Dims: 590 x 450 x 550mm

Moving Clamping Plate: 380 x 340mm

Max Load on Plate: 50kg

Shielding Gas Nozzles: 2-fold, adjustable and gas may be cut off individually

Welding Smoke Detection: Integrated with Air Filter

X Axis Travel: 100mm

Y Axis Travel: 100mm

Z Axis Travel: 250mm

X Axis Feedrate: 0.5-30mm/s

Y Axis Feedrate: 0.5-30mm/s

Z Axis Feedrate: 0.5-30mm/s

Electrical Connection: 3ph/400V

Dimensions: 650x995x1200mm

Weight: 260kg

Further Information

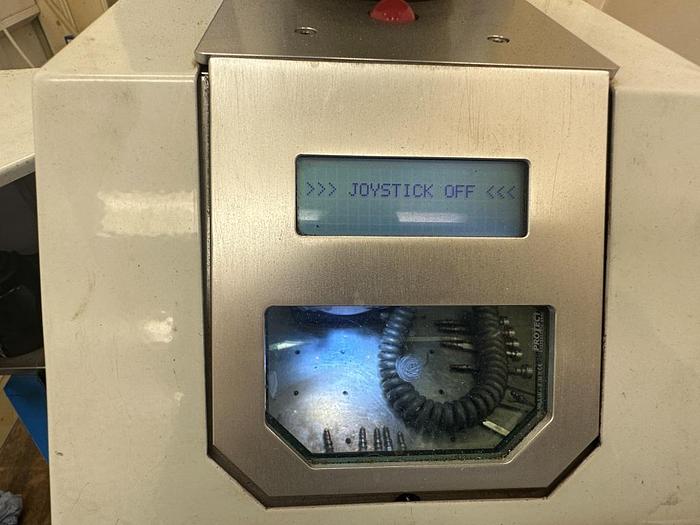

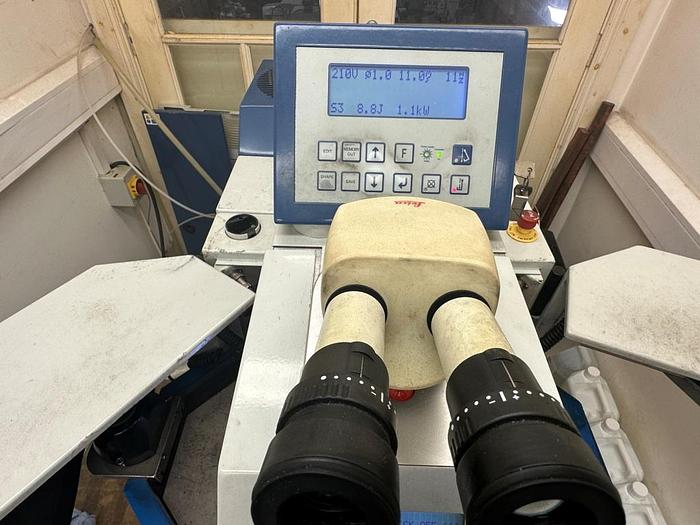

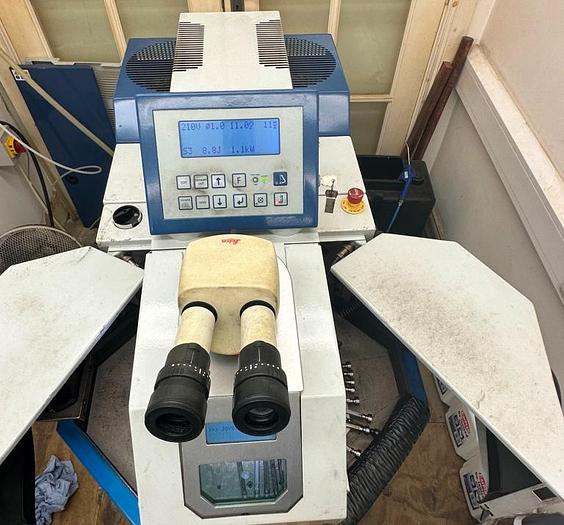

Optical Viewing System

Stereo-Microscope, magnification 14 Fold, Field of Vision Diameter: 20mm, Crossed Hair

155mm Laser Focusing Objective

Laser Aiming Diodes

Halogen Lamp Illumination

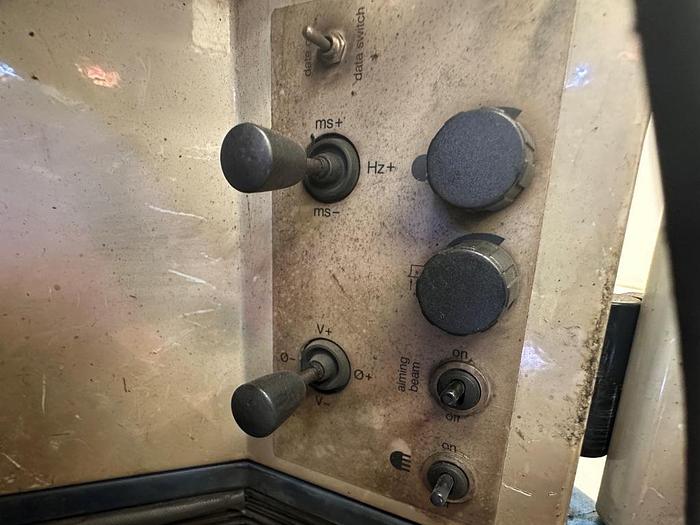

Laser Controlling

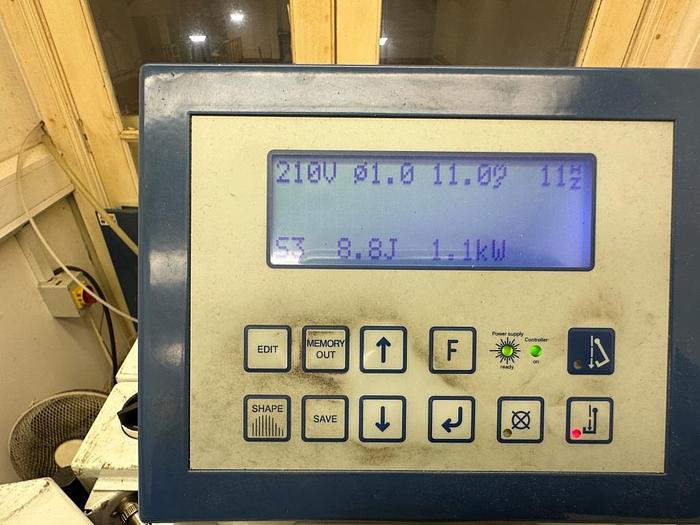

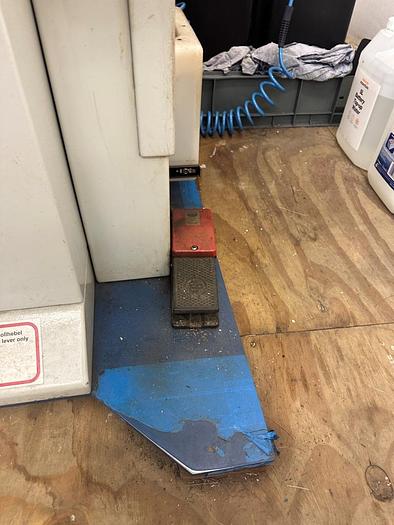

With Multifunctional Footswitch and/or display keys

Programming Index

8 Material Groups with max 16 parameter sets each (128 Sets)
