1997 Spiro Machines SA SF-1530 Plasma Cutting Machine
Sold
Description

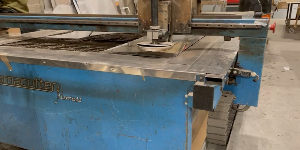

Spiro Machines SA SF-1530 Plasma Cutting Machine
Machine Type: Flat Bed Plasma Cutter
Year: 1997
Condition: Working Well
Technical Specifications
Bed Size: 3000 x 1500mm

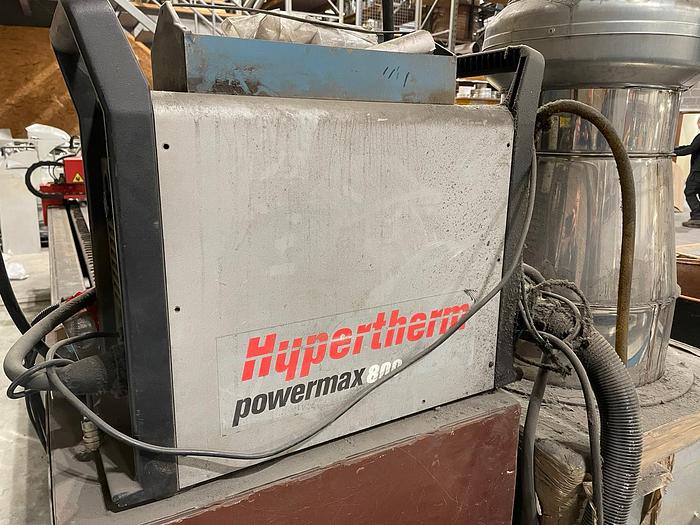

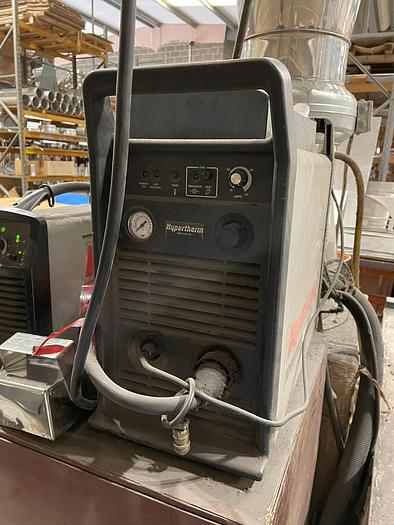

Plasma Source: Hypertherm powermax 800

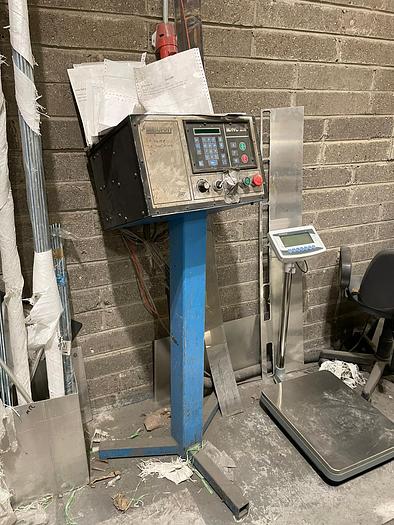

Control: Burny CNC 2.8
X Axis Travel: 1500mm
Y Axis Travel: 3000mm
Z Axis Travel: 200mm
X/Y Axis Movement: Via Rack & Pinion Drive
Z Axis Movement: Via Ball Screw
Max Cutting Thickness (M/S): 20mm
Power: 2.2kVA
Power Connection: 400V/3ph/50Hz, 16A
Specifications
| Manufacturer | Spiro Machines SA |
| Model | SF-1530 Plasma Cutting Machine |
| Year | 1997 |
| Condition | Used |

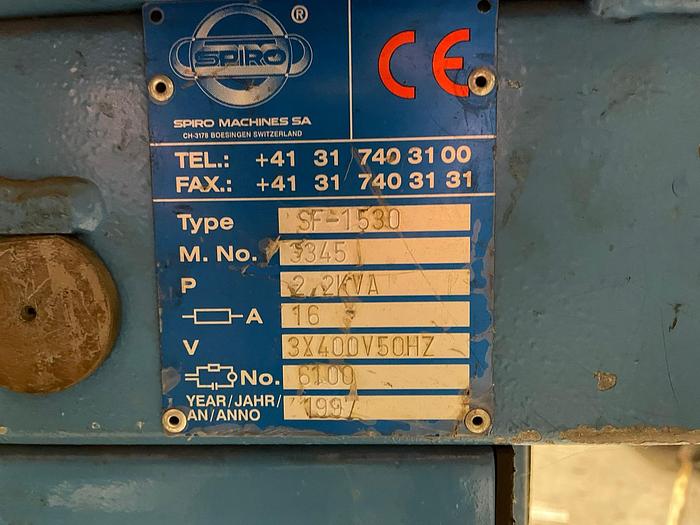

| Serial Number | 3345 |
| Machine Type | Flat Bed Plasma Cutter |
| Year | 1997 |
| Condition | Working Well |
| Bed Size | 3000 x 1500mm |
| Plasma Source | Hypertherm powermax 800 |
| Control | Burny CNC 2.8 |
| X Axis Travel | 1500mm |
| Y Axis Travel | 3000mm |
| Z Axis Travel | 200mm |
| Z Axis Movement | Via Ball Screw |
| Max Cutting Thickness (M/S) | 20mm |
| Power | 2.2kVA |
| Power Connection | 400V/3ph/50Hz, 16A |
