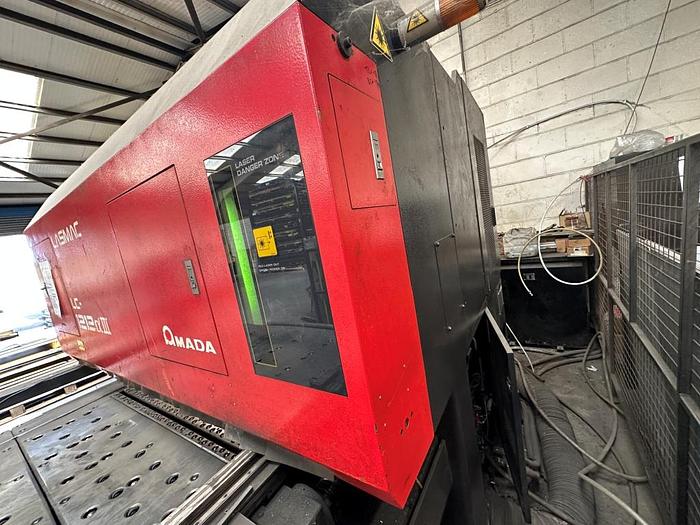

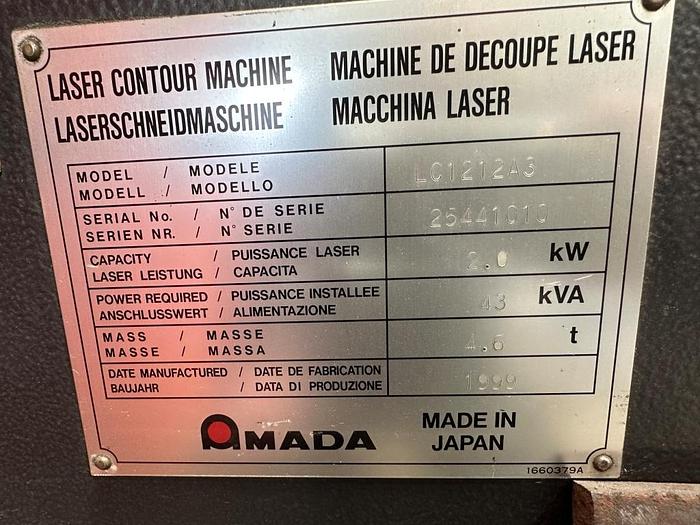

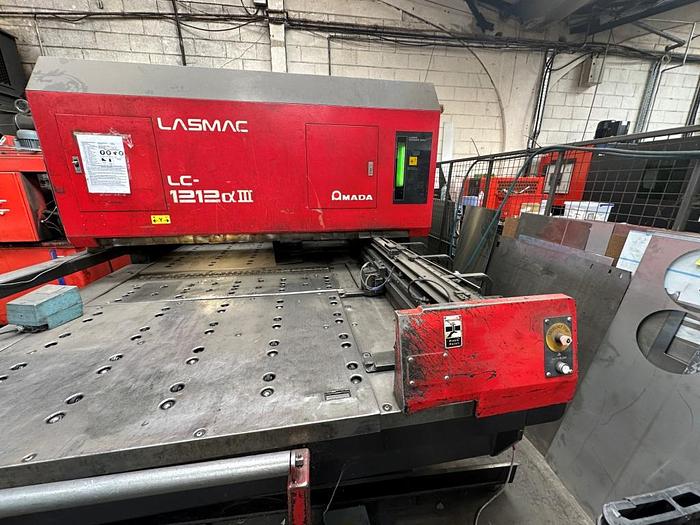

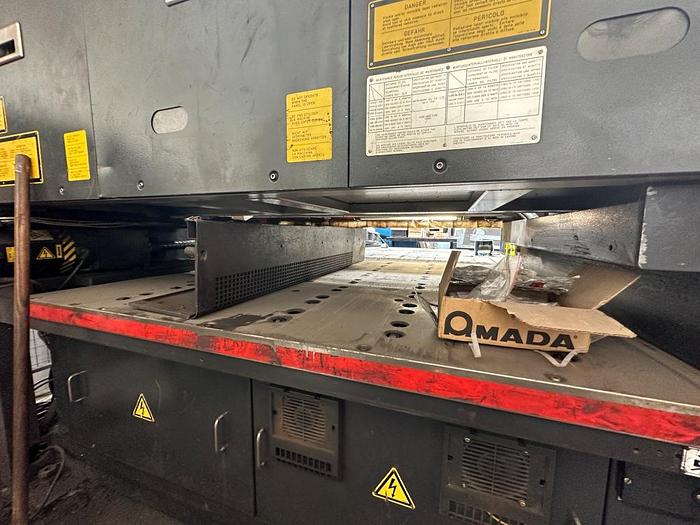

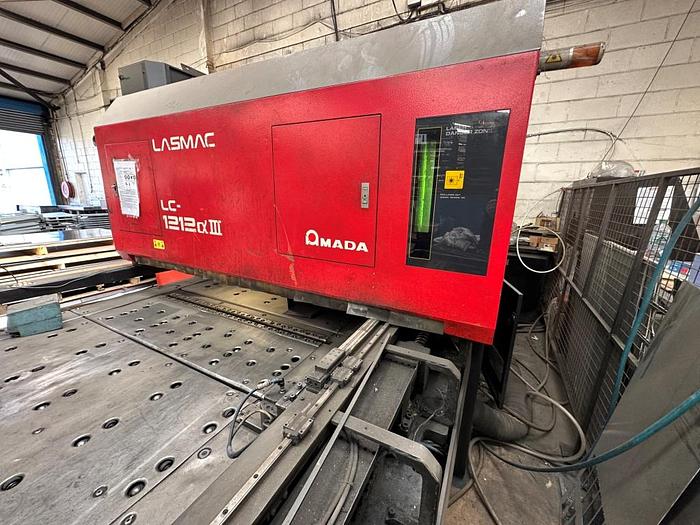

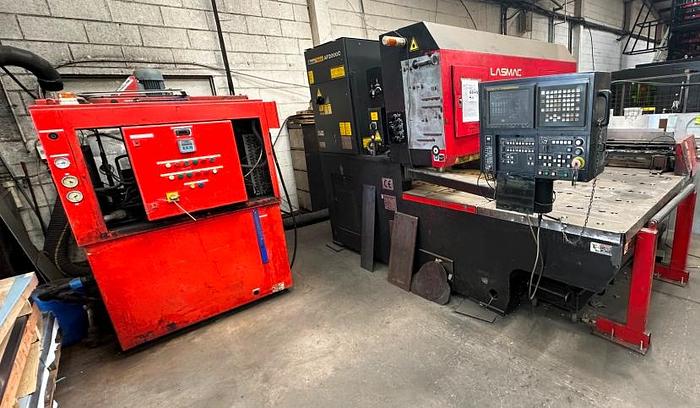

1999 Amada Lasmac LC-1212A3 CNC Laser

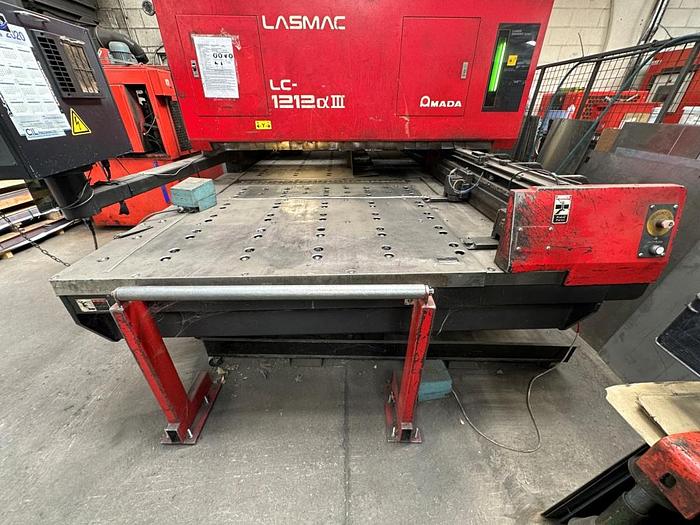

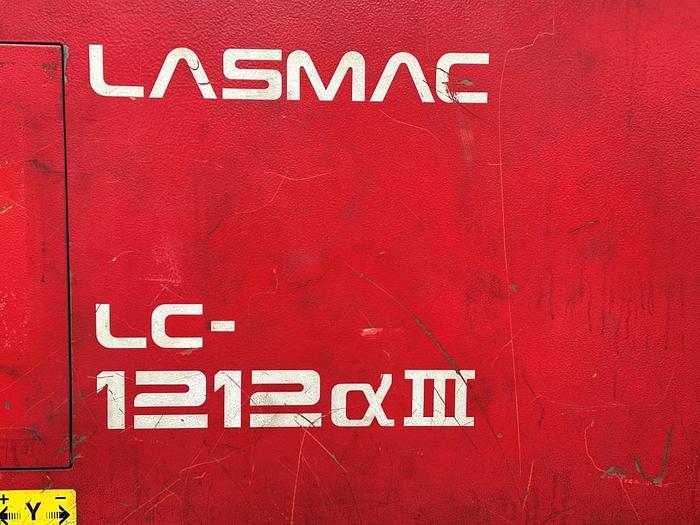

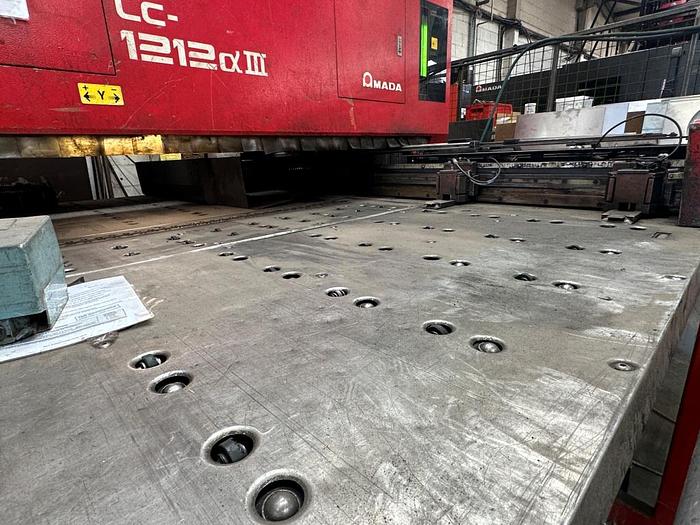

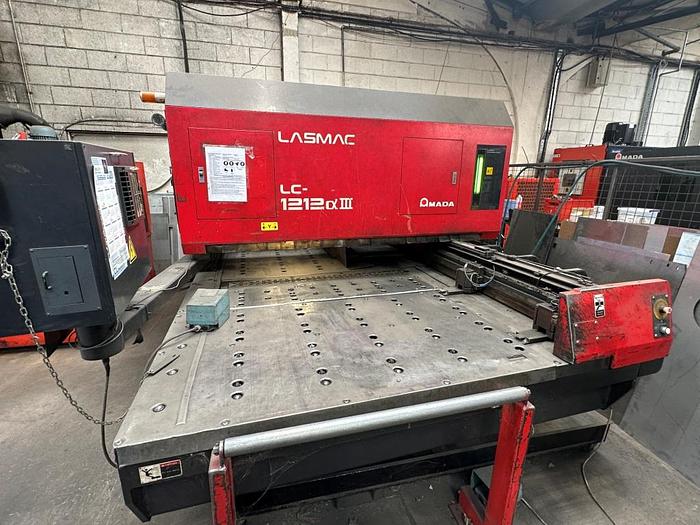

Amada Lasmac LC-1212 Alpha III CNC Laser

Machine Type: CNC 2D Flat Bed Co2 Laser for Sheet Metal

Year: 1999

Control: Fanuc Series 160i-L

Resonator Power: 2kW

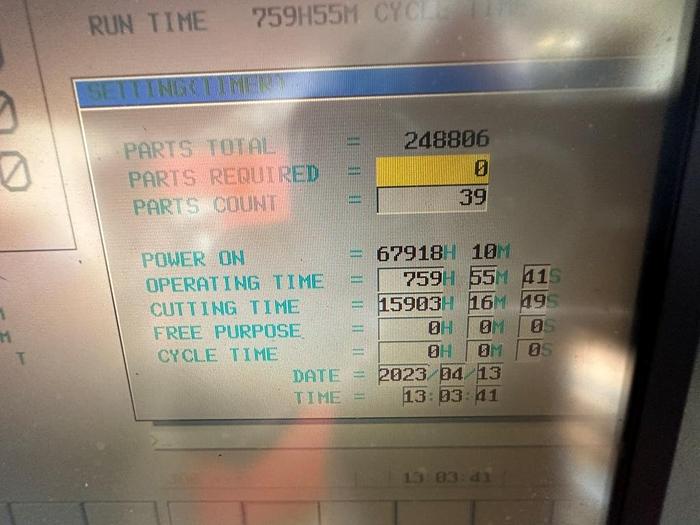

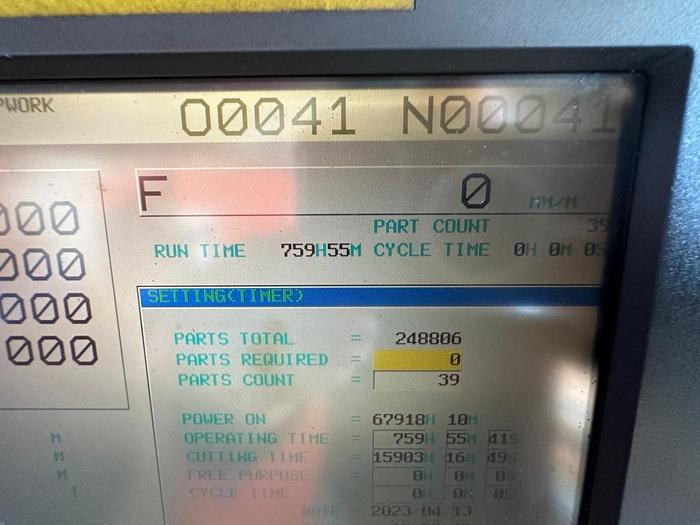

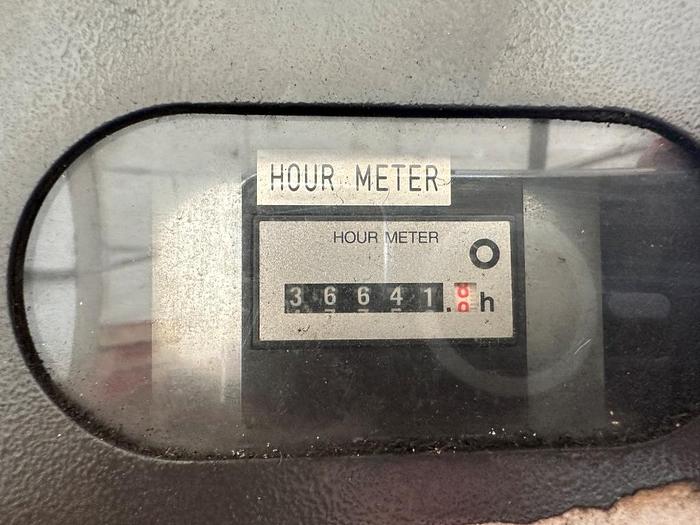

Hours: 36641hrs

Condition: Decommissioned late 2022. Working well before decommissioning. Moved to make space for new machine. Chiller needs to be re-gassed.

Includes

Optical Vision System (for part transfer identification)

DCE Unicell Extraction Unit

Chiller Unit

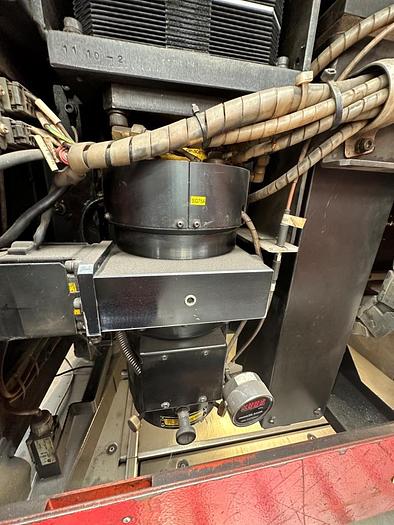

1 x 5" Head

1 x 7.5" Head

Full Service History by Amada Engineers

Technical Specification

Axis Travels: 1270 x 1270 x 300mm

Max Sheet Size: 2540 x 1270mm (one auto reposition)

Sheet Size without Reposition: 1270 x 1270mm

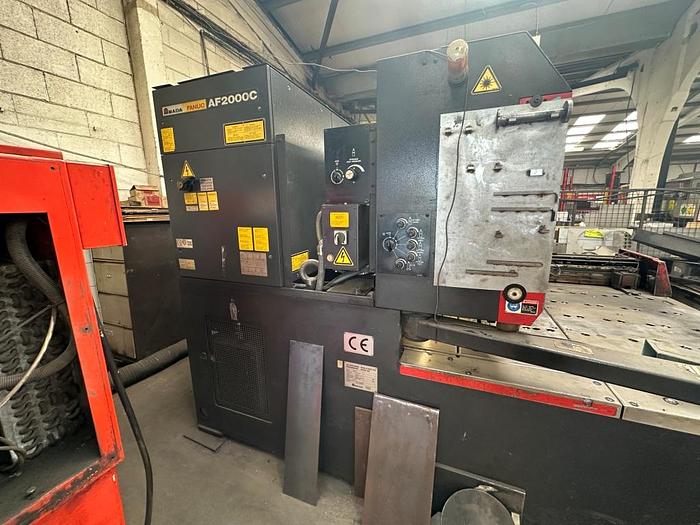

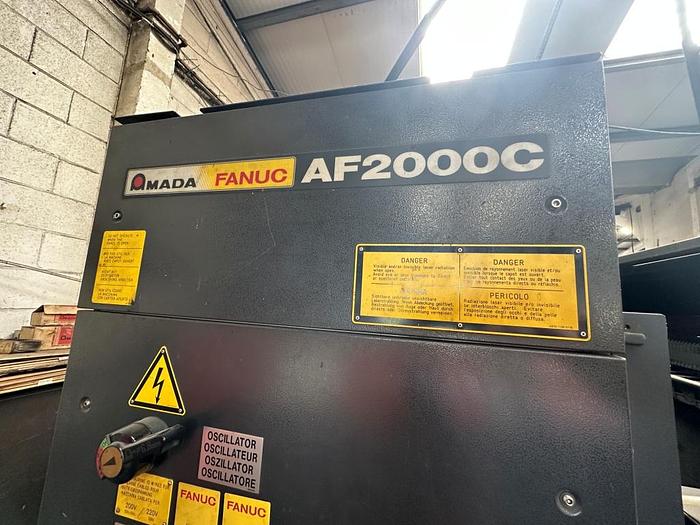

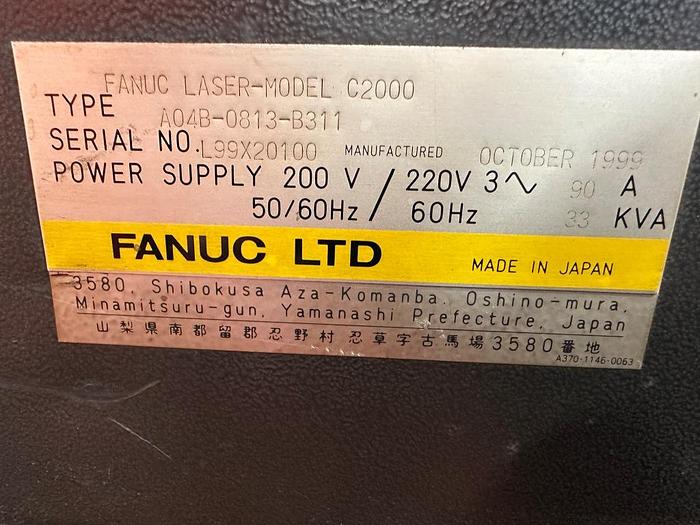

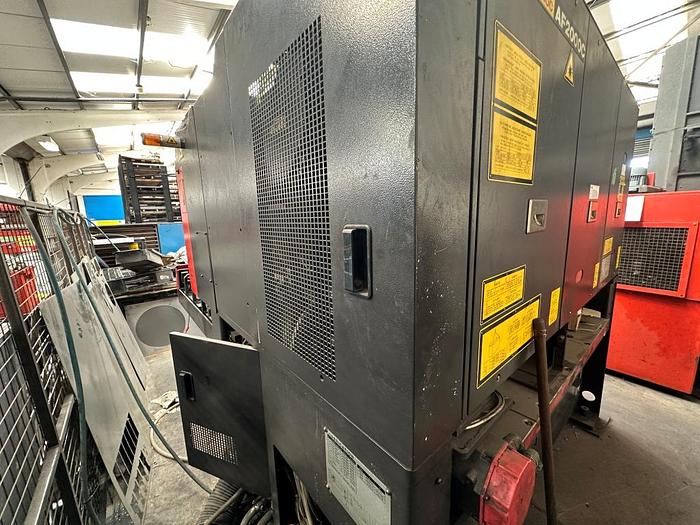

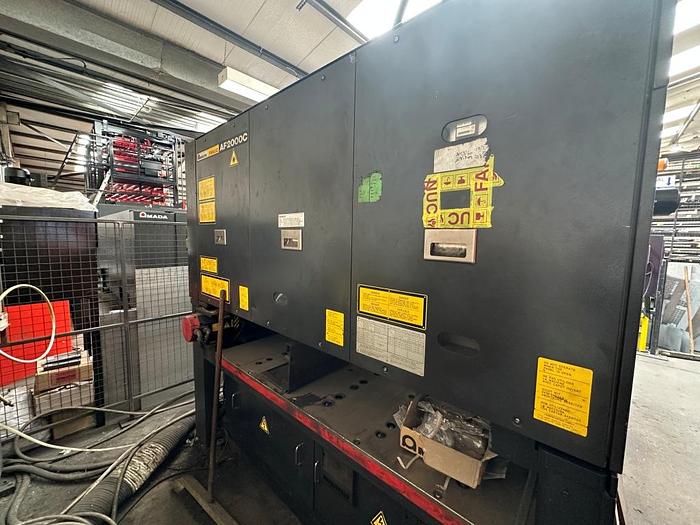

Laser Resonator: Fanuc AF 2000C

Rated Output: 2000W

Laser Gas Mixture: CO2- He2- N2=5.40.55 +/-2% each

Laser Gas Pressure:1.75 +/-0.25 Kgf/cm² (at regulator)

Laser Gas Consumption: 10 l/hour

Max Material Thickness - M/S: 10mm

Max Material Thickness - SS: 9mm

Max Material Thickness - ALU: 4mm

Max Material Weight: 210kg

Max Feed Speed (X,Y): 80m/min

Max Feed Speed (Z): 60m/min

Laser Cutting Speed: 0-20m/min

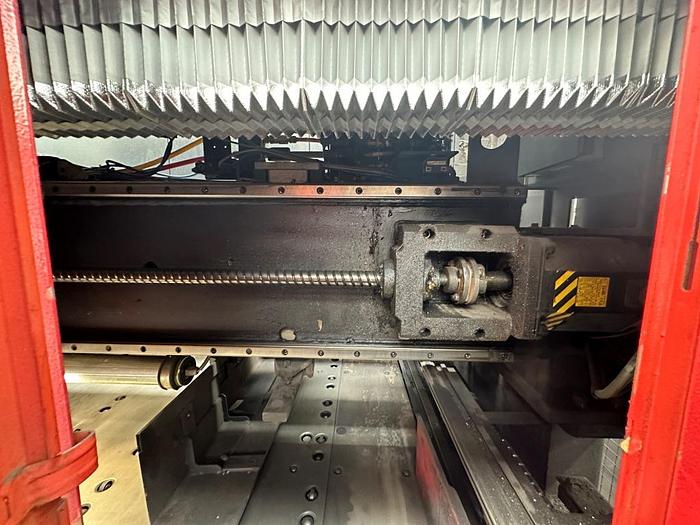

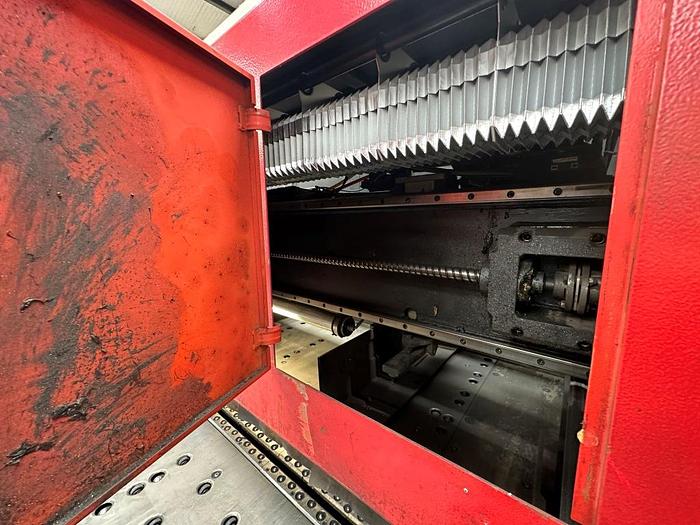

Axis Drives (X,Y,Z): AC Servo Motor

Electrical Power Requirement: 43kVA

Air Requirement: 250l/min

Machine Dimensions: 3125 x 2230 x 2275mm

Machine Weight: 4600kg

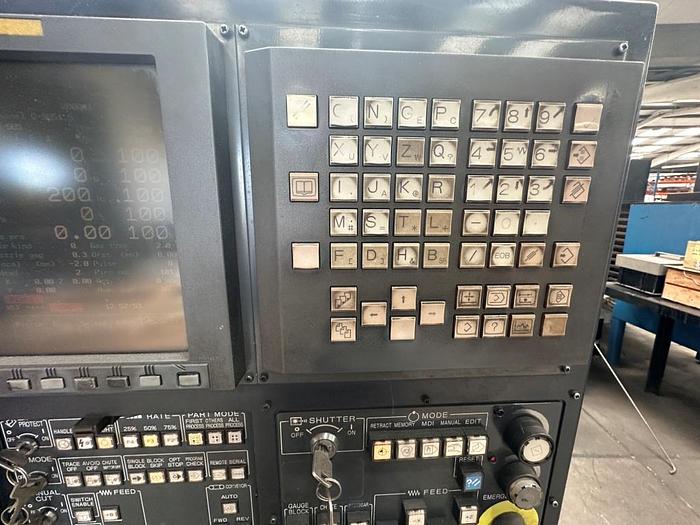

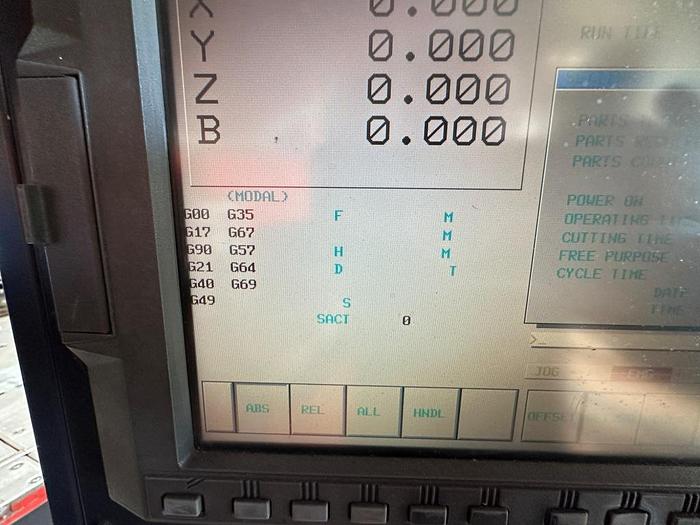

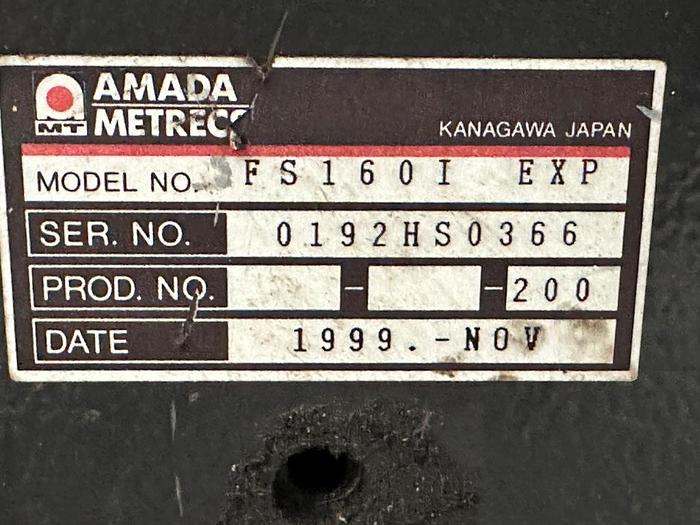

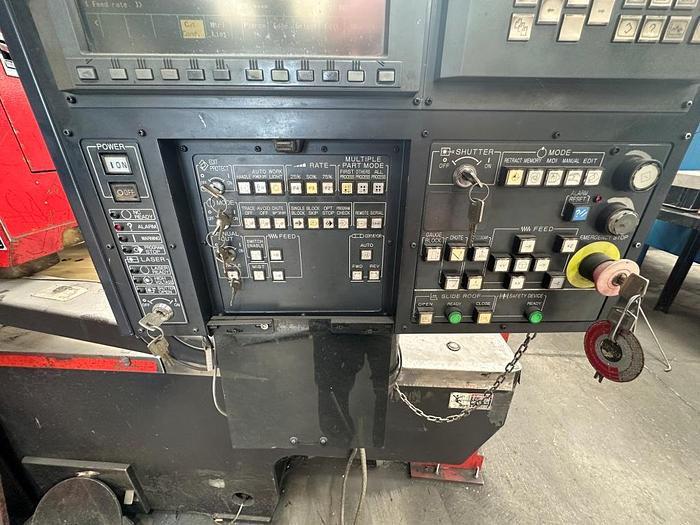

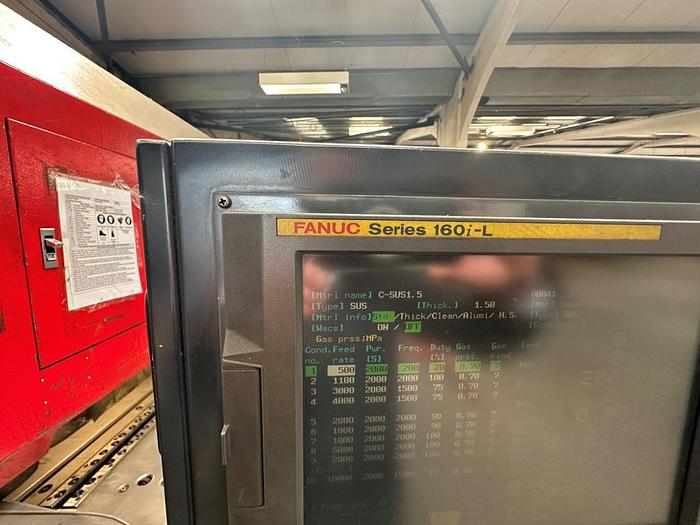

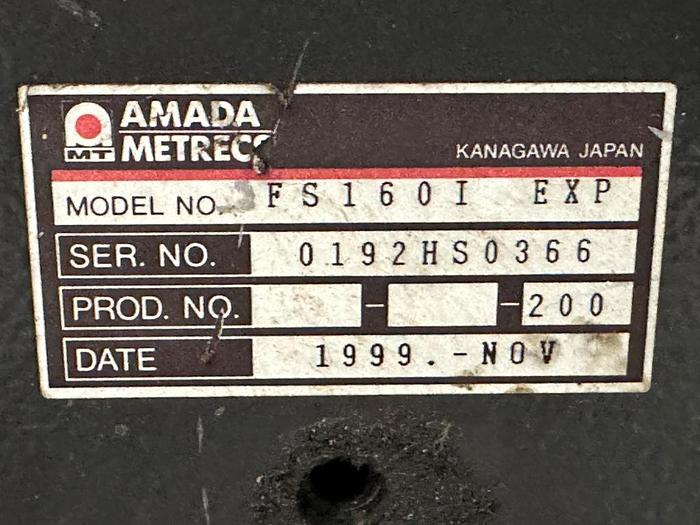

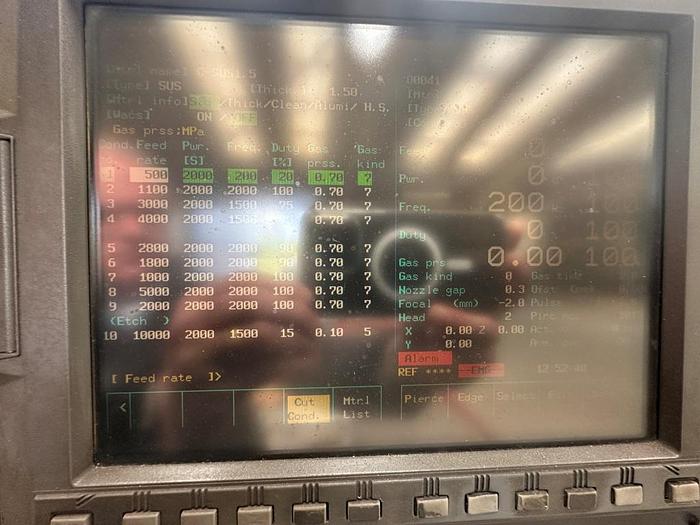

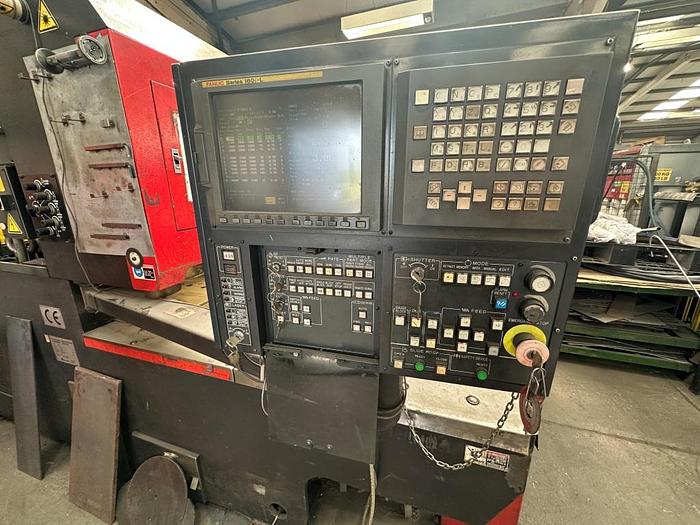

Control Model: Fanuc Series 160i-L

Display: 9" Colour LCD

Data Interface: RS232C

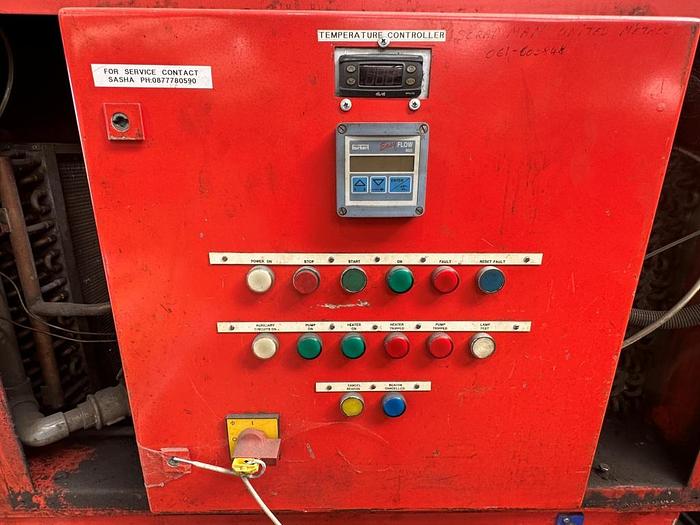

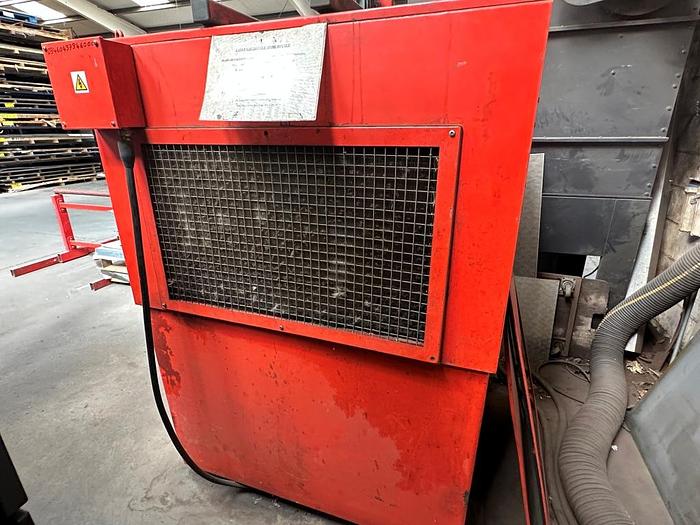

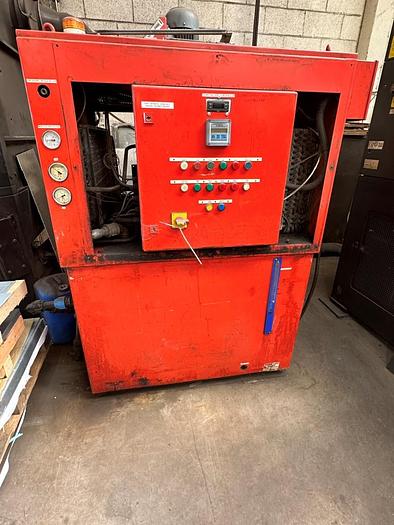

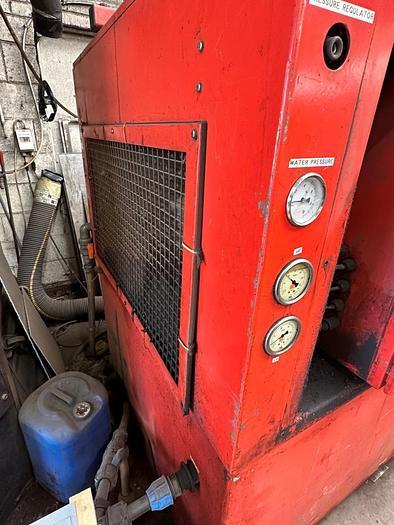

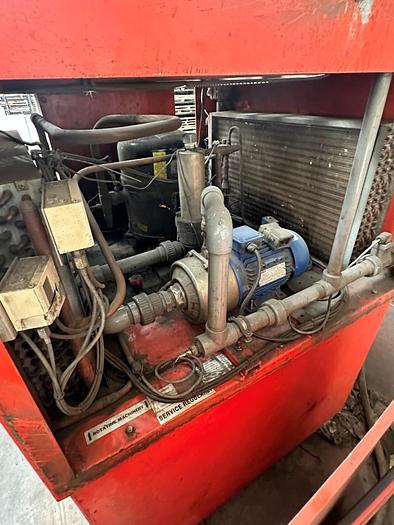

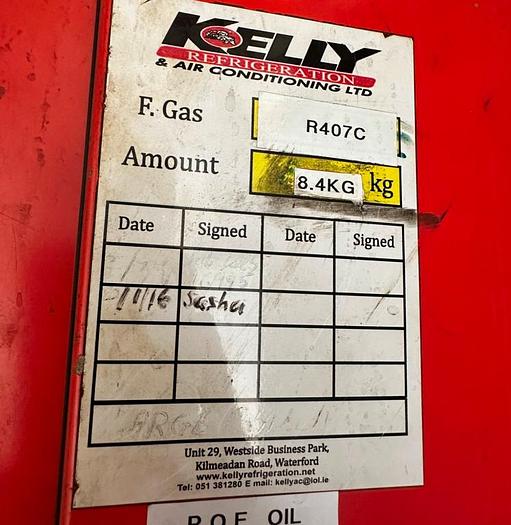

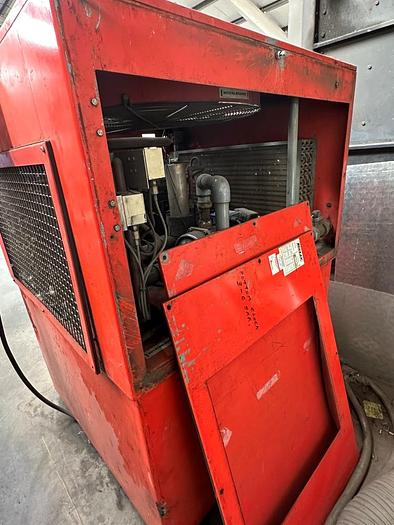

Chiller Model: Tricool 2152 - 50AMS

Chiller Type: Air Cooled, Floor Mounted

Chiller Dimensions: 1200 x 620 x 1520mm

Chiller Weight: 390kg

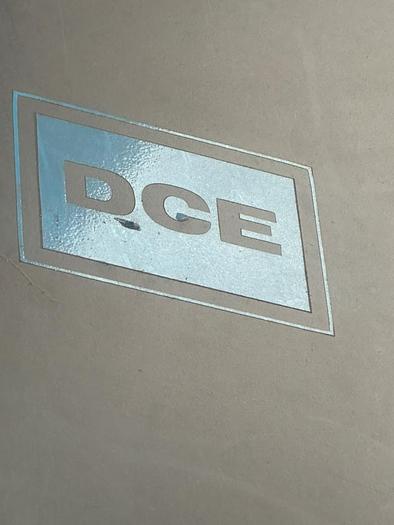

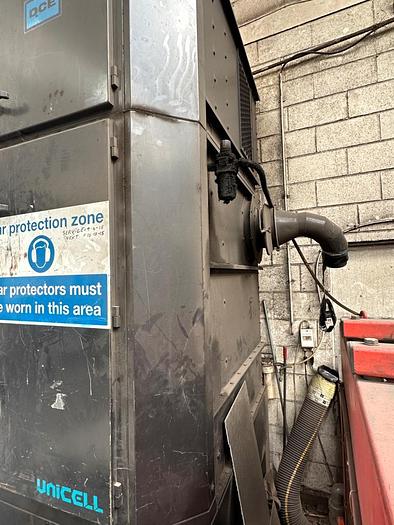

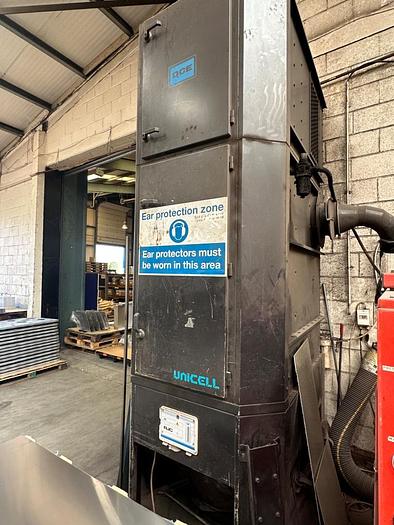

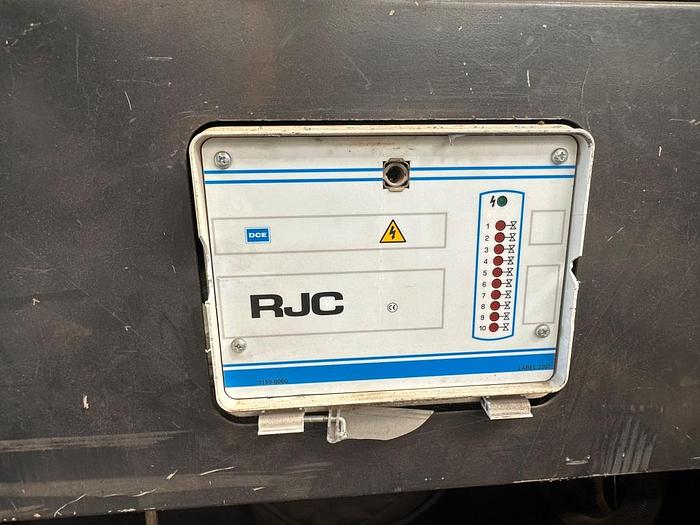

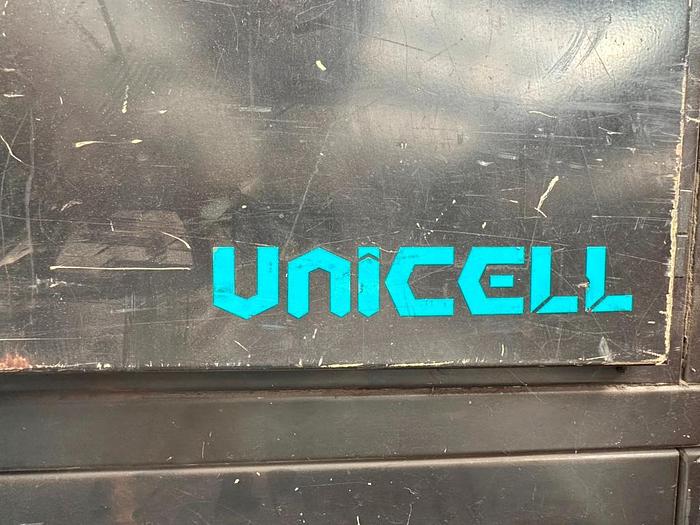

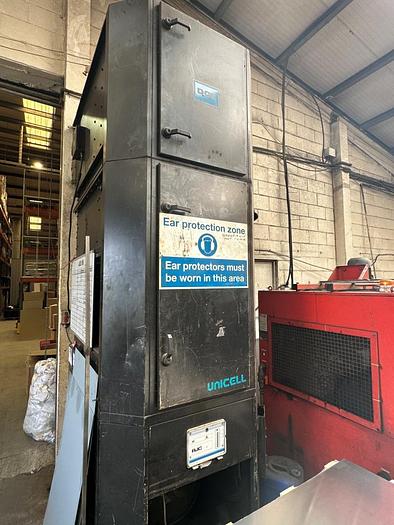

Dust Extraction: DCE Unicell C32-3k10

Air Requirement: 270L/min

Extractor Dimensions: 1030 x 1630 x 3330mm

Extraction Weight: 832kg
