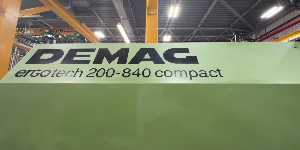

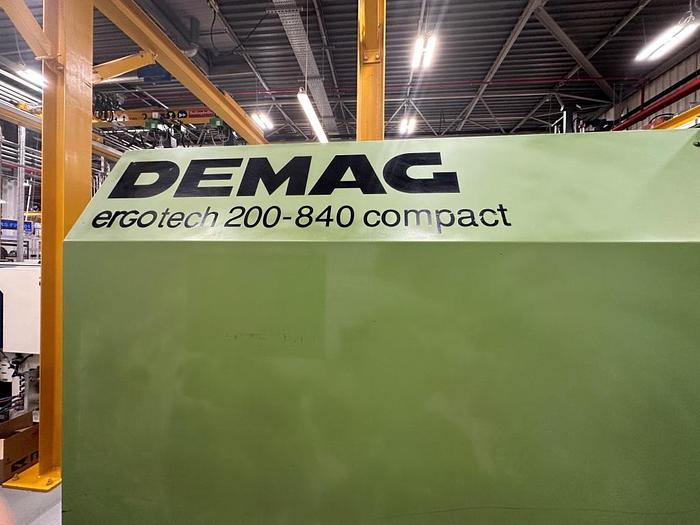

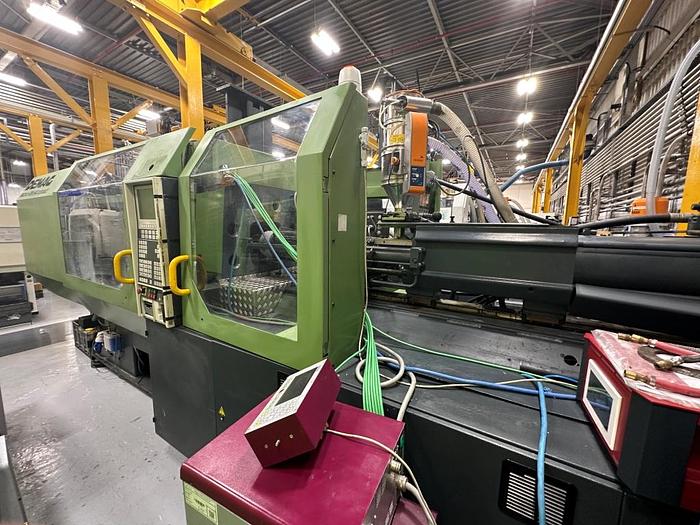

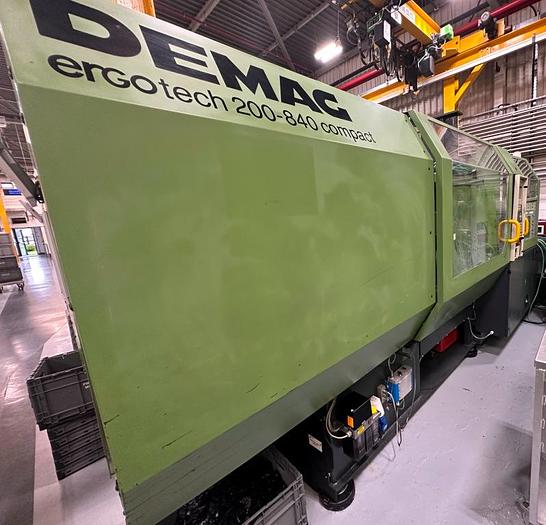

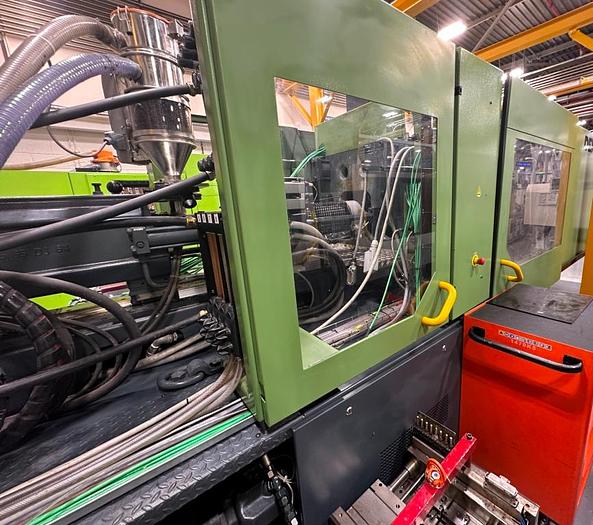

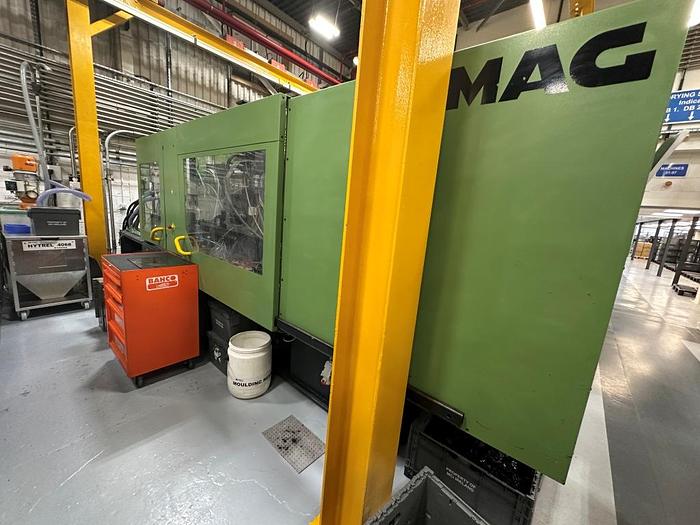

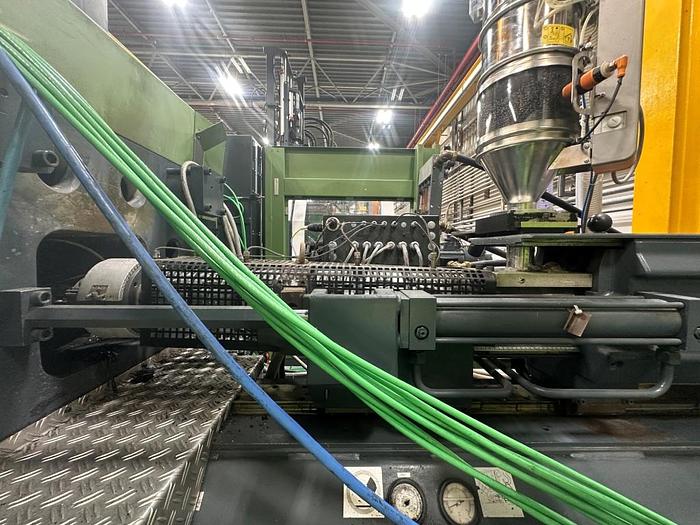

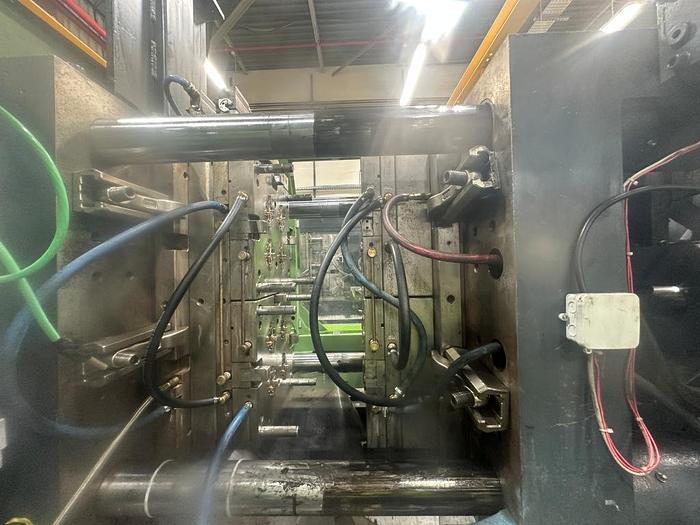

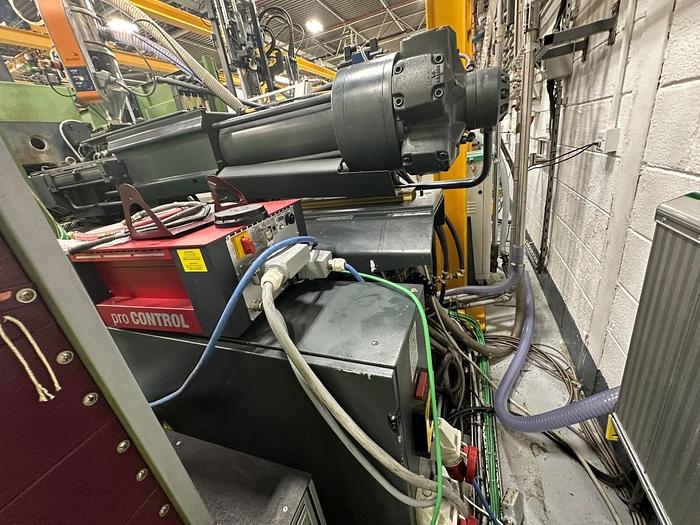

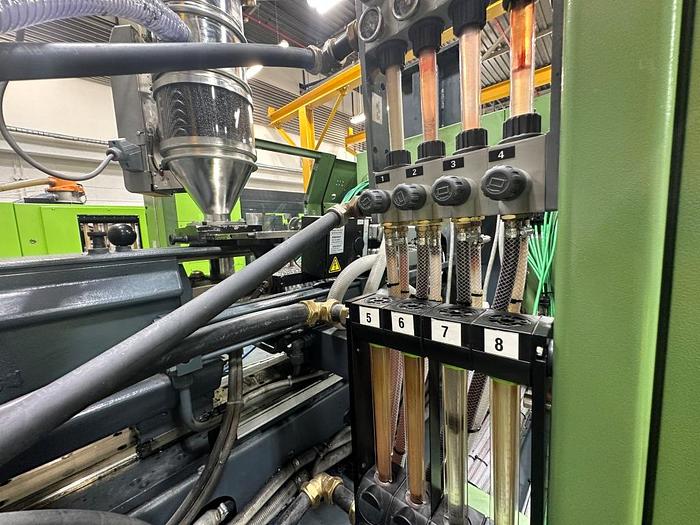

1997 Demag ERGOtech 200-840 Compact Injection Moulding Machine
Description
Demag ERGOtech 200-840 Compact Injection Moulding Machine
Machine Type: Injection Moulding Machine
Year: 1997

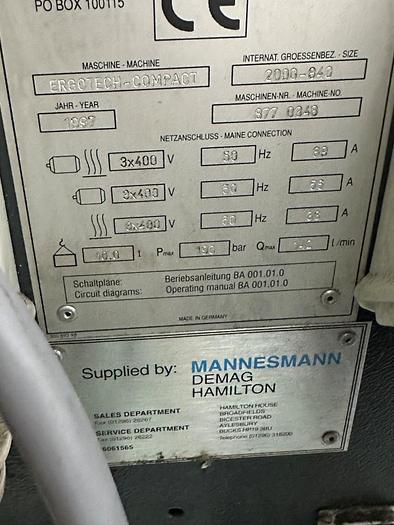

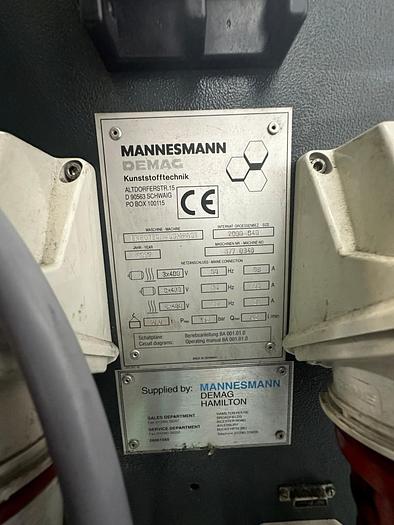

International Size: ERGOTECH-COMPACT 2000-840
Screw Size: 45mm
Clamping Force: 200T

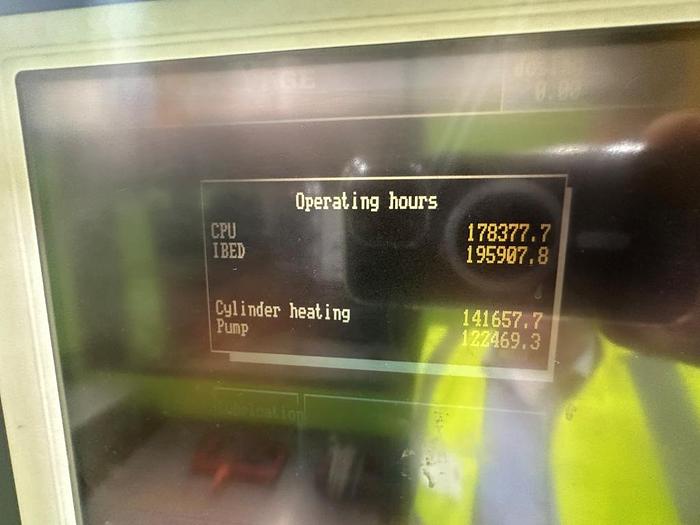

Pump Hours:122469hrs

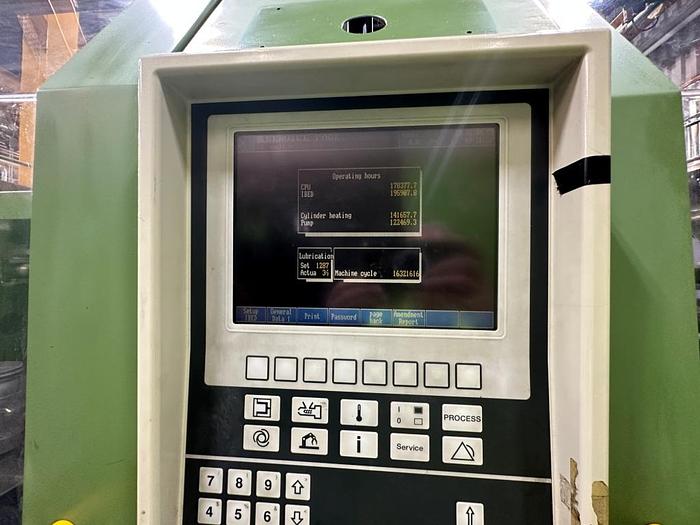

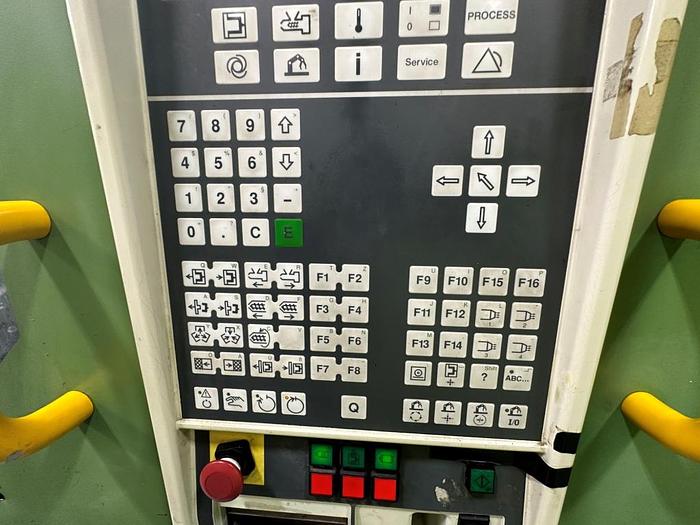

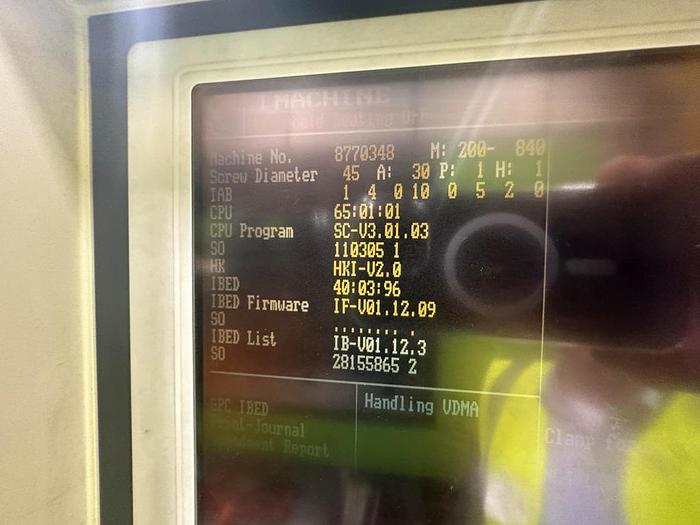

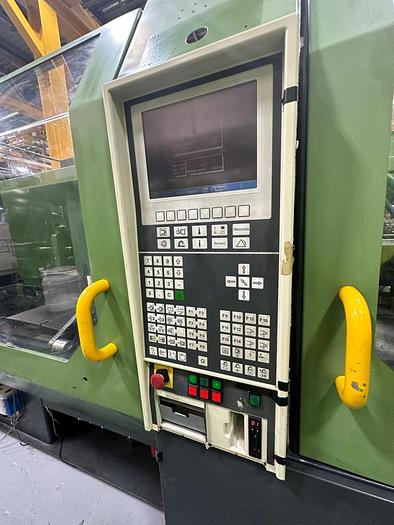

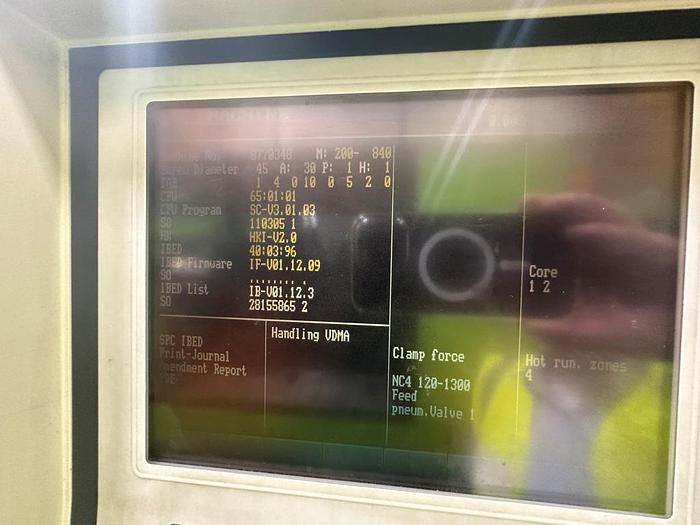

Control: Demag NC4
Availability: July 2023
Condition: Very Good
Notes:
Excludes Hopper & Kistler Unit
Single Shot Machine
Includes
Conveyor
Manuals
Technical Specifications
Clamping Force: 200T/2000kN
Distance Between Tie Bars: 560 x 560mm
Platen Dimensions: 830 x 830mm
Max Mould Height: 660mm
Min Mould Height: 310mm
Max Daylight: 1235mm
Opening Stroke: 575mm
Ejector Stroke: 180mm
Ejector Force: 69kN
Max Mould Weight: 2500kg
Screw Diameter: 45mm
Max Shot Weight: 326g
Max Screw Stroke: 225mm
Max Shot Volume: 358ccm
Injection Pressure: 2400bar
Machine Dimensions: 5700 x 1700 x 2100mm
Machine Weight: 10,000kg
Specifications
| Manufacturer | Demag |
| Model | ERGOtech 200-840 Compact Injection Moulding Machine |
| Year | 1997 |
| Condition | Used |
| Machine Type | Injection Moulding Machine |
| Year | 1997 |
| International Size | ERGOTECH-COMPACT 2000-840 |
| Screw Size | 45mm |
| Pump Hours | 122469hrs |
| Control | Demag NC4 |
| Availability | July 2023 |
| Condition | Very Good |
| Clamping Force | 200T/2000kN |
| Distance Between Tie Bars | 560 x 560mm |
| Platen Dimensions | 830 x 830mm |
| Max Mould Height | 660mm |
| Min Mould Height | 310mm |
| Max Daylight | 1235mm |
| Opening Stroke | 575mm |
| Ejector Stroke | 180mm |
| Ejector Force | 69kN |
| Max Mould Weight | 2500kg |
| Screw Diameter | 45mm |
| Max Shot Weight | 326g |
| Max Screw Stroke | 225mm |
| Max Shot Volume | 358ccm |
| Injection Pressure | 2400bar |
| Machine Weight | 10,000kg |
