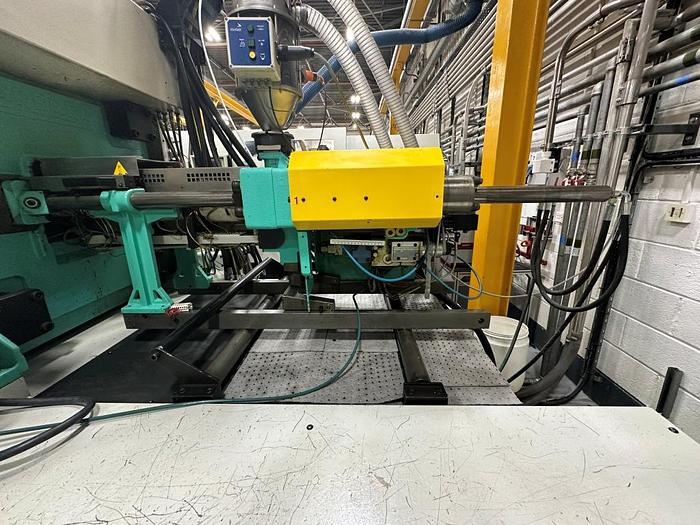

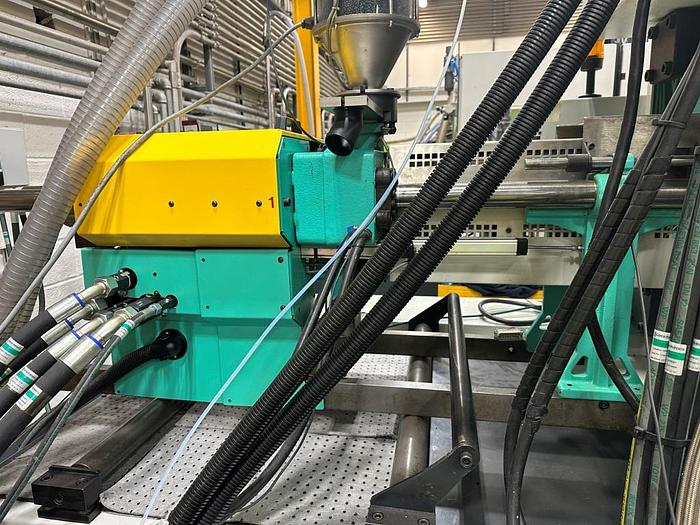

2001 Arburg Allrounder 570C Injection Moulding Machine
Description

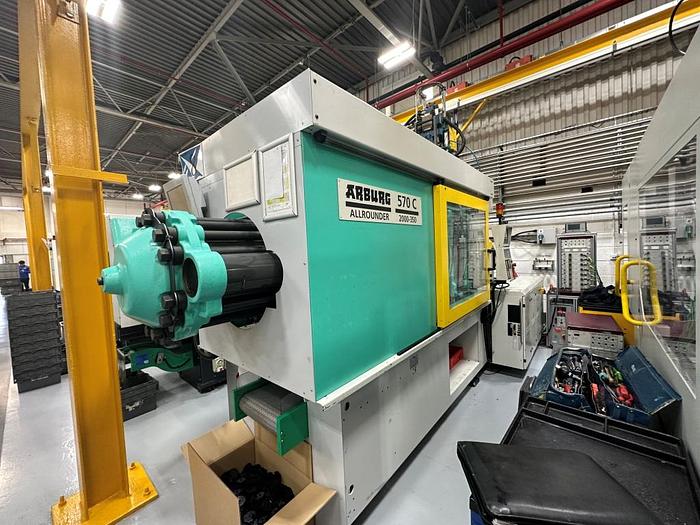

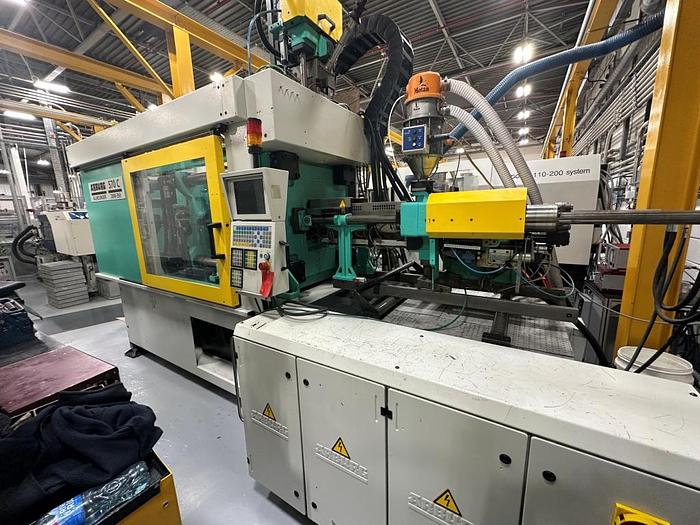

Arburg Allrounder 570C Injection Moulding Machine
Machine Type: Injection Moulding Machine

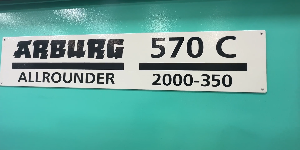

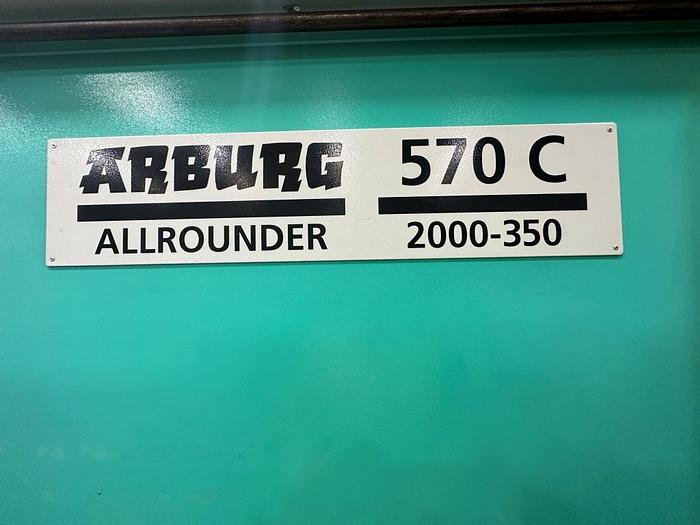

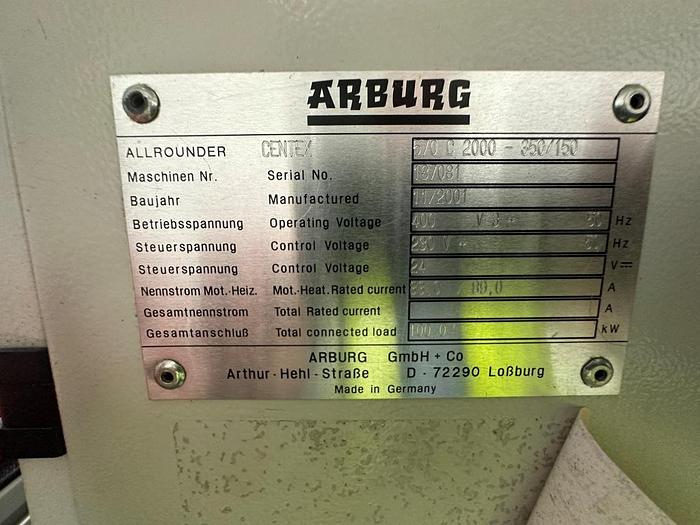

Full Model Number: Allrounder Centex 570C 2000 - 350/150
Year: 2001
Screw Size: 40mm
Clamping Force: 200T
Hours: Unknown

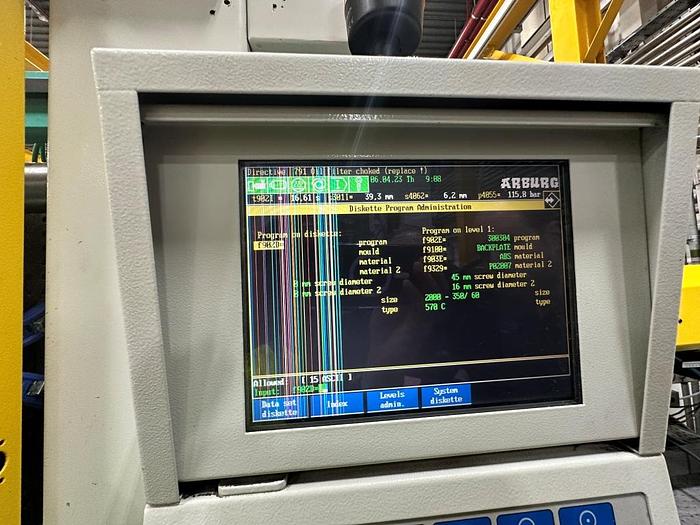

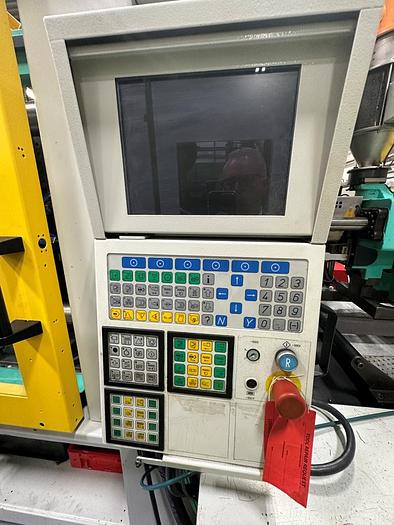

Control: Arburg
Condition: Good. Slight Oil Leak. Very common on Arburg Machines.
Availability: July 2023
Notes:
Excludes Hopper & Kistler Unit
Used as a single shot machine
Includes
Conveyor
Manuals
Technical Specifications
Clamping Force: 200T/2000kN
Tie Bar Size: (H x V) 570 x 570mm
Platen Size: (H x V) 795 x 795mm
Min Installation Height: 300mm
Max Distance Between Platens: 950mm
Opening Stroke: 650mm
Ejector Stroke: 225mm
Ejector Force: 66kN
Screw Diameter: 40mm
Stroke Volume: 182ccm
Shot Weight: 153gr/hp
Injection Pressure: 2900bar
Connected Load: 56.5kW
Total Connected Load: 100kW
Pump Motor Power: 37kW
Heating Power: 10.2kW
Heating Motor Current: 88A
Oil Capacity: 400L
Machine Dimensions: 5300 x 1800 x 2400mm
Machine Weight: 8000kg
Specifications
| Manufacturer | Arburg |
| Model | Allrounder 570C Injection Moulding Machine |
| Year | 2001 |
| Condition | Used |

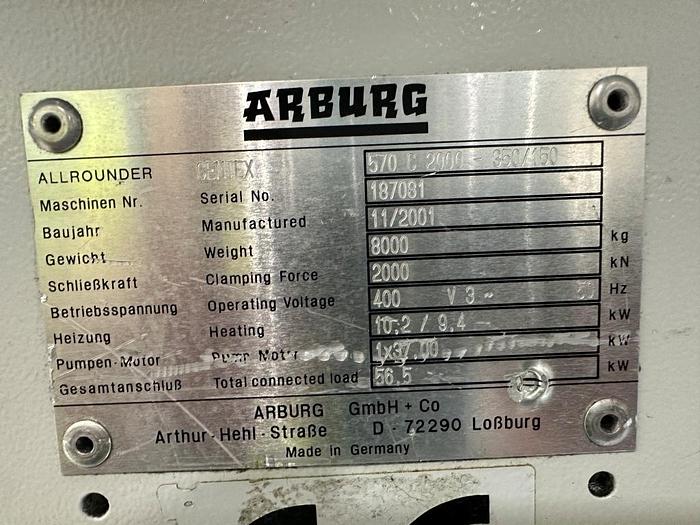

| Serial Number | 187081 |
| Machine Type | Injection Moulding Machine |
| Year | 2001 |
| Screw Size | 40mm |
| Availability | July 2023 |
| Clamping Force | 200T/2000kN |
| Min Installation Height | 300mm |
| Max Distance Between Platens | 950mm |
| Opening Stroke | 650mm |
| Ejector Stroke | 225mm |
| Ejector Force | 66kN |
| Screw Diameter | 40mm |
| Stroke Volume | 182ccm |
| Shot Weight | 153gr/hp |
| Injection Pressure | 2900bar |
| Connected Load | 56.5kW |
| Total Connected Load | 100kW |
| Pump Motor Power | 37kW |
| Heating Power | 10.2kW |
| Heating Motor Current | 88A |
| Oil Capacity | 400L |
| Machine Weight | 8000kg |
