€1,230 + VAT

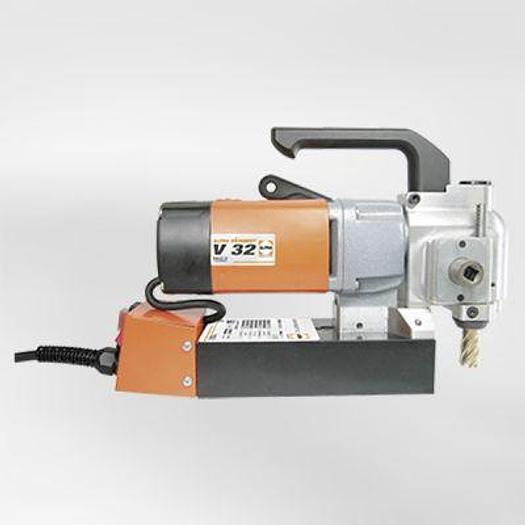

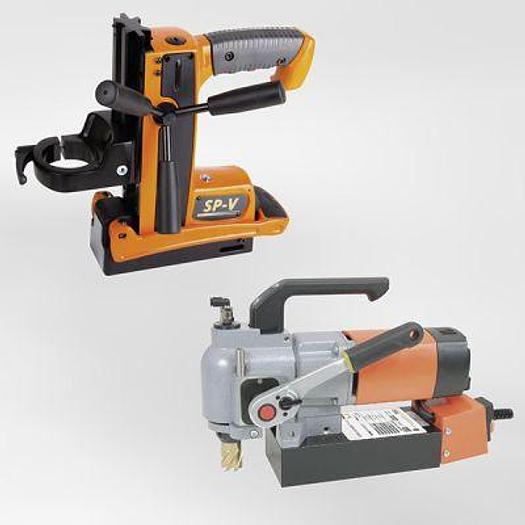

Alfra GmbH Rotabest V32 Magnetic Core Drill

5

Germany

orCall +353 838108745

Description

Alfra Rotabest V 32 Magnetic Core Drilling Machine


Type: Magnetic Core Drill

Product No: 18710.110

Power: 110V (also available in 230V)

Magnet: Electromagnet


Drill Description

As part of our S-series for special devices, the V32 is showing full commitment when metal core drilling becomes tight. The compact device is delivering maximum power even in working areas, which are difficult to reach. An electromagnet is ensuring a secure hold. The basis is a flat design, which was developed for extraordinary application situations: For example, for drilling around vehicle frames, in narrow T-beams or whenever drilling machines with standard dimensions meet their limits. Part of the concept for a space-saving application is, among other things, the small stroke of only 45 mm, as well as the operation of the device with a ratchet. The V32 is mastering almost any challenge in metal core drilling – for example in combination with core drills with a diameter of up to 32 mm or with step drills with a diameter of up to 32 mm.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 32.0 mm

Cutting depth: 30.0 mm

Counterboring: Ø 10.0 - 32.0 mm

Arbor: 19 mm Weldon shank

Stroke: 45 mm

Gearbox – on-load speed: 450 rpm

Power consumption: 900 W

Voltage: 110 V 50/60 Hz

Magnetic holding force: 16,000 N

Tool-Force (10 mm): 2,100 N

Min. material thickness: 6 mm

Magnetic base: 95 x 200 mm

Weight:12.5 kg



Features:

Compact, lying motor

Compact mitre gear

 2-sided column guide

Space-saving – through ratchet

Metal Ring Magnet


Specifications

ManufacturerAlfra GmbH
ModelRotabest V32 Magnetic Core Drill
ConditionNew
TypeMagnetic Core Drill
Product No18710.110
MagnetElectromagnet
Cutting depth30.0 mm
Arbor19 mm Weldon shank
Stroke45 mm
Gearbox – on-load speed450 rpm
Power consumption900 W
Magnetic holding force16,000 N
Tool-Force (10 mm)2,100 N
Min. material thickness6 mm
Magnetic base95 x 200 mm
Weight12.5 kg
