€1,300 + VAT

Alfra GmbH Rotabest RB 50B Magnetic Core Drill

5

Germany

orCall +353 838108745

Description

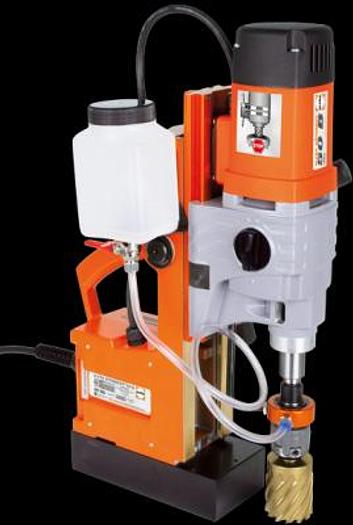

Alfra Rotabest RB 50 B Magnetic Core Drilling Machine


Type: Magnetic Core Drill

Product No: 18451.110

Power: 110V (also available in 230V)

Magnet: Electromagnet


Drill Description

The models of the Alfra Basic-Line are reliable and robust helpers, for example in your company or on your construction site. Your advantage: You benefit from an excellent price-performance. Concretely this means: Thanks to a great performance for less money you stay economically flexible. In addition, like all models of the basic line, our RB 50 B is a real endurance runner: no matter how many hours a device from the basic line is in operation for you - you can look forward to long service lives. Our robust machine can be combined with core drills up to a diameter of 50 mm, with step drills up to a diameter of 40 mm, and with twist drills up to a diameter of 20 mm. It is equipped with an MK2 holder with coolant ring and a continuously adjustable carriage with self-adjusting guide. The RB 50 B is particularly user-friendly due to its soft-touch handles, an ergonomic control keyboard and a comfortable 5m cable.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 50.0 mm

Cutting depth: 50.0 mm

Twist drill: Ø 1.0 to 16.0 mm with quick-release chuck MT 2 up to Ø 20.0 mm with MT2 DIN 345 direct

Counterboring: Ø 10.0 - 40.0 mm

Tapping: with tapping attachment: M3 - M20

Arbor: MT2

Stroke: 190 mm

Height adjustment: 100 mm

Gearbox – on-load speed: 1. Step 250 rpm 2. Step 450 rpm

Power consumption: 1.200 W

Voltage: 110 V 50/60 Hz

Magnetic holding force: 12,000 N

Tool-Force (10 mm): 3,500 N

Min. material thickness: 6 mm

Magnetic base: 92 x 220 mm

Weight: 15.0 kg


Features:

Gearboxes

Oil bath gearbox



Slide

Stepless adjustment

Self-adjusting guide



Operation

Soft-touch grips

Cord length 5 m



Magnet

Electromagnet




Specifications

ManufacturerAlfra GmbH
ModelRotabest RB 50B Magnetic Core Drill
ConditionNew
TypeMagnetic Core Drill
Product No18451.110
MagnetElectromagnet
ArborMT2
Cutting depth50.0 mm
Stroke190 mm
Height adjustment100 mm
Tappingwith tapping attachment M3-M20
Power consumption1.200 W
Magnetic holding force12,000 N
Tool-Force (10 mm)3,500 N
Min. material thickness6 mm
Magnetic base92 x 220 mm
Weight15.0 kg
