Cormak Series 660 x 3000 Manual Lathe

Cormak Series 660 x 3000 Manual Lathe

Machine Type: Manual Lathe

Machine Description

The 660 series lathes for turning metal are equipped with rapid feeds, a multi-plate clutch and digital readouts. Due to the newest solutions and its equipment, the lathe is suitable for professional and industrial work.

Machine Features

The 660×3000 modern lathe is equipped with rapid feeds, a multi-plate clutch and digital readout, due to which the lathe is suitable for professional and industrial work.

• Inductively hardened and precisely ground bed
• Massive cast iron structure of the machine

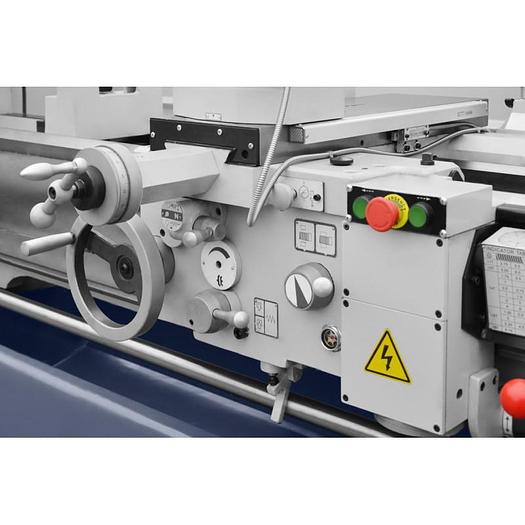

• Lathe equipped with a quick longitudinal and transverse movement
• Main arbor with ball bearings
• 105 mm spindle bore
• Digital readouts for 3 axes

Includes

PS3-315/D8 3-jaw chuck

400 mm face plate

450 mm clamping plate

Digital readout for 3 axes

4-way tool post

Technical Specifications

Swing over bed: 660 mm with an LCD readout

Swing over cross slide: 455 mm

Turning diameter after removing the bridge (Diameter x Width):: 885 x 170 mm

Centre height: 330 mm

Centre distance: 3000 mm

Bed width: 350 mm

Maximum tool dimensions: 25×25 mm

Maximum transverse slide travel: 350 mm

Maximum upper slide travel: 130 mm

Spindle bore diameter: Ф103mm

Spindle taper: D1-8

Number of spindle speeds: 12

Spindle speed: 25–1500 rpm

Lead screw diameter and thread: Ф40 x 6 mm

Inch thread: 2-112 T.P.I. (60)

Metric thread: 0,2-14 mm (47)

D.P. thread: 4-112 D.P. (50)

Modular thread: 0.1-7 M.P. (39)

Longitudinal feed range: 0.059-1.646 mm/rev (35)

Transverse feed range: 0,020-0,573 mm/rev (35)

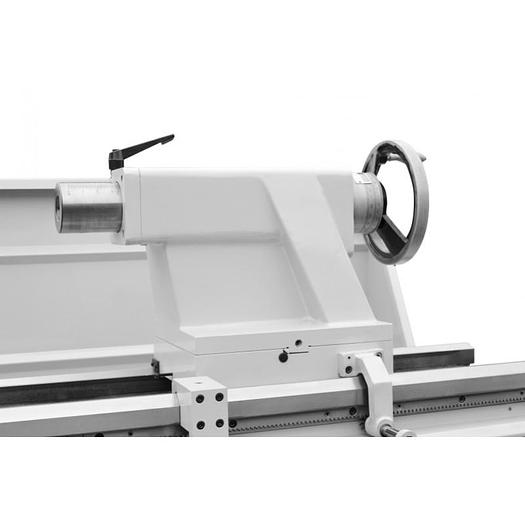

Tailstock quill feed: 180 mm

Tailstock sleeve diameter: Ф 75 mm

Tailstock quill taper: MT5

Spindle drive motor: 7,5kW (10HP)

Coolant pump motor: 0,1 kW (1/8HP)

Machine working space required (LxWxH): 4340 x 1150 x 1510 mm

Net weight: 3190 kg
