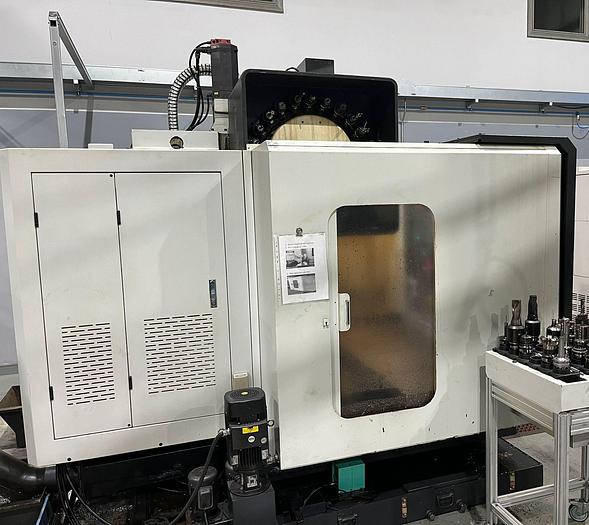

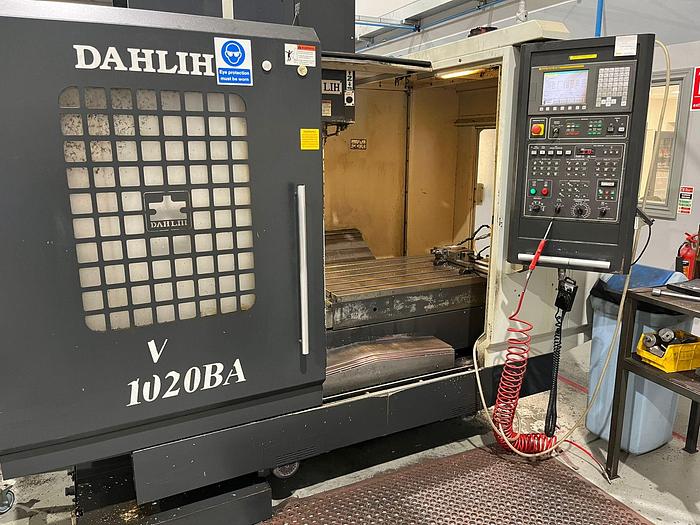

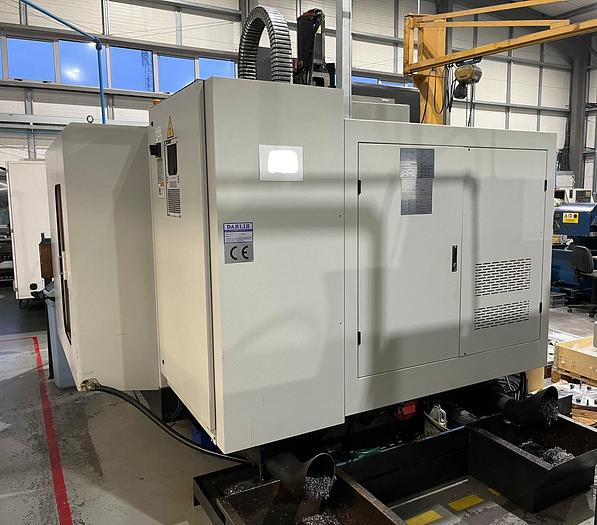

2007 DahLih MCV1020BA Vertical Machining Center
Description
Dah Lih DL MCV 1020 BA Vertical Machining Center
Machine Type: Vertical Machining Center with 4th Axis
Year: 2007

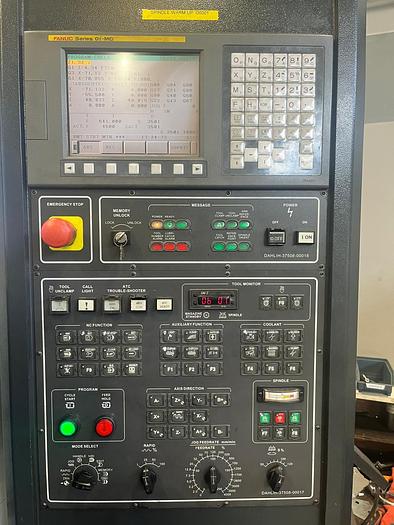

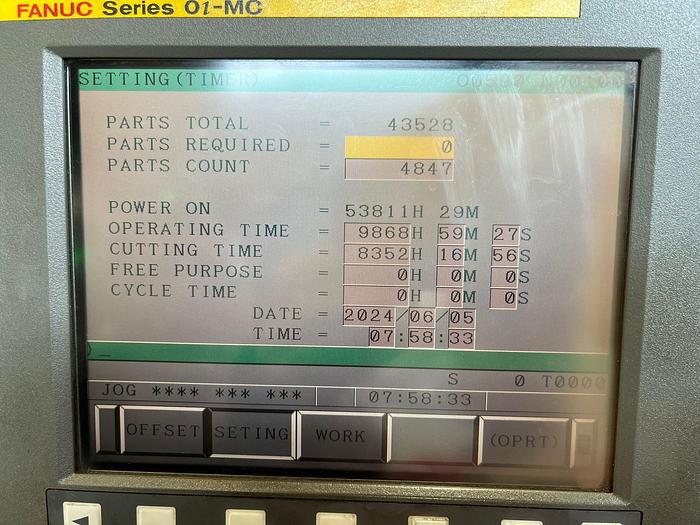

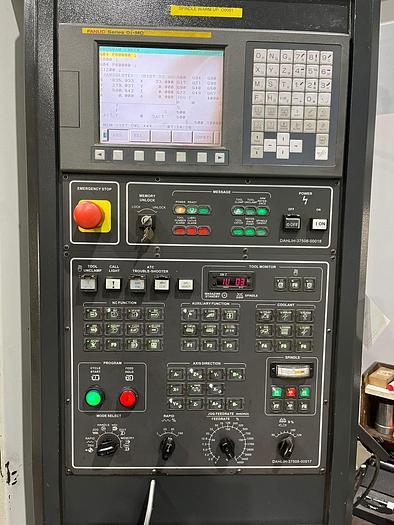

Control: Fanuc Series Oi-MC
Condition: Very Good
Includes

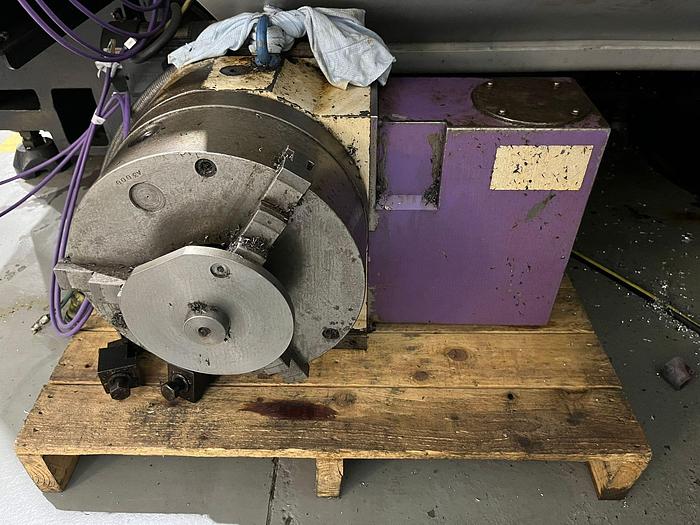

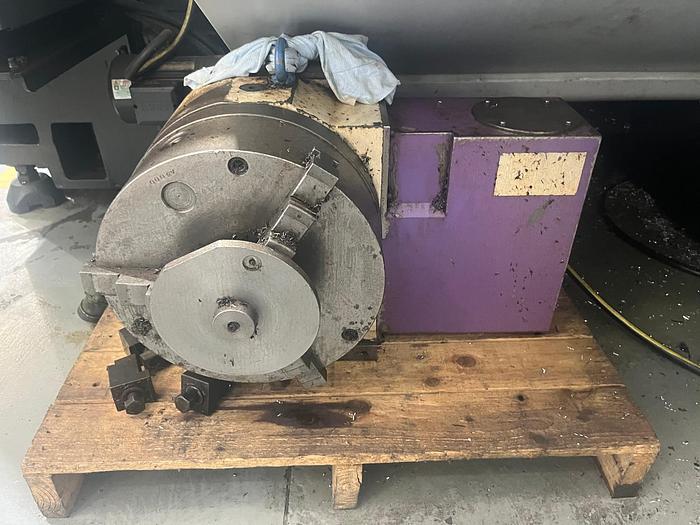

4th Axis as seen in photo
Swarf Conveyor

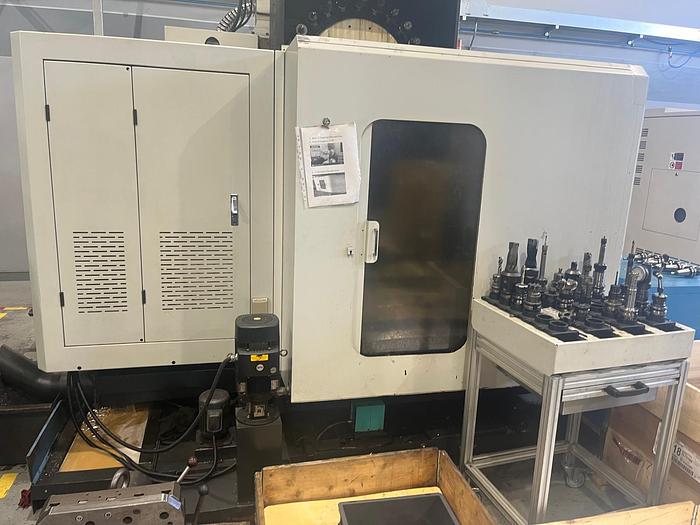

6 x Tool Holders

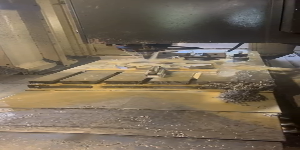

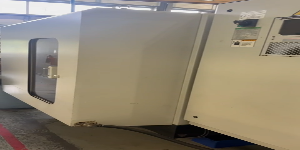

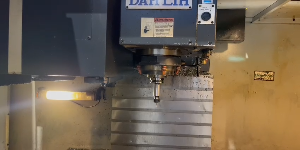

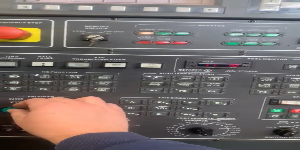

Notes: Please note that the manual rotary table and tools on the trolley seen in the video are not part of the sale. The powered 4th Axis and 6 x tool holders as seen in the photos are included in the sale.
Technical Specification
Table Size: 1300 x 660mm
T- Slots: 5 x 18mm
Max Table Load: 1000kg
X Axis Travel: 1020mm
Y Axis Travel: 550mm
Z Axis Travel: 560mm
Distance Between Spindle Nose and Table: 150-710mm
Spindle Taper: BT40
Spindle Speed: 8000rpm
ATC: 24 Stations
Max Tool Diameter: 77mm
Max Tool Diameter with Empty Adjacent Pockets: 127mm
Max Tool Length: 300mm
Max Tool Weight: 7kg
Spindle Motor: 7.5kW
Machine Dimensions: 3260 x 3060 x 2665mm
Machine Weight: 6000kg
Specifications
| Manufacturer | DahLih |
| Model | MCV1020BA Vertical Machining Center |
| Year | 2007 |
| Condition | Used |
| Year | 2007 |
| Control | Fanuc Series Oi-MC |
| Condition | Very Good |
| Table Size | 1300 x 660mm |
| T- Slots | 5 x 18mm |
| Max Table Load | 1000kg |
| X Axis Travel | 1020mm |
| Y Axis Travel | 550mm |
| Z Axis Travel | 560mm |
| Spindle Taper | BT40 |
| Spindle Speed | 8000rpm |
| ATC | 24 Stations |
| Max Tool Diameter | 77mm |
| Max Tool Length | 300mm |
| Max Tool Weight | 7kg |
| Spindle Motor | 7.5kW |
| Machine Dimensions | 3260 x 3060 x 2665mm |
| Machine Weight | 6000kg |
