Cormak 25mm Pedestal Drilling Machine
Description

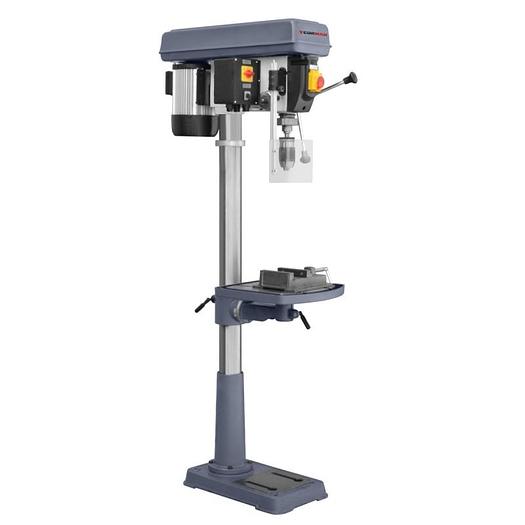

Cormak Z5020 400V Vario Pedestal Drilling Machine
Machine Type: Belt Driven Pedestal Drilling Machine
Drilling Capacity: 25mm
Power: 3 Phase 400V
Machine Description
A very efficient column drilling machine, designed for craftsmen. The machine has left and right rotation as well as a 1100 W two-gear motor.
Optional Extras (some shown in Photos)
Cooling System

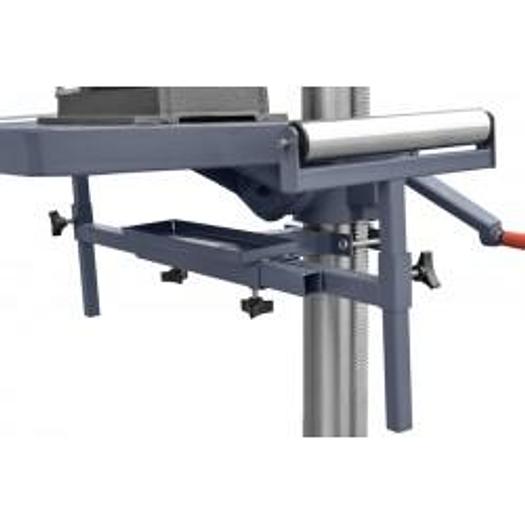

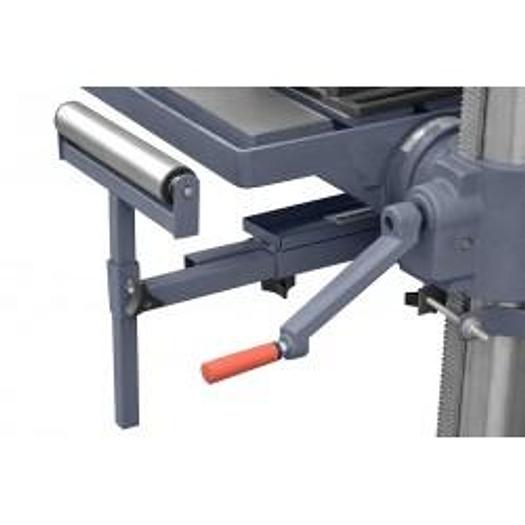

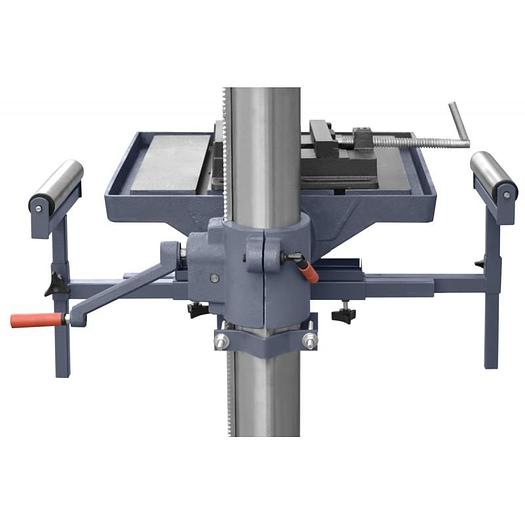

Table Feeder

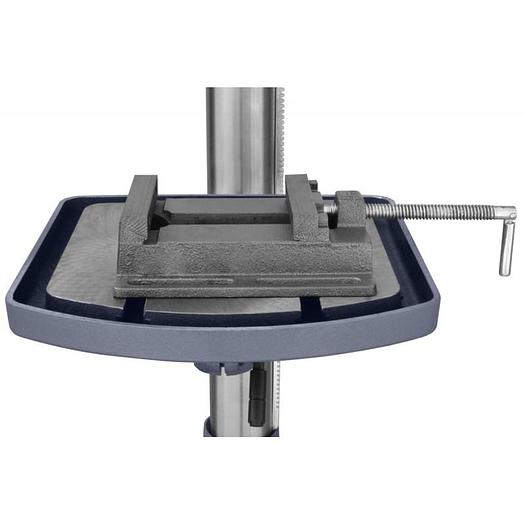

Drill Vice
Technical Details
Maximum Drill Bit Diameter: 25 mm
Maximum Chuck Diameter: 16 mm
Throat Depth: 215 mm
Spindle Taper: MT3
Spindle Quill Travel: 92 mm
Column Diameter: 80 mm
Motor: 400V / 50Hz / 1100 W
Table Dimensions: 355 x 355mm
Max Dist Table to Spindle: 640mm
Max Dist Base to Spindle: 1136mm
Total Height: 1635 mm
Spindle speed (50 Hz): 80–3000 rpm
Boxed dimensions (length/width/height): 642 x 356 x 1635mm
Weight: 85 kg
Specifications
| Manufacturer | Cormak |
| Model | 25mm Pedestal Drilling Machine |
| Condition | New |
| Drilling Capacity | 25mm |
| Spindle Quill Travel | 92 mm |
| Power | 3 Phase 400V |
| Maximum Drill Bit Diameter | 25 mm |
| Maximum Chuck Diameter | 16 mm |
| Throat Depth | 215 mm |
| Spindle Taper | MT3 |
| Column Diameter | 80 mm |
| Table Dimensions | 355 x 355mm |
| Total Height | 1635 mm |
| Spindle speed (50 Hz) | 80–3000 rpm |
| Weight | 85 kg |
