2004 Durmazlar HAP30160 NC Pressbrake
Description

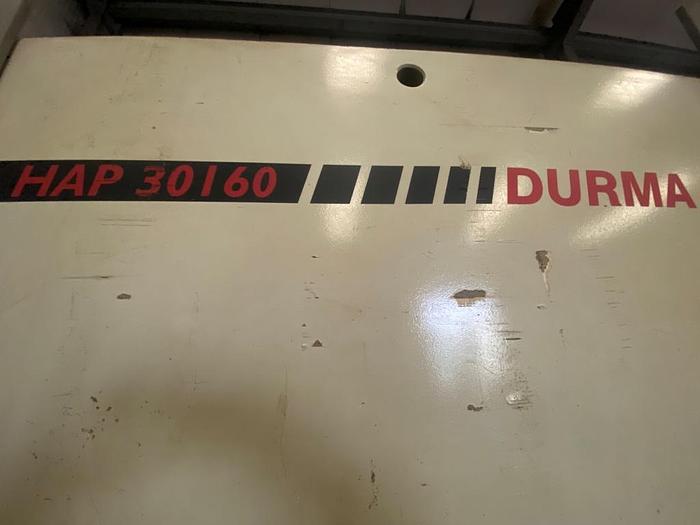

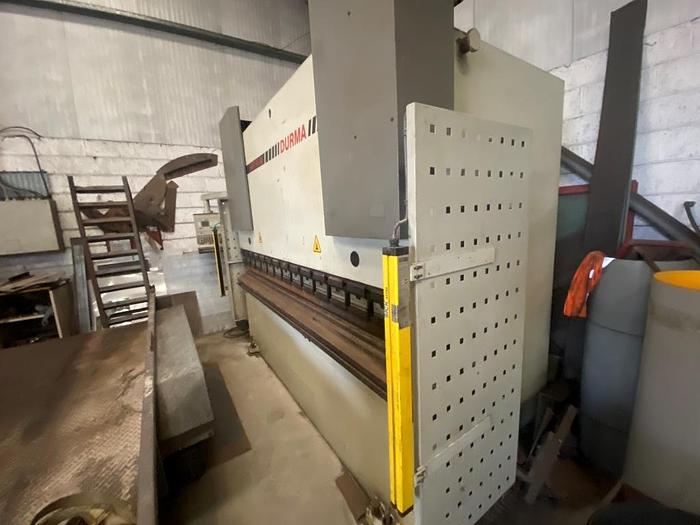

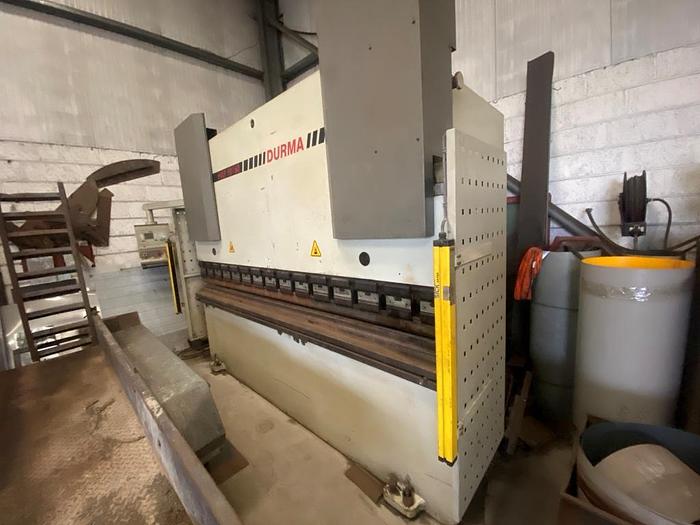

Durmazlar HAP 30160 NC Controlled Pressbrake
Machine Type: Hydraulic Pressbrake
Year: 2004

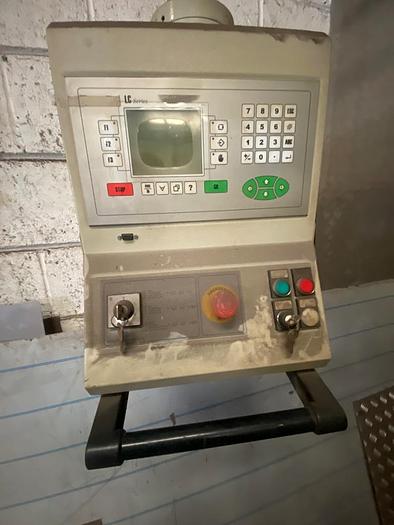

Control: Durmazlar LC Series NC Control
Condition: Very Good
Notes: Price excludes Loading. This can be offered at an extra cost.
Includes
Gooseneck Top Tool

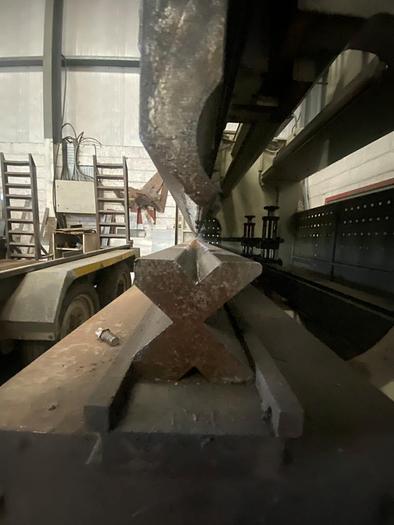

Multi Vee Bottom Tool

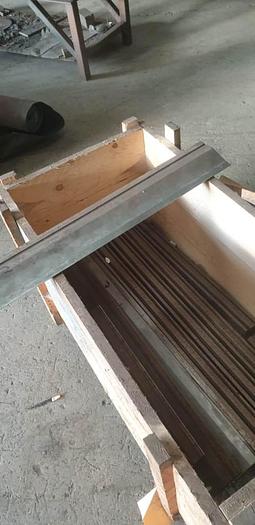

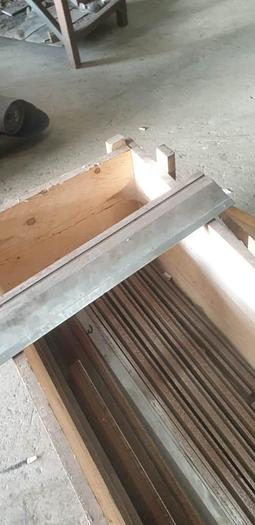

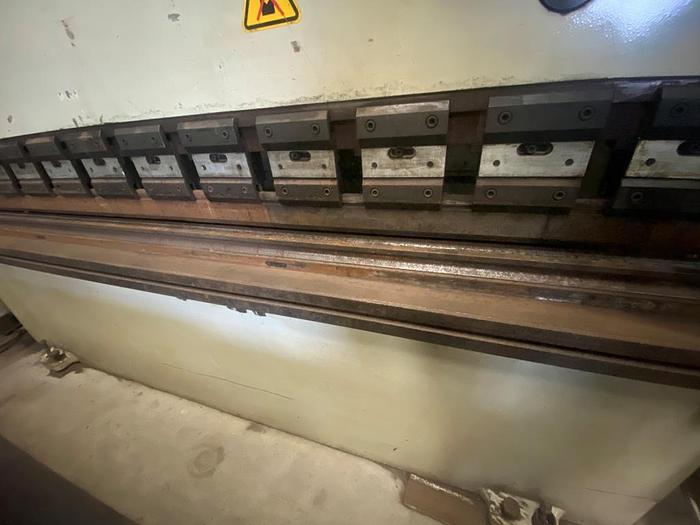

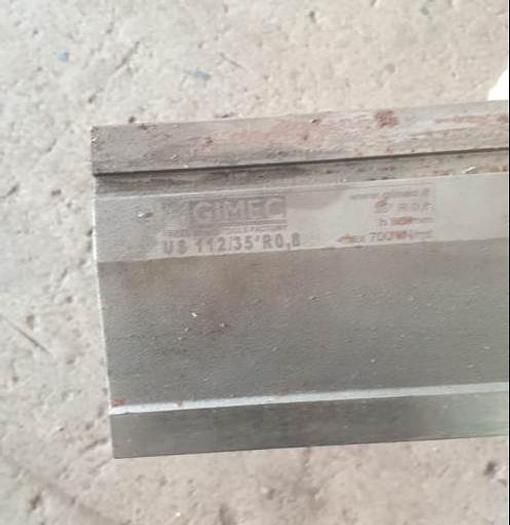

New Full Length Top Tool

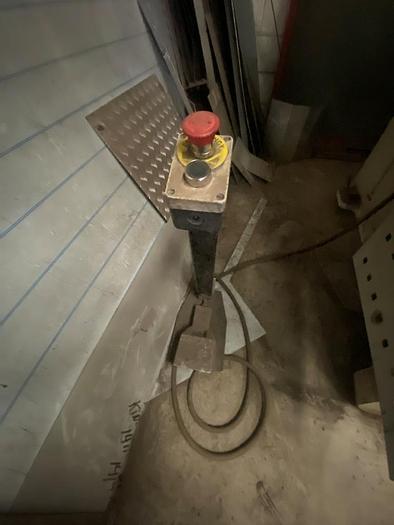

Wanderer Type Foot Pedal

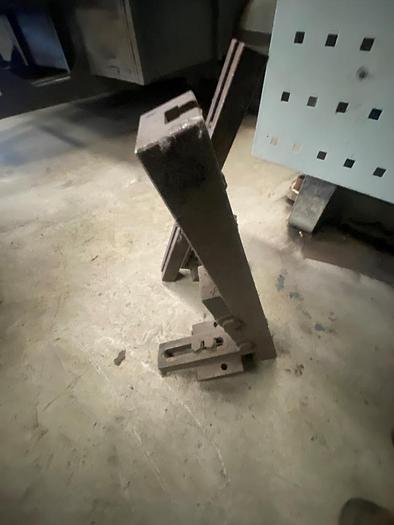

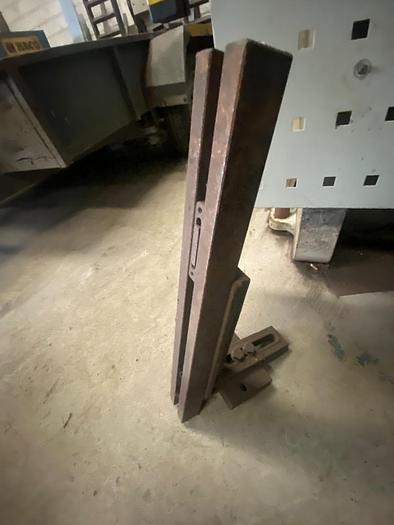

2 x Front Support Arms

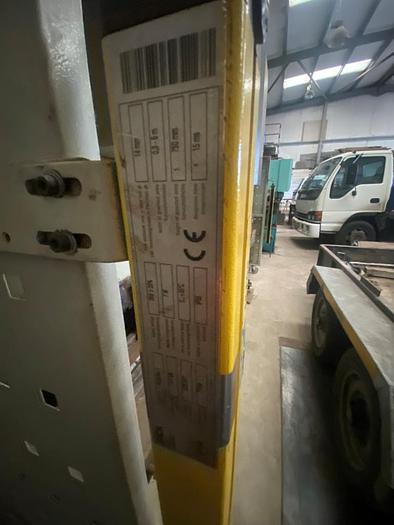

Front Light Guards
Technical Specifications
Bending Force: 160T
Bending Length: 3050mm
Distance Between Side Frames: 2550mm
Max Approach Speed: 100mm/sec
Max Bending Speed: 9mm/sec
Max Return Speed: 86mm/sec
Daylight: 358mm
Table Width: 240mm
Table Height: 865mm
Stroke: 175mm
Support Arms: 2
Powered Back Gauge Axis: 1 (X)
Manual Back Gauge Axes: 3 (R, Z1,Z2)

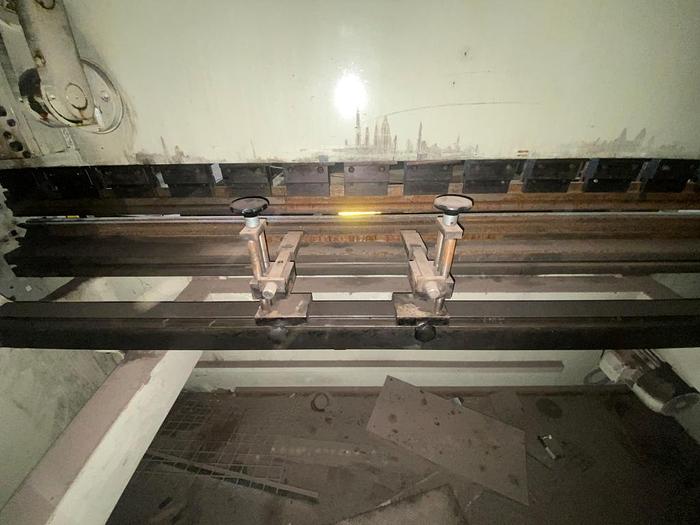

Back Gauge Fingers: 2
Back Gauge Speed: 80mm/sec
Back Gauge Travel: 620mm
Motor Power: 15kW
Oil Tank Capacity: 150L
Dimensions: 4250 x 2170 x 2800mm
Weight: 9450kg
Specifications
| Manufacturer | Durmazlar |
| Model | HAP30160 NC Pressbrake |
| Year | 2004 |
| Condition | Used |

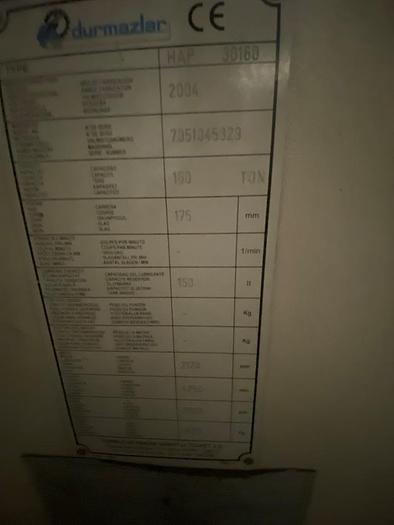

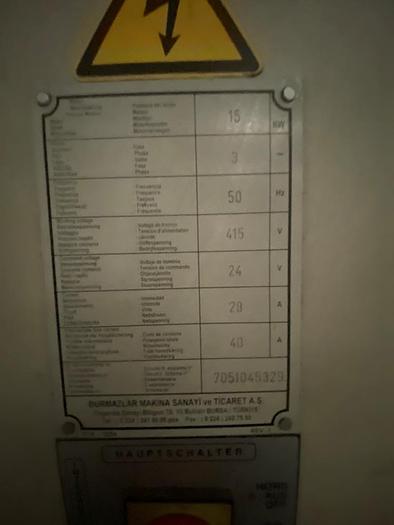

| Serial Number | 7051045329 |
| Machine Type | Hydraulic Pressbrake |
| Year | 2004 |
| Condition | Very Good |
| Bending Force | 160T |
| Bending Length | 3050mm |
| Distance Between Side Frames | 2550mm |
| Max Approach Speed | 100mm/sec |
| Max Bending Speed | 9mm/sec |
| Max Return Speed | 86mm/sec |
| Daylight | 358mm |
| Table Width | 240mm |
| Table Height | 865mm |
| Stroke | 175mm |
| Support Arms | 2 |
| Powered Back Gauge Axis | 1 (X) |
| Manual Back Gauge Axes | 3 (R, Z1,Z2) |
| Back Gauge Fingers | 2 |
| Back Gauge Speed | 80mm/sec |
| Back Gauge Travel | 620mm |
| Motor Power | 15kW |
| Oil Tank Capacity | 150L |
| Weight | 9450kg |
