Samchully MH-212 12" Hydraulic Chuck

Cork, Ireland

Sold

Description

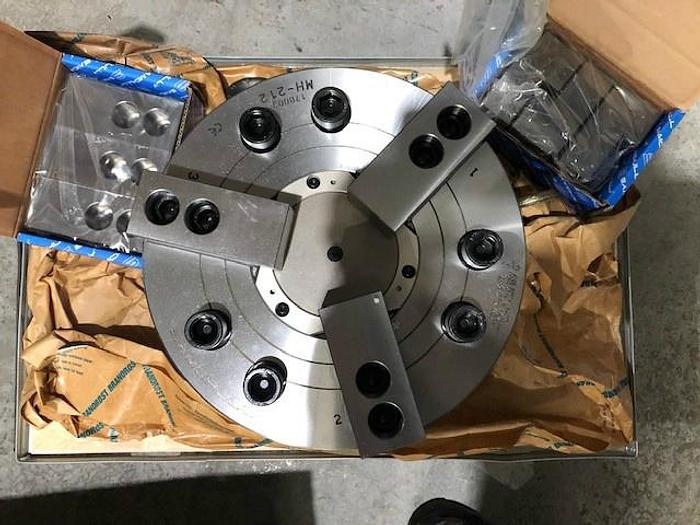

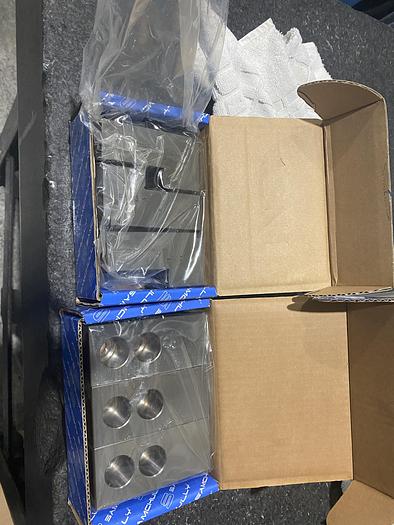

As New Samchully MH-212 Hydraulic Chuck Complete with: 1 x Set of Hard Jaws 2 x Set of Soft Jaws Technical Specifications Size: 12" 3-jaw Type: High-Speed Chuck Mega bore Plain back Hydraulic chuck with blank draw nut Oustside Diameter:315mm Bore Diameter: 103mm Clamping Range: 54 ~ 315mm Jaw Stroke: 10.6mm Plunger Stroke: 23mm Maximum Static Gripping Force: 144KN Master Jaws Serration: 1.5x60° Max Speed: 3000rpm

Specifications

ManufacturerSamchully
ModelMH-212 , 12" Hydraulic Chuck
ConditionUsed
Stock Number00180
Size12" 3-jaw
Oustside Diameter315mm
Bore Diameter103mm
Clamping Range54 ~ 315mm
Jaw Stroke10.6mm
Plunger Stroke23mm
Maximum Static Gripping Force144KN
Master Jaws Serration1.5x60°
Max Speed3000rpm
TypeHigh-Speed Chuck Mega bore Plain back Hydraulic chuck with blank draw nut
