Tubend TT 90 Pipe Notching Machine

Tubend TT90 Pipe Notching Machine

Machine Type: Pipe Notching/Grinding Machine

Description

Ability to open suitable dovetails according to the diameter of the pipe and pro le with the help of processing drum

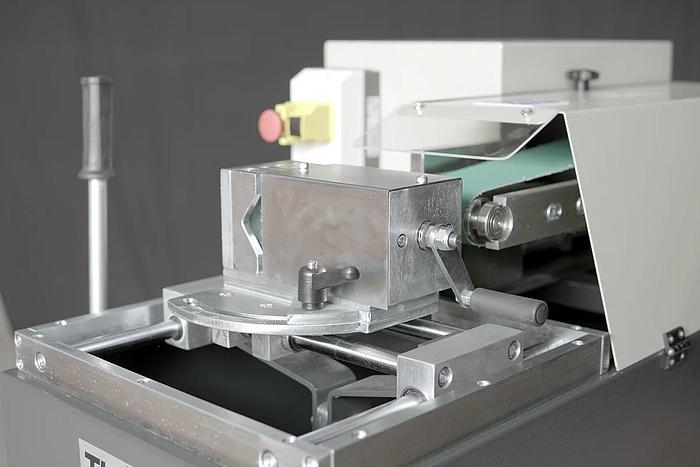

Ability to tighten and loosen the parts quickly as a result of moving clamp

Ability of clamp to move right and left sideways

With movable clamp, notching up to 50° degrees angle

Adjustable speed with inverter

Notching operation up to 3″ pipe

Includes

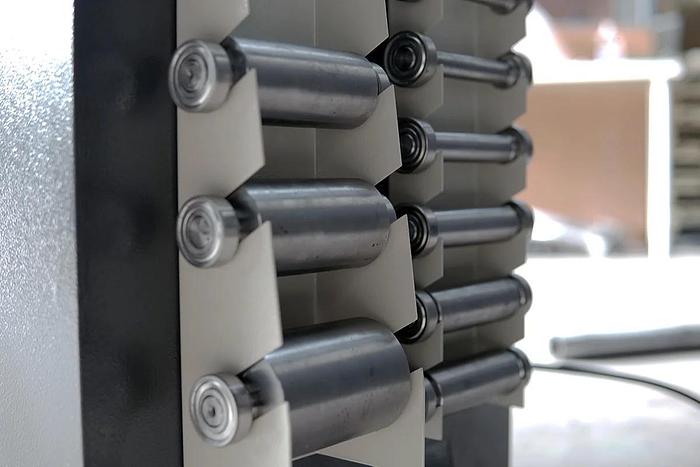

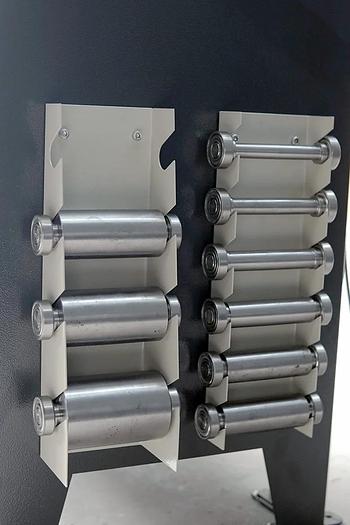

Standard Rolls Ø19, Ø21, Ø25, Ø32, Ø38, Ø42, Ø48, Ø52, Ø60, Ø76

Options

Pneumatic Vice

Technical Specifications

Clamp Capacity: Ø16-90mm

Notching Capacity

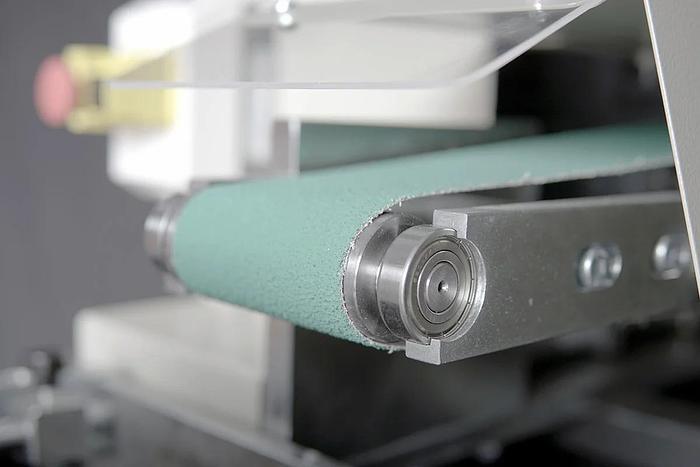

Belt Size: 100 x 1250mm

Motor Power: 2.2kW/380V

Dimensions: 1200x600x1150mm

Weight: 180kg
