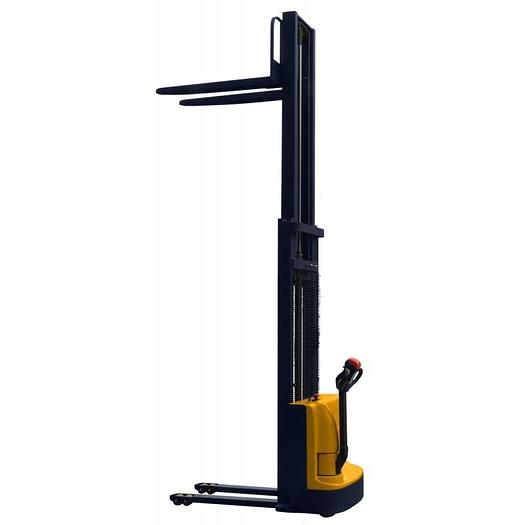

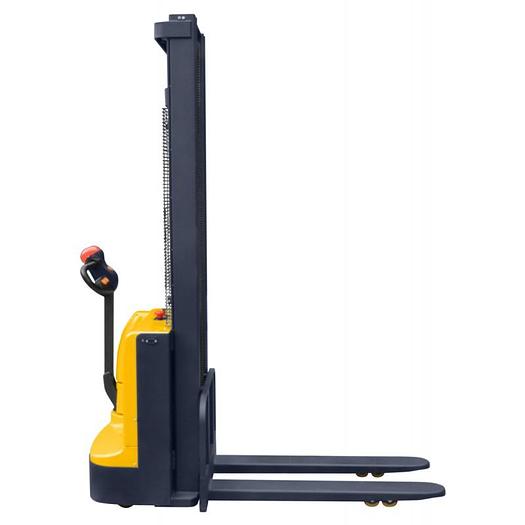

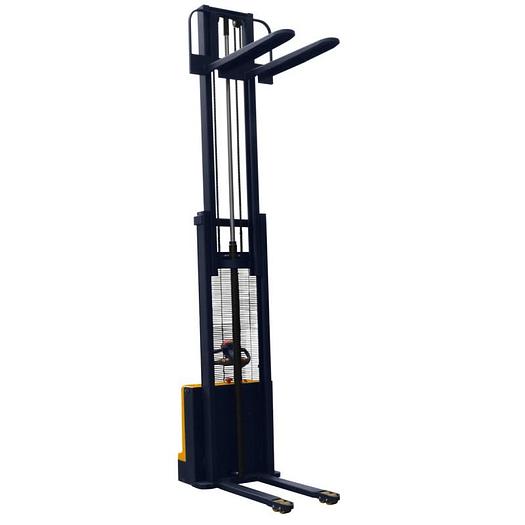

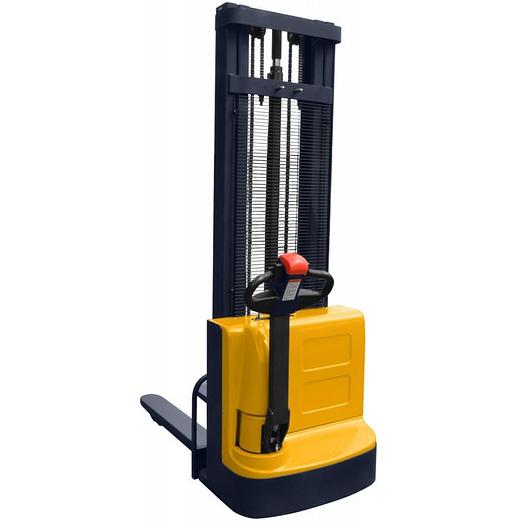

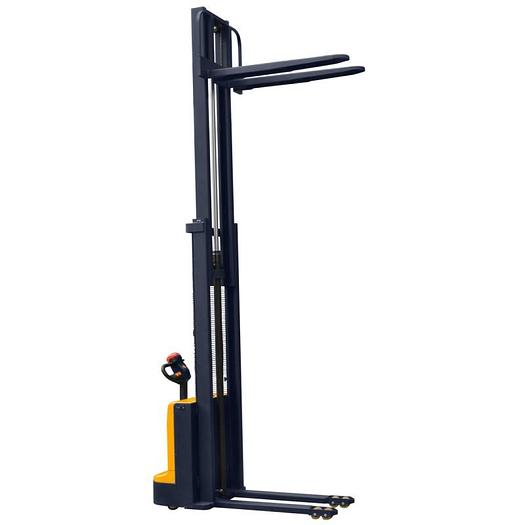

Cormak Q15E35 Electric Mast Pallet Truck

Cormak Q15E35 Electric Mast Pallet Truck

Product Type: Electric Pallet Truck

Description

Electric high mast pallet truck (stacker) equipped with electric running gear and lifting system.

Characteristics

Electric Drive System

Electric Lift System

Solid construction made of high quality steel provides higher rigidity and stability

The truck handles easily thanks to the special steering system

Built-in charger

Maintenance-free motor in brushless technology

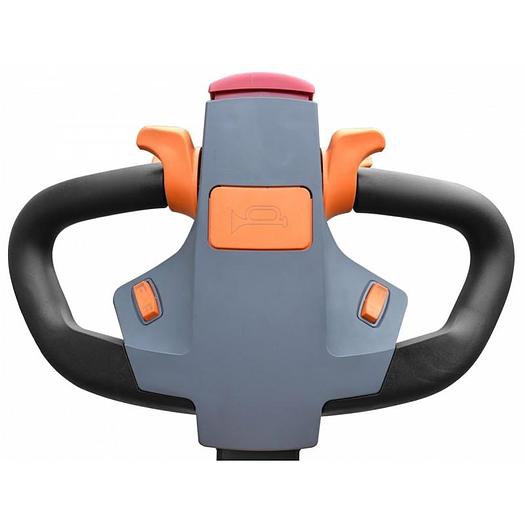

Battery charge indicator in control box

Safety on/off switch

Built- in controller to protect battery from discharging or damage

Maintenance-free sealed battery AGM

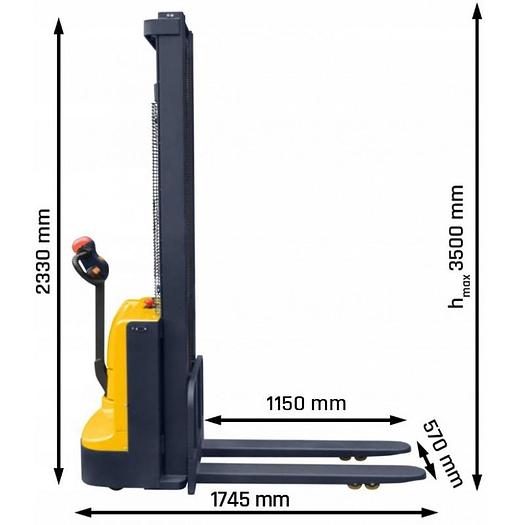

Technical Specifications

Forks Width: 570 mm

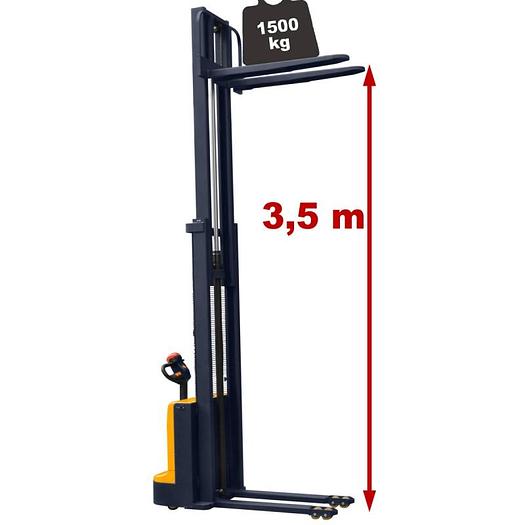

Max Lifting Height: 3500 mm

Loading Capacity: 1500 Kg

Gravity Centre: 600 mm

Forks Length: 1070 mm

Drive Speed With / Without Load: 3,5/4 Km/h

Total Height: 2330 mm

Total Width: 790 mm

Swivel Wheels: Ø180x50mm

Forks Rollers: Ø80x70mm

Turning Radius: 1390 mm

Battery Voltage/ Rated Capacity: 2x12/75/120 V/Ah

Battery Weight: 36 Kg

Lift Motor Mower: 2 kW

Drive Motor Power: 0,75 kW

Brake: Electromagnetic Brake

Weight: 586 Kg
