€9,800 + Vat

Tubend HPK50 3 Rolls Hydraulic Section and Pipe Bending Machine



orCall +353 838108745


Tubend HPK 50 3 Rolls Hydraulic Section and Pipe Bending Machine

Machine Type: Hydraulic Section Rolls

Standard Accessories

Steel welded construction frame

3 rolls are motor driven

Hardened shafts from special steel material

Top roll hydraulic moveable up-down

Horizontal and vertical working position

Standard rolls

Guide rolls

Brake motor equipped for the precision bending

Mobile control panel

Optional Extras

Pipe / Tube bending rolls

Profile bending rolls

Angle bending rolls

Digital Read-Out

Optional lateral angle guides

Optional stairway bending attachment

NC control

Technical Specification

Rolls shaft: Ø50mm

Upper Roll diameter: Ø152mm

Lower Rolls diameter: Ø162mm

Working speed: 4.5m/min

Motor power: 1.47kW

Electrical Connection: 380V

Dimensions (LxWxH): 1000x750x1600mm

Weight: 510kg

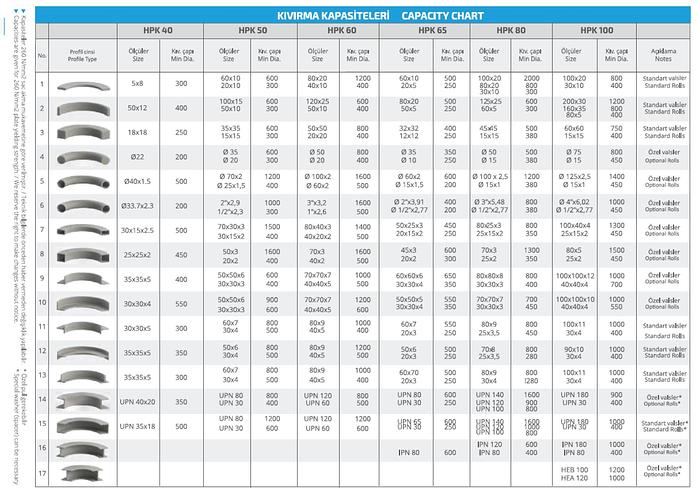

Rolling/Bending Capacities

Please see attachment below


ModelHPK50 3 Rolls Hydraulic Section and Pipe Bending Machine
Machine TypeHydraulic Section Rolls
Rolls shaftØ50mm
Upper Roll diameterØ152mm
Lower Rolls diameterØ162mm
Working speed4.5m/min
Motor power1.47kW
Electrical Connection380V
Dimensions (LxWxH)1000x750x1600mm
