Tubend HPK41 3 Rolls Hydraulic Section and Pipe Bending Machine

Tubend HPK 41 3 Rolls Hydraulic Section and Pipe Bending Machine

Machine Type: Hydraulic Section Rolls

Standard Accessories

Steel welded construction frame

2 rolls are motor driven

Hardened shafts from special steel material

Top roll hydraulic moveable up-down

Horizontal and vertical working position

Standard rolls

Guide rolls

Brake motor equipped for the precision bending

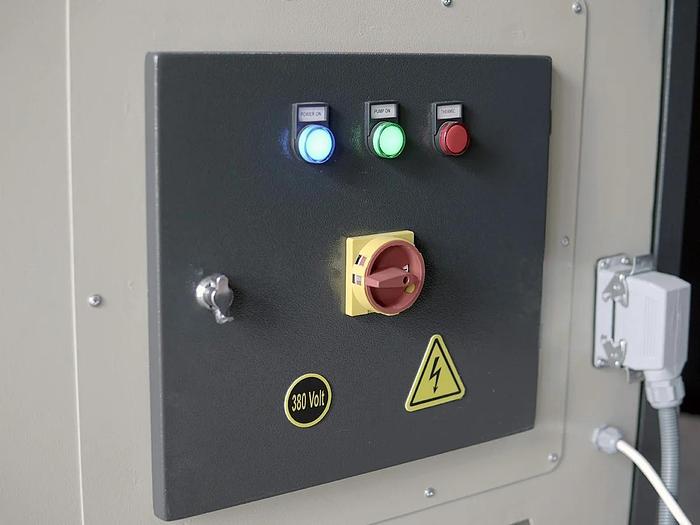

Mobile control panel

Optional Extras

Pipe / Tube bending rolls

Profile bending rolls

Angle bending rolls

Digital Read-Out

Optional lateral angle guides

Optional stairway bending attachment

NC control

Technical Specification

Rolls shaft: Ø41mm

Rolls diameter: Ø138mm

Working speed: 4.5m/min

Motor power: 1.1kW

Electrical Connection: 380V

Dimensions (LxWxH): 600x960x1460mm

Weight: 350kg

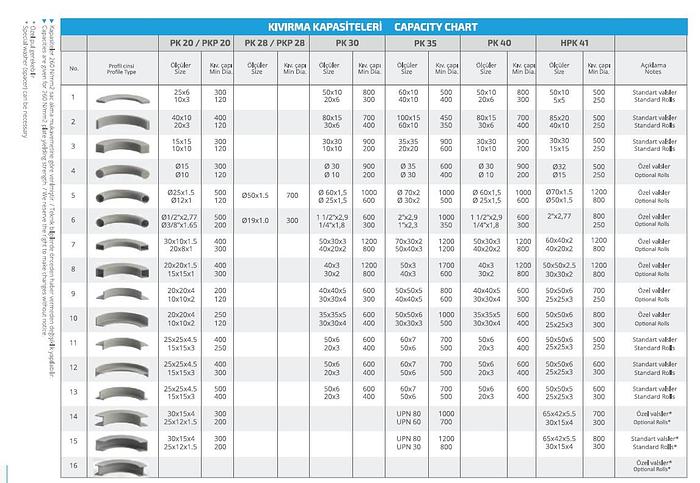

Rolling/Bending Capacities

Please see attachment below
