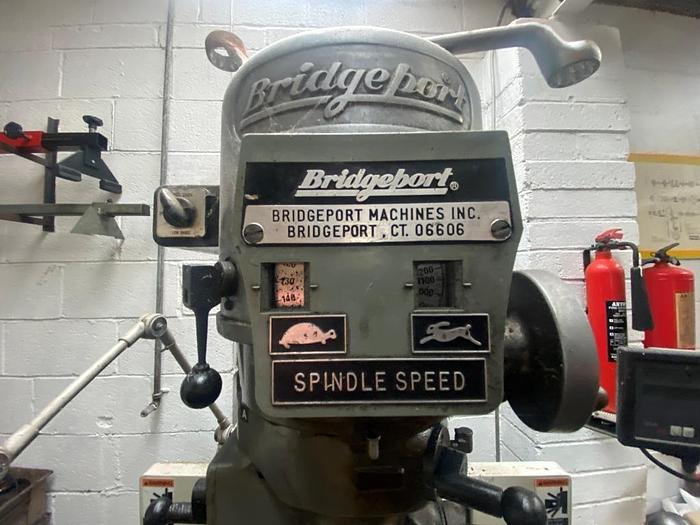

Bridgeport BR2J2 Manual Turret Milling Machine
Sold
Description
Bridgeport BR2J2 Manual Turret Milling Machine
Machine Type: Manual Milling Machine
Condition: Very Good
Notes: No loading facilities on site
Includes

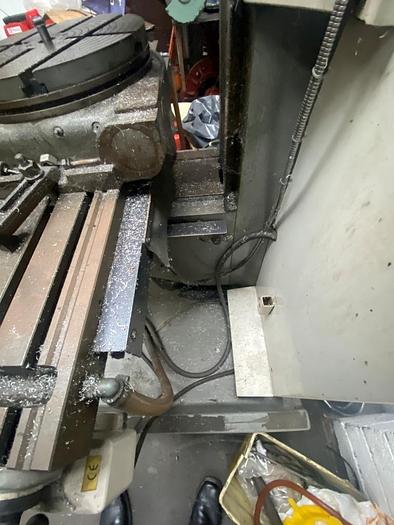

Rotary Table
Align Power Feed
Newall 2 Axis DRO
Splash Tray
Machine Light
Technical Specifications
Table Size: 1219 x 230mm (48" x 9")
Traverses XYZ: 825 x 305 x 405mm
Distance from Table Surface to Spindle: 0 ~ 480mm
Spindle Centre to Column: 170 ~ 480mm
Quill Stroke: 127mm
Ram Stroke: 305mm
Maximum Cutting Feedrate: 0.04, 0.08, .15mm/rev
Spindle Motor Power: 2Hp
Spindle Speed: 50 ~ 3750rpm
Spindle Taper: R8
Machine Dimensions: 1930 x 1600 x 2255mm
Machine Weight: 1180kg
Specifications
| Manufacturer | Bridgeport |
| Model | BR2J2 Manual Turret Milling Machine |
| Condition | Used |
| Machine Type | Manual Milling Machine |
| Condition | Very Good |
| Spindle Centre to Column | 170 ~ 480mm |
| Quill Stroke | 127mm |
| Ram Stroke | 305mm |
| Maximum Cutting Feedrate | 0.04, 0.08, .15mm/rev |
| Spindle Motor Power | 2Hp |
| Spindle Speed | 50 ~ 3750rpm |
| Spindle Taper | R8 |
| Machine Weight | 1180kg |
