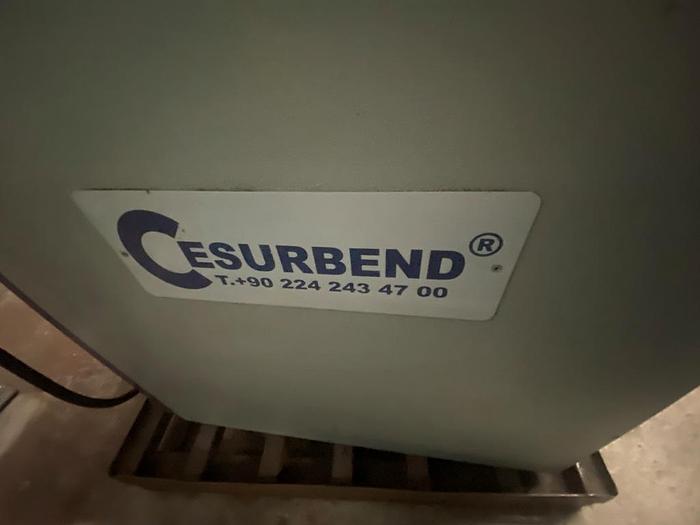

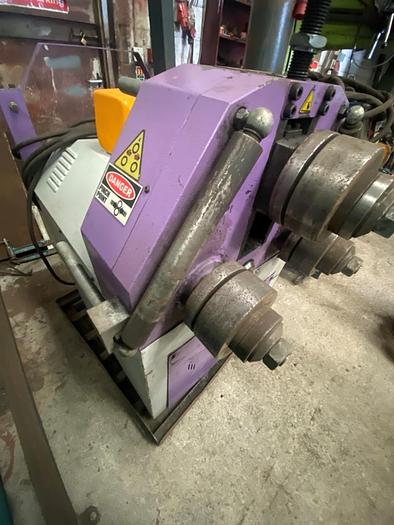

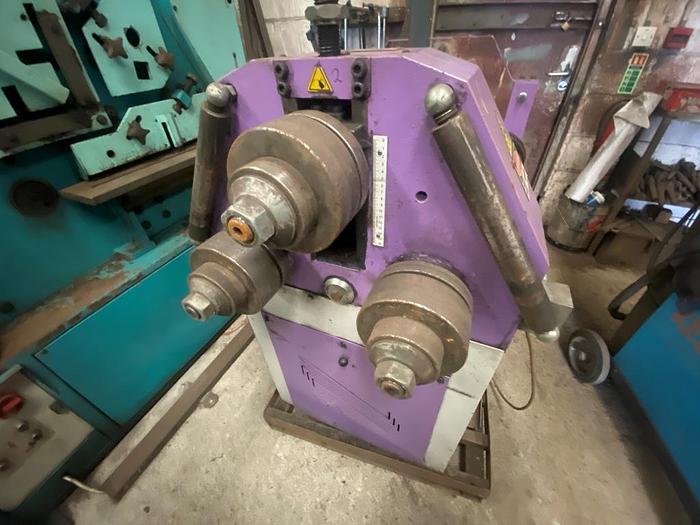

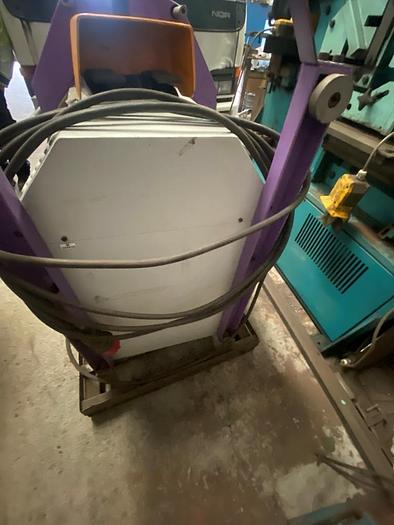

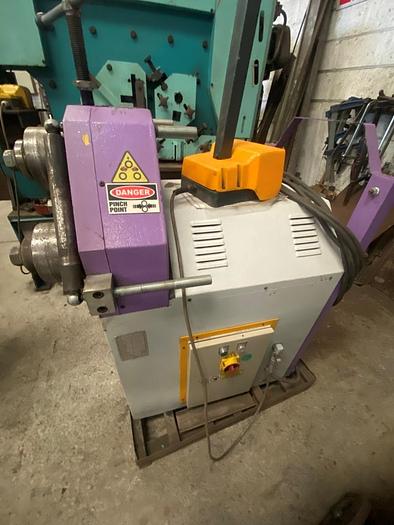

2016 Cesurbend PK 35 F Section Rolls

Cesurbend PK 35F Powered Section Rolls

Machine Type: Section Rolls

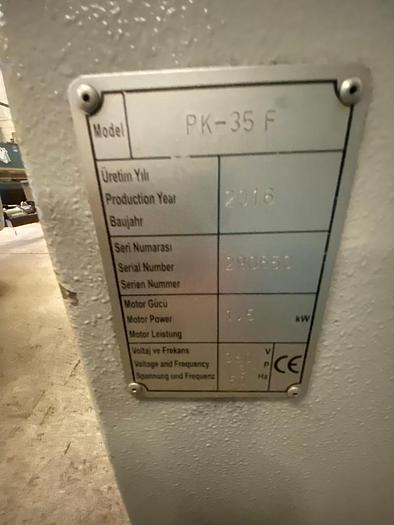

Year: 2016

Condition: Very Good

Includes

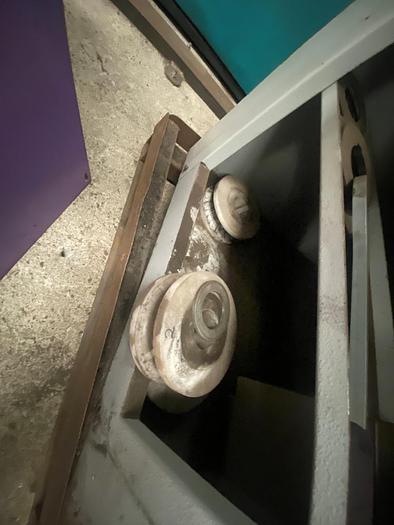

Nylon Rolls for 2" Pipe

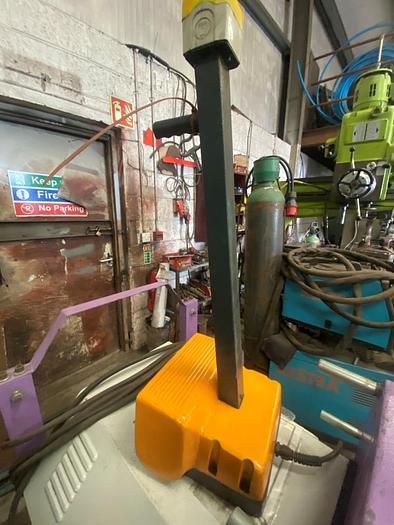

Footpedal

Spacers

Spanner

Technical Specification

Shaft diameter: 50

Rolls diameter: 155 mm

Driven rolls: 2

Motor power: 1.5 kW

Speed: 4 m/min

Flat steel vertical position (section / min. diameter): 60x10 mm / 500 mm; 40x10 mm / 400 mm

Flat steel horizontal position (section / min. diameter): 100x15 mm / 450 mm; 60 x 10 mm / 350 mm

Square bar (section / min. diameter): 35x35 mm / 900 mm; 20x20 mm / 300 mm

Round bar (section / min. diameter): Ø 35 mm / 600 mm; Ø 30 mm / 400 mm

Tube (section / min. diameter): Ø 70x2 mm / 1.000 mm; Ø 30x2 mm / 500 mm; 2"x2,9 mm / 1.000 mm; 1"x2,3 mm / 350 mm

Form tube vertical position (section / min. diameter): 70x30x2 mm / 1.200 mm; 50x40x3 mm / 1.200 mm

Form tube square (section / min. diameter): 50x50x3 mm / 1.700 mm; 40x40x3 mm / 600 mm

Angle leg outside (section / min. diameter): 50x50x5 mm / 800 mm; 40x40x5 mm / 600 mm

Angle leg inside (section / min. diameter): 50x50x6 mm / 1.000 mm; 30x30x3 mm / 500 mm
