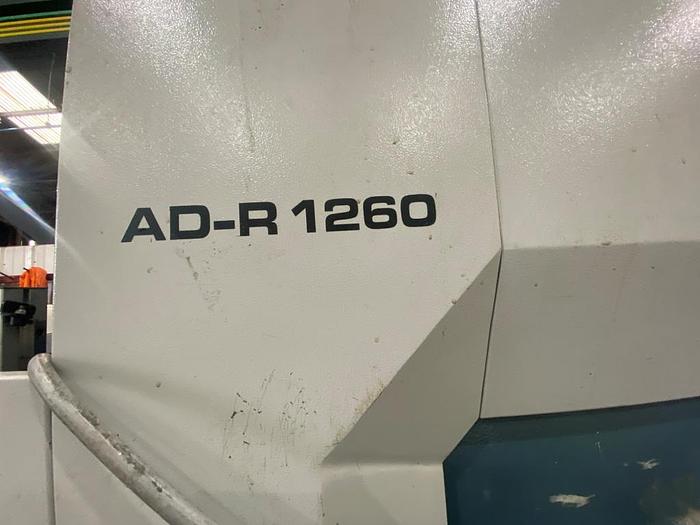

2016 Durma AD-R 1260 CNC Pressbrake

Cork, Ireland

Sold

Description

2016 Durma AD-R 1260 x 60T CNC Pressbrake


Machine Type: CNC Pressbrake

Year: 2016

Capacity: 1275mm x 60T

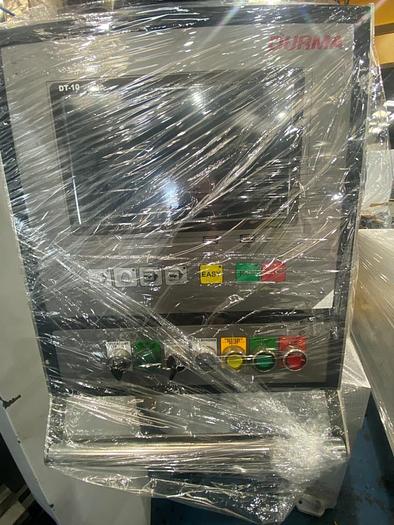

Control: Durma DT-10 CNC Control

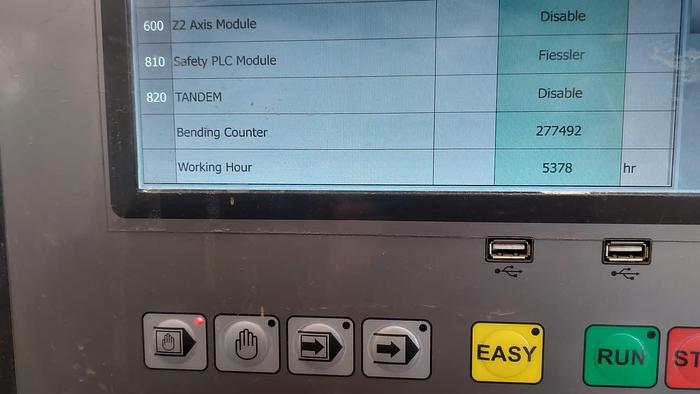

Hours: 5378hrs

Condition: Excellent


Includes

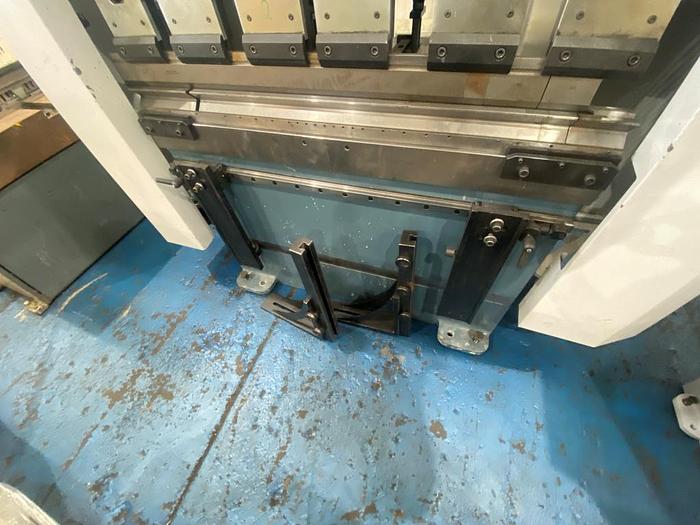

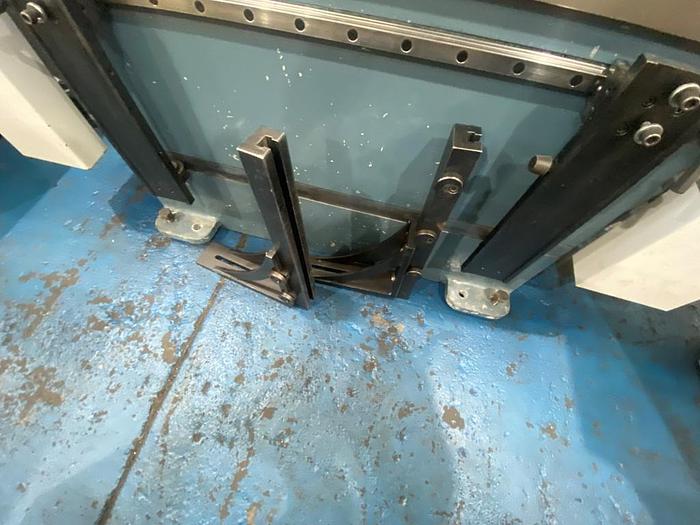

Front Support Arms

Wanderer Type Foot Pedal

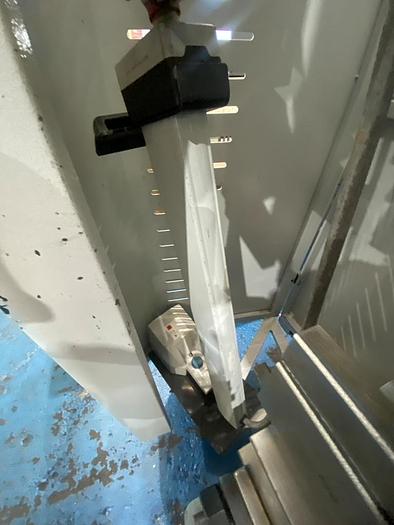

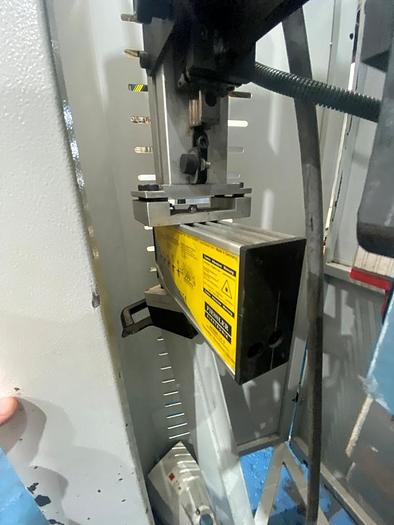

Fiessler Safety Guards at Front

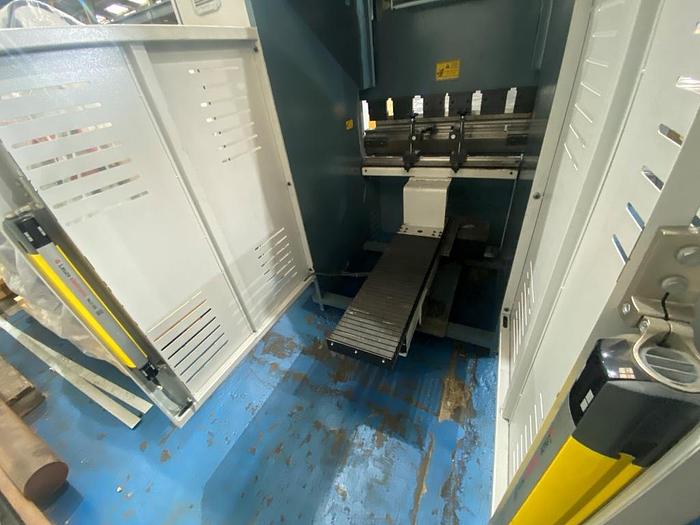

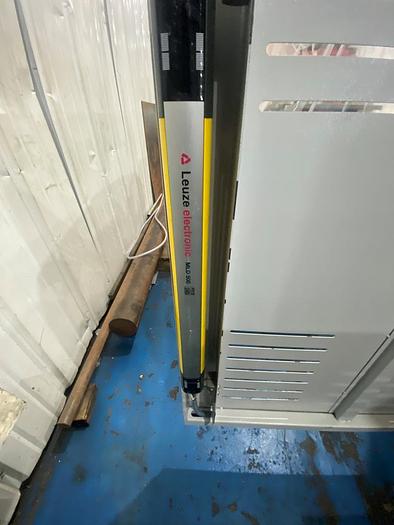

Leuze Light Guards at Rear

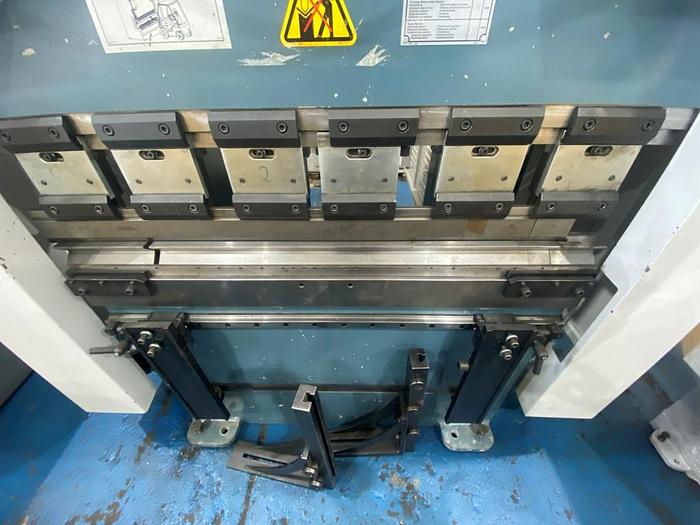

Full Length Top & Bottom Euro Style Tooling


Technical Specification

Axes: 3 Axis (Y1,Y2,X)

Max Bending Length: 1275mm

Max Bending Tonnage: 60T

Distance Between Side Frames: 1050mm

Daylight: 400mm

Stroke: 160mm

Throat Depth: 350mm

Table Height: 900mm

Table Width: 104mm

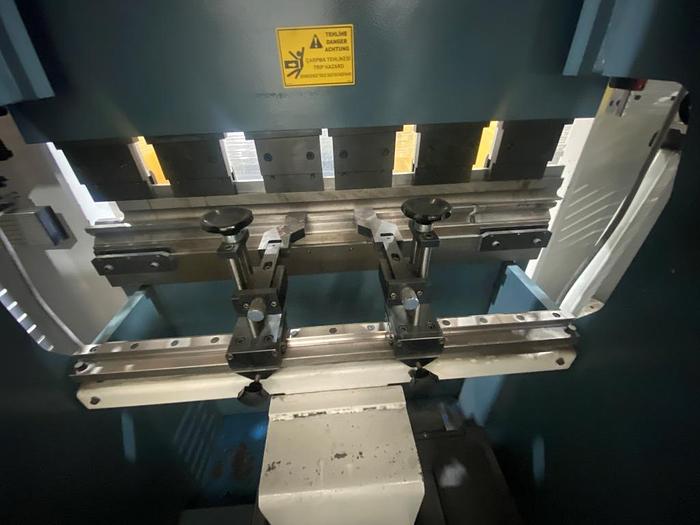

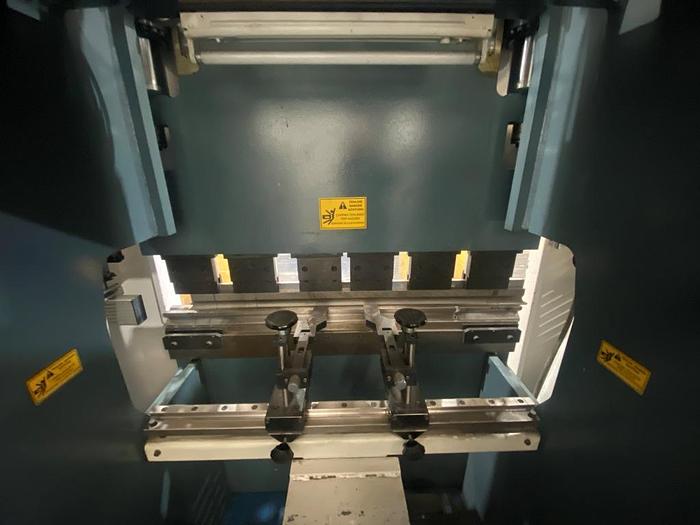

Back Guage: CNC Controlled X, Manual R1 & R2, Manual Z1 & Z2

Oil Tank Capacity: 100L

Top Tool Weight: 11kg

Bottom Tool Weight: 16kg

Machine Dimensions: 2360x2300x2380mm

Machine Weight: 3350kg




Show All

Specifications

ManufacturerDurma
ModelAD-R 1260 CNC Pressbrake
Year2016
ConditionUsed
Machine TypeCNC Pressbrake
Year2016
Capacity1275mm x 60T
ControlDurma DT-10 CNC Control
Axes3 Axis (Y1,Y2,X)
Max Bending Length1275mm
Max Bending Tonnage60T
Distance Between Side Frames1050mm
Daylight400mm
Stroke160mm
Throat Depth350mm
Table Height900mm
Table Width104mm
Oil Tank Capacity100L
Top Tool Weight11kg
Bottom Tool Weight16kg
Machine Dimensions2360x2300x2380mm
Machine Weight3350kg
