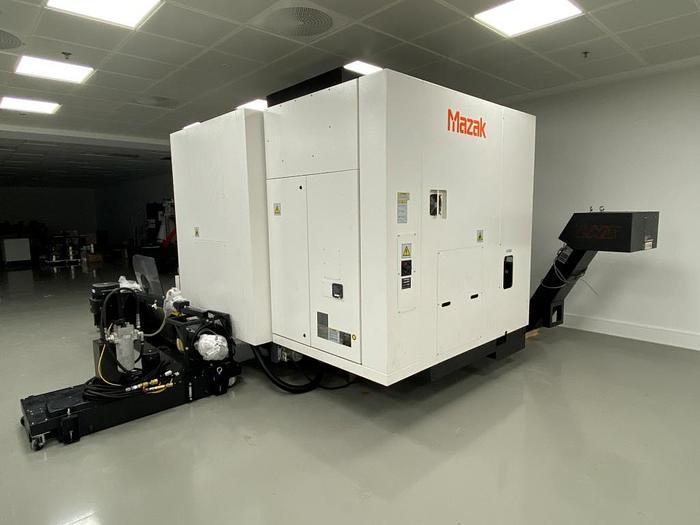

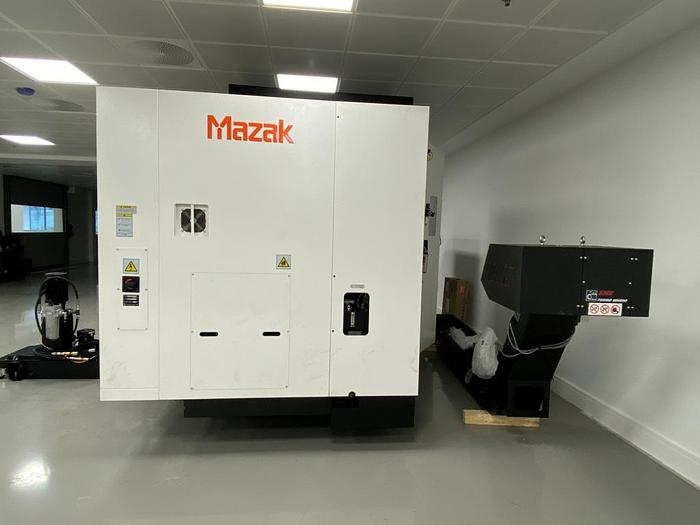

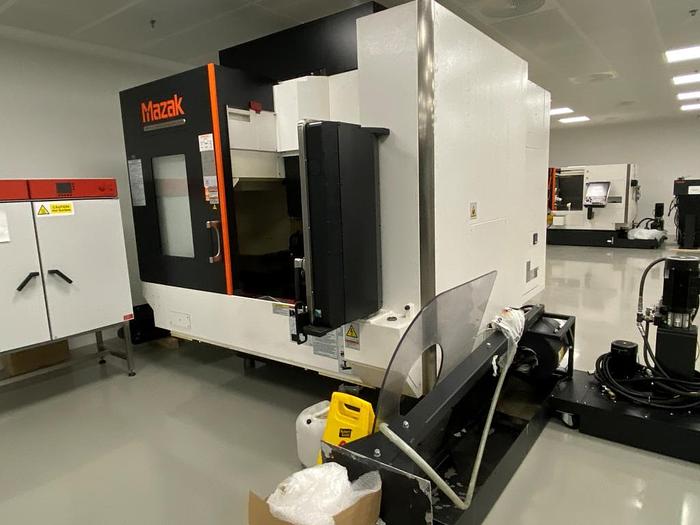

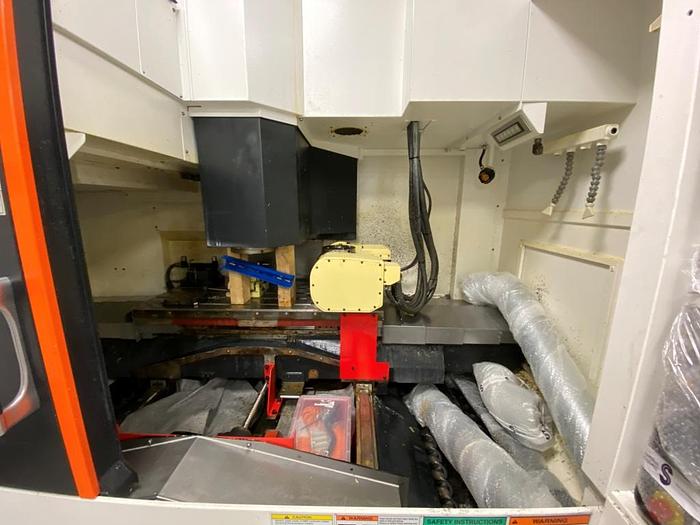

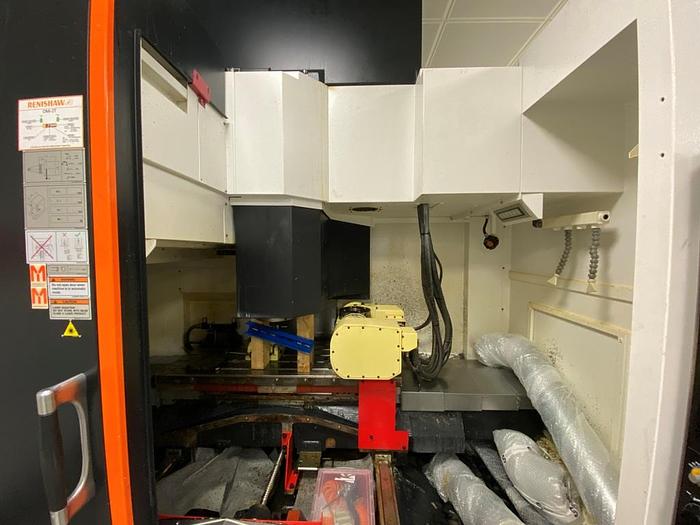

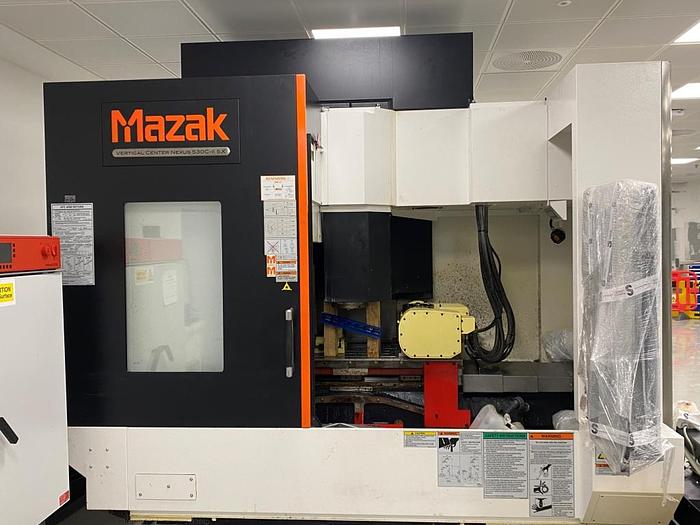

2018 Mazak Vertical Center Nexus 530C-II 5X Machining Center
Description

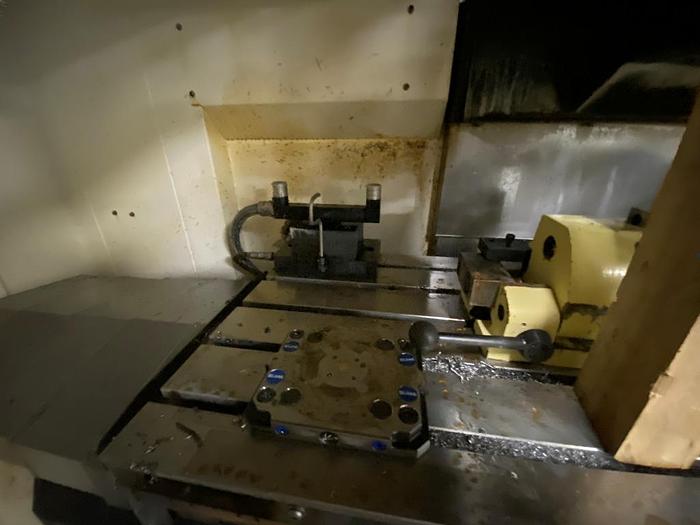

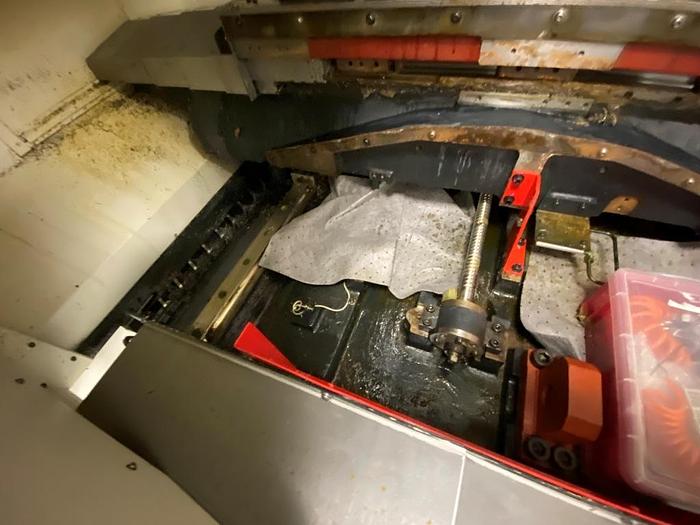

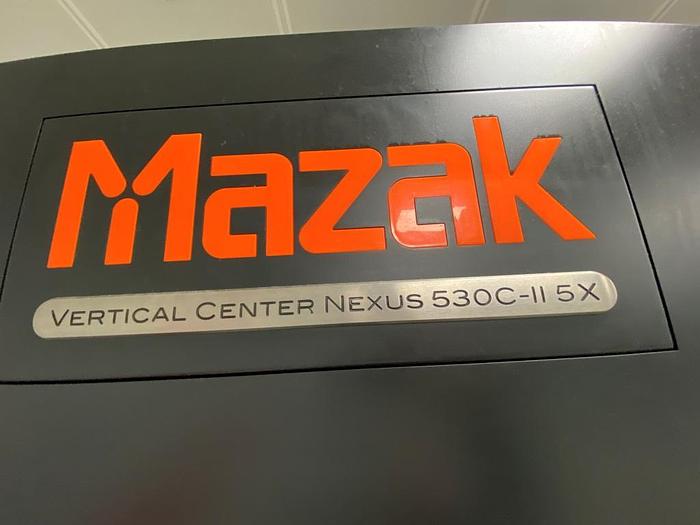

2018 Mazak Vertical Center Nexus 530C-II 5X Machining Center
Machine Type: 5 Axis (3+2) Machining Center
Year: 2018

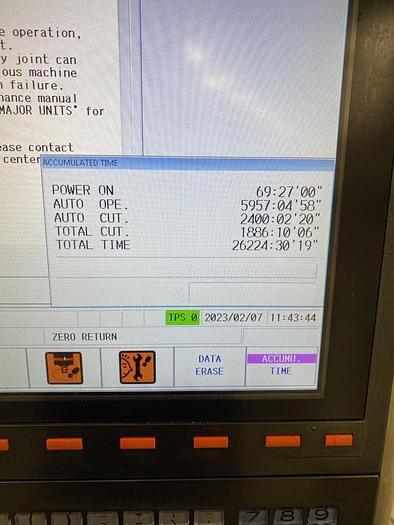

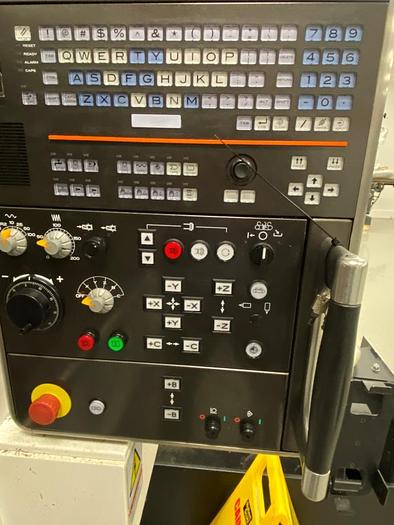

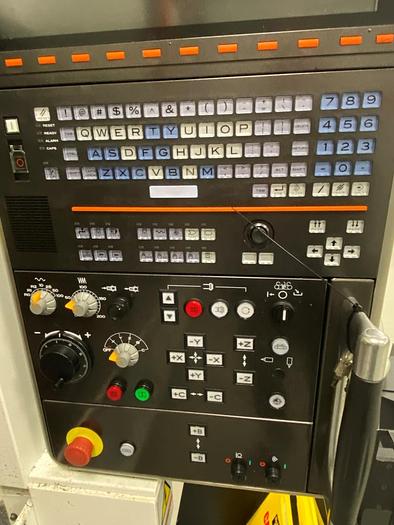

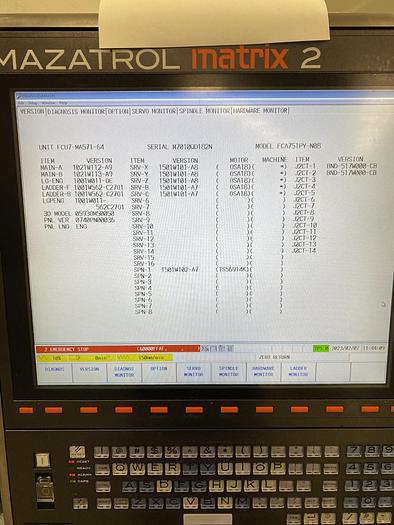

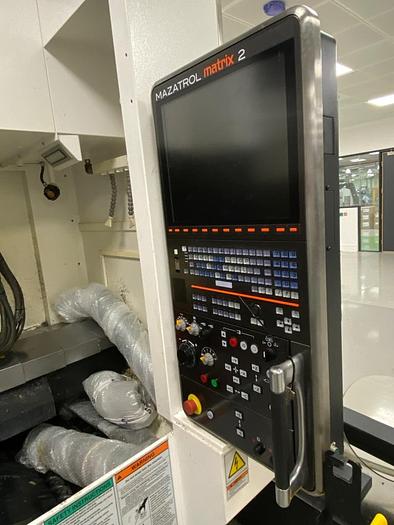

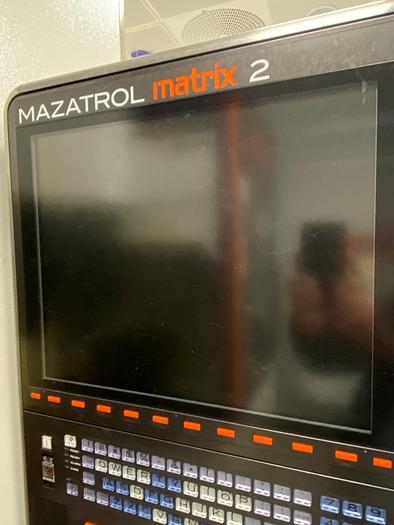

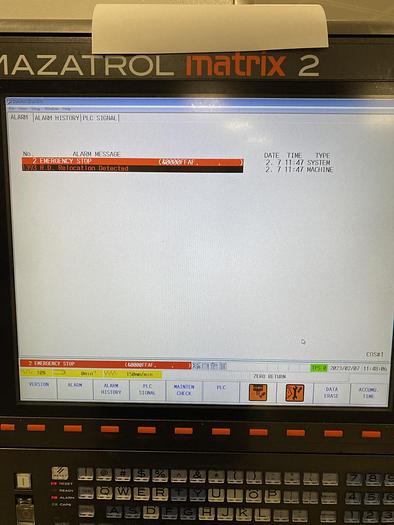

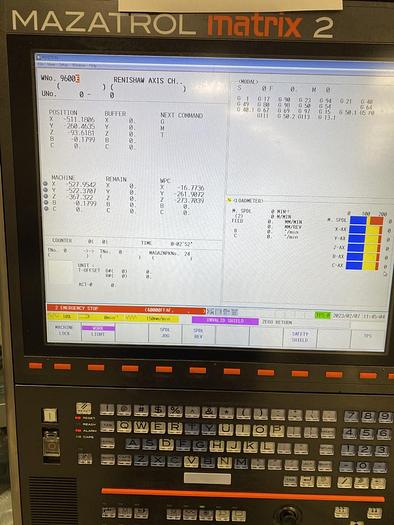

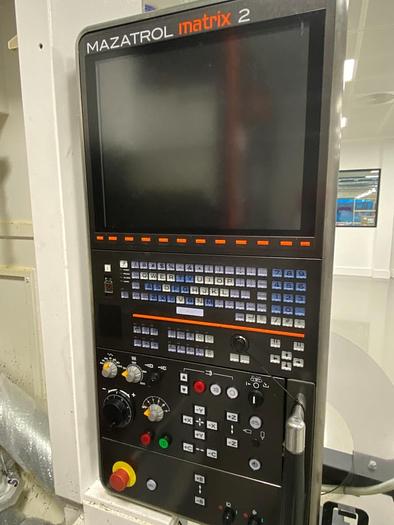

Control: Mazak Mazatrol Matrix 2
Condition: Excellent Condition(Currently decommissioned and ready for transport)
Includes

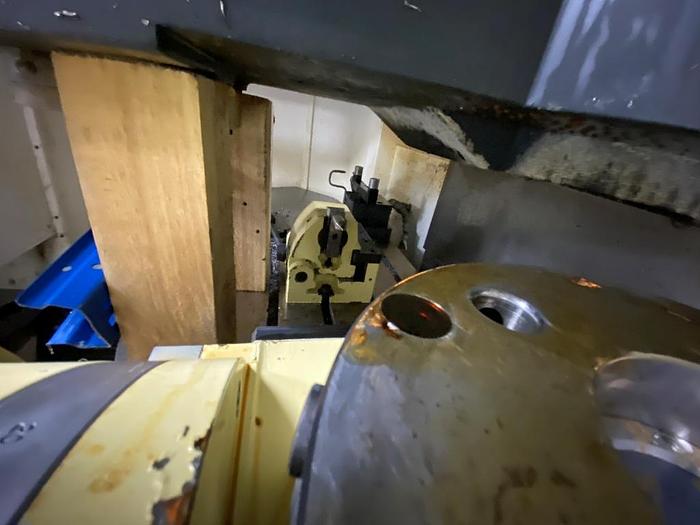

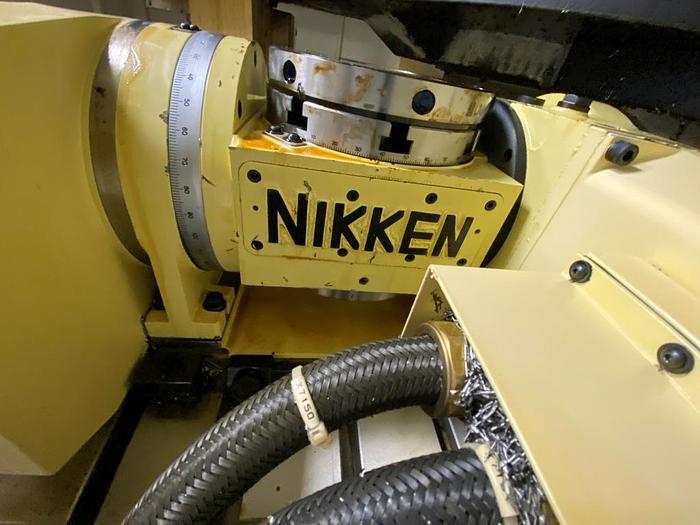

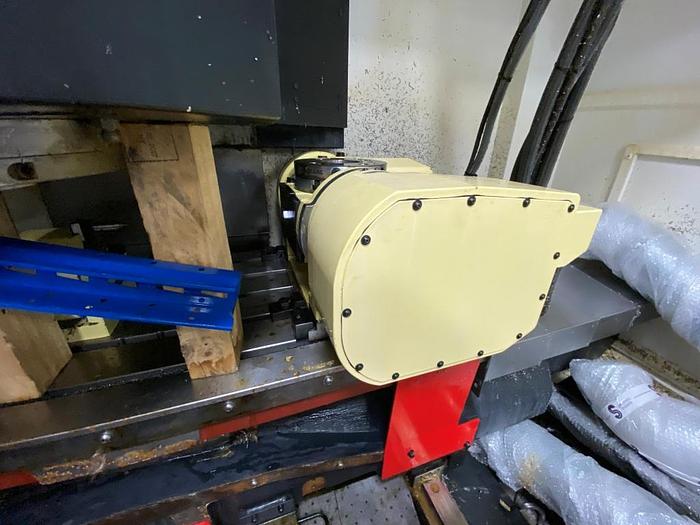

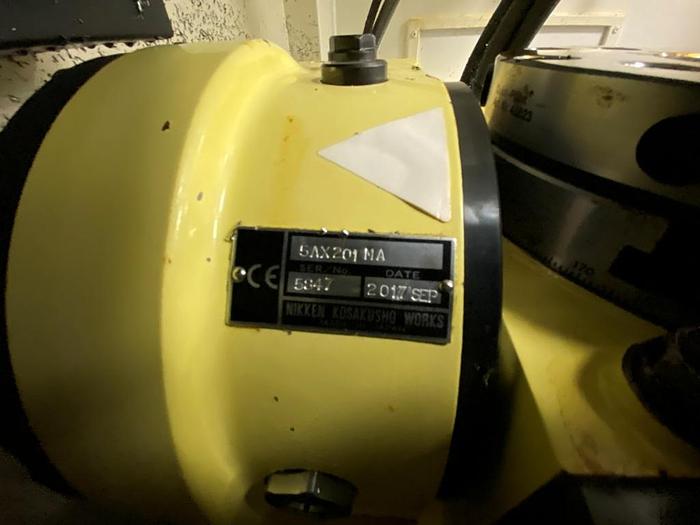

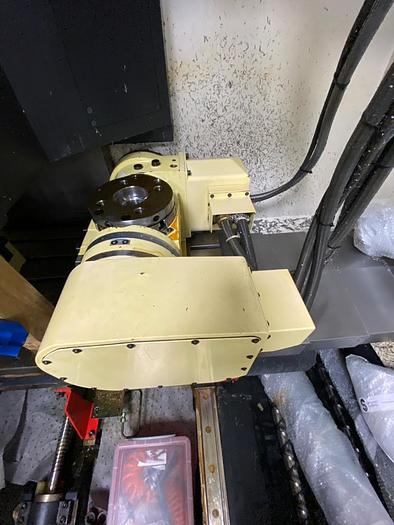

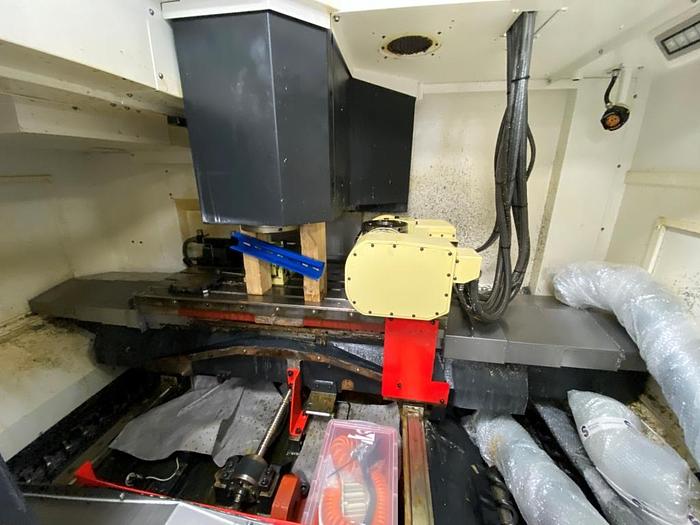

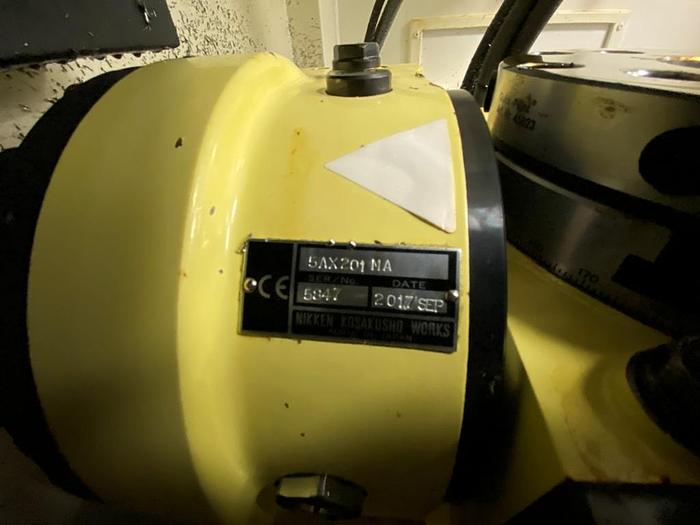

Nikken 5AX201MA 4th/5th Axis

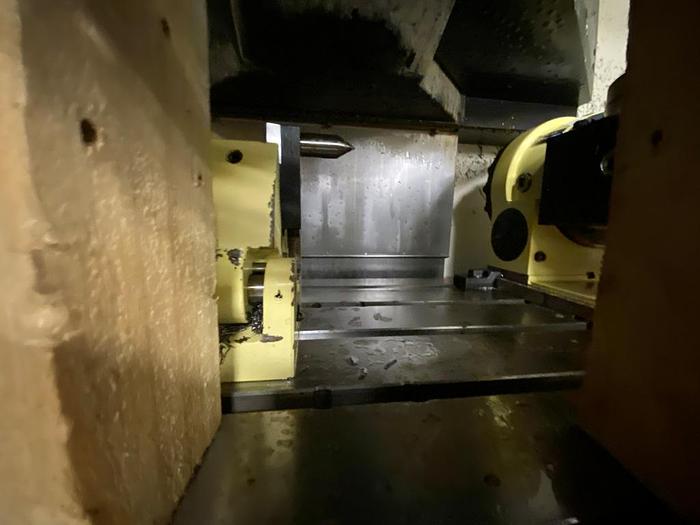

Nikken Tailstock

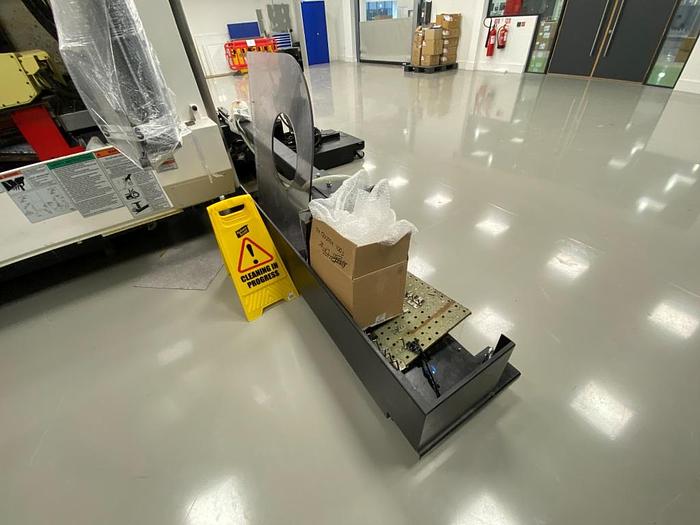

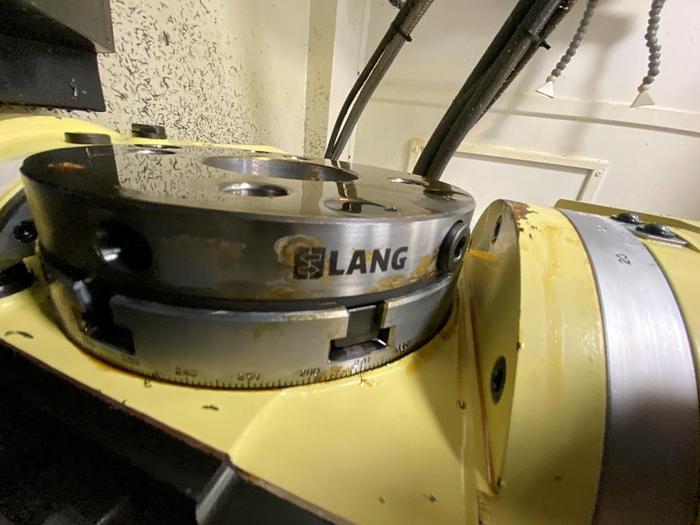

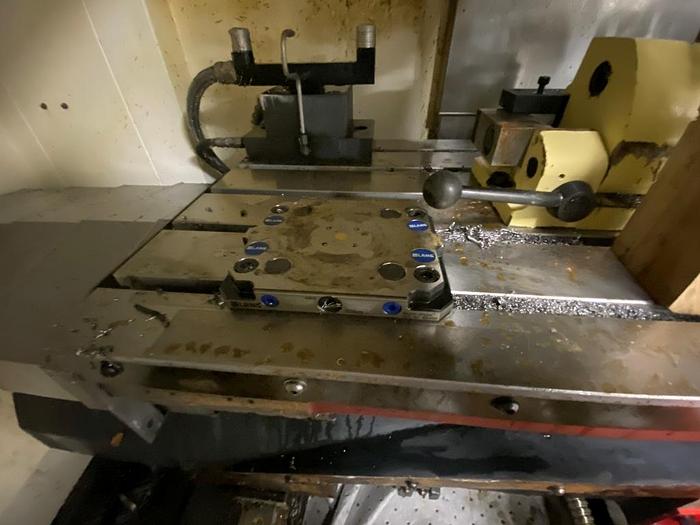

Lang Work Holding Plate

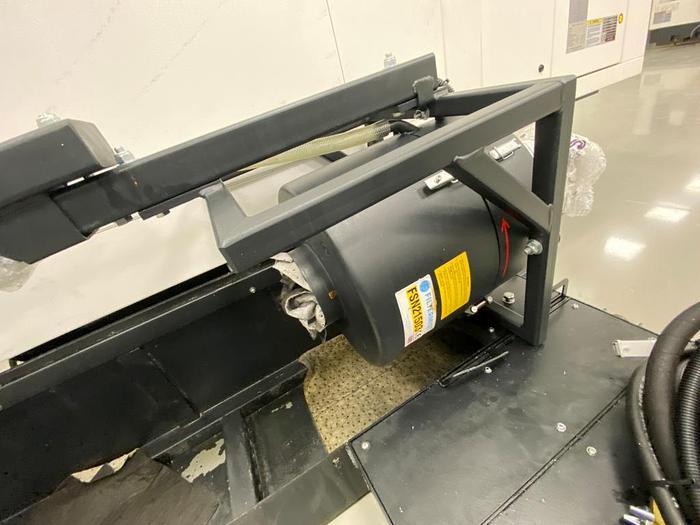

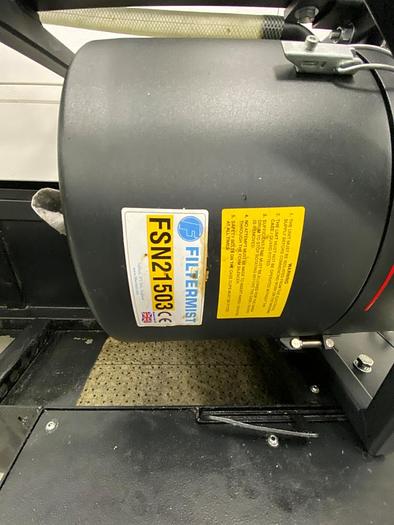

Filtermist FSN21503

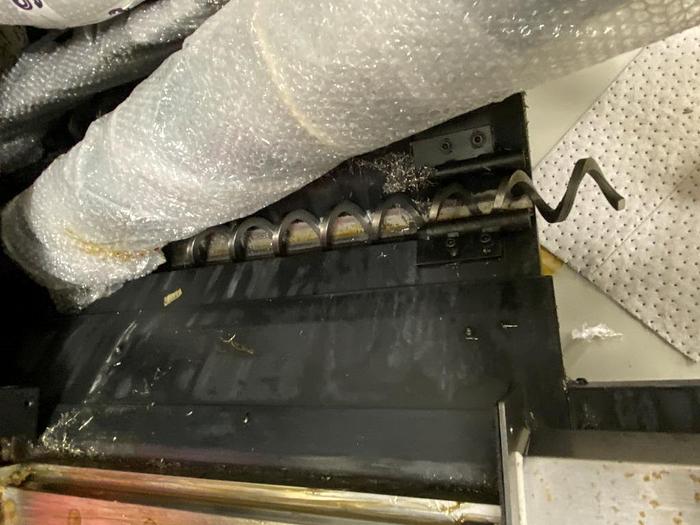

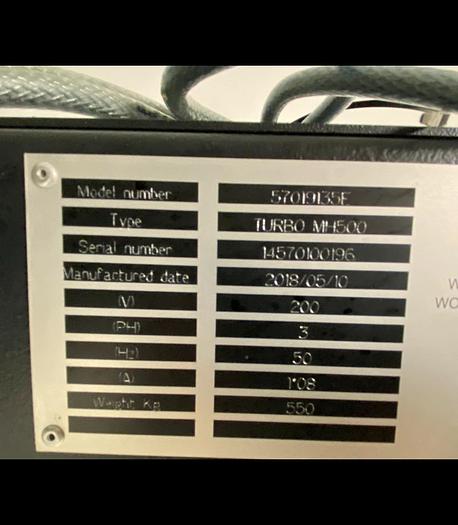

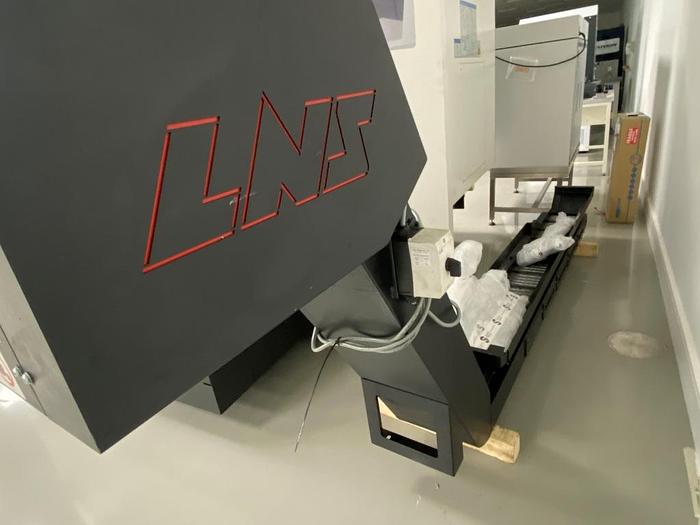

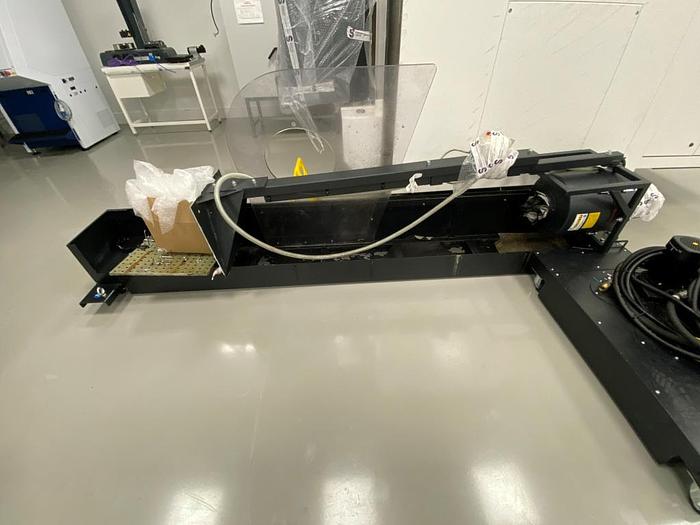

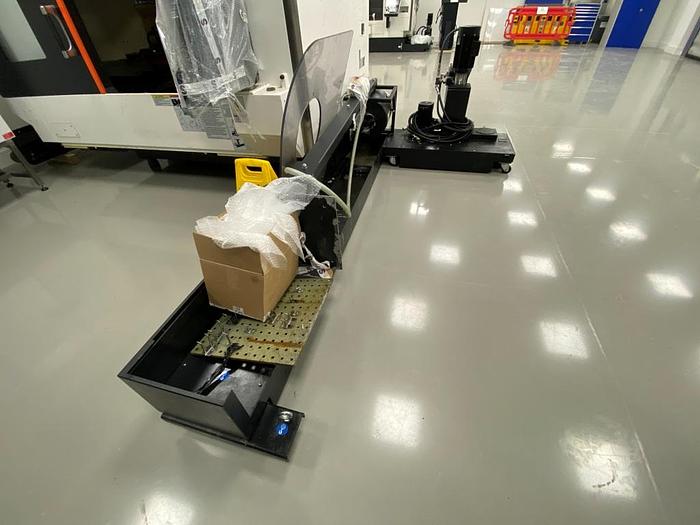

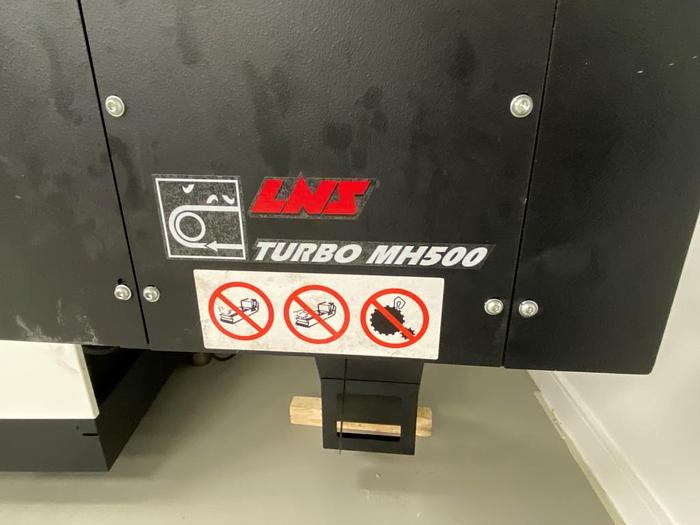

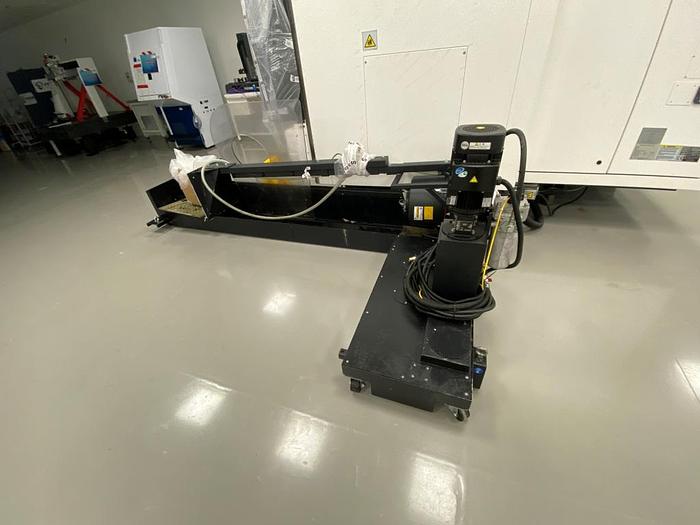

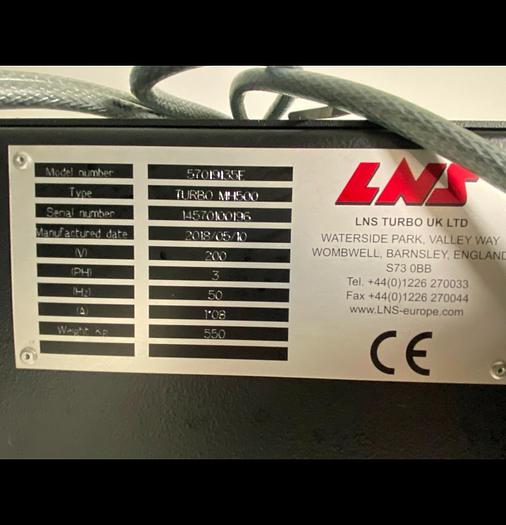

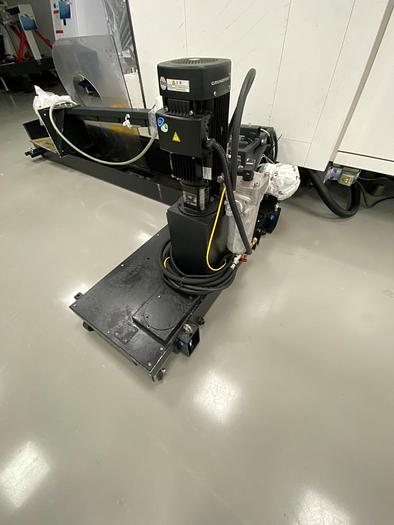

LNS Turbo MH500 Swarf Conveyor
Technical Specification
Table Size: 1,300 x 550mm

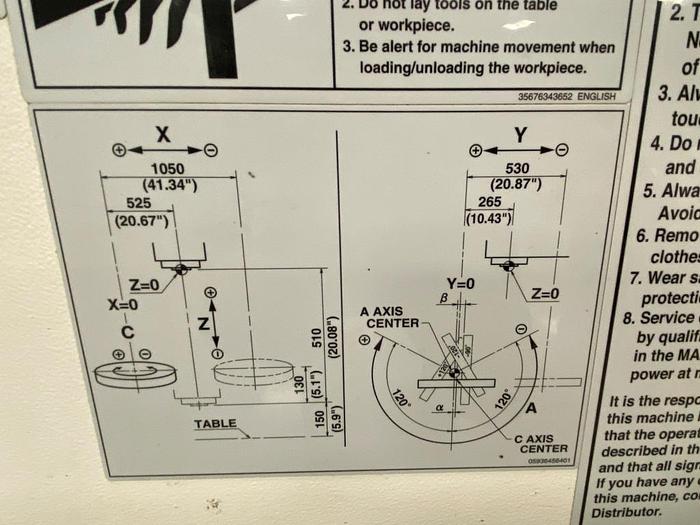

X Axis Travel: 1,050mm
Y Axis Travel: 530mm
Z Axis Travel: 510mm

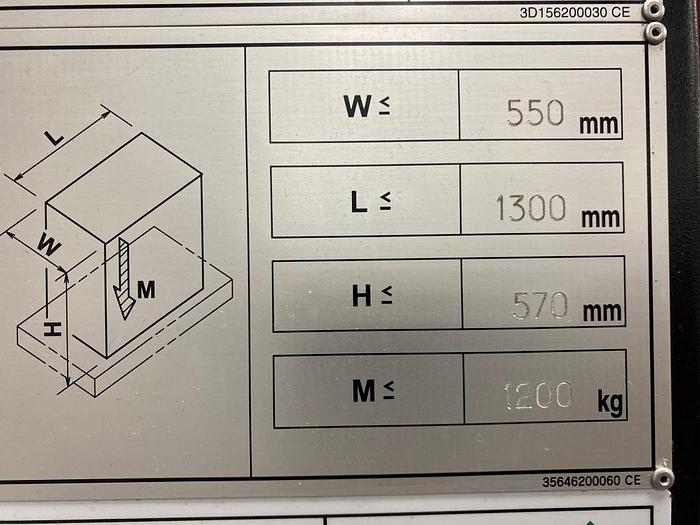

Max Workpiece Size: 1,300 x 550 x 570mm
Max Workpiece Weight: 1,200kg

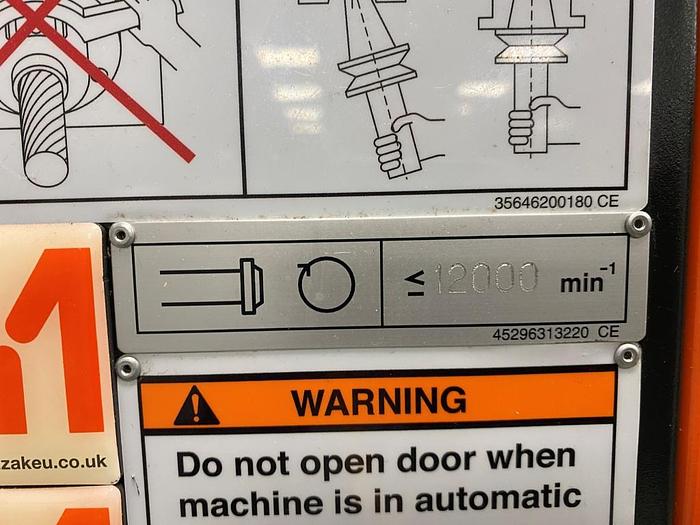

Max Spindle Speed: 12,000rpm
Spindle Taper: ISO40
Spindle Motor Output: 19kW/20HP

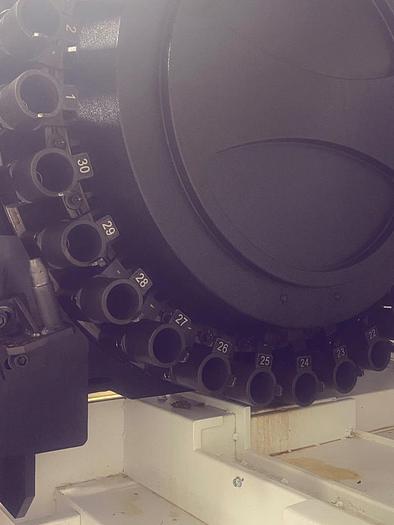

ATC: 30 Station

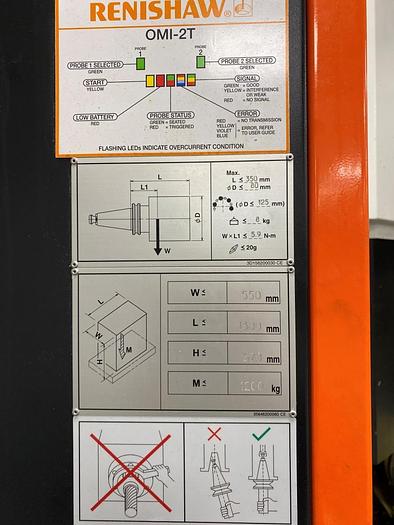

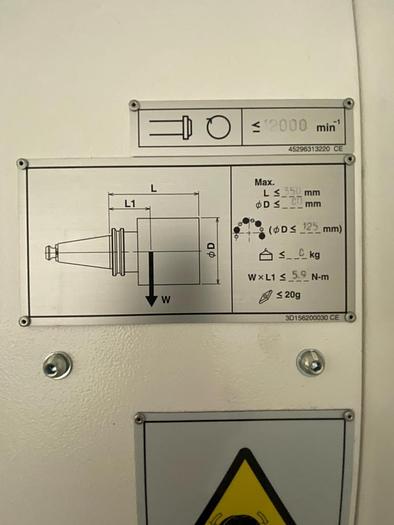

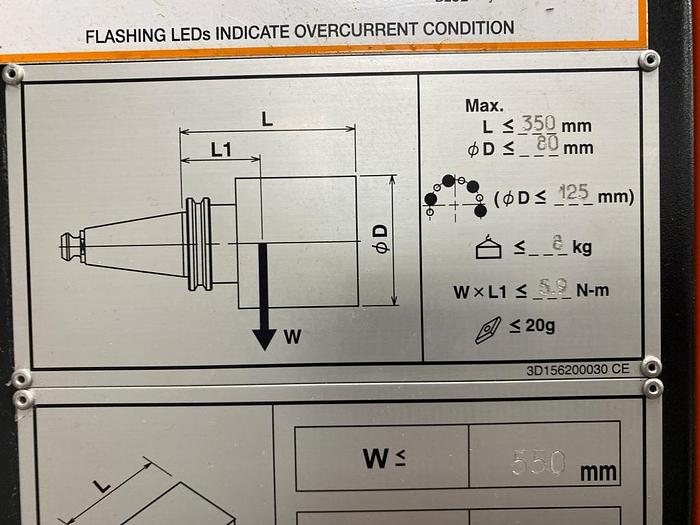

Max Tool Diameter: 80mm
Max Tools Diameter with Empty Adj Pocket: 125mm
Max Tool Length: 350mm
Max Tool Weight: 8kg
X Axis Rapid Feed: 36,000mm/min
Y Axis Rapid Feed: 36,000mm/min
Z Axis Rapid Feed: 36,000mm/min
Machine Length: 3,230mm
Machine Width: 3,045mm
Machine Weight: 7,160kg
Specifications
| Manufacturer | Mazak |
| Model | Vertical Center Nexus 530C-II 5X Machining Center |
| Year | 2018 |
| Condition | Used |

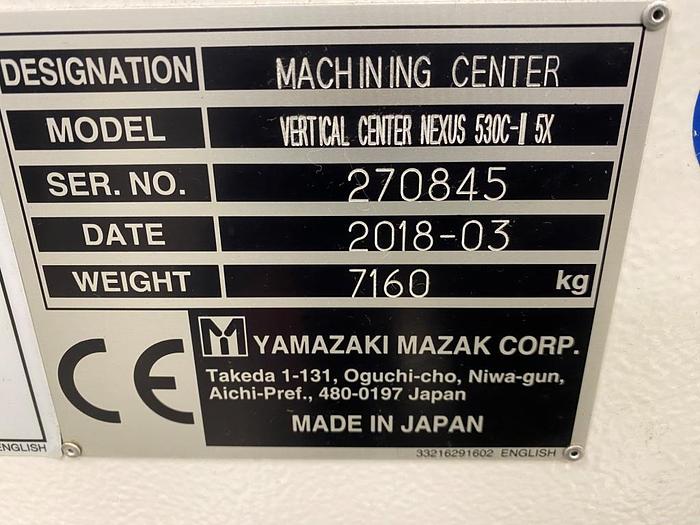

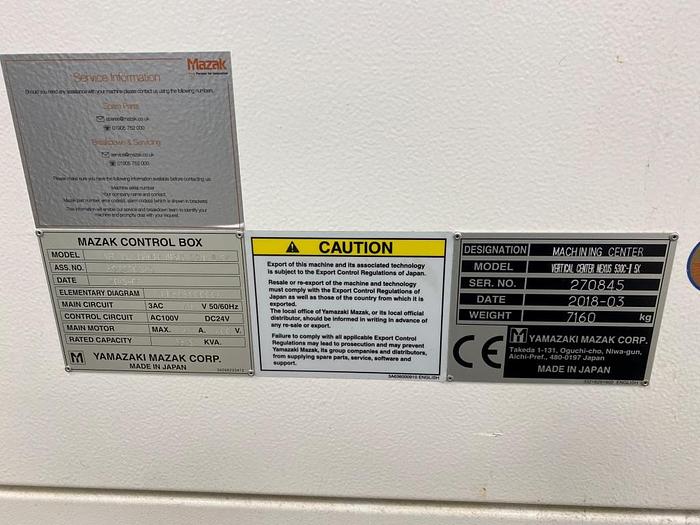

| Serial Number | 270845 |
| Year | 2018 |
| Control | Mazak Mazatrol Matrix 2 |
| Table Size | 1,300 x 550mm |
| X Axis Travel | 1,050mm |
| Y Axis Travel | 530mm |
| Z Axis Travel | 510mm |
| Max Workpiece Weight | 1,200kg |
| Max Spindle Speed | 12,000rpm |
| Spindle Taper | ISO40 |
| Spindle Motor Output | 19kW/20HP |
| ATC | 30 Station |
| Max Tool Diameter | 80mm |
| Max Tool Length | 350mm |
| Max Tool Weight | 8kg |
| X Axis Rapid Feed | 36,000mm/min |
| Y Axis Rapid Feed | 36,000mm/min |
| Z Axis Rapid Feed | 36,000mm/min |
| Machine Length | 3,230mm |
| Machine Width | 3,045mm |
| Machine Weight | 7,160kg |
