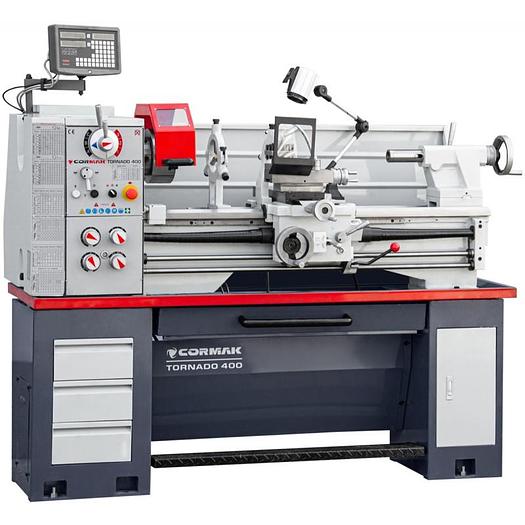

Cormak Tornado 400 Manual Lathe

Cormak Tornado 400 Manual Lathe

Machine Type: Manual Universal Lathe

Description

The CORMAK 400 manual lathe is a new, improved version of the popular metal processing lathes. Among other things, the tool holder cover, spindle bearing system, new digital readout have been improved. They are suitable for production plants, workshops and tool shops. They are perfect for unit and small lot production.

Features

High-quality and reinforced spindle bearing system

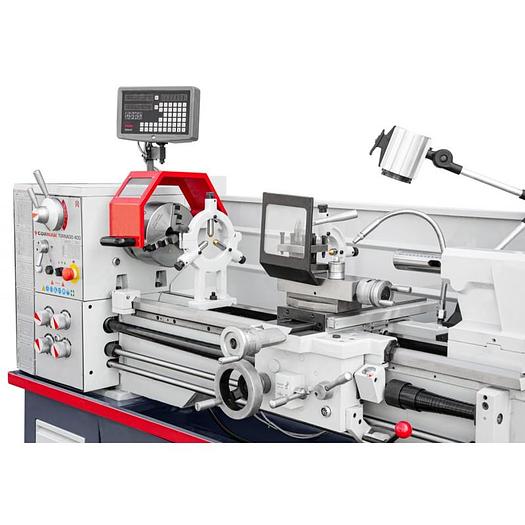

New guards system compliant with CE standards

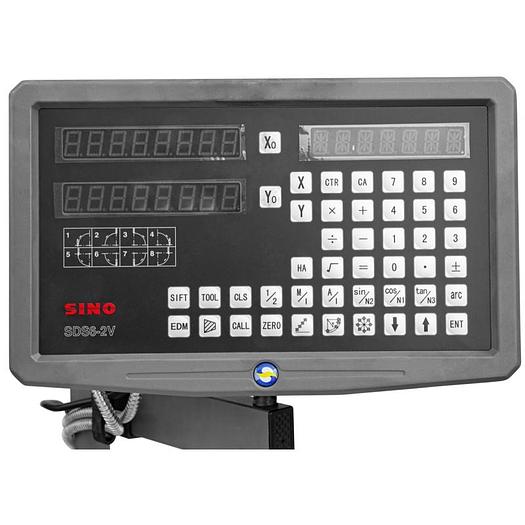

The latest model of DRO

Reinforced and modernized lathe base with drawers for tools and an extendable chip tray

Characteristics

• Reinforced, ribbed surface of the lathe's bed provides maximum reduction of vibration, additionally precise grinded, hardened bed
• Digital readout of the axis in standard equipment
• Large spindle bore provides optimum performance 52 mm
• The appropriate bed width ensures stable and precise working conditions
• Machine equipped with high-quality and hardened spindle bearing system

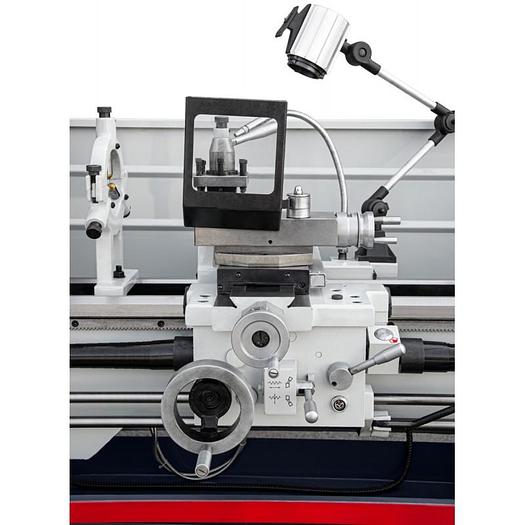

• Efficient machining thanks to two automatic feeds and equipment with a roller and a draft bolt
• Hardened wheels in the spindle gear
• Adjustable clutch overloads on the pull shaft
• Possibility to machine the full range of threads without replacing the wheels in the guitar
• Feed choice lock: through screw or shaft
• The removable bridge enables the working of elements with an increased diameter
• Retractable chip drawer and tool drawers for better and efficient work

Standard Equipment Included

Digital readout

Steady rest

Follow rest

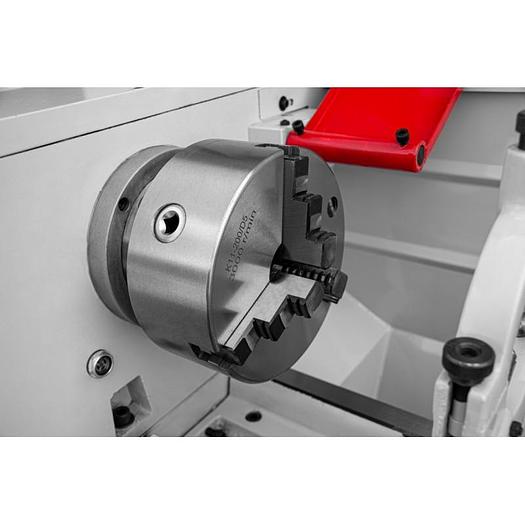

200 mm 3-jaw chuck

200 mm 4-jaw chuck

280 mm Face plate

Dead center MT4 x 2

Reduction sleeve MT6/MT4

Keys

Technical Specification

Maximum turning diameter: 400 mm

Maximum turning diameter over the bed: 250 mm

Maximum turning diameter in gap: 520 mm

Turning length in dead centres: 1000 mm

Bed width: 218 mm

Camlock: D5

Spindle taper: MT6

Spindle bore: 52 mm

Spindle rotation range: 65-1810 rpm

Spindle speed number: 16 ranges

Range of longitudinal feed: (40) 0,053 - 1,291 mm

Range of transverse feed: (40) 0,011-0,276 mm

The maximum dimension of the tool: 20 mm x 20 mm

Metric thread: 0,4-7 mm

Inch thread: 4-60 t.p.i.

Modular thread: (22) 0,4-3 mm

Thread d. P.: (28) 8-84 d. P.

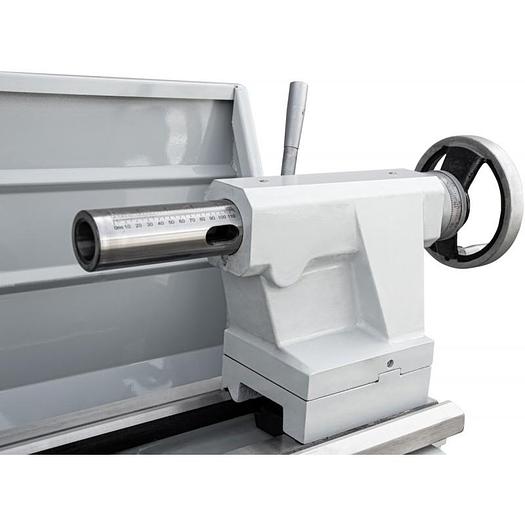

Tailstock quill diameter: 50 mm

Tailstock quill travel: 110 mm

Tailstock taper: MT4

Motor power: 2,2 kw

Coolant pump power: 0,1 kW

Weight: 640 kg

Dimensions: 2000x820x1650 mm
