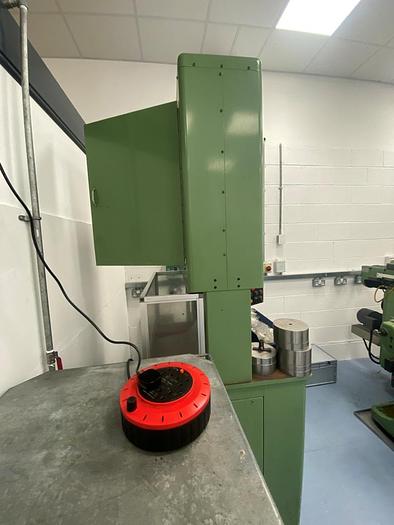

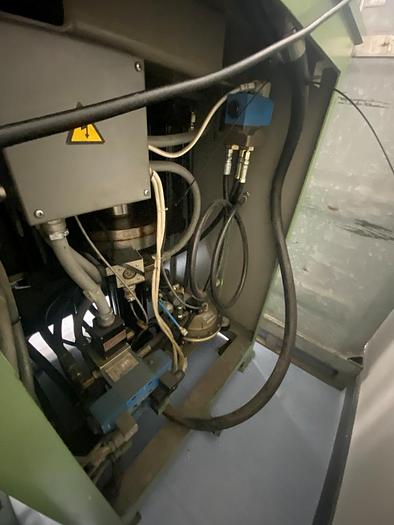

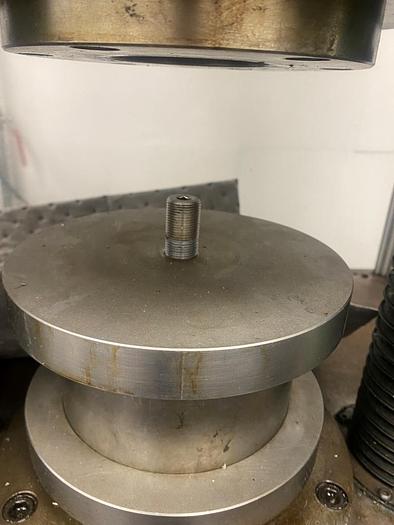

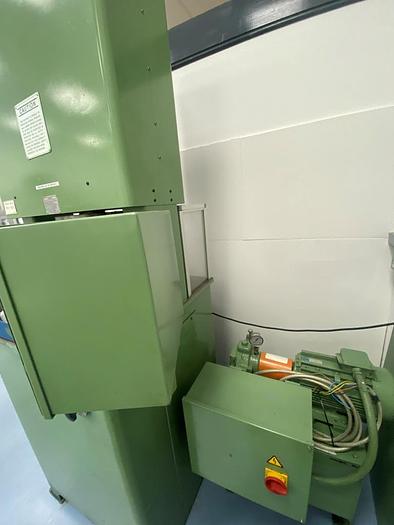

ExtrudeHone Vector Series Honing Machine

Extrude Hone Vector Series Honing Machine

Machine Type: Honing Machine

Year: Unknown

Condition: Very Good

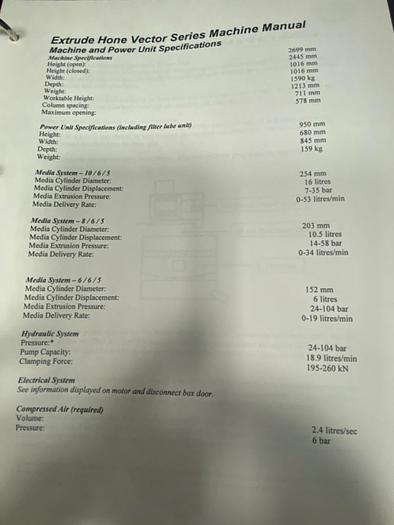

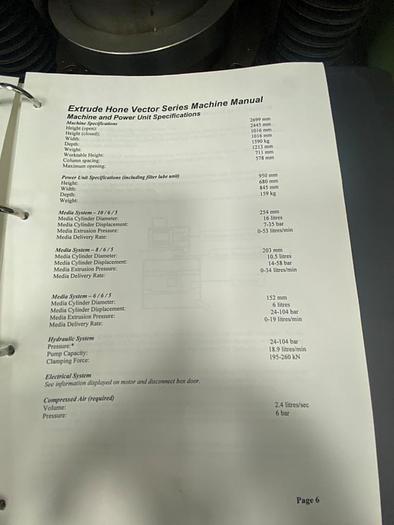

Technical Specifications

Machine Specifications

Open Height: 2699mm

Closed Height: 2445mm

Width: 1016mm

Depth: 1016mm

Weight: 1590kg

Worktable Height: 1213mm

Column Spacing: 711mm

Maximum Opening: 578mm

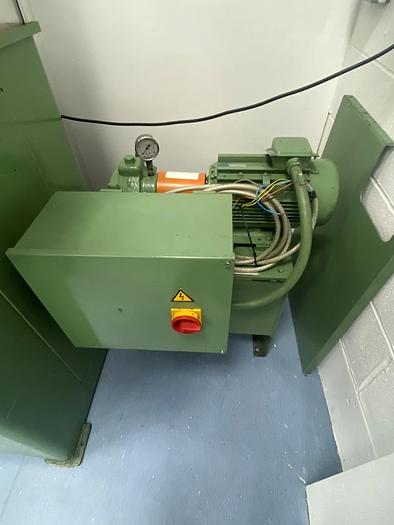

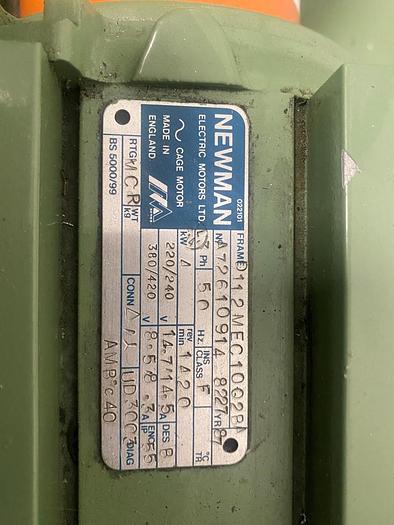

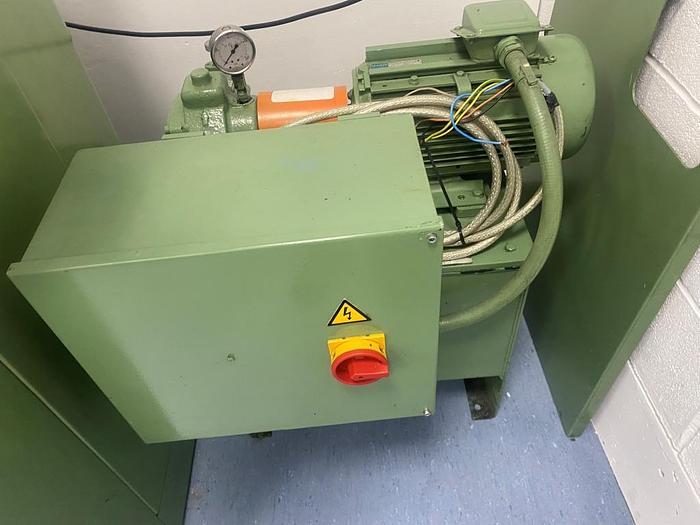

Power Unit Specifications

Height: 950mm

Width: 680mm

Depth: 845mm

Weight: 159kg

Media System 10/6/5

Media Cylinder Diameter: 254mm

Media Cylinder Displacement: 16L

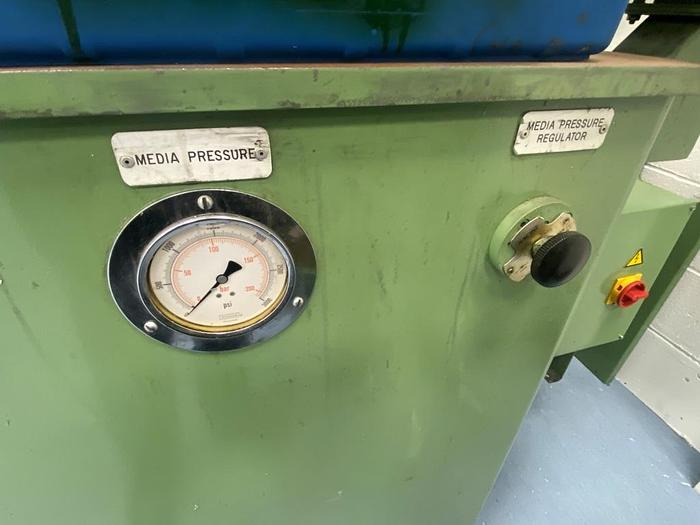

Media Extrusion Pressure: 7-35 Bar

Media Delivery Rate: 0-53L/min

Media System 8/6/5

Media Cylinder Diameter: 203mm

Media Cylinder Displacement: 10.5L

Media Extrusion Pressure: 14-58 Bar

Media Delivery Rate: 0-34L/min

Media System 6/6/5

Media Cylinder Diameter: 152mm

Media Cylinder Displacement: 6L

Media Extrusion Pressure: 24-104 Bar

Media Delivery Rate: 0-19L/min

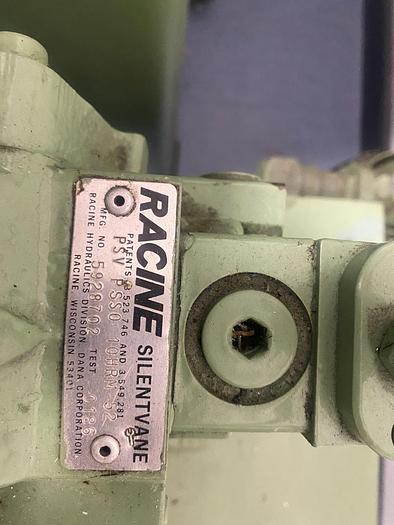

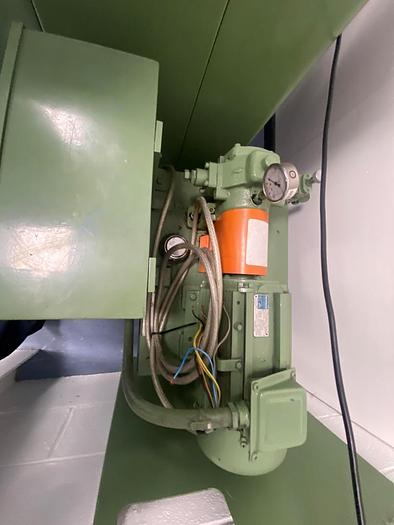

Hydraulic System

Pressure: 24-104 Bar

Pump Capacity: 18.9L/min

Clamping Force: 195-260kN

Compressed Air

Volume Required: 2.4L/sec

Pressure: 6 Bar
