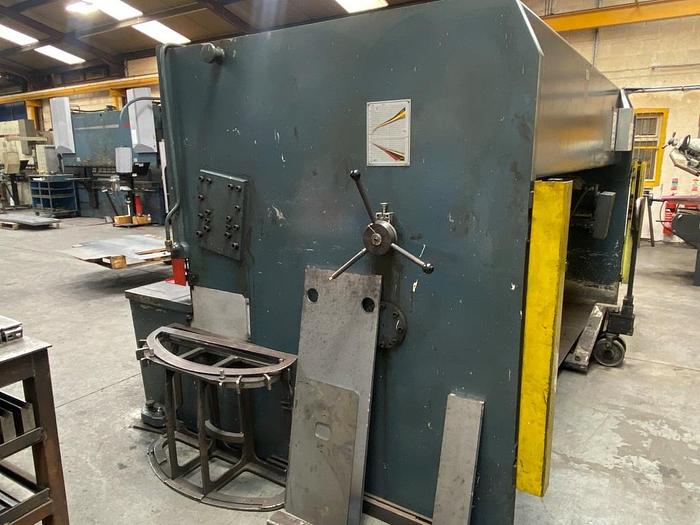

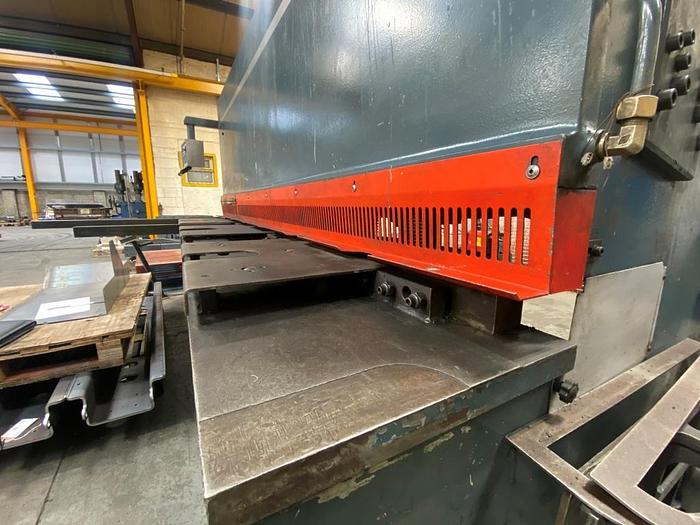

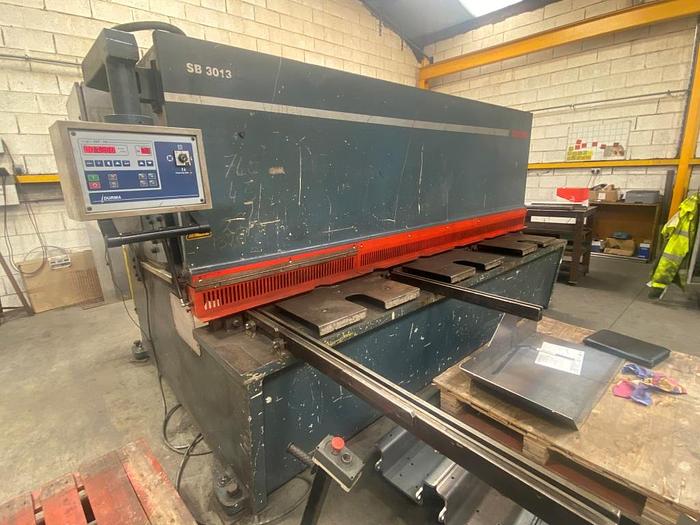

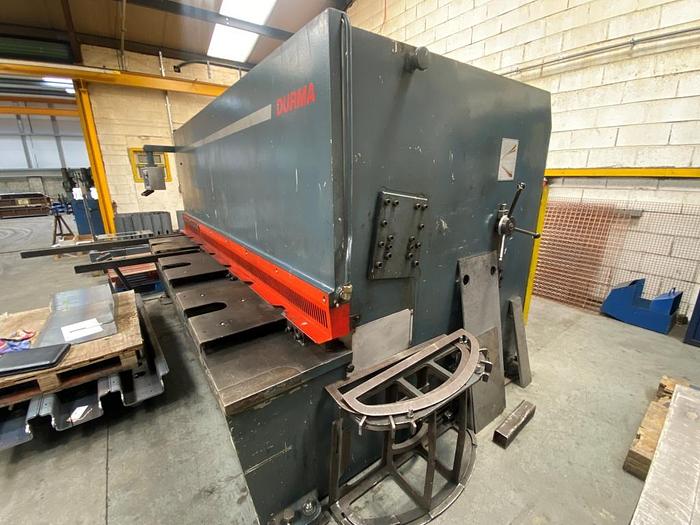

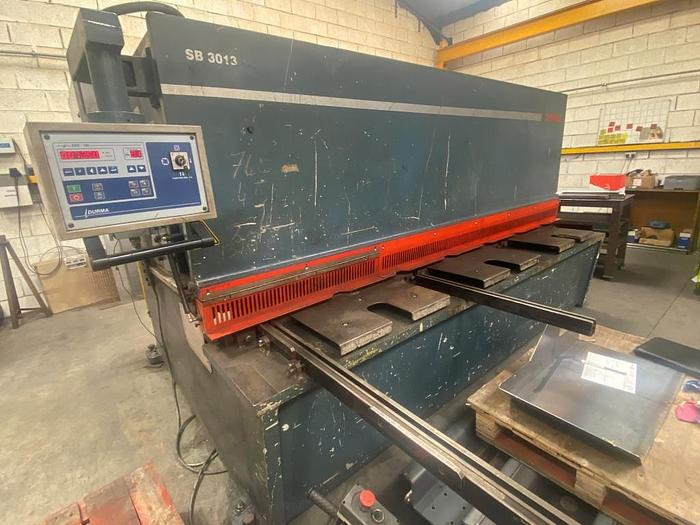

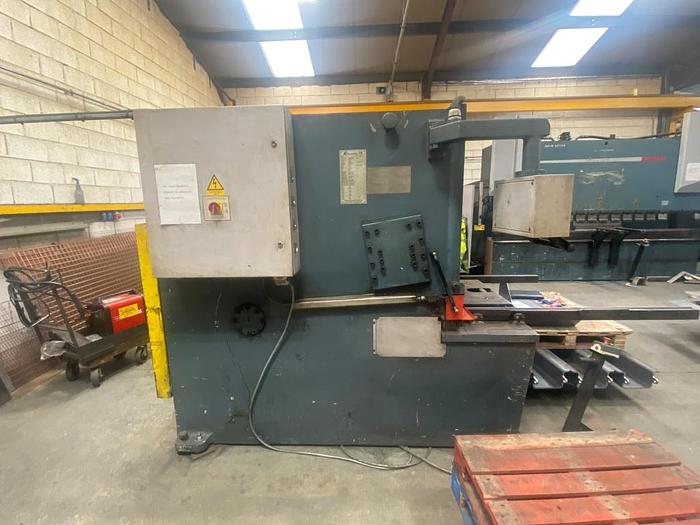

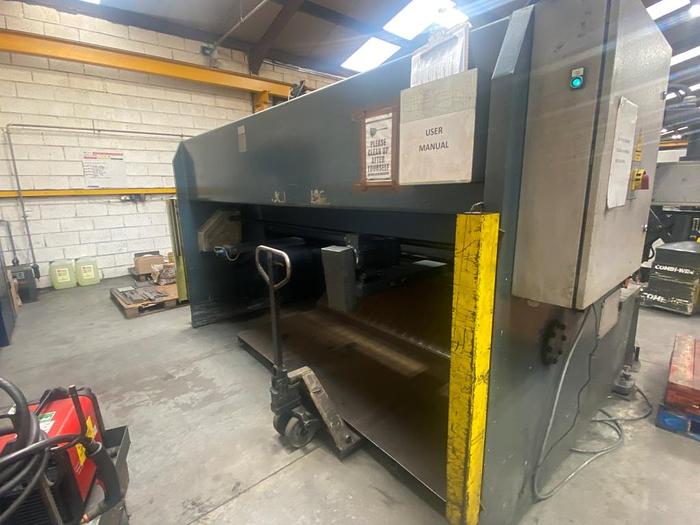

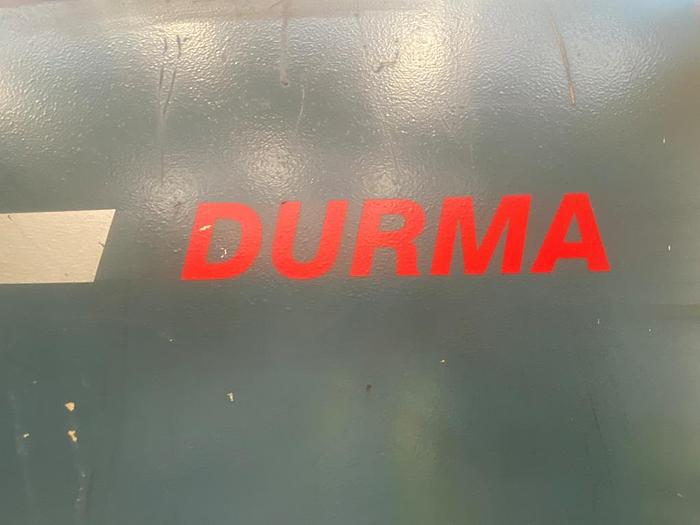

2006 Durma SB3013 Guillotine Shears
Sold
Description

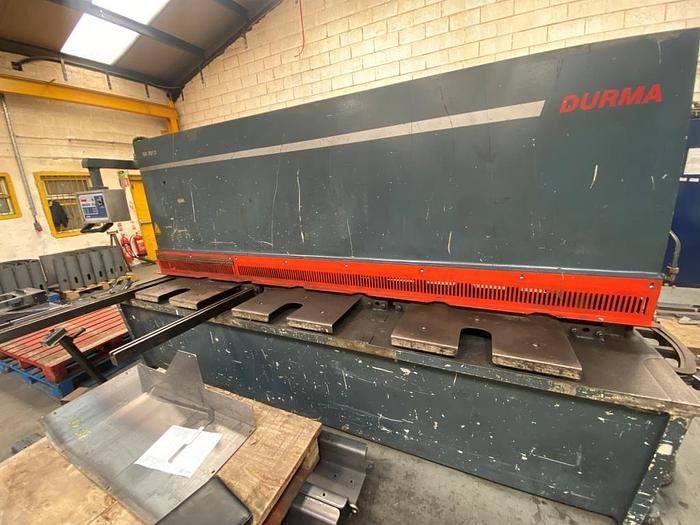

Durma SB3013 Guillotine Shears
Machine Type: Swing Beam Hydraulic Guillotine
Year: 2006
Capacity: 3.1m x 13mm

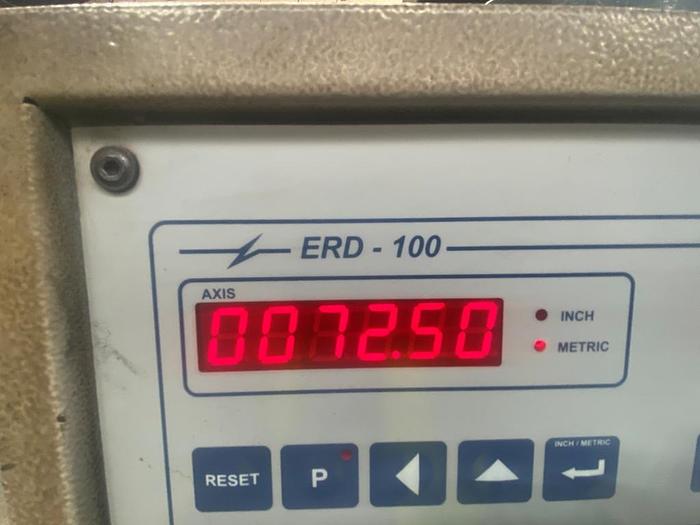

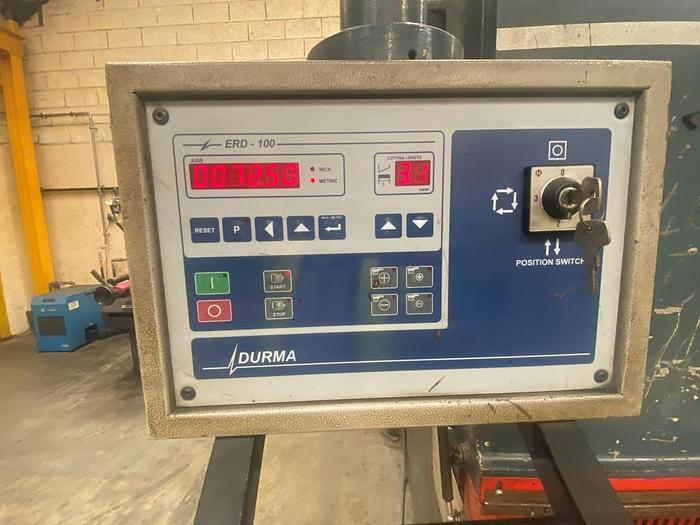

Control: ERD-100 NC Control
Condition: Very Good
Includes

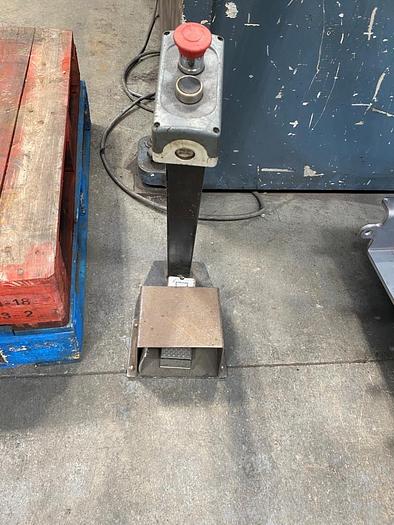

Wanderer Type Foot Pedal
Front Squaring Arm
Front Support Arm

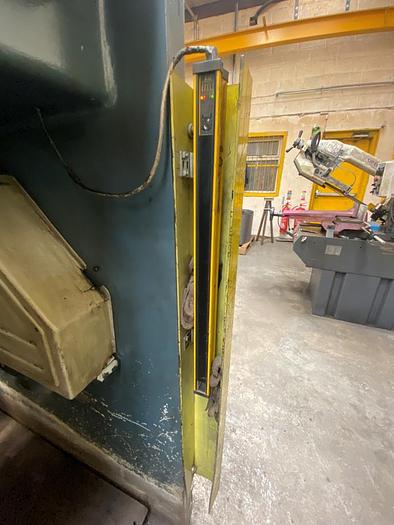

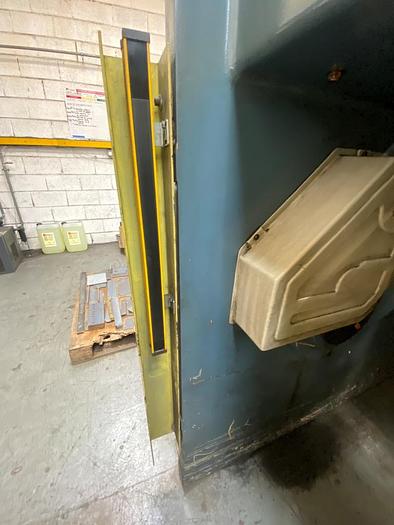

Rear Light Guards
Technical Specification
Max Cutting Length: 3100mm
Max Cutting Capacity (M/S): 13mm
Max Cutting Capacity (S/S): 8mm
Throat Depth: 50mm
Stroke Length: 130mm
Strokes: 11/min
Cutting Angle: 1°45'

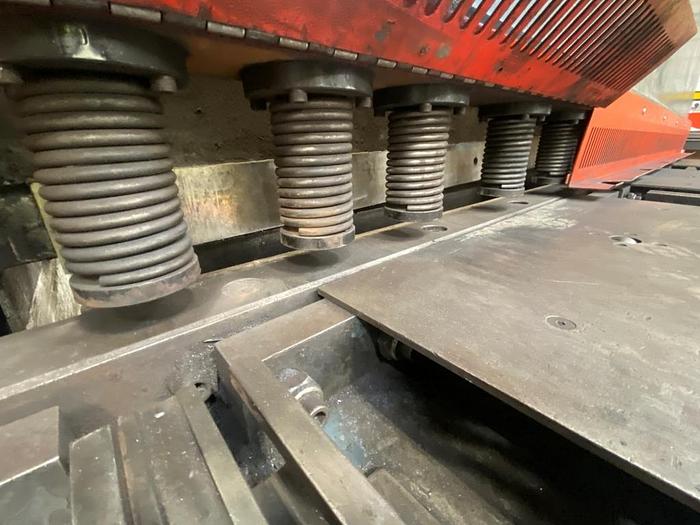

Number of Holddowns: 16
Holddown Force: 37T

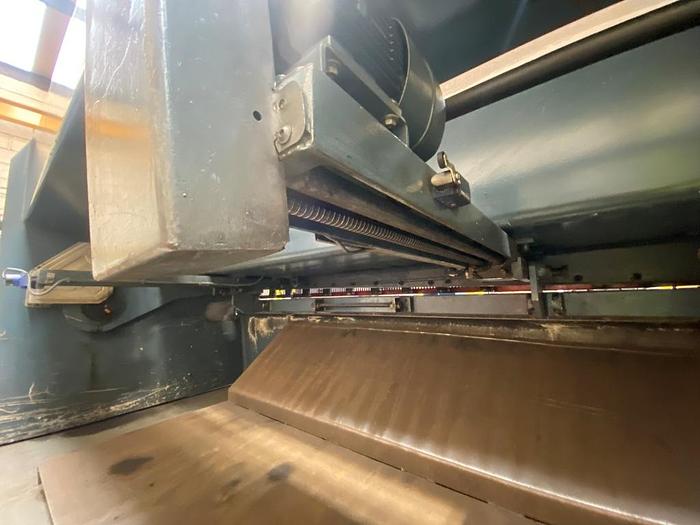

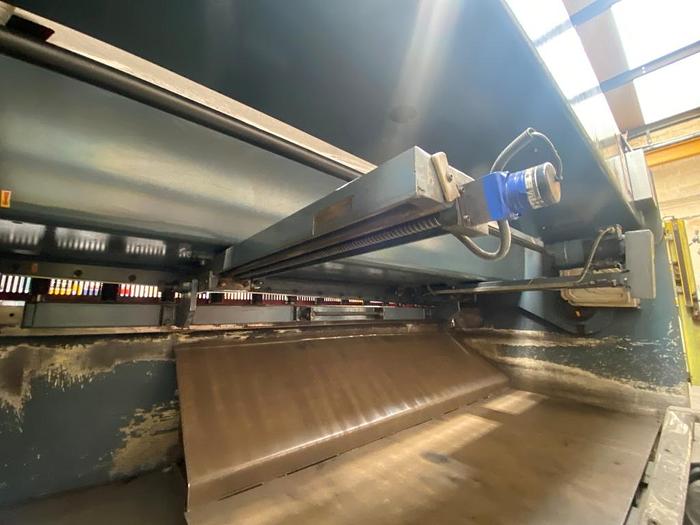

Back Gauge Range: 1000mm
Back Gauge Power: 0.75kW
Back Gauge Speed: 120mm/min
Motor Power: 30kW
Oil Capacity: 330L
Table Height: 845mm
Table Length: 3550mm
Table Width: 600mm
Machine Dimensions: 4150x2300x2100mm
Width with Front Squaring Arm: 3850mm
Weight: 12,500kg
Specifications
| Manufacturer | Durma |
| Model | SB3013 Guillotine Shears |
| Year | 2006 |
| Condition | Used |

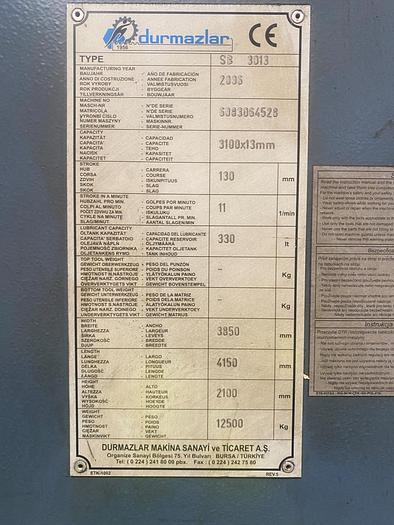

| Serial Number | 6083064528 |
| Machine Type | Swing Beam Hydraulic Guillotine |
| Year | 2006 |
| Capacity | 3.1m x 13mm |
| Control | ERD-100 NC Control |
| Condition | Very Good |
| Max Cutting Length | 3100mm |
| Max Cutting Capacity (M/S) | 13mm |
| Max Cutting Capacity (S/S) | 8mm |
| Throat Depth | 50mm |
| Stroke Length | 130mm |
| Strokes | 11/min |
| Cutting Angle | 1°45' |
| Number of Holddowns | 16 |
| Holddown Force | 37T |
| Back Gauge Range | 1000mm |
| Back Gauge Power | 0.75kW |
| Back Gauge Speed | 120mm/min |
| Motor Power | 30kW |
| Oil Capacity | 330L |
| Table Height | 845mm |
| Table Length | 3550mm |
| Table Width | 600mm |
| Machine Dimensions | 4150x2300x2100mm |
| Weight | 12,500kg |
