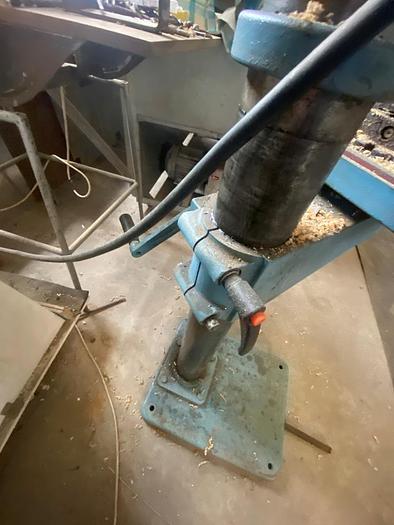

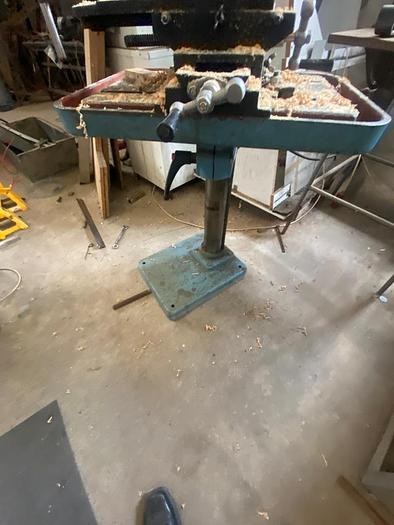

1998 Arboga A2608 Pedestal Drilling Machine
Sold
Description

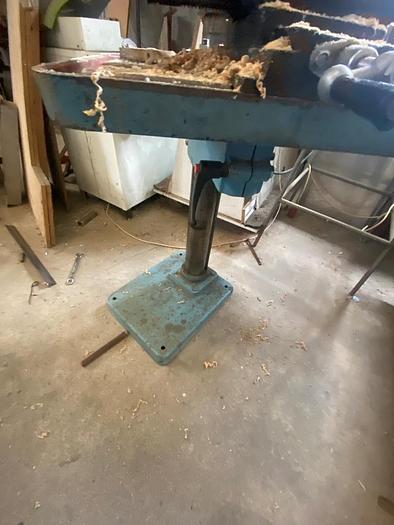

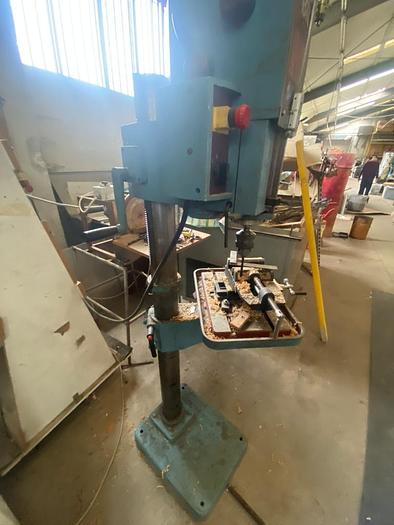

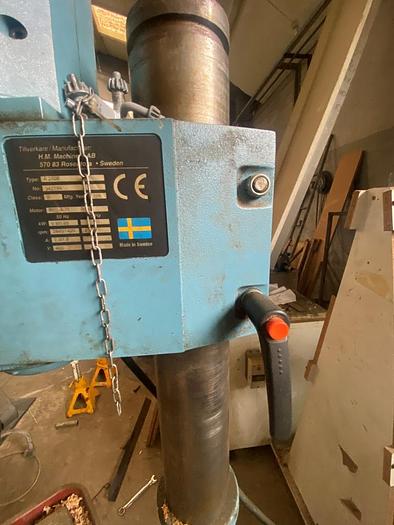

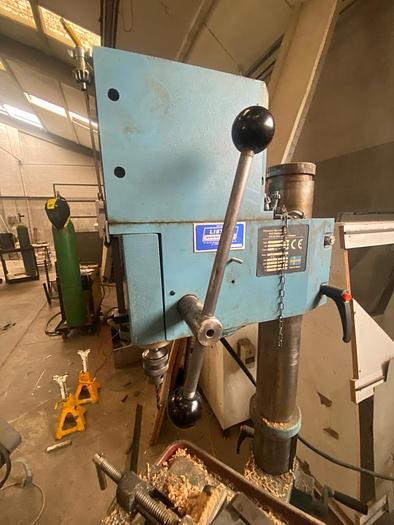

Arboga A2608 Pedestal Drilling Machine
Machine Type: Gear Head Pedestal/Pillar Drill
Year: 1998
Condition: Very Good
Power: 3phase/400V
Includes

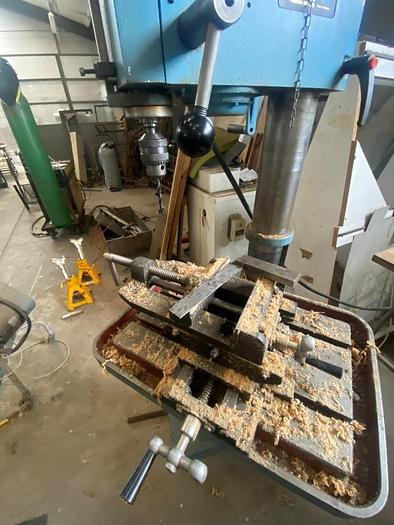

Drill Vice
Drill Chuck
Technical Specifications
Drilling Capacity: Ø 25mm

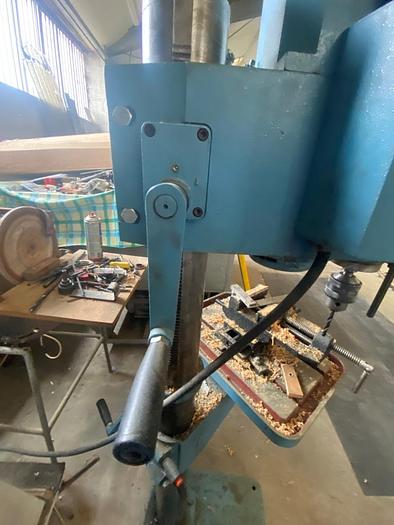

Quill Movement: 135mm
Max Tapping Capacity Mildsteel: M16
Max Tapping Capacity Cast Iron: M20
Spindle Taper: MT3
Motor: 80/2-4-70 3ph
Total Power: 0.9kW
Spindle Speed Selections: 8

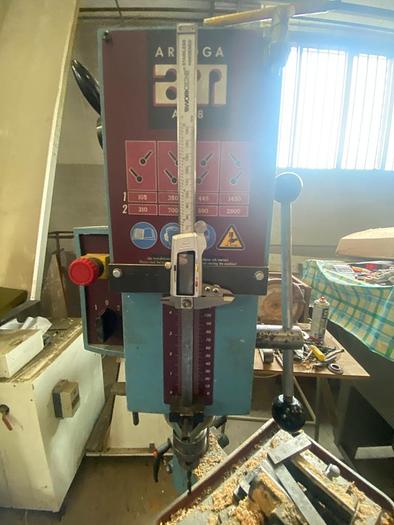

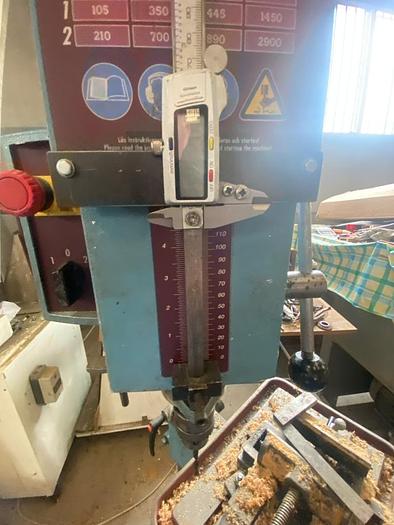

Spindle Speeds: 105-210-350-445-700-890-1450-2840rpm
Feed Speed: 0.10-0.3mm/rev
Table Size: 500 x 350mm
Weight: 200kg
Specifications
| Manufacturer | Arboga |
| Model | A2608 Pedestal Drilling Machine |
| Year | 1998 |
| Condition | Used |

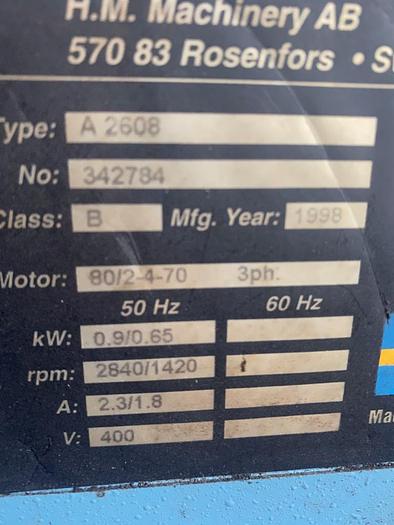

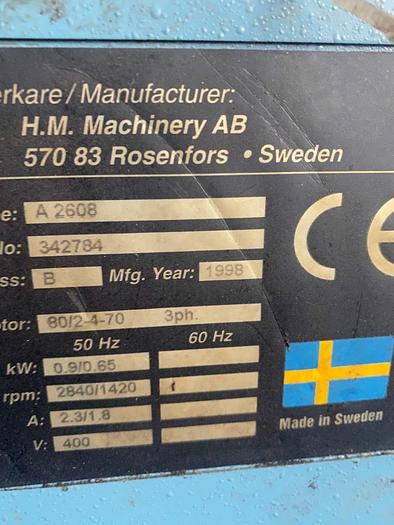

| Serial Number | 342784 |
| Machine Type | Gear Head Pedestal/Pillar Drill |
| Year | 1998 |
| Condition | Very Good |
| Power | 3phase/400V |
| Drilling Capacity | Ø 25mm |
| Quill Movement | 135mm |
| Max Tapping Capacity Mildsteel | M16 |
| Spindle Taper | MT3 |
| Motor | 80/2-4-70 3ph |
| Total Power | 0.9kW |
| Spindle Speed Selections | 8 |
| Spindle Speeds | 105-210-350-445-700-890-1450-2840rpm |
| Feed Speed | 0.10-0.3mm/rev |
| Table Size | 500 x 350mm |
| Weight | 200kg |
