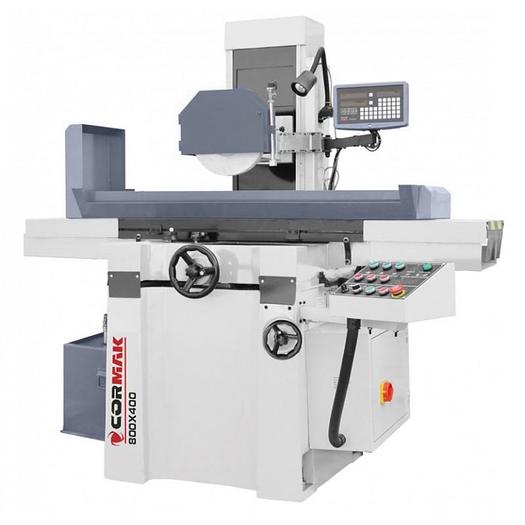

Cormak 800 x 400 Hydraulic Surface Grinder

Machine Type: Hydraulic Surface Grinder

Year: New

Capacity: 800 x 400mm

Machine Description

Hydraulic Surface Grinding machine for continuous operation in production, tool shops and renovation departments. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Hydraulic feeds for 2 axes, by default comes with a digital display.

Machine Features

Hydraulic feed in 2 axes

Tempered and precisely ground linear guides

Central lubrication system

Sturdy structure

High machining accuracy

Includes

Magnetic table

Grinding wheel

Grinding wheel fixture

Cooling system

Halogen lighting

User manual

EC declaration of conformity

Technical Specification

Table Dimensions: 800×400 mm

Maximum Table Feed: 800×415 mm

Distance from Table Surface to Spindle Axis: 600 mm

Table Mounting T-slot: 1×14 mm

Table Longitudinal Speed: 3–20 m/min

Rapid Vertical Feed Speed: 360 mm/min

Transverse Travel Graduations:0.01 mm

Transverse Travel:2 mm/Rev

Transverse Feed Addition: 0–8 mm/min

Transverse Feed: 600 mm/min

Grinding Wheel Dimensions: 300×30×76.2 mm

Grinding Wheel Speed: 2850 rpm

Grinding Accuracy: 300:0.005 mm

Grinding Roughness: Ra 0.32

Manual Vertical Travel Graduations: 0.01 mm

Manual Vertical Travel: 2 mm/Rev

Main Motor Power: 2.2 kW

Flood Coolant Pump Motor Power: 40 W

Dimensions: 1960×1480×1850

Weight: 1800 kg
