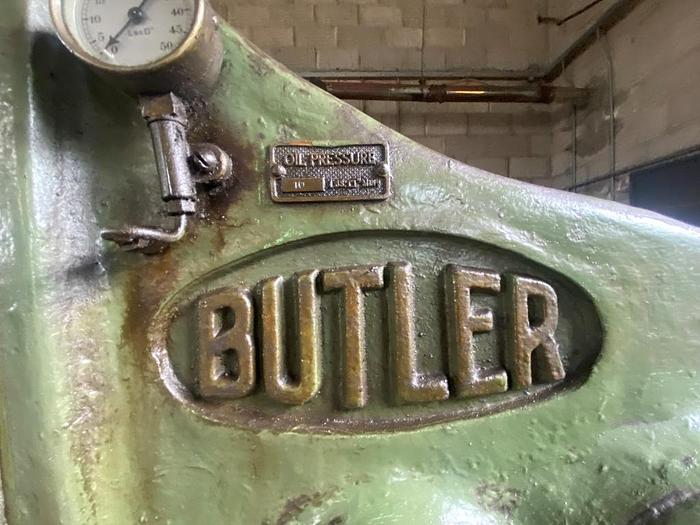

Butler 8" Precision Toolroom Slotter
Sold
Description
Butler 8" Precision Toolroom Slotter
Machine Type: Slotting Machine
Condition: Good
Includes:
Rotary Table
Selection of Tooling
Technical Specification
Stroke: 1" to 8"
Pulley Speed: 400 rpm
Table Size: 20" Diameter
Cycles: 35/51/77/115 per min
Cutting Speeds: 13-69 ft/min
Feeds: 0.004 to 0.28"
Throat Depth: 19"
Daylight: 16"
Tool Slide Adjustment: 10"
Max Tilt of Ram: 5 Deg
Motor: 3 HP
Approx Dimensions: 2285 x 1525 x 2135mm
Approx Weight: 3100kg
Specifications
| Manufacturer | Butler |
| Model | 8" Precision Toolroom Slotter |
| Condition | Used |
| Stock Number | 968716 |
| Machine Type | Slotting Machine |
| Condition | Good |
| Stroke | 1" to 8" |
| Pulley Speed | 400 rpm |
| Table Size | 20" Diameter |
| Cycles | 35/51/77/115 per min |
| Cutting Speeds | 13-69 ft/min |
| Feeds | 0.004 to 0.28" |
| Throat Depth | 19" |
| Daylight | 16" |
| Tool Slide Adjustment | 10" |
| Max Tilt of Ram | 5 Deg |
| Motor | 3 HP |
| Approx Weight | 3100kg |
