€4,500 (EUR)
+ VAT

Bridgeport Interact 1 MK 2

1

Cork, Ireland

or
Call +353 838108745

Description

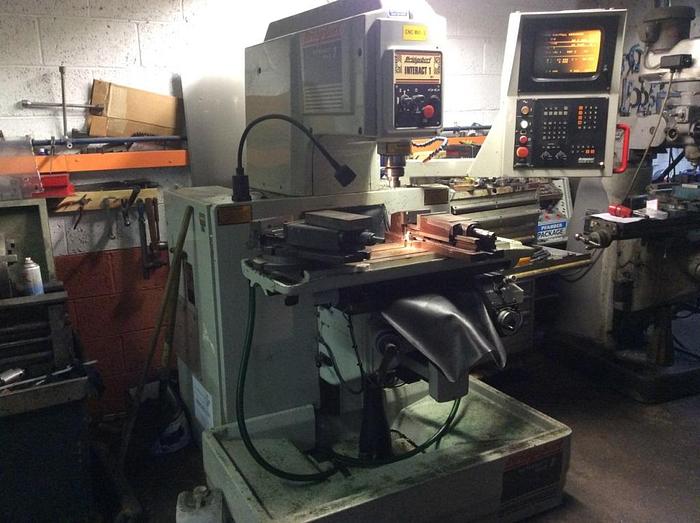

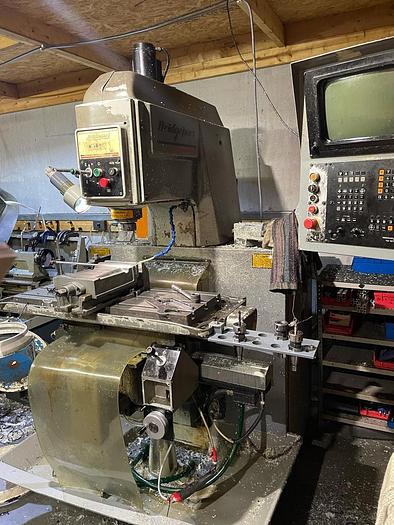

Bridgeport Interact 1 MK 2 CNC Milling Machine



Machine Type: CNC Tool Room Milling Machine

Control: Heidenhain TNC 151

Condition: Good

Includes

Machine Vice

Selection of Tool Holders


Technical Details

Table Size: 1065 x 410mm

Working Surface: 860 x 320mm

X Axis Travel: 457mm

Y Axis Travel: 305mm

Z Axis Travel: 365mm

Quill Travel: 125mm

Power Feed: 1-5000mm/min

Manual Feedrate: 10-750mm/min

Rapid Traverse: 5m/min

Quill Rapid Feed: 5m/min

Max Load on Table: 136kg

Spindle Taper: ISO 30

Speed Range: 40-4000rpm

Throat Depth: 368mm

Table to Spindle: 127mm

Power Requirements: 18kVA

Machine Dimensions: 1750x1570x2510mm

Machine Weight: 1600kg


Show All

Specifications

ManufacturerBridgeport
ModelInteract 1 Mk 2 CNC Milling Machine
ConditionUsed
ConditionGood
Table Size1065 x 410mm
Working Surface860 x 320mm
X Axis Travel457mm
Y Axis Travel305mm
Z Axis Travel365mm
Quill Travel125mm
Power Feed1-5000mm/min
Manual Feedrate10-750mm/min
Rapid Traverse5m/min
Quill Rapid Feed5m/min
Max Load on Table136kg
Spindle TaperISO 30
Speed Range40-4000rpm
Throat Depth368mm
Table to Spindle127mm
Power Requirements18kVA
Machine Dimensions1750x1570x2510mm
Machine Weight1600kg
