€90,000 + VAT

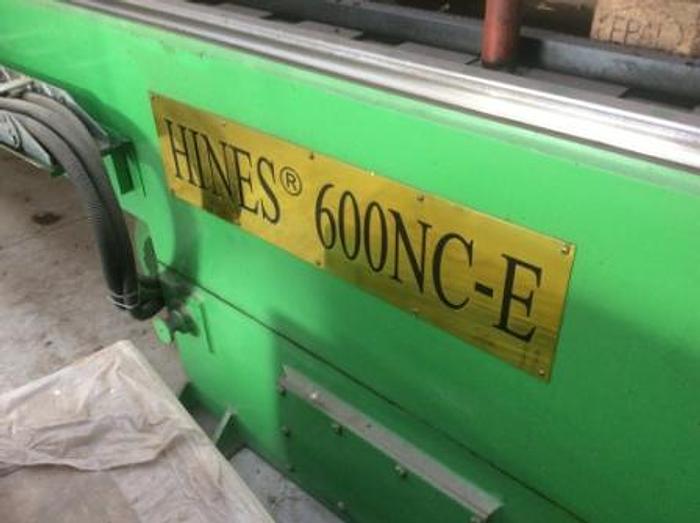

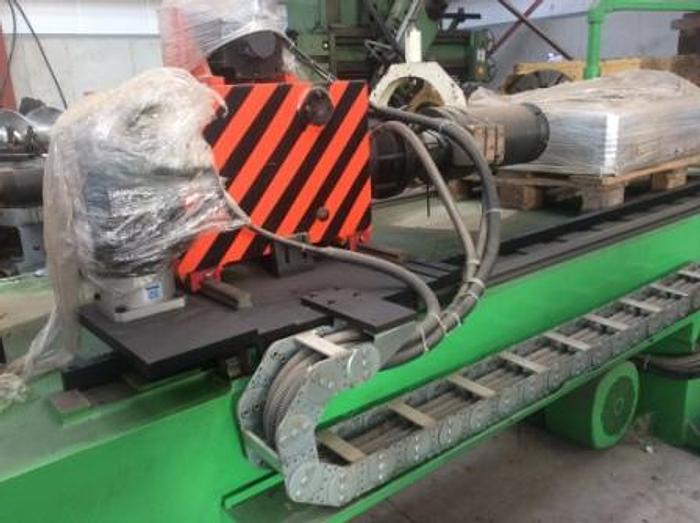

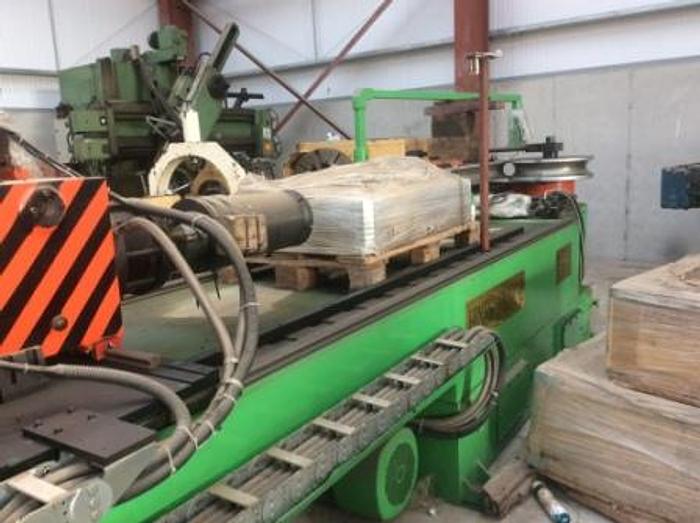

Hines 600 NC-E Tube Bender

1

Ireland

orCall +353 838108745

Description

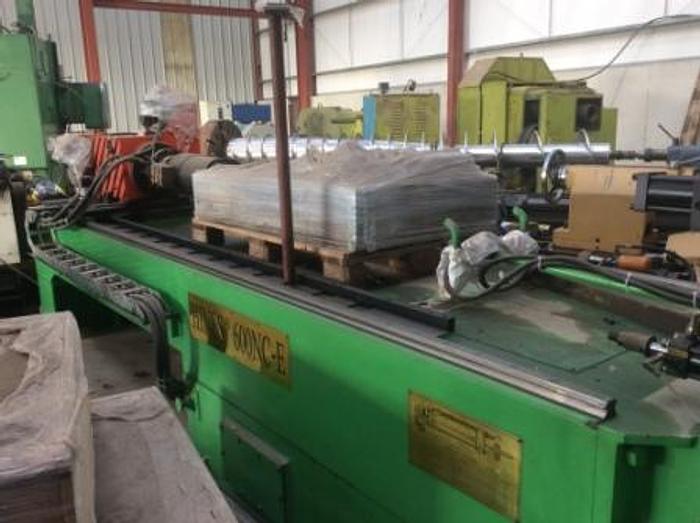

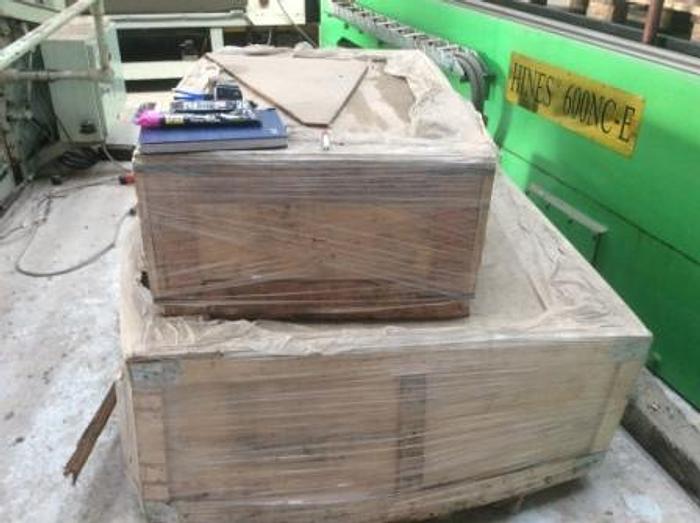

HINES 600 NC-E Tube Bender Machine Rarely Used. Complete with Huge Range of Un-Used Tooling worth approx €70,000 600 NC Tube Bender Applications: The 600 NC bender is used worldwide throughout automotive industries for truck exhaust and truck stacks.

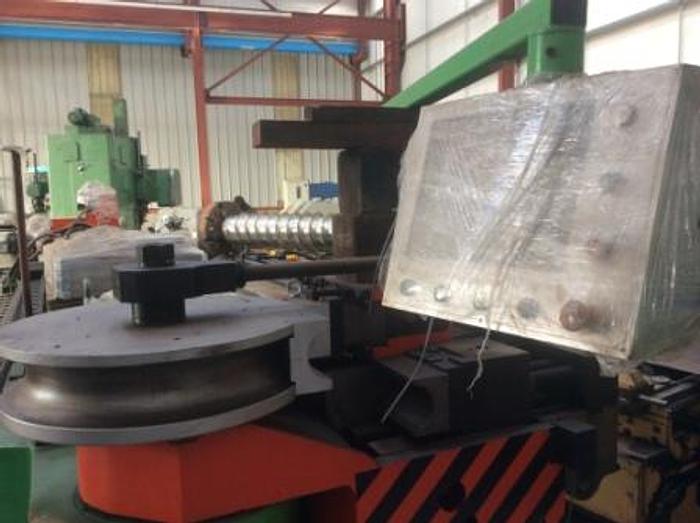

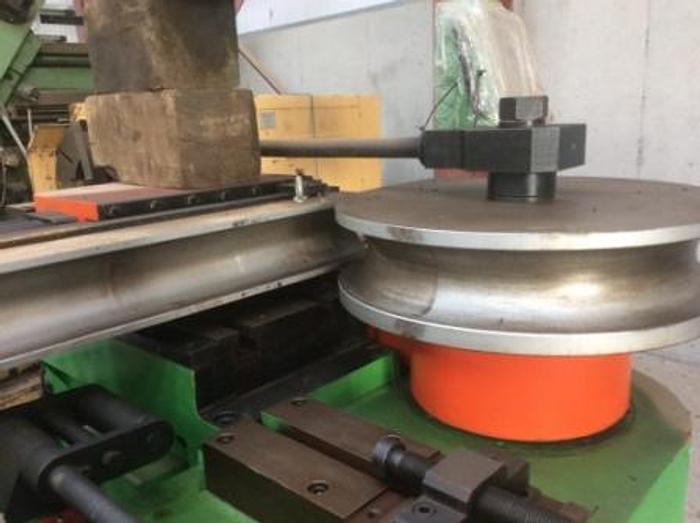

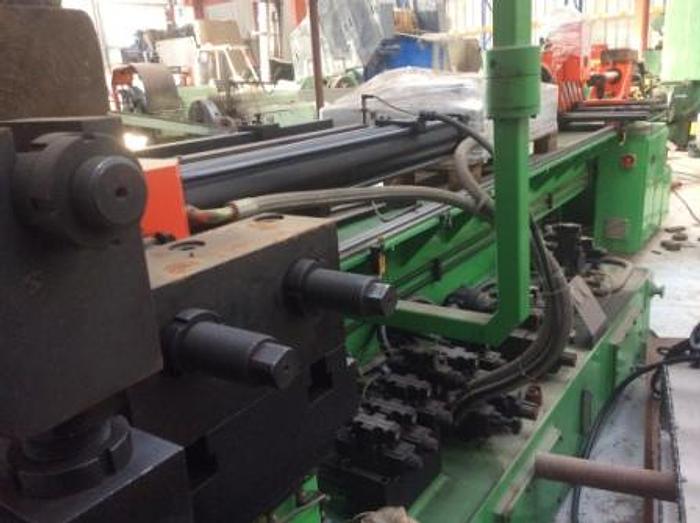

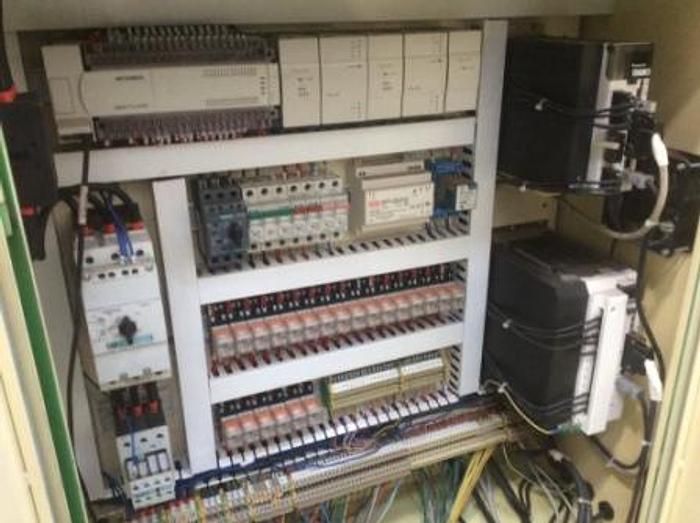

Features of the Hines 600NC-E Tube Bender: Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.) Solid Machined Steel Bend Arms Easy Touch Screen Operation Includes All Die Holders Operator Safety Features Manifold Style Hydraulic and High Pressure Filter Complete with: Pressure Die Holder Wiper Die Holder Overhead Tie Bar (Eliminates Die Deflection) Pressure Die Assist Pressure Die Assist Rear Support Roller Mandrel Rod SAE Thread Supplied (1) Mandrel Lubricator Mandrel Extractor Mandrel Early Out Programmable PLC Controller – Mitsubishi FX3U Touch Screen (Proface America) Tube Piece Counter Clockwise Rotation Dual Stage Pump Hydraulic System Includes a Huge Range of Un-Used Tooling worth €70k Specifications of the Hines 600 NC-E Tube Bender: Capacity: 6″ OD x .200 Wall Standard Maximum Radius: 18 inch Maximum Bend Angle: 190 degrees Bend Angle Accuracy (+ / -): 0.1 degree Bend Arm Speed: 0.4rpm Maximum Tube Length Over Mandrel: 14 feet Motor: 30 HP Operating Pressure: 2300psi Reservoir Capacity: 275 U.S. Gallons Approximate Weight: 23000lbs Approximate Dimensions: 19’ L x 7’ W x 5.5’ H Voltage: 440/480/3 Phase/60Hz

Specifications

ManufacturerHines
Model600 NC-E Tube Bender
ConditionUsed

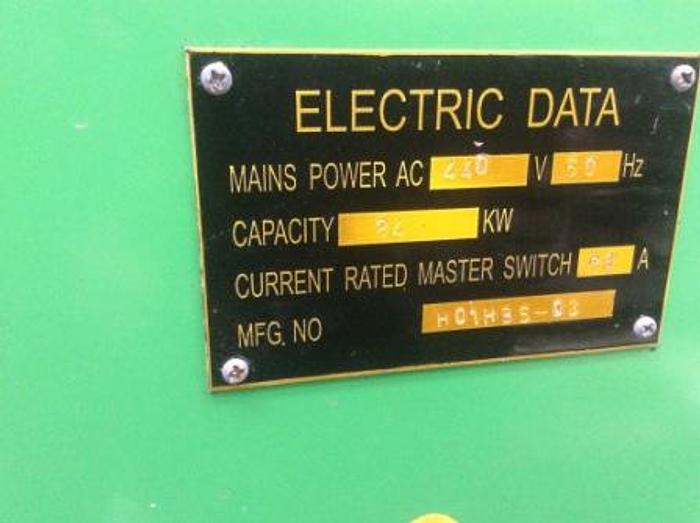

Serial NumberH01H35-03
Stock Number00175
Motor30 HP
Voltage440/480/3 Phase/60Hz
Capacity6″ OD x .200 Wall
Bend arm speed0.4rpm
Memory capacity100 job storage, 6 bends per part
Maximum bend angle190 degrees
Operating pressure2300psi
Reservoir capacity275 U.S. Gallons
Standard maximum radius18 inch
Bend angle accuracy (+ / -)0.1 degree
Maximum tube length over mandrel14 feet
Approximate dimensions19’ L x 7’ W x 5.5’ H
Approximate weight23000lbs
