CSEPEL MUVEK RFH 100 RADIAL ARM Drill
Sold
Description

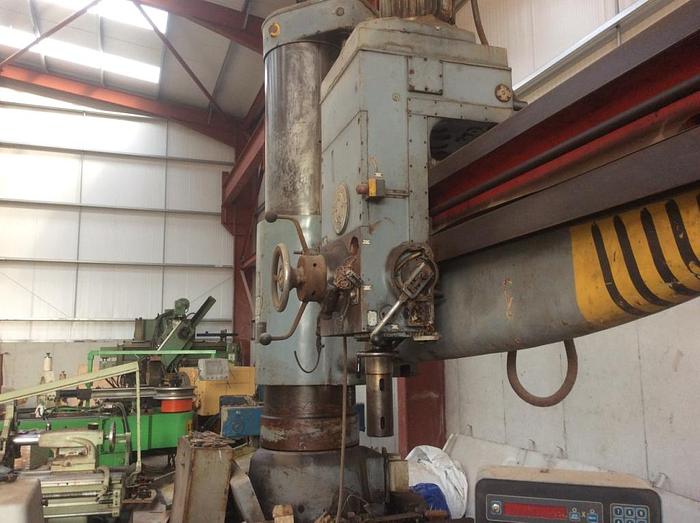

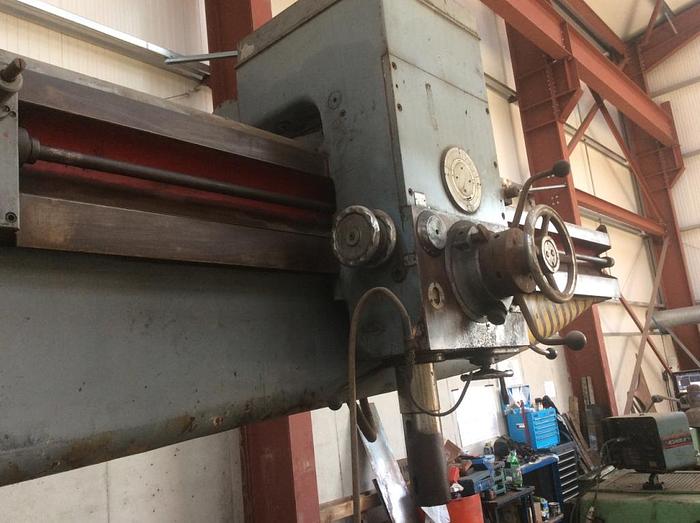

Used CSEPEL MUVEK RFH 100 RADIAL ARM Drill Year: 1982 Specification: Boring diameter capacity: 100 mm Drilling radius: 3000 mm Work-piece height range: 440-2100 mm Spindle taper: MT 6 Spindle turning speed range: 18-1800 rpm Quill stroke: 400 mm Surface area: 3160x1500 mm Boring feed range: 0,0375 - 2 mmm/min Distance spindle - column: -Min.: 400 mm -Max.: 2850 mm Total power requirement: 13 kW Machine dimensions: 4390x1550x4130 mm Machine weight: 13200 kg
Specifications
| Manufacturer | Csepel Muvek |
| Model | RFH 100 |
| Year | 1982 |
| Condition | Used |
| Serial Number | 46709 |
| Stock Number | 00045 |
| Year | 1982 |
| Drilling radius | 3000 mm |
| Boring diameter capacity | 100 mm |
| Work-piece height range | 440-2100 mm |
| Quill stroke | 400 mm |
| Distance Spindle to Column | 400 - 2850mm |
| Surface area | 3160 x 1500 mm |
| Spindle taper | MT 6 |
| Spindle turning speed range | 18-1800 rpm |
| Boring feed range | 0,0375 - 2 mm/min |
| Total power requirement | 13 kW |
| Machine dimensions | 4390 x 1550 x 4130 mm |
| Machine weight | 13200 kg |
