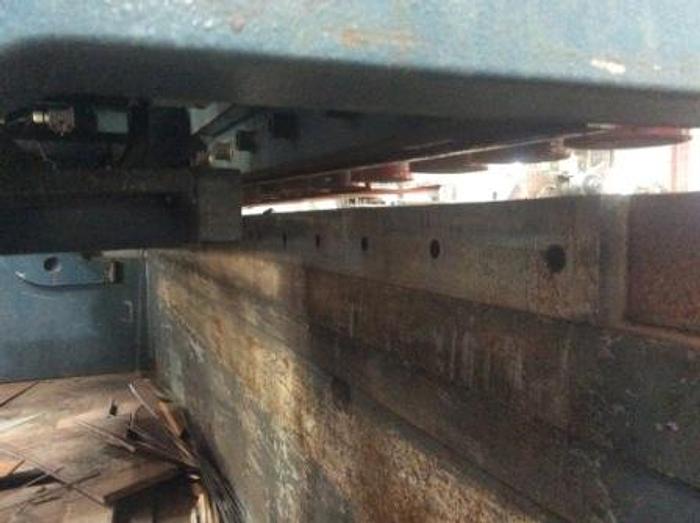

Durma VS4020 NC Controlled Hydraulic Guillotine Shears
Sold
Description
Used Durma VS4020 NC Controlled Hydraulic Shears. Capacity: 4000mm x 20mm Control: Cybelec DNC60 Cutting Length: 4080mm Cutting Capacity M/S: 20mm Cutting Capacity S/S: 15.5mm Stroke per minute. Min: 4/Min Stroke per minute. Max: 8/Min Cutting Angle. Min: 0°30' Cutting Angle. Max: 2°30' Number of Holddowns: 21 Holddown Force Min: 50T Holddown Force Max: 100T Back Gauge Travel: 1000mm Back Gauge Speed: 200mm/Sec Motor Power: 45KW Oil Capacity: 500L Throat Depth: 350mm Front Arms: 4 Table Height: 1000mm Table Width: 630mm Table Length: 4405mm Machine Dimensions Length: 5900mm Width: 2200mm Total Width: 3775mm including backgauge Height: 2950mm Weight: 29000KG
Specifications
| Manufacturer | Durma |
| Model | VS4020 |
| Year | 2007 |
| Condition | Used |
| Control | Cybelec DNC60 |
| Capacity | 4000mm x 20mm |
| Cutting length | 4080mm |
| Cutting capacity m/s | 20mm |
| Throat depth | 350mm |
| Cutting capacity s/s | 15.5mm |
| Back gauge speed | 200mm/Sec |
| Back gauge travel | 1000mm |
| Front arms | 4 |
| Motor power | 45KW |
| Table width | 630mm |
| Cutting angle. max | 2°30' |
| Cutting angle. min | 0°30' |
| Oil capacity | 500L |
| Table height | 1000mm |
| Table length | 4405mm |
| Holddown force max | 100T |
| Holddown force min | 50T |
| Number of holddowns | 21 |
| Stroke per minute. min | 4/Min |
| Stroke per minute. max | 8/Min |
| Machine Dimensions (L x W x H) | 5900 x 3775 x 2950mm |
| Weight | 29000KG |
