€105,000 + VAT

2001 Peddinghaus BDL760/3 with Meba 400DG-700 Saw/Drill Line

1

Ireland

orCall +353 838108745

Description

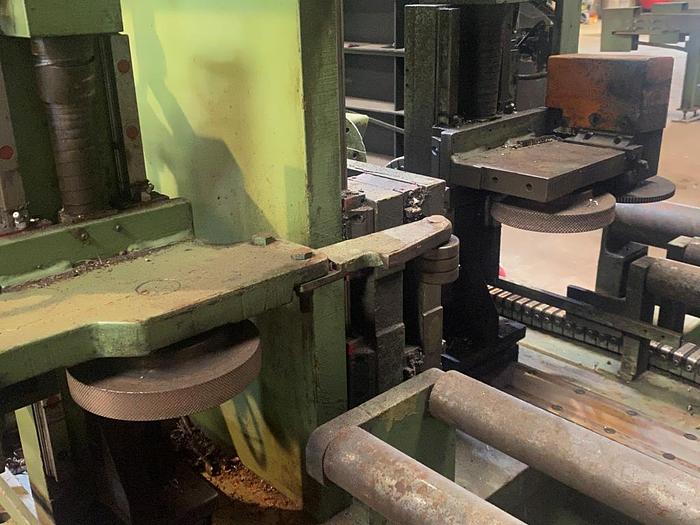

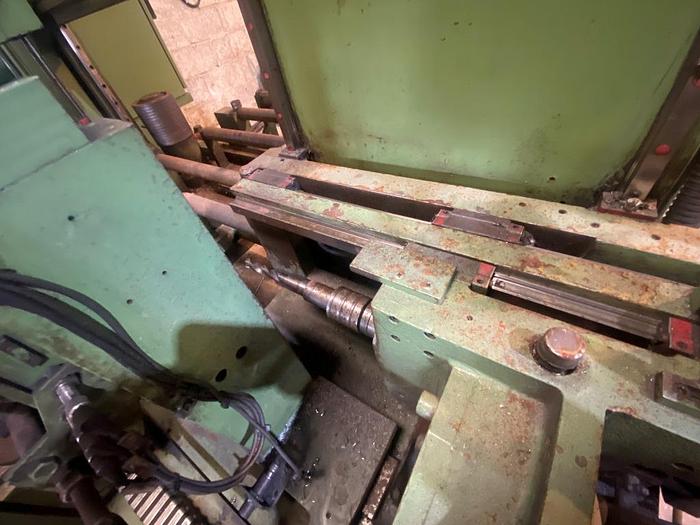

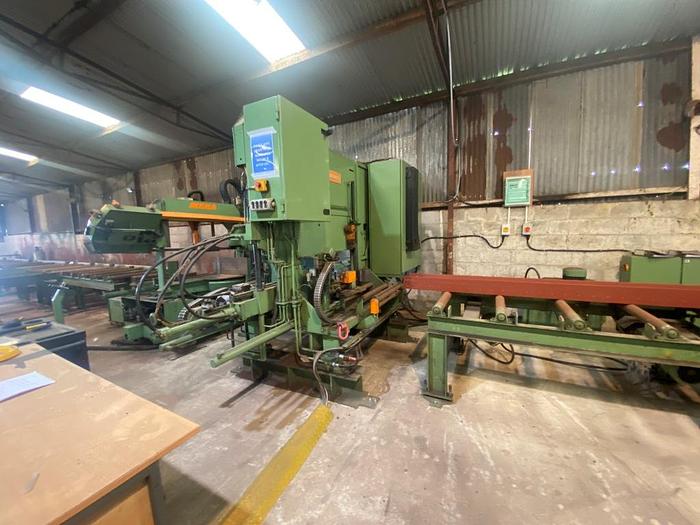

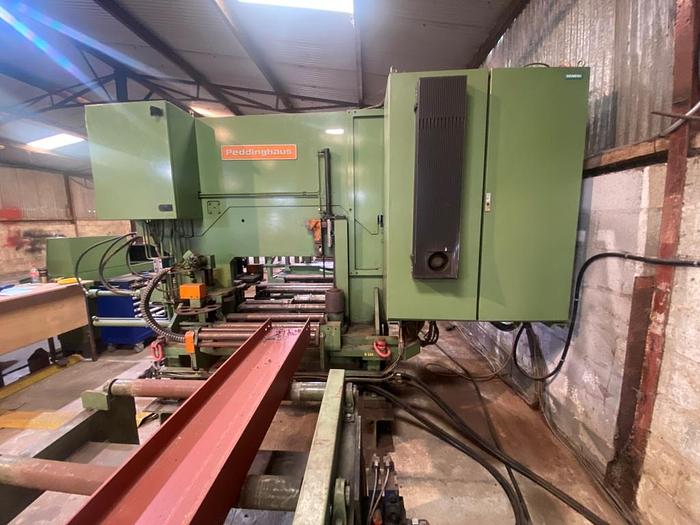

2001 Peddinghaus BDL 760/3 with Meba 400DG-700 Saw Drill Line


Machine Type: Structural Steel Sawing & Drilling Line

Year: 2001

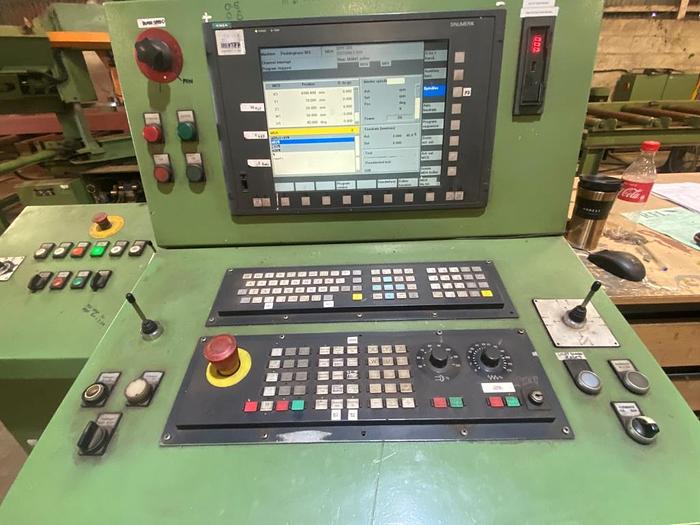

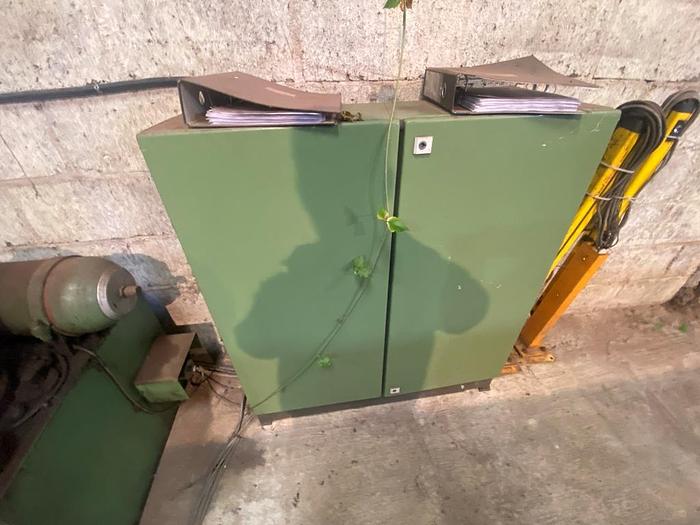

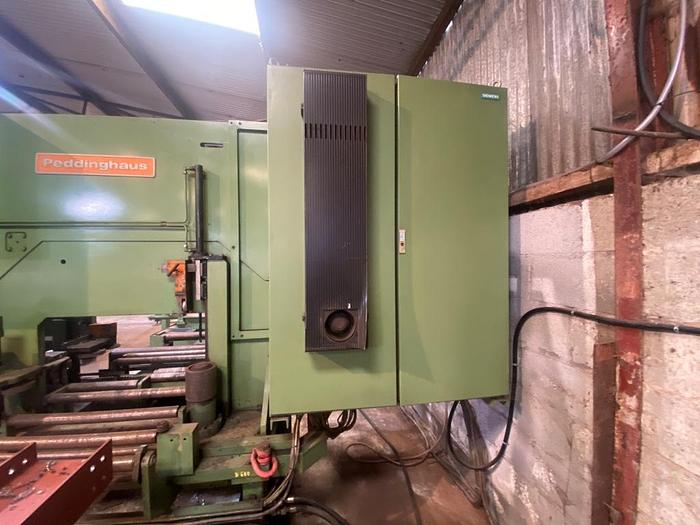

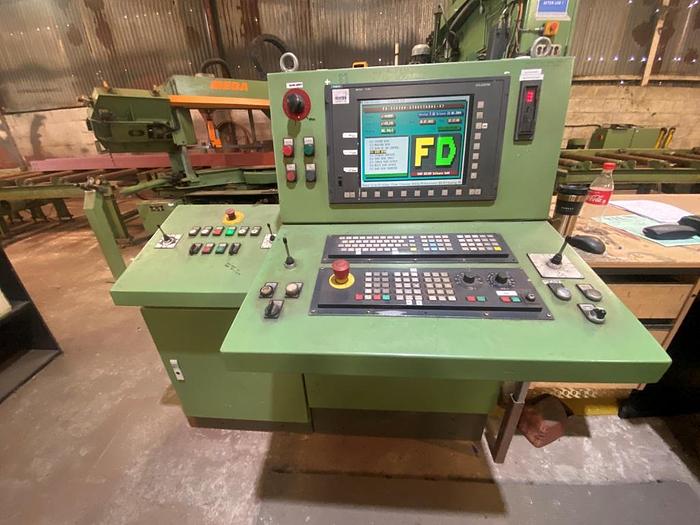

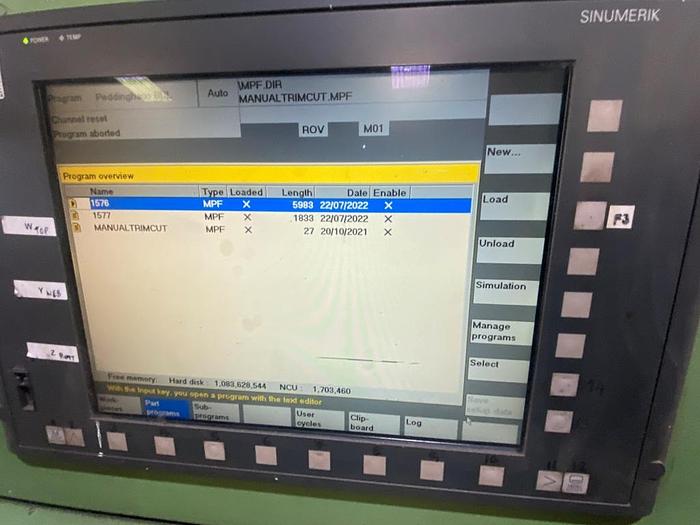

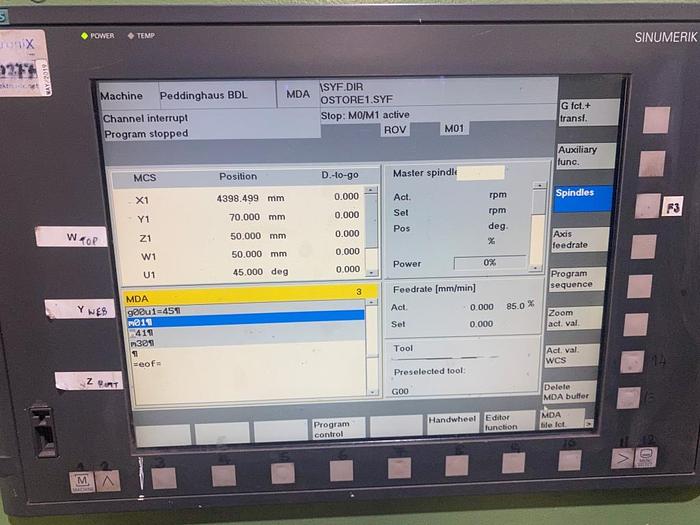

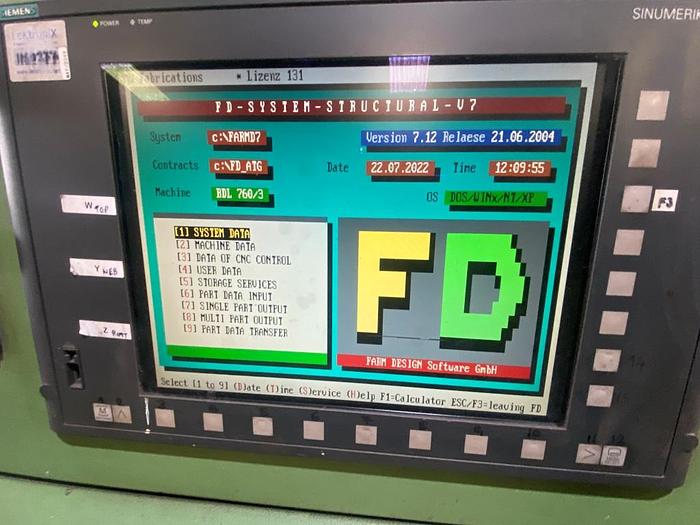

Control: Siemens Sinumerik CNC Control with Farm Design

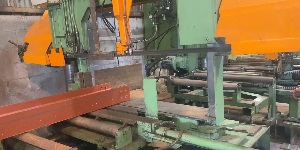

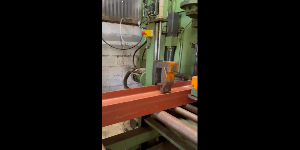

Condition: Very Good. Can be seen running.


Includes

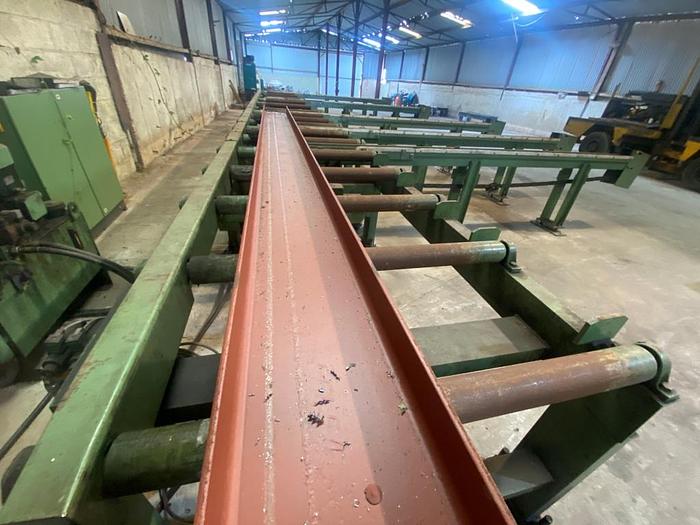

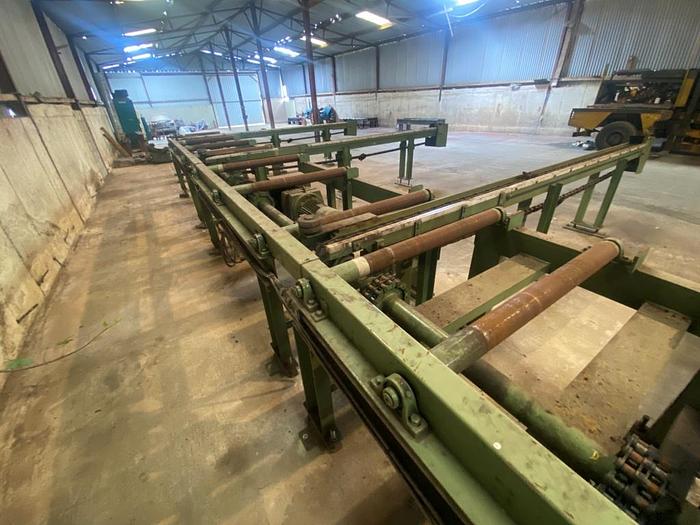

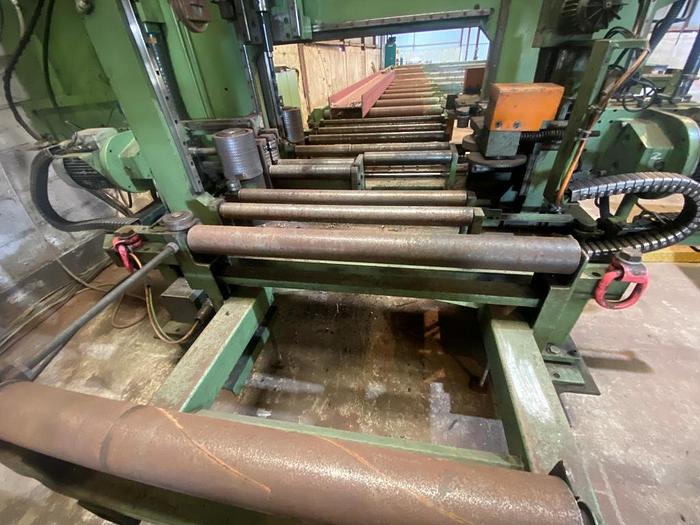

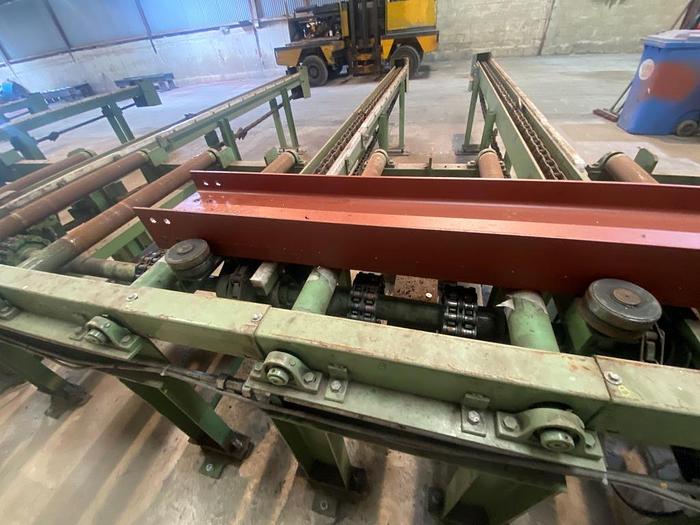

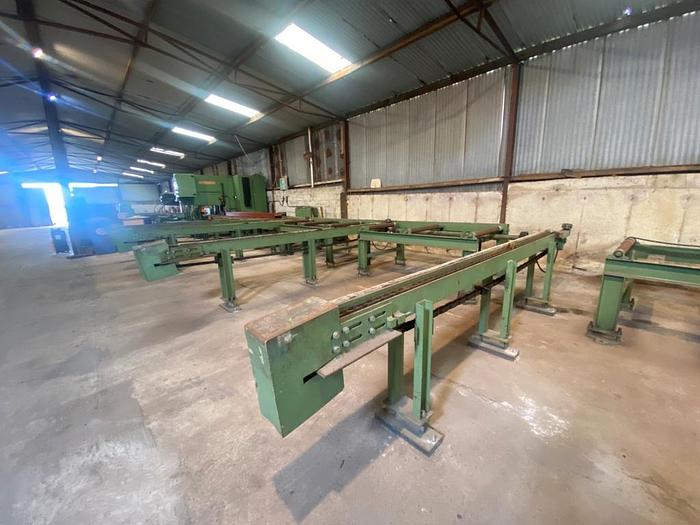

12m Infeed Powered Conveyors

12m Outfeed Powered Conveyors

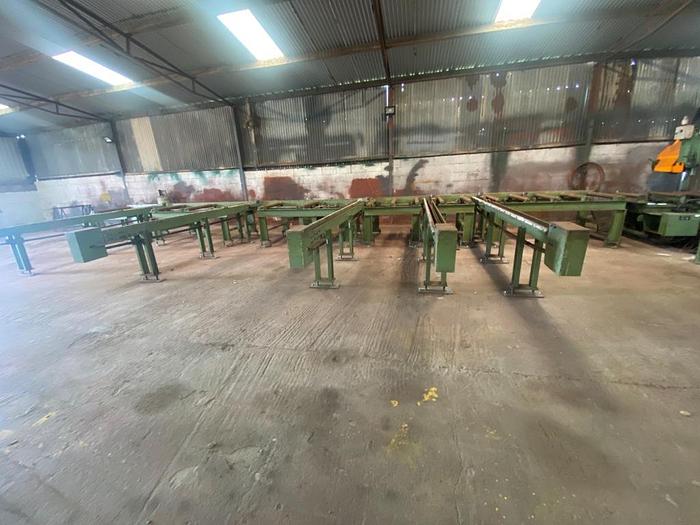

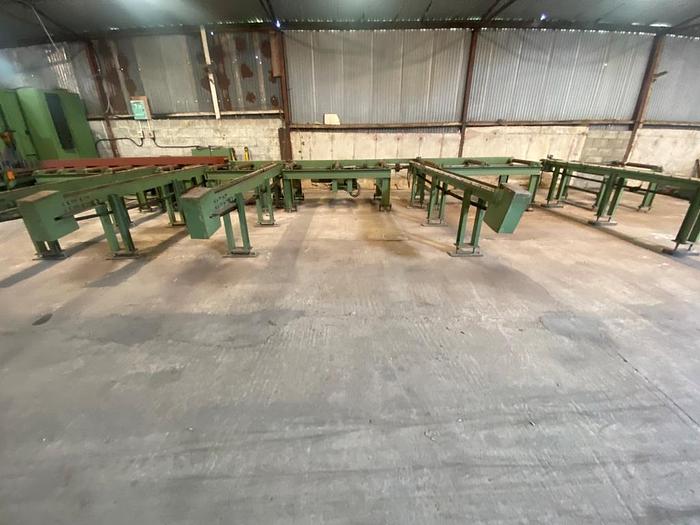

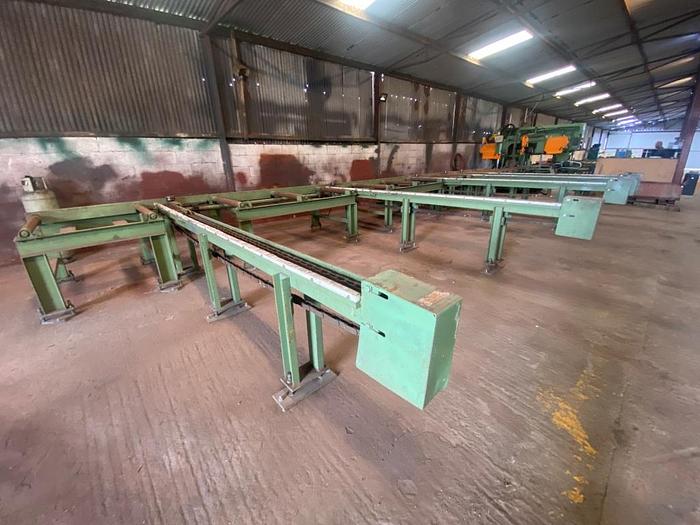

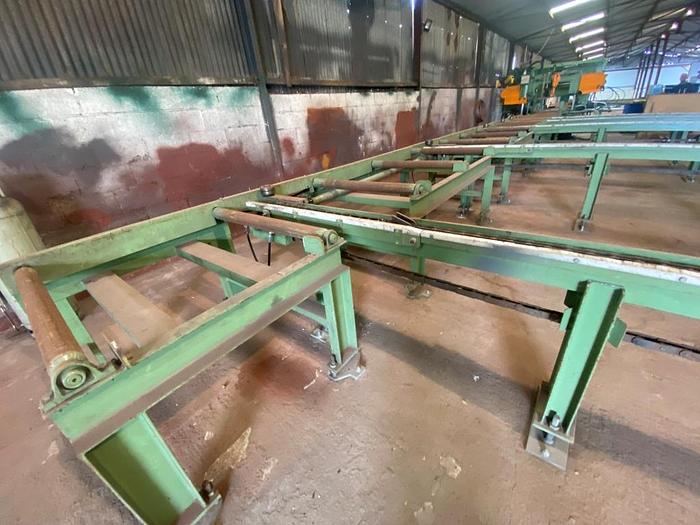

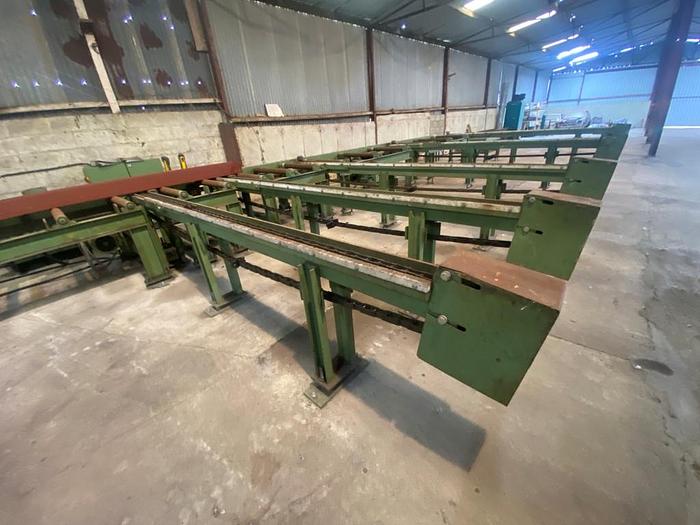

10 x 4m Cross Transfers ( 5 on infeed, 5 on outfeed)

Small Selection of Drill Bits and Sleeves

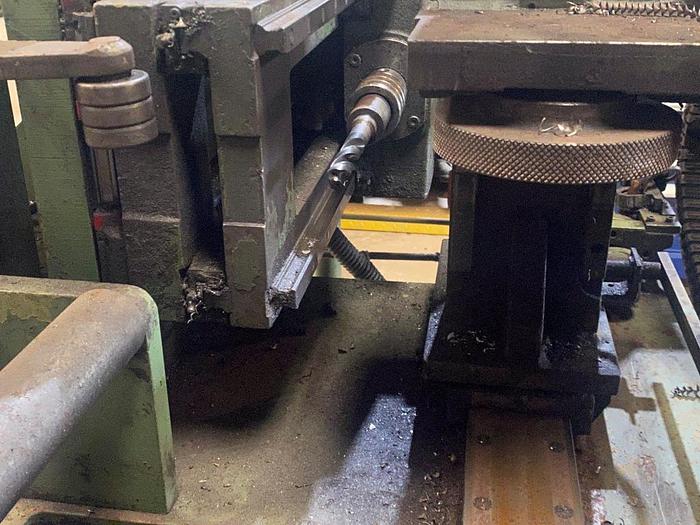

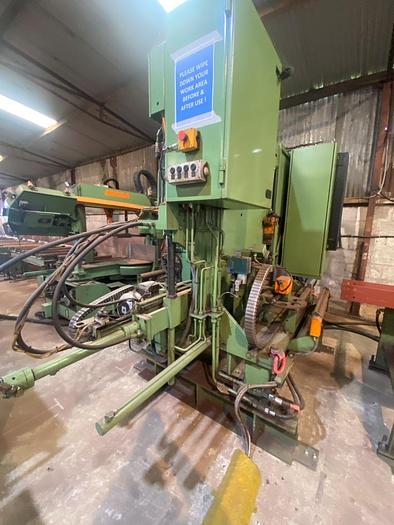

BDL 760/3 Drill Technical Specification

Max Beam Width: 750mm

Max Flange Height: 410mm

Max Profile Size: 750 x 410mm

Min Flat Steel Horizontal: 80 x 20mm

Max Flat Steel Vertical: 80 x 8mm

Spindle Advance/Retract Speed: 6.1m/min

Spindle Sensing: Automatic

Number of Drilling Spindles: 3

Spindle Taper: MT3

Spindle Power: 4kW

Spindle Speed: 0-510rpm

Variable Feed: 25-250mm/min

Spindle Traversing Speed: 10m/min

Material Positioning Speed: 40m/min

Min Drill Diameter: 8mm

Max Drill Diameter: 32mm

Max Part Weight: 6000kg

Coolant System: Flood Type

Power Requirement: 30kW

Power: 3 Phase/400V/50A

Air Requirement: 5-6Bar

BDL760/3 Dimensions: 3800 x 1700 x 2300mm

BDL760/3 Weight: 4500kg

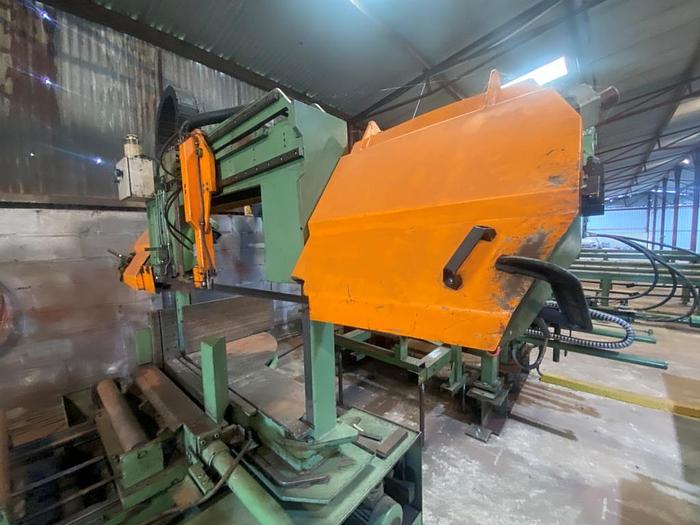

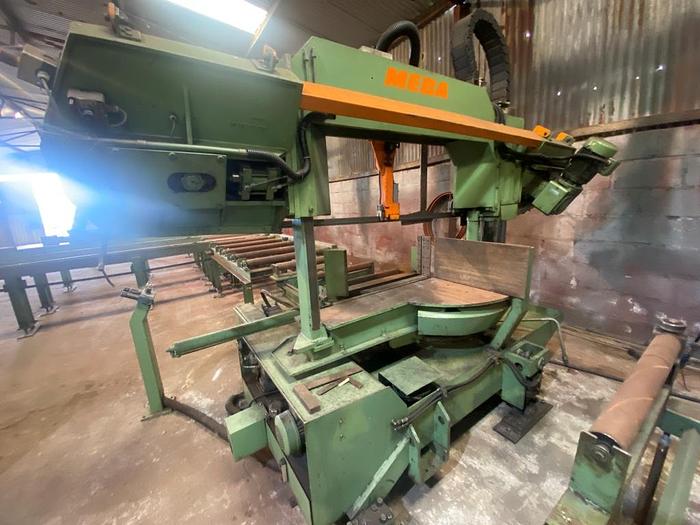

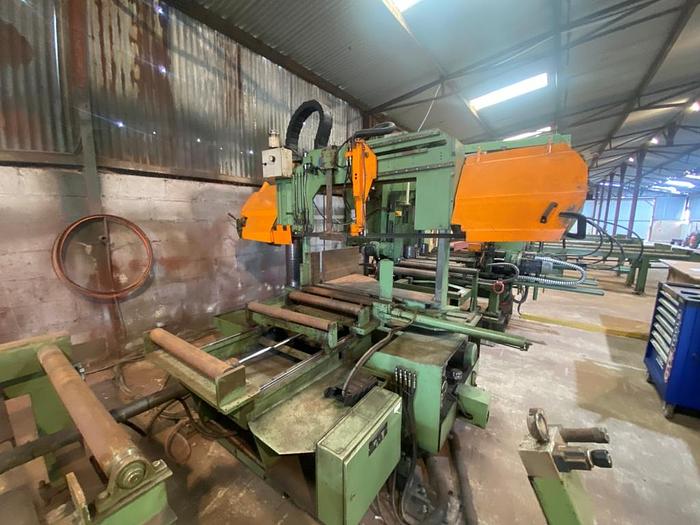

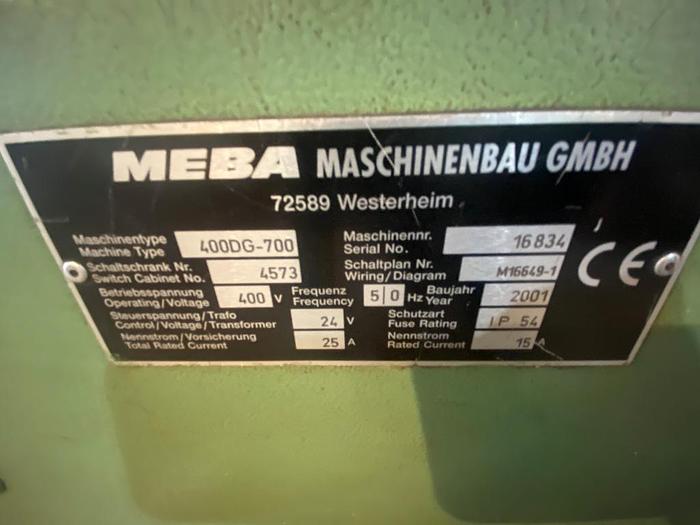

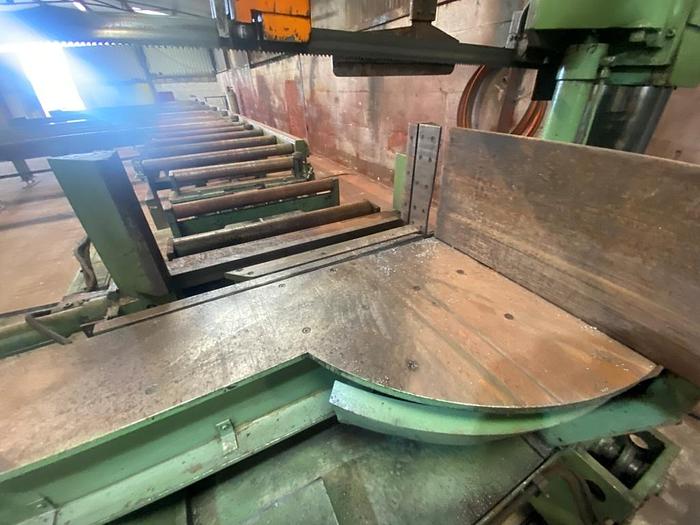

MEBA 400DG/700 Bandsaw Specification

Max Diameter: 400mm

Max Width: 700mm

Blade Size: 6760 x 41 x 1.3mm

Specifications

ManufacturerPeddinghaus
ModelBDL760/3 with Meba 400DG-700 Saw/Drill Line
Year2001
ConditionUsed
Serial Number16834
Year2001
Max Beam Width760mm
Max Flange Height406mm
Spindle Advance/Retract Speed6.1m/min
Spindle SensingAutomatic
Number of Drilling Spindles3
Spindle TaperMT3
Variable Spindle SpeedYes
Programmable Feed RateYes
Spindle Traversing Speed10m/min
Material Positioning Speed40m/min
Max Drill Diameter31.75mm (1 1/4")
Max Part Weight6000kg
Coolant SystemFlood Type
Power3 Phase/400V
Max Diameter400mm
Max Width700mm
