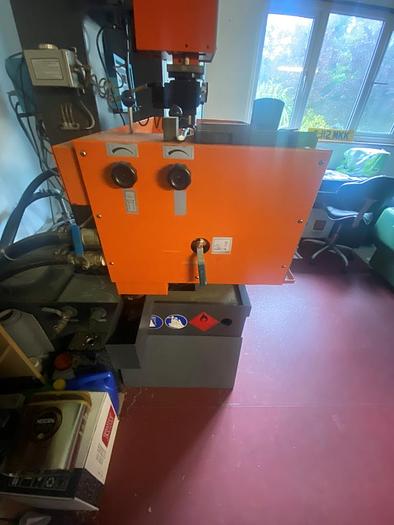

1994 Charmilles Technologies Form 2-LC EDM Machine
Sold
Description

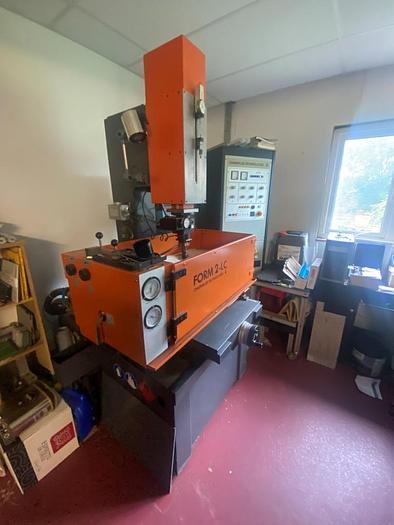

1994 Charmilles Technologies Form 2-LC EDM Machine
Machine Type: EDM Machine
Year: 1994
Condition: Very Good
Includes:
Wizard 3 Axis DRO

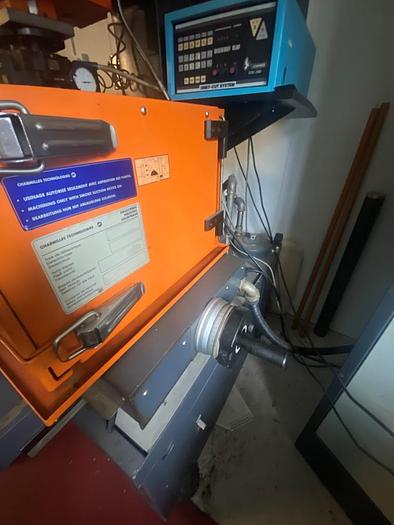

Orbit-Cut System (never used - don't know if it works)

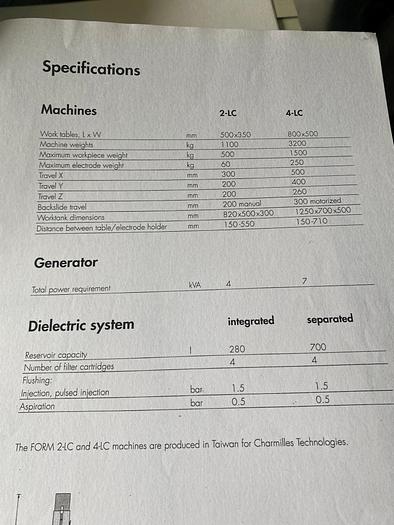

Technical Specifications
Work Table: 500 x 350mm
Max Workpiece Weight: 500kg
Max Electrode Weight: 60kg
X Axis Travel: 300mm
Y Axis Travel: 200mm
Z Axis Travel: 200mm

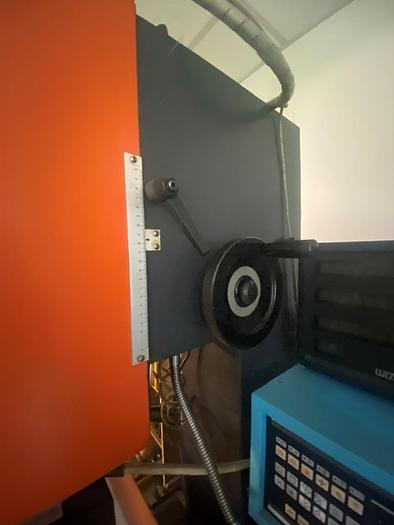

Backslide Travel: 200mm Manual
Worktank Dimensions: 820x500x300mm
Dist between Table & Electrode Holder: 150-550mm
Reservoir Capacity: 280L
Number of Filter Cartridges: 4

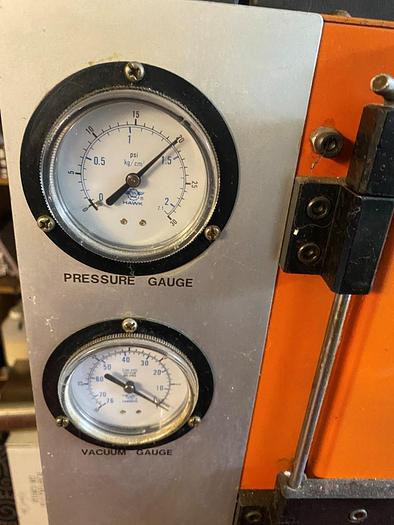

Injection/Pulsed Injection: 1.5bar
Aspiration: 0.5bar
Total Power Requirement: 4kW

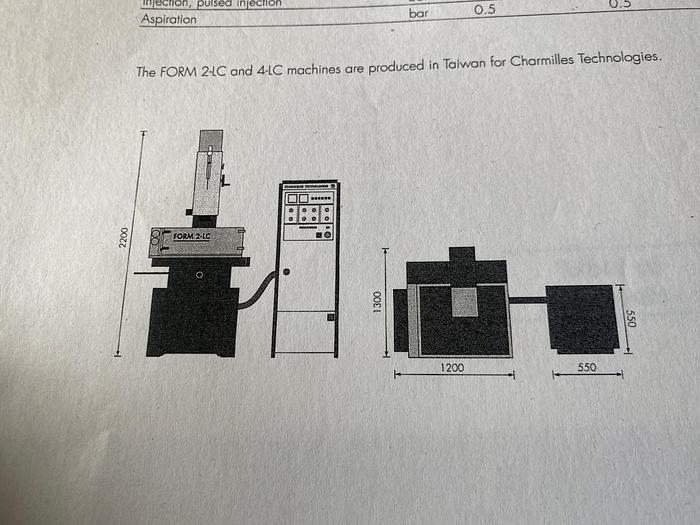

Machine Dimensions: 1200x1300x2200mm
Machine Weight: 1100kg
Specifications
| Manufacturer | Charmilles Technologies |
| Model | Form 2-LC EDM Machine |
| Year | 1994 |
| Condition | Used |

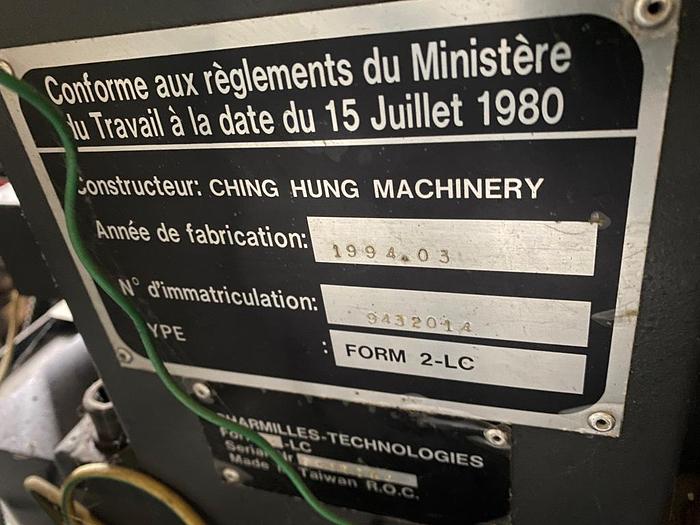

| Serial Number | 9432014 |
| Machine Type | EDM Machine |
| Year | 1994 |
| Condition | Very Good |
| Includes | Wizard 3 Axis DRO |
| Work Table | 500 x 350mm |
| Max Workpiece Weight | 500kg |
| Max Electrode Weight | 60kg |
| X Axis Travel | 300mm |
| Y Axis Travel | 200mm |
| Z Axis Travel | 200mm |
| Backslide Travel | 200mm Manual |
| Worktank Dimensions | 820x500x300mm |
| Reservoir Capacity | 280L |
| Number of Filter Cartridges | 4 |
| Injection/Pulsed Injection | 1.5bar |
| Aspiration | 0.5bar |
| Total Power Requirement | 4kW |
| Machine Dimensions | 1200x1300x2200mm |
| Machine Weight | 1100kg |
