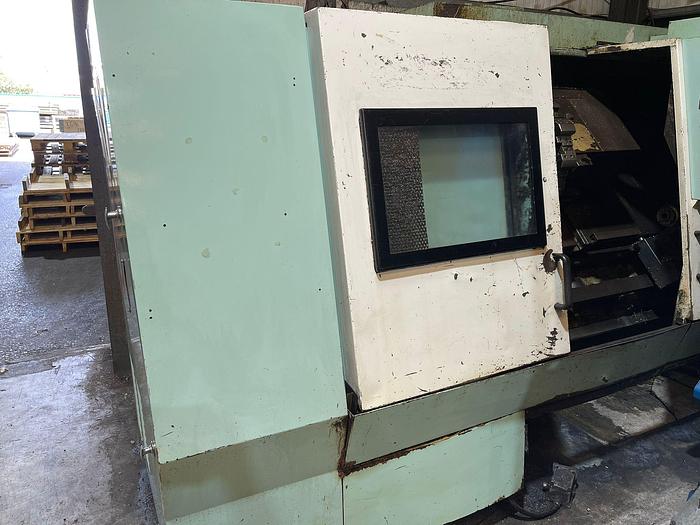

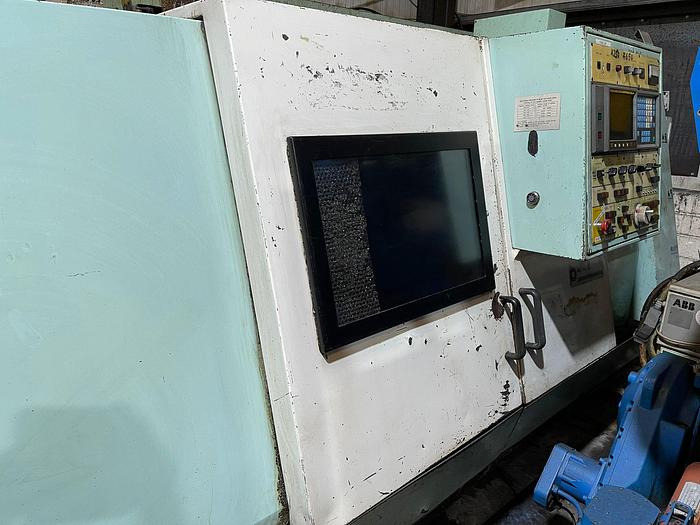

Victor Vturn-26 CNC Lathe
Sold
Description
Victor Vturn-26 CNC Lathe
Machine Type: 2 Axis CNC Lathe
Year: Unknown

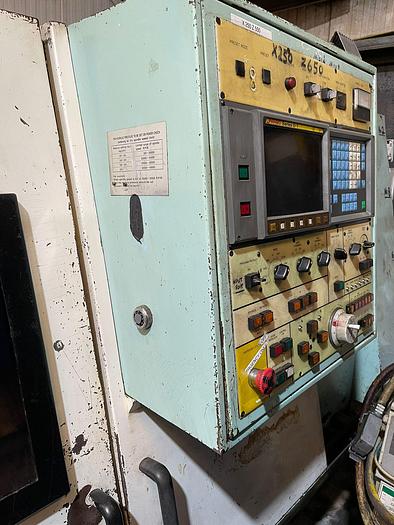

Control: Fanuc OT-C Control
Condition: Can be viewed running. Missing it's swarf conveyor
Technical Specifications
Swing Over Bed: 520mm
Standard Turning Diameter: 290mm
Max Turning Diameter: 380mm
Swing Over Carriage: 350mm
Centre Distance: 650mm
X Axis Travel: 240mm
Z Axis Travel: 610mm
Rapid Feed X/Z: 12/15m/min
Spindle Nose: A2-8 (10")
Max Spindle Speed:, 3500rpm
Spindle Motor: 15kW
Spindle Bore: 87mm
Hole Through Drawbar: 75mm
Turret Positions: 10
Live Tools: No
Tool Shank Size: 25mm
Max Boring Bar Diameter: 50 (VDI-40)
Tailstock Quill Diameter: 110mm
Tailstock Quill Stroke: 100mm
Tailstock Quill Taper: MT4
Machine Dimensions: 3800 x 1700 x 2000mm
Machine Weight: 5400kg
Specifications
| Manufacturer | Victor |
| Model | Vturn-26 CNC Lathe |
| Condition | Used |

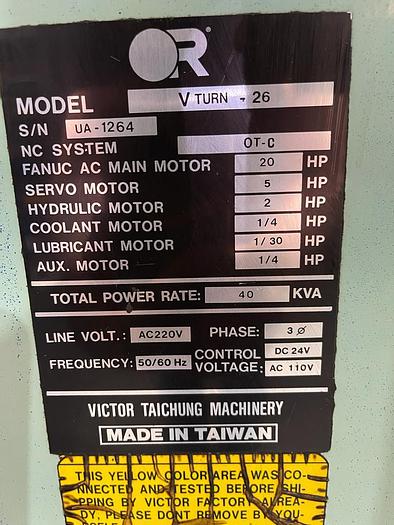

| Serial Number | UA-1264 |
| Machine Type | 2 Axis CNC Lathe |
| Control | Fanuc OT-C Control |
| Swing Over Bed | 520mm |
| Standard Turning Diameter | 290mm |
| Max Turning Diameter | 380mm |
| Swing Over Carriage | 350mm |
| Centre Distance | 650mm |
| X Axis Travel | 240mm |
| Z Axis Travel | 610mm |
| Rapid Feed X/Z | 12/15m/min |
| Spindle Nose | A2-8 (10") |
| Max Spindle Speed | , 3500rpm |
| Spindle Motor | 15kW |
| Spindle Bore | 87mm |
| Hole Through Drawbar | 75mm |
| Turret Positions | 10 |
| Live Tools | No |
| Tool Shank Size | 25mm |
| Max Boring Bar Diameter | 50 (VDI-40) |
| Tailstock Quill Diameter | 110mm |
| Tailstock Quill Stroke | 100mm |
| Tailstock Quill Taper | MT4 |
| Machine Weight | 5400kg |
