€8,900 + VAT

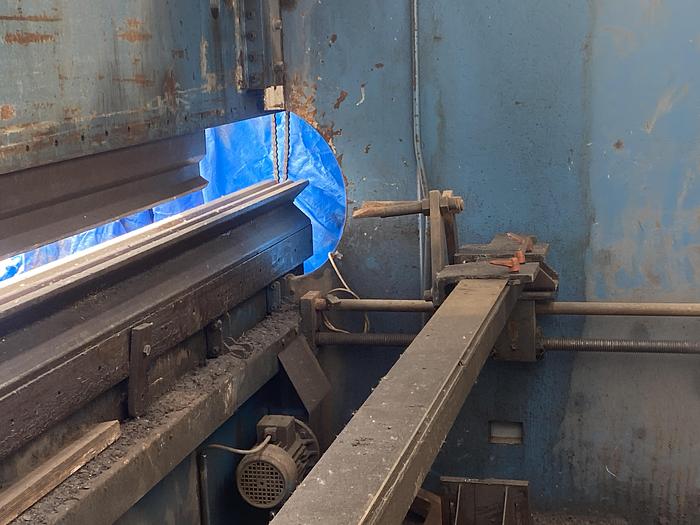

Haco 3.6m x 135T Hydraulic Pressbrake

1

Ireland

orCall +353 838108745

Description

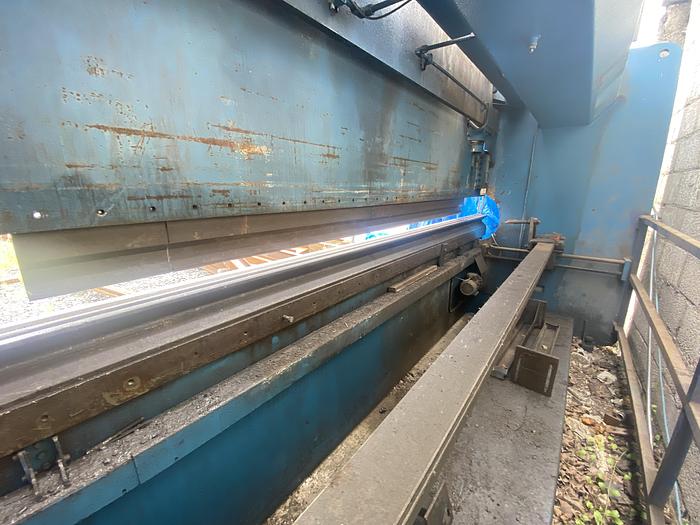

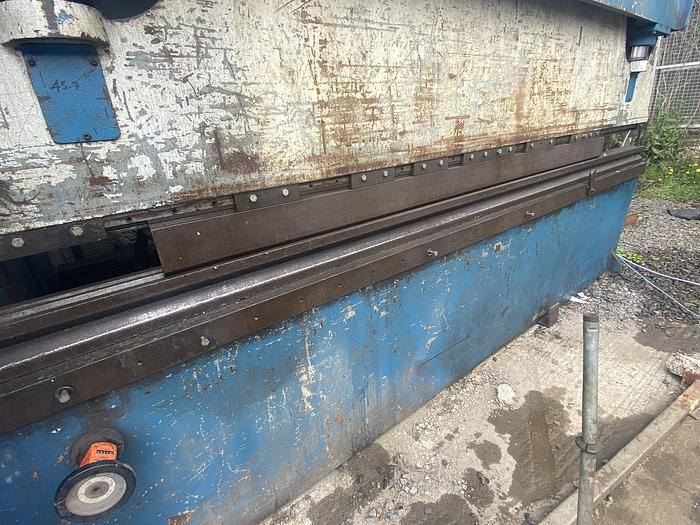

HACO 3.6m x 135T Hydraulic Pressbrake


Machine Type: Hydraulic Pressbrake

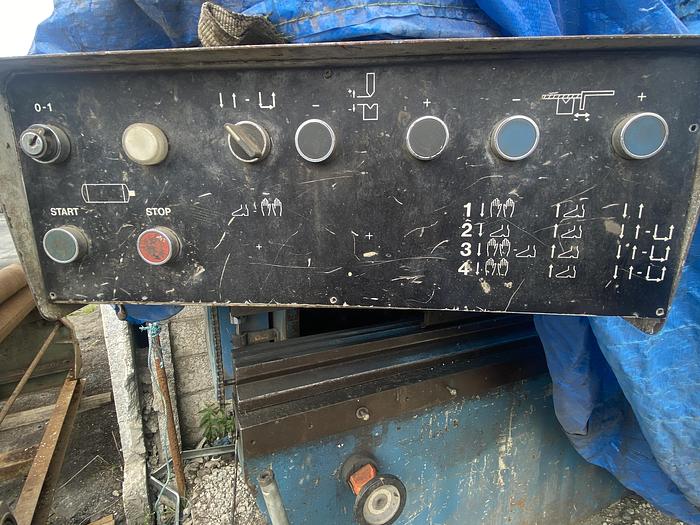

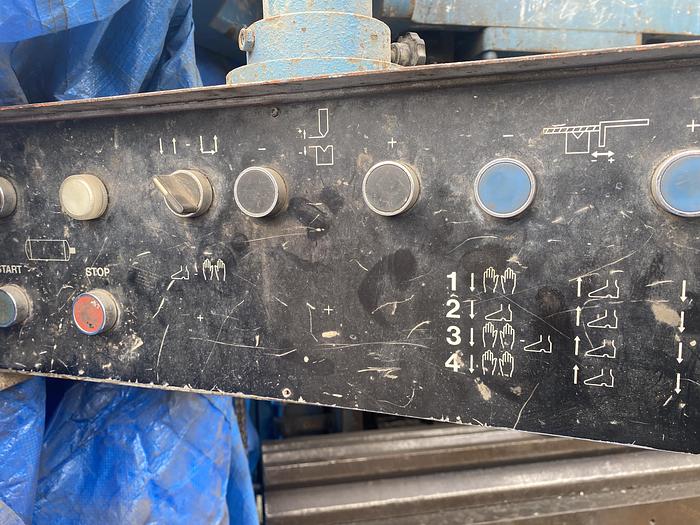

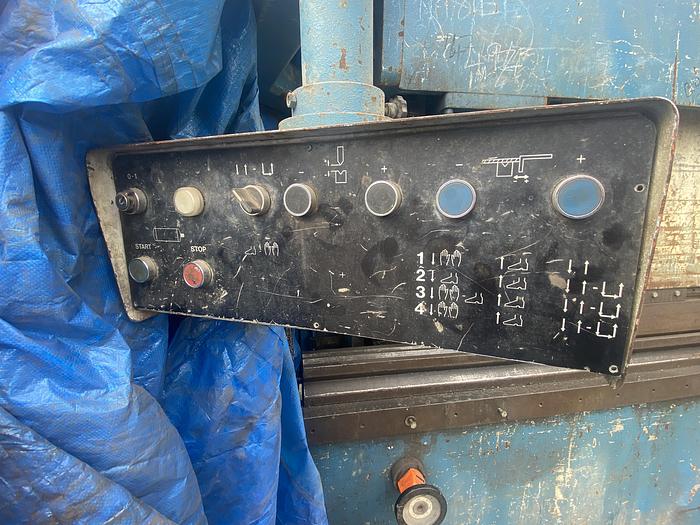

Control: Manual

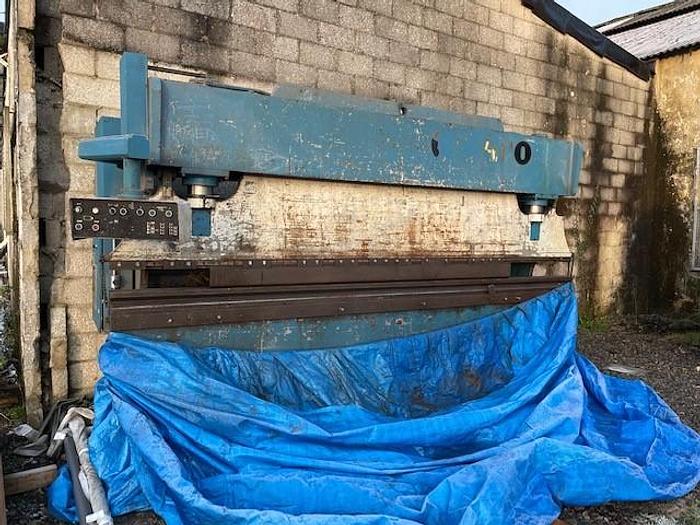

Condition: OK. Not good enough for very accurate work. Now stored outside under covers. Can be viewed working.


Includes

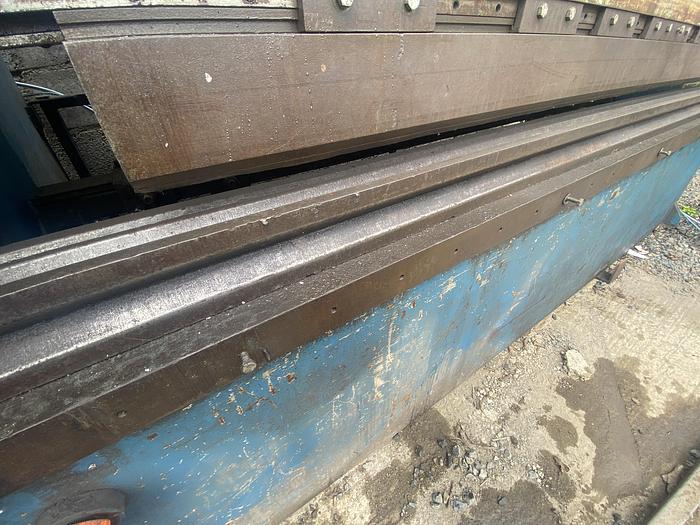

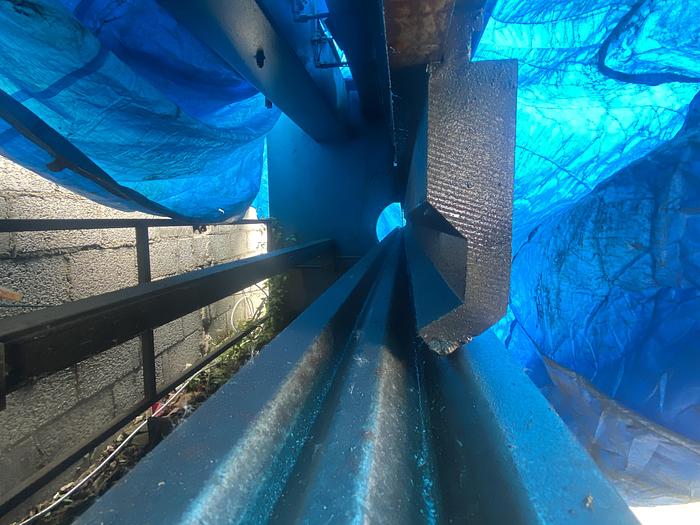

Top Tooling

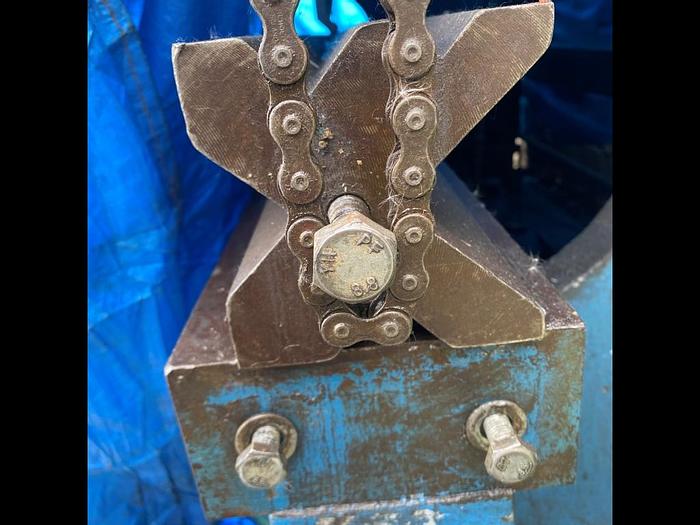

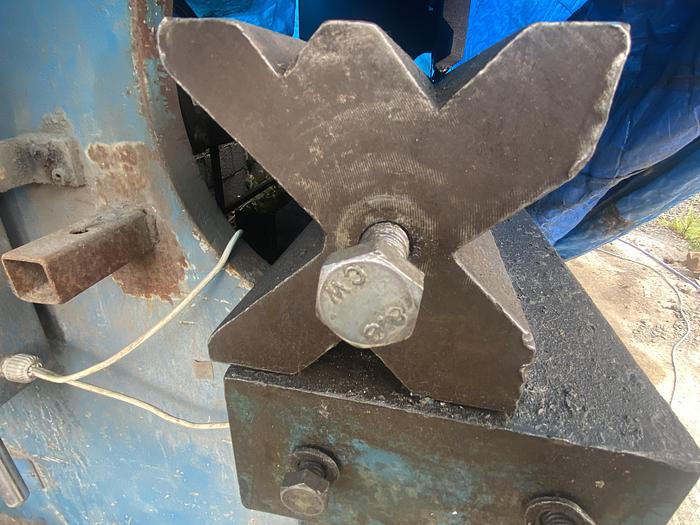

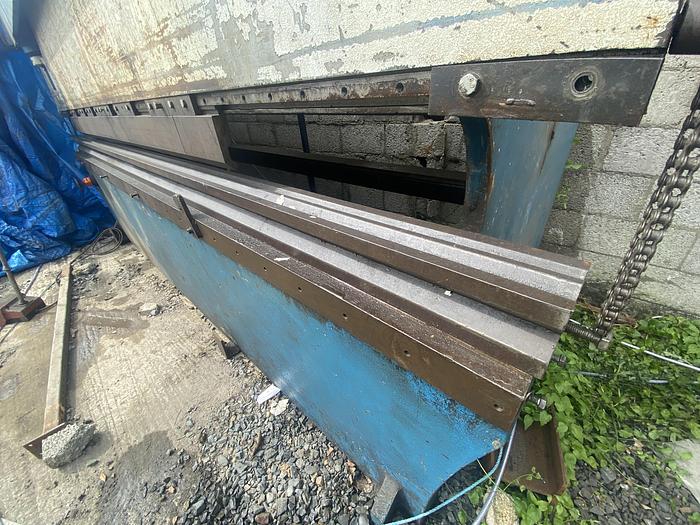

Multi Vee Block Bottom Tool

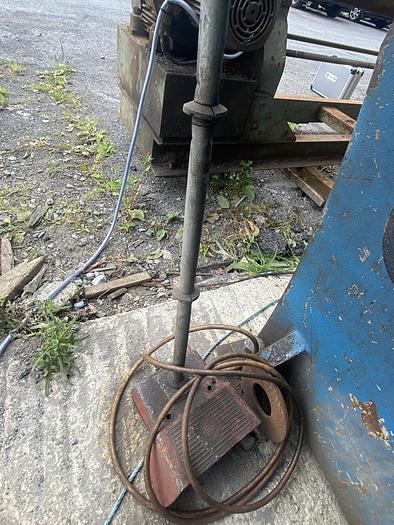

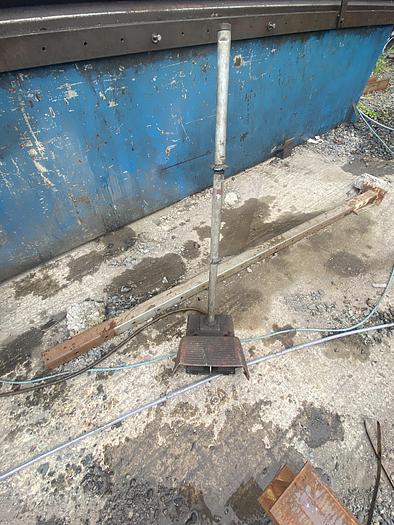

Wanderer Type Foot Pedal

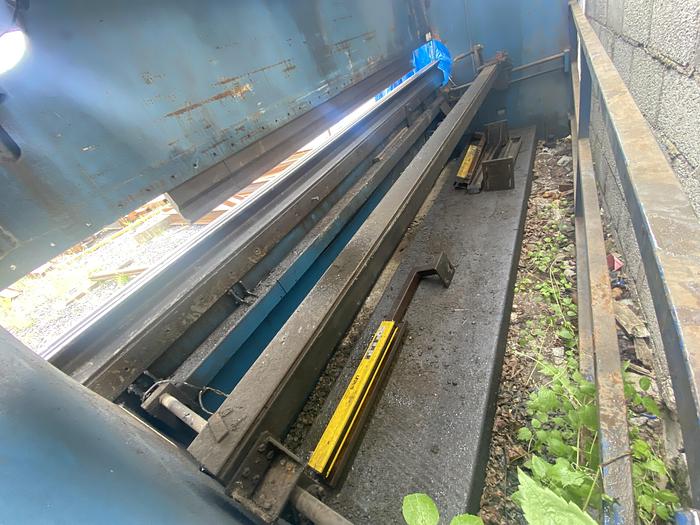

Light Guards (currently disconnected)


Technical Specification

Max Bending Length: 3600mm

Max Tonnage: 135T

Distance Between Side Frames: 3150mm

Throat: 250mm

Daylight: 325mm

Stroke: 120mm

Table Height: 915mm

Max Approach Speed: 70mm/Sec

Max Bending Speed: 7mm/sec

Max Return Speed: 60mm/sec

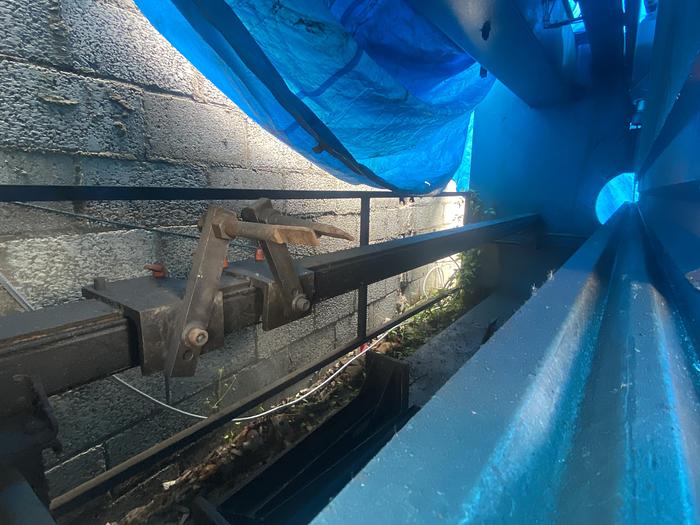

Back Gauge Fingers: 2

Back Gauge Travel: 800mm

Back Gauge Powered Axis: 1 (X)

Motor Power: 7.5kW

Dimensions: 4400 x 1700 x 2280mm

Weight: 9800kg

Specifications

ManufacturerHaco
Model3.6m x 135T Hydraulic Pressbrake
ConditionUsed
Stock Number968715
Machine TypeHydraulic Pressbrake
ControlManual
Max Bending Length3600mm
Max Tonnage135T
Distance Between Side Frames3150mm
Throat250mm
Daylight325mm
Stroke120mm
Table Height915mm
Max Approach Speed70mm/Sec
Max Bending Speed7mm/sec
Max Return Speed60mm/sec
Back Gauge Fingers2
Back Gauge Travel800mm
Back Gauge Powered Axis1 (X)
Motor Power7.5kW
Weight9800kg
